A Formula 1 race car produced by Tyrrell.

History

The following section is an excerpt from Wikipedia's Tyrrell 019 page on 2 November 2015, text available via the Creative Commons Attribution-ShareAlike 3.0 Unported License.

The Tyrrell 019 was a Formula One racing car, designed by a team led by Harvey Postlethwaite, and built by Tyrrell. It was an evolution of Postlethwaite's first design for Tyrrell, the Tyrrell 018.

The 019 marked a significant point in the evolution of Formula One design in having an elevated nose cone. This was the first time that such an idea had been tried in Formula One racing, and set the template for aerodynamic design ever since. The car was introduced two races into the 1990 Formula One season, scoring a point on its debut in the hands of Jean Alesi. This type of nose cone was gradually adopted by other teams and became the de rigueur design by 1996 in Formula One. The car was powered by the Ford DFR V8 engine - a descendant of the legendary but venerable Cosworth DFV.

Design

Although the 018 had a modestly successful season in 1989, Harvey Postlethwaite did not rest on his laurels. Postlethwaite was an experienced F1 engineer, having previously built race-winning cars for Hesketh, Wolf and Ferrari, and so was well placed to spot the shortcomings of his own design. Taking the 018 as their base, Postlethwaite and Tyrrell Chief Designer Jean-Claude Migeot decided to try to improve the aerodynamic efficiency of the chassis. One area in particular attracted their attention: the underbody airflow. While true ground effect designs had been outlawed during the 1980s, the contemporary practice of coupling a flat, stepped chassis undertray with a large rear diffuser meant that many cars still produced a significant proportion of their downforce through the generation of a low-pressure air mass underneath the car. What Postlethwaite and Migeot realised was that the efficiency of this low-pressure generating system was being seriously compromised by the low nose position at the front end of the car. These low nose cones effectively diverted air sideways and upwards around the cars' upper bodywork, and reduced the volume of air passing underneath the car. However, the generation of low pressures relies on increasing the speed of the air passing underneath the car, in relation to that passing over and around it. In simple terms, the more air that can be drawn underneath a car, the faster that air will have to be moving, and the faster the air is moving, the lower the pressure. By raising the nose cone of the car, Postlethwaite and his team increased the volume of air that was able to pass underneath the car. Conversely, the efficiency of the front wing aerofoils are increased the closer they are to the ground. These conflicting requirements led to the design of the 019's distinctive inverted-V, anhedral front profile.


Photographs

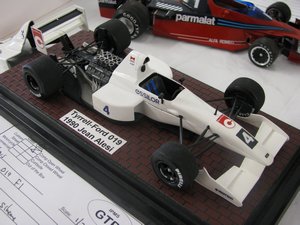

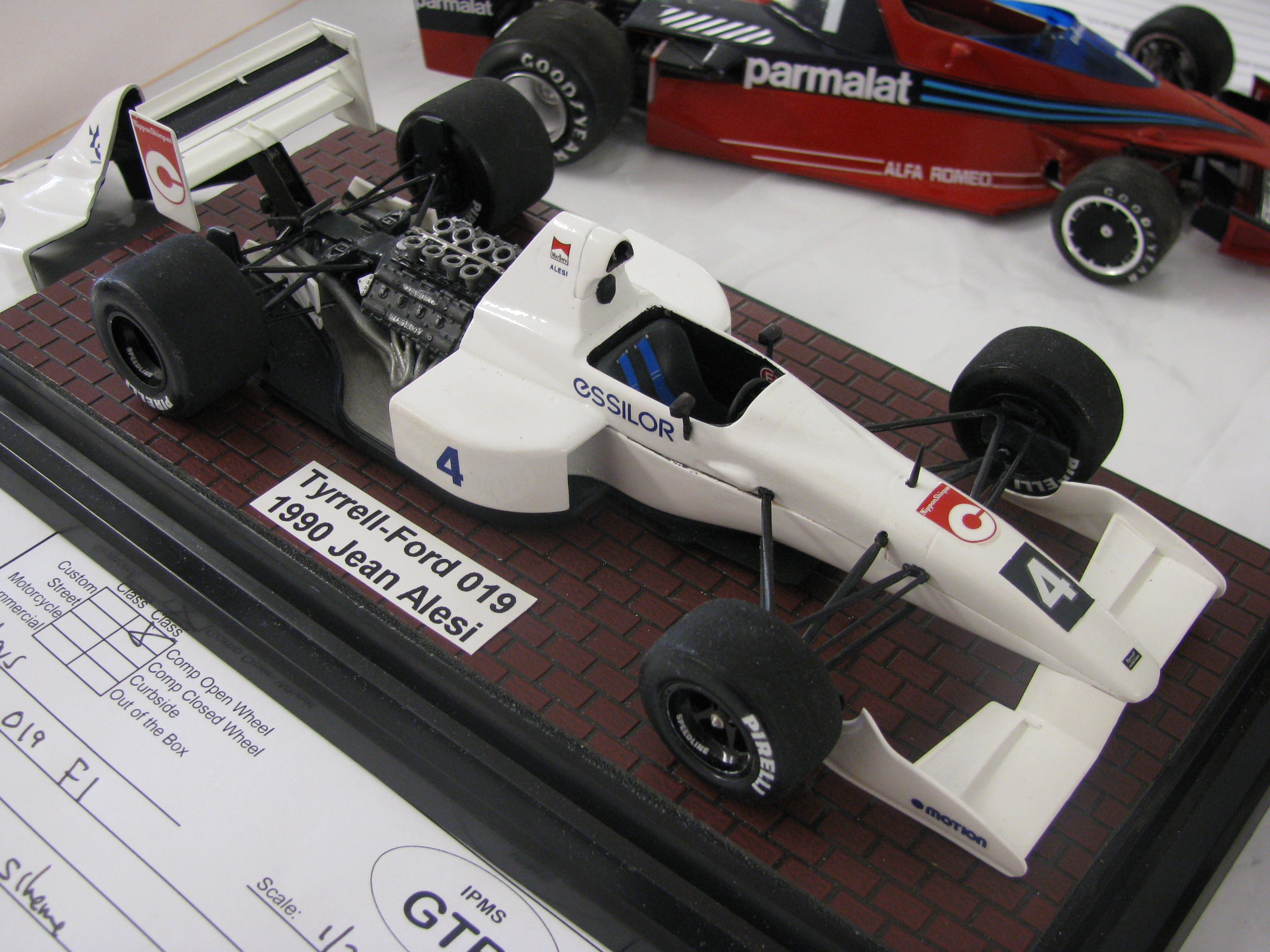

Jean Alesi Tyrrell-Ford 019 Model Jean Alesi's 1990 Ford
Tamiya kit
Photo ©2009 Bill Crittenden
2009 Summer NNL hosted by GTR Auto Modelers
View photo of Jean Alesi Tyrrell-Ford 019 Model Car - 3,428KB

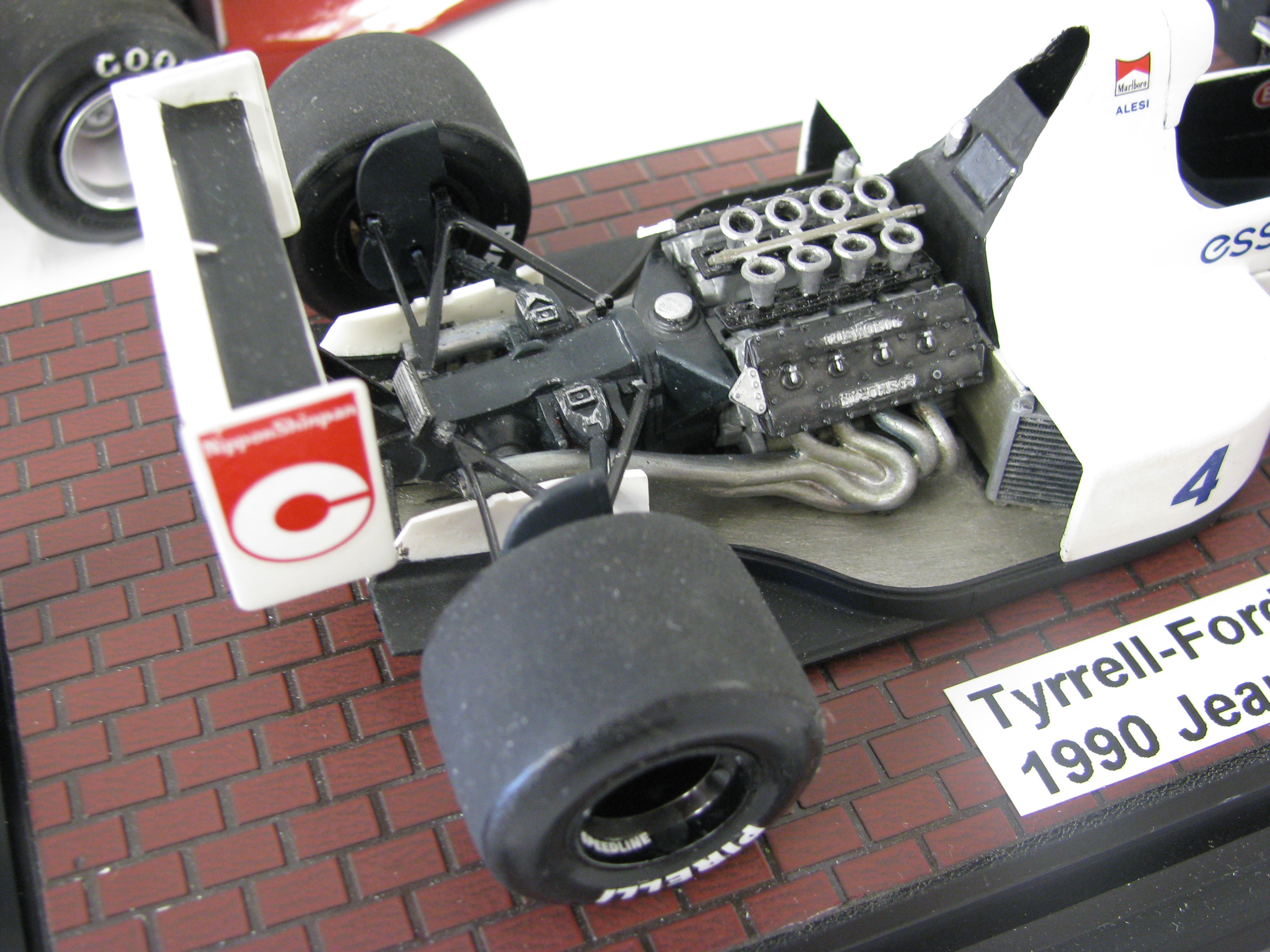

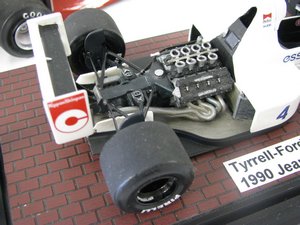

Jean Alesi Tyrrell-Ford 019 Model Jean Alesi's 1990 Ford
Tamiya kit
Photo ©2009 Bill Crittenden
2009 Summer NNL hosted by GTR Auto Modelers
View photo of Jean Alesi Tyrrell-Ford 019 Model Car - 3,220KB
