A compact car produced by Hyundai beginnning in 1990.

Since its introduction, it has always been offered in sedan form, and in certain years station wagons or 5-door hatchback models and station wagons have been available.



History

The following section is an excerpt from Wikipedia's Automotive Industries page on 1 September 2019, text available via the Creative Commons Attribution-ShareAlike 3.0 Unported License.

The Hyundai Elantra (Korean: 현대 엘란트라), or Hyundai Avante (현대 아반떼) in South Korea, is a compact car produced by the South Korean manufacturer Hyundai since 1990.

The Elantra was initially marketed as the Lantra in Australia and some European markets. In Australia, this was due to the similarly named Mitsubishi Magna Elante model. This gave rise to a disagreement with other motor manufacturers, and the name was standardized as "Elantra" worldwide in 2001 (except in Korea).

First generation (J1; 1990–1995)

Launched in October 1990, the Elantra (codename J1) received a mid-term facelift in 1993.

It was sold in Europe from the spring of 1991. It replaced the somewhat larger on the outside Stellar, although that model had not been offered in many markets. The Elantra competed with the likes of the Ford Sierra and Vauxhall Cavalier/Opel Vectra, but at a considerably lower price.

The Elantra was powered by a Mitsubishi-designed 1.6 L (1595 cc) straight-four. This DOHC 16-valve 1.6 L unit produced 113 hp (84 kW) at 6000 rpm and could push the Elantra to 60 mph (97 km/h) in 9.5 seconds. The quarter-mile (0.4 km) run took 17.1 seconds and produced 80 mph (129 km/h). Top speed was 116 mph (187 km/h). The Elantra got 22 mpg‑US (11 L/100 km) in the city cycle. Starting in 1993 a Mitsubishi-designed 1.8 L (1836 cc) inline-four option was available; this unit produces 124 hp (99 kW) at 6000 rpm.

Second generation (J2/RD; 1995–2000)

The first Hyundai J2-series model (Hyundai Avante) was launched in the Asia Korean Domestic Market in March 1995. The first variants were offered with either 5-speed manual transmission or a 4-speed automatic transmission and was "only" equipped with an Alpha II G4FK DOHC (1495 cm3/ 91.2 cui) with an advertised power of 79 kW/ 106 hp /107 PS ( JIS net) and 137 Nm / 101 lb-ft of torque.

The introduction of the first Hyundai Beta-series engine came in September 1995 which was manufactured and sold in the European market and vehicle versions and sub-models were named Lantra (Mk2).

New grilles arrived in 1998 for the 1999 model year. The Lantra in Europe converged into a single-front end design, for both sedan and wagon. The model received the "RD2" or "J3" model codes. A PSA-built 1.9-liter atmospheric diesel option was also added for some European markets, producing 68 PS (50 kW).

Third generation (XD; 2000–2011)

An all-new model (codename XD) was launched in 2000. The station wagon version was dropped in favor of a five-door hatchback. Starting in 2001, all American models came with standard front and front-side airbags, air conditioning, power locks, power windows and power steering. This simplified dealer inventories and repairs and also sought to improve Hyundai's image of "value" cars.

In 2003, all models were refreshed (codename XD2); this introduced new headlights and taillights, a new grille, new front and rear bumpers, a refreshed hood and trunk, and a redesigned dashboard.

The GLS trim is standard for the Elantra. The top-of-the-line model, the GT trim, came with a stiffer suspension, leather seats, fog lights, alloy wheels, lip spoiler and blue-lit instrument cluster. Offered as a hatchback since 2001 as a 2002 model year vehicle, the only options for the GT were a power moonroof and anti-lock brakes with traction control. The only major option was a Kenwood MP3/CD deck. The GT trim sedan was introduced in 2003 and discontinued in 2005. The GT trim was replaced for the 2006 model year with the Limited trim, which featured new paint colors, a chrome vertical grille, leather interior with leather steering wheel and leather shifter and wood trim. The Limited trim featured steel rims with a 6-spoke cover featured in the GLS model. The GT trim for the five-door was produced for the remainder of the 2006 model year.

In China, the Elantra XD was produced by Beijing Hyundai from December 23, 2003 to 2011. This car has been used as a taxicab in Beijing since 2005 and replaced the popular red Tianjin Xiali taxi in 2006 in an effort to cut down pollution. The Elantra is available in 5 door hatchback for 2007 and sedan form from 2003 to 2010. Pre facelifted models of the Elantra XD were produced for the 2004 model year and had a facelift in 2007 consisting of new headlights, radiator, rear foglights on the rear bumper and new wheels. Production ran up to 2010. It was facelifted again for the 2011 model year featuring new front and rear lights, bumpers, a single rear bumper fog light, radiator and power folding mirrors with integrated turn signals. A 1.6 liter engine is available on taxi and passenger cars paired with a 5 speed manual gearbox. A 1.8 liter engine was available until 2007.

Fourth generation (HD; 2006–present)

A redesigned sedan (designated HD) debuted at the 2006 New York Auto Show for the 2007 model year. As before, the HD sold under the Hyundai Avante name in its South Korean home market. It used a resurrected appearance from the 1960s and 1970s called "coke bottle styling".

The engine lineup included 1.6- Gamma and 2.0-liter Beta II gasoline inline-four engines, and a 1.6-liter turbodiesel inline-four. All engines featured improved fuel economy. A five-speed manual transmission was standard with an optional four-speed automatic.

According to the Insurance Institute for Highway Safety (IIHS) the Elantra received a Good overall score in the frontal crash test and a Marginal overall score in the side impact test, but all Hyundai Elantras manufactured after November 2009 earned a Good overall score in the side impact test. Standard side airbags included front and rear head curtain airbags and front seat-mounted torso airbags.


Reference Desk

The Crittenden Automotive Library's "Reference Desk" is a collection of materials that cannot be shared due to copyright restrictions. Information from these resources, however, can be shared. Go to the Reference Desk page for more information.

TypeTitle
1997 BookHyundai Coupes/Sedans 1994-1998 Repair Manual by James R. Marotta, A.S.E.; Chilton Automotive Books



Photographs

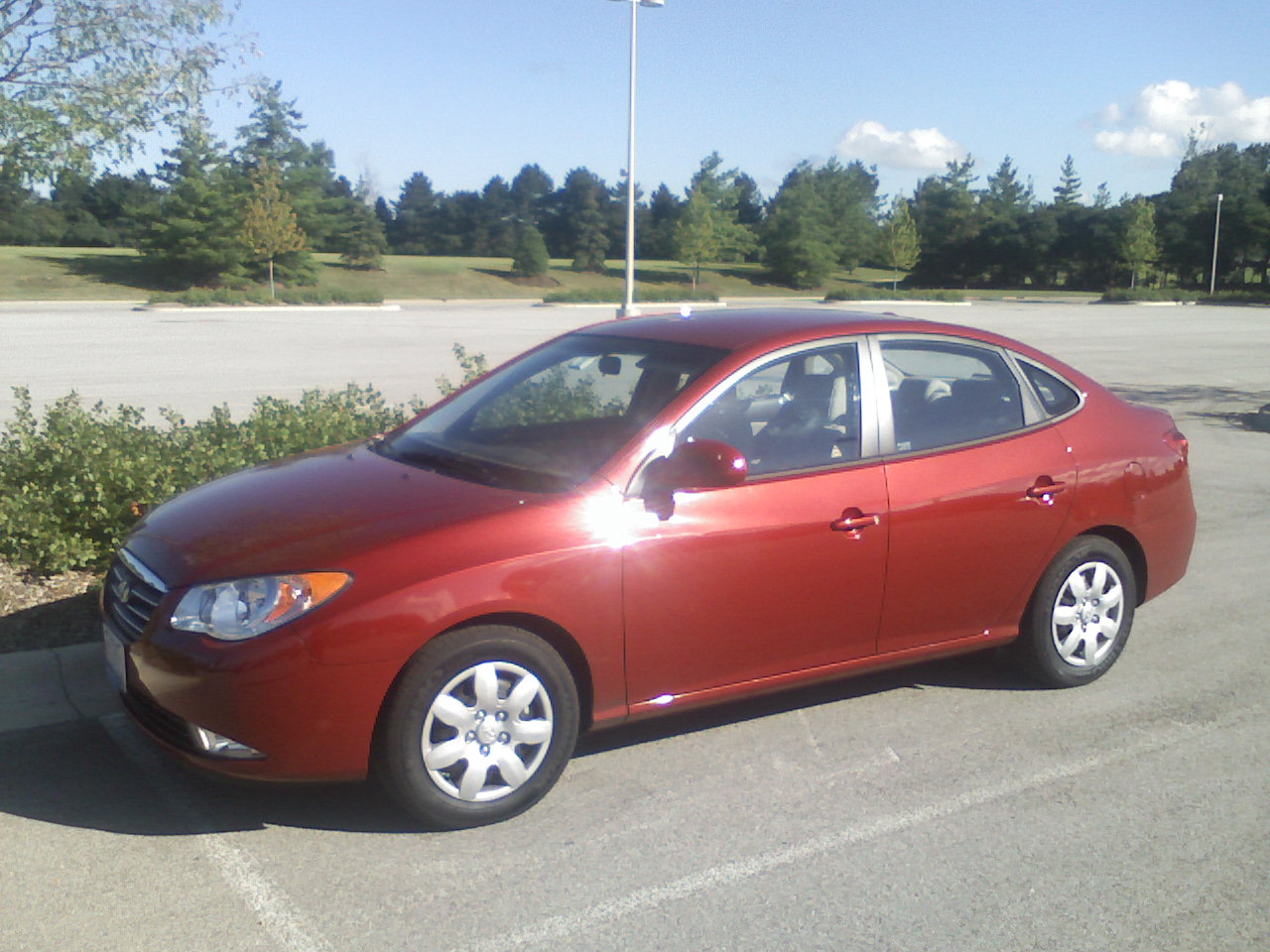

Hyundai Elantra Photo ©2008 Bill Crittenden
View photo of Hyundai Elantra - 240KB

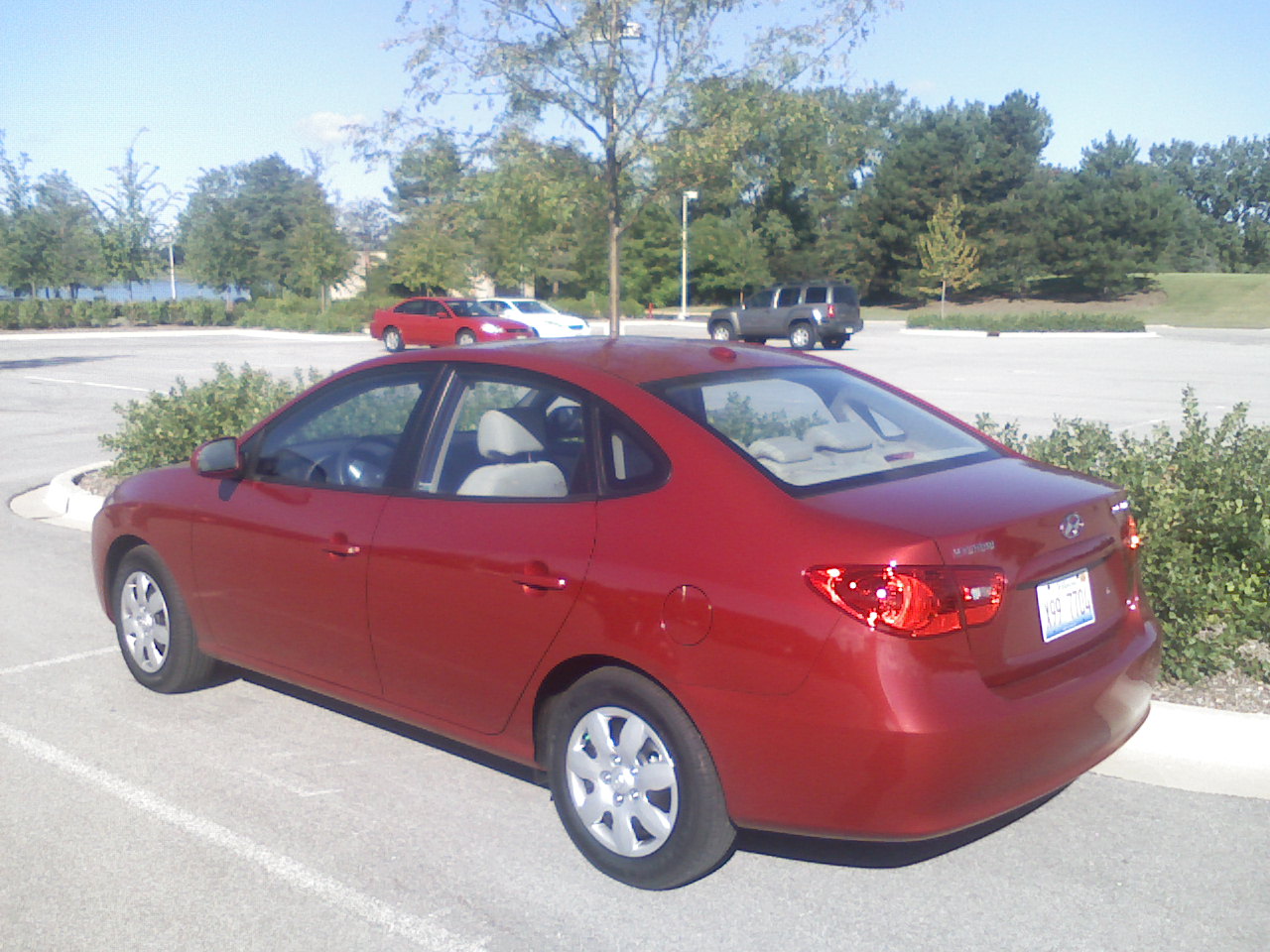

Hyundai Elantra Photo ©2008 Bill Crittenden
View photo of Hyundai Elantra - 258KB

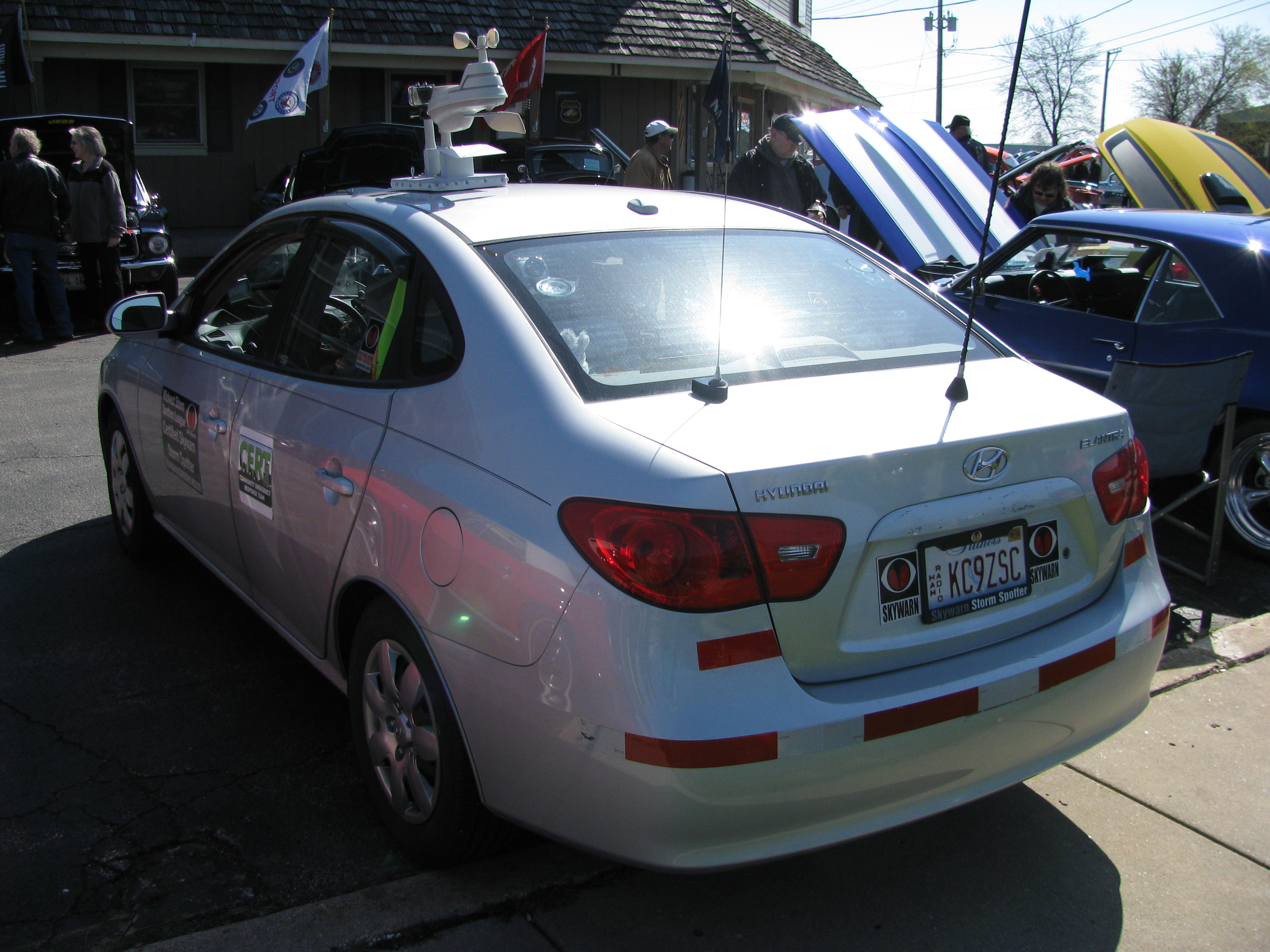

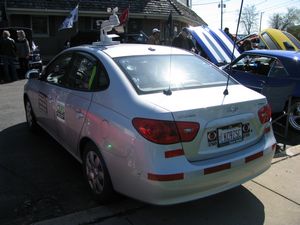

Certified Skywarn Spotter Hyundai Elantra Certified Skywarn Spotter
Photo ©2015 Bill Crittenden
2015 Cruisin' Spring Car Show
View photo of Certified Skywarn Spotter Hyundai Elantra - 3.8MB

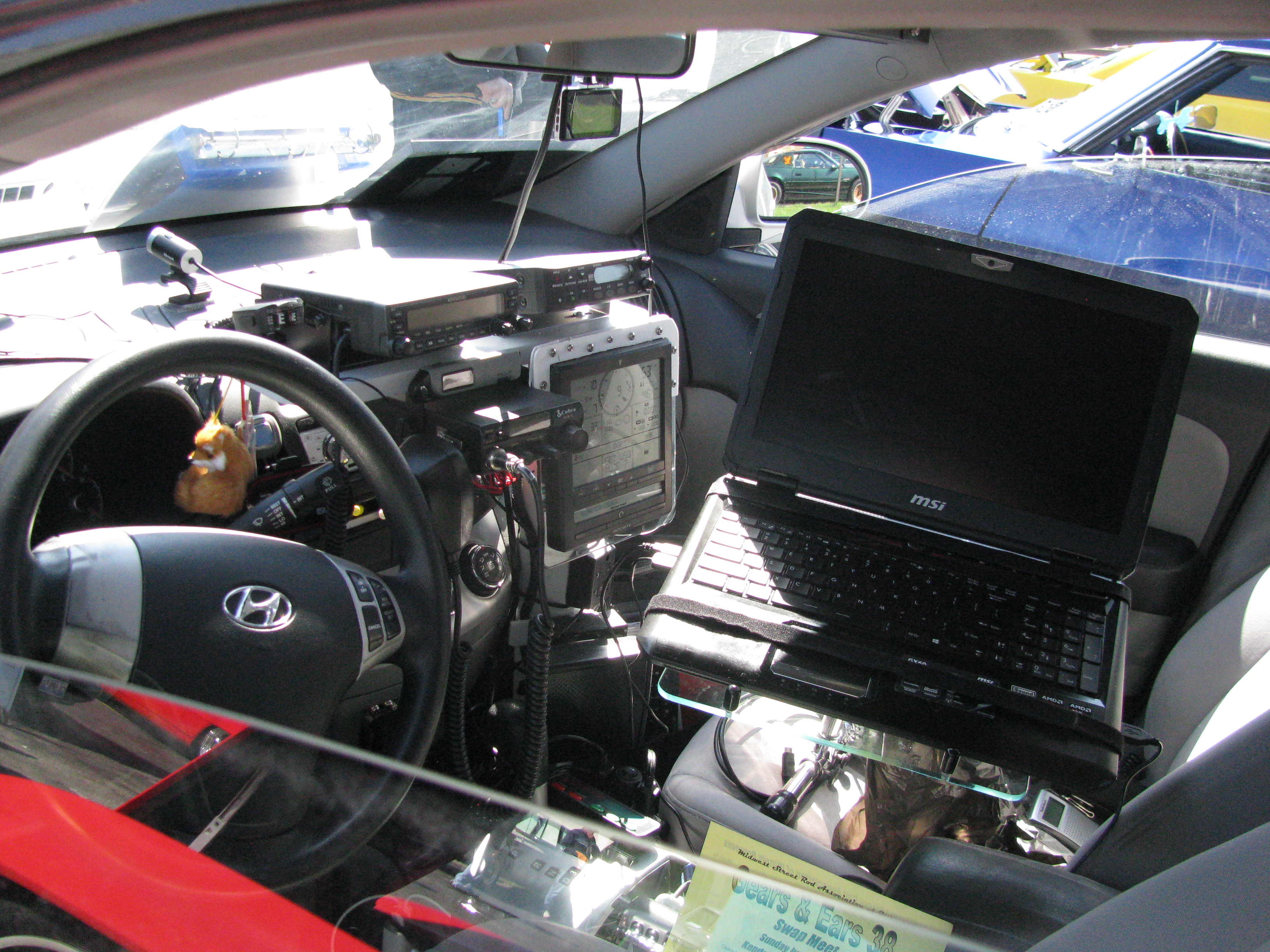

Certified Skywarn Spotter Hyundai Elantra Certified Skywarn Spotter
Photo ©2015 Bill Crittenden
2015 Cruisin' Spring Car Show
View photo of Certified Skywarn Spotter Hyundai Elantra - 3.0MB

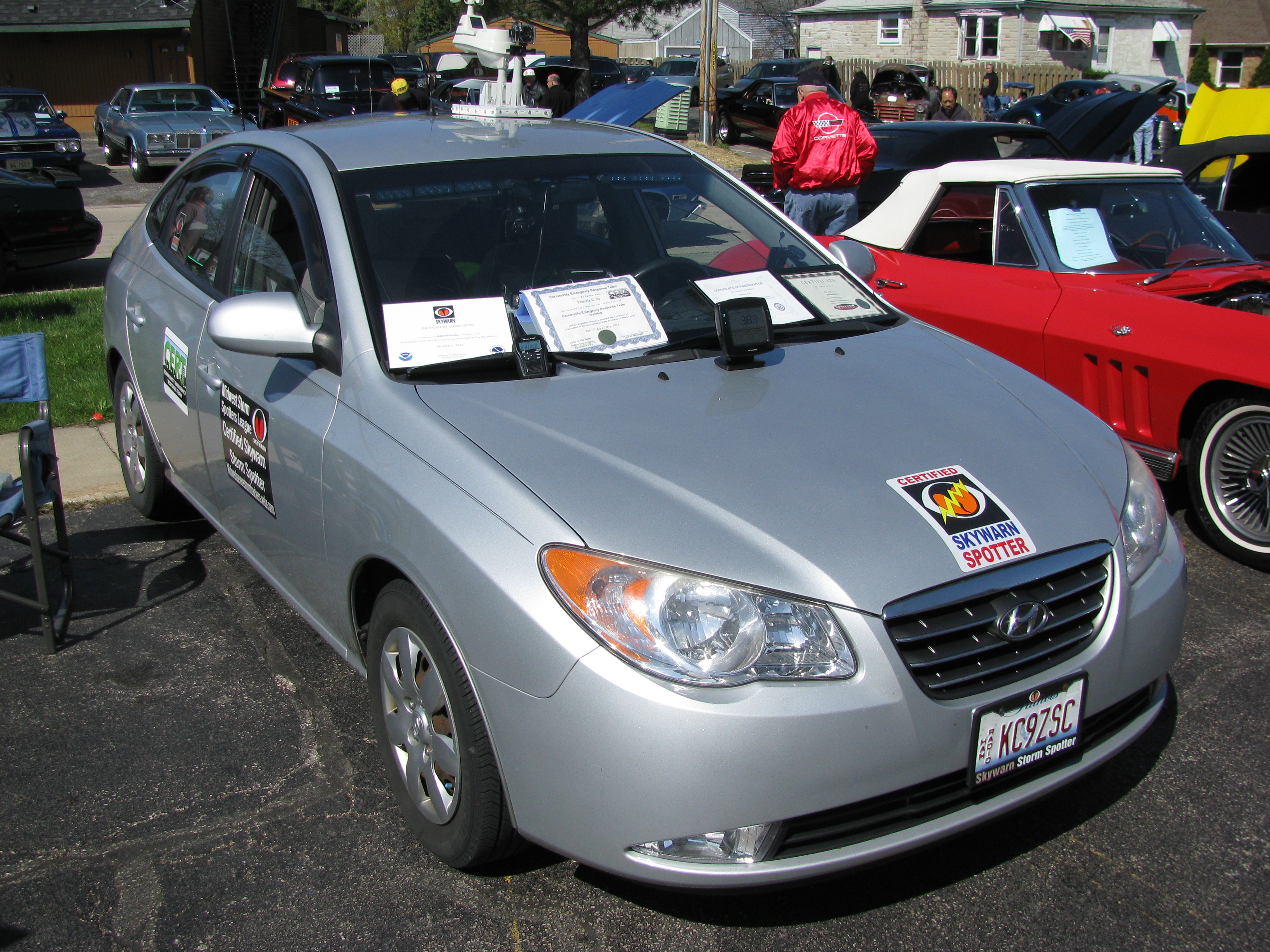

Certified Skywarn Spotter Hyundai Elantra Certified Skywarn Spotter
Photo ©2015 Bill Crittenden
2015 Cruisin' Spring Car Show
View photo of Certified Skywarn Spotter Hyundai Elantra - 4.0MB


Documents

DateDocument Name & DetailsDocuments
August 2000Veridian Remote Redesigned Air Bag Related Child Passenger Serious Injury Investigation
SCI Technical Summary Report
Vehicle - 1998 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 227KB - 14 pages
October 2002On-Site Child Air Bag-Related Fatality Investigation
Vehicle - 2000 Hyundai Elantra GLS
National Highway Traffic Safety Administration

PDF
- 13,569KB - 29 pages
17 January 2003Safety Compliance Testing for FMVSS 201: Occupant Protection in Interior Impact, Upper Interior Head Impact Protection
2003 Hyundai Elantra 4-Door Sedan
National Highway Traffic Safety Administration

PDF
- 7.2MB - 219 pages
July 2003General Dynamics On-Site Advanced Occupant Protection System (AOPS) Investigation
SCI Technical Summary Report
Vehicle - 2001 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 226KB - 14 pages
30 July 2003Safety Compliance Testing for FMVSS 301: Fuel System Integrity
2003 Hyundai Elantra 4-Door Sedan
National Highway Traffic Safety Administration

PDF
- 1.9MB - 40 pages
August 2003On-Site Air Bag Non-Deployment/Driver Fatality Investigation
Vehicle: 2001 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 505KB - 16 pages
25 August 2003Safety Compliance Testing for FMVSS 201: Occupant Protection in Interior Impact
2003 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 2.4MB - 47 pages
February 2004On-Site Child Air Bag-Related Fatality Investigation
Vehicle - 1999 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 2,344KB - 17 pages
April 2004On-Site Certified Advanced 208-Compliant Vehicle Investigation
Vehicle - 2004 Hyundai Elantra GT
National Highway Traffic Safety Administration

PDF
- 779KB - 20 pages
1 October 2004Vehicle Safety Compliance Testing for FMVSS 208, Occupant Crash Protection; FMVSS 212, Windshield Mounting; FMVSS 219, Windshield Intrustion (Partial); FMVSS 301, Fuel System Integrity
2004 Hyundai Elantra 4 Door
National Highway Traffic Safety Administration

PDF
- 22.7MB - 371 pages
December 2004On-Site Child Safety Seat Investigation
Vehicle - 1999 Hyundai Elantra GL
National Highway Traffic Safety Administration

PDF
- 1,424KB - 21 pages
September 2006Certified Advanced 208-Compliant Air Bag Investigation/ Vehicle to Objects
2006 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 4,749KB - 19 pages
27 October 2006Vehicle Safety Compliance Testing for FMVSS 208, Occupant Crash Protection; FMVSS 212, Windshield Mounting; FMVSS 219, Windshield Intrustion (Partial); FMVSS 301, Fuel System Integrity
2005 Hyundai Elantra 4 Door
National Highway Traffic Safety Administration

PDF
- 37.7MB - 524 pages
30 October 2006Vehicle Safety Compliance Testing for FMVSS 208, Occupant Crash Protection; FMVSS 212, Windshield Mounting; FMVSS 219, Windshield Intrustion (Partial); FMVSS 301, Fuel System Integrity
2004 Hyundai Elantra 4 Door
National Highway Traffic Safety Administration

PDF
- 24.5MB - 341 pages
November 2006On-Site Child Safety Seat Investigation
Vehicle - 2003 Hyundai Elantra XD
National Highway Traffic Safety Administration

PDF
- 616KB - 19 pages
7 November 2006Safety Compliance Testing for FMVSS 214: Side Impact Protection Indicant
2007 Hyundai Elantra 4-door sedan
National Highway Traffic Safety Administration

PDF
- 177MB - 387 pages
7 November 2006Safety Compliance Testing for FMVSS 214: Side Impact Protection (Indicant)
2007 Hyundai Elantra 4-door sedan
National Highway Traffic Safety Administration

PDF
- 48.8MB - 386 pages
5 June 2007Vehicle Safety Compliance Testing for FMVSS 208, Occupant Crash Protection; FMVSS 212, Windshield Mounting; FMVSS 219, Windshield Intrustion (Partial); FMVSS 301, Fuel System Integrity
2007 Hyundai Elantra Passenger Car
National Highway Traffic Safety Administration

PDF
- 18.0MB - 349 pages
12 October 2007Safety Compliance Testing for FMVSS No. 124: Accelerator Control Systems
2007 Hyundai Elantra 4-Door Passenger Car
National Highway Traffic Safety Administration

PDF
- 4.1MB - 59 pages
November 2007On-Site Not in Traffic Surveillance Back Over Investigation
Vehicle - 2007 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 1,702KB - 22 pages
January 2008Calspan On-Site Office of Defects Investigation Air Bag Non-Deployment Crash Investigation
Vehicle: 2001 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 397KB - 20 pages
9 January 2008Safety Compliance Testing for FMVSS 104: Windshield Wiping and Washing Systems
2007 Hyundai Elantra, Passenger Car
National Highway Traffic Safety Administration

PDF
- 2.1MB - 30 pages
3 March 2008Safety Compliance Testing for FMVSS No. 103: Windshield Defrosting and Defogging Systems
2007 Hyundai Elantra, Passenger Car
National Highway Traffic Safety Administration

PDF
- 2.4MB - 33 pages
18 April 2008Safety Compliance Testing for FMVSS 225: "Child Restraint Anchorage Systems"
2007 Hyundai Elantra, Passenger Car
National Highway Traffic Safety Administration

PDF
- 6.6MB - 104 pages
27 March 2009Safety Compliance Testing for FMVSS 201: Occupant Protection in Interior Impact, Upper Interior Head Impact Protection
2009 Hyundai Elantra
National Highway Traffic Safety Administration

PDF
- 4.2MB - 170 pages
10 April 2009Safety Compliance Testing for FMVSS 301: Fuel System Integrity - Rear Impact
2009 Hyundai Elantra 4-Door Sedan
National Highway Traffic Safety Administration

PDF
- 1.6MB - 38 pages
6 May 2009Safety Compliance Testing for FMVSS 201: Rigid Pole Side Impact Test
2009 Hyundai Elantra GLS 4-Door Sedan
National Highway Traffic Safety Administration

PDF
- 4.8MB - 109 pages
November 2010On-Site Side Impact Inflatable Occupant Protection Investigation
Vehicle - 2008 Hyundai Elantra SE
National Highway Traffic Safety Administration

PDF
- 953KB - 21 pages
report date 15 March 2011NHTSA Recall 11V143000
2007-2009 Hyundai Elantra
AIR BAGS:FRONTAL:SENSOR/CONTROL MODULE
National Highway Traffic Safety Administration
Recall Page - 1 page
report date 15 March 2011NHTSA Recall 11V179000
2007-2008 Hyundai Elantra
AIR BAGS:FRONTAL:SENSOR/CONTROL MODULE
National Highway Traffic Safety Administration
Recall Page - 1 page
1 April 2011Safety Compliance Testing for FMVSS 201: Occupant Protection in Interior Impact, Upper Interior Head Impact Protection
2011 Hyundai Elantra GLS M/T
National Highway Traffic Safety Administration

PDF
- 7.7MB - 167 pages
18 April 2011Safety Compliance Testing for FMVSS No. 114: Theft Protection
2011 Hyundai Elantra, Passenger Car
National Highway Traffic Safety Administration

PDF
- 1.9MB - 24 pages



2007 Specifications

SE
Body Type4-door sedan
DrivetrainFF
Engine TypeI4
Engine Displacement121 cu. in./1975cc
Valvetrain16-valve DOHC
Horsepower138 @ 6000 rpm
Torque136 @ 4600 rpm
Maximum Engine RPM6500
Transmission5-speed manual
First Gear Ratio3.31
First Gear MPH per 1000 RPM5.2
Second Gear Ratio1.96
Second Gear MPH per 1000 RPM8.7
Third Gear Ratio1.26
Third Gear MPH per 1000 RPM13.6
Fourth Gear Ratio0.98
Fourth Gear MPH per 1000 RPM17.4
Fifth Gear Ratio0.78
Fifth Gear MPH per 1000 RPM21.9
Final Drive Ratio4.19:1
Front SuspensionStruts, coil springs, anti-roll bar
Rear SuspensionMultilink, coil springs, anti-roll bar
BrakesABS
Front BrakesVented disc
Rear BrakesDisc
Wheelbase104.3"
Length177.4"
Width69.9"
Height58.3"
Front Track60.2"
Rear Track60.1"
Front Seat Volume56 cu. ft.
Rear Seat Volume42 cu. ft.
Trunk Volume14 cu. ft.
Tire SizeP205/55R-16 89H
Fuel87-octane gasoline
Fuel Capacity14.0 gallons
Fuel Economy28 city/36 highway (EPA)
Maximum Speed120 mph (governor limited)
0-60 MPH (C/D test)7.9 seconds
1/4 Mile (C/D test)16.3 seconds @ 86 mph
Skidpad (300' diameter) (C/D test).78g
Braking (70-0 mph) (C/D test)184'
MSRP (Base)$16,295
