Vehicle:  Subaru Forester

NHTSA NCAP #08313: Frontal Impact Testing: 2014 Subaru Forester 2.5i Premium

Page Sections
Test Information
Vehicle 1: 2014 Subaru Forester 2.5i Premium
Instrumentation Data
Video
Photos
Testing of a 2014 Subaru Forester 2.5i Premium by TRC of Ohio conducted July 29, 2013.

Test Information

Test No.:8313
Contract or Study Title:NEW CAR ASSESSMENT PROGRAM FRONTAL IMPACT TESTING
Test Performer:TRC OF OHIO
Test Reference No.:130729
Test Type:OPTIONAL NEW CAR ASSESSMENT TEST
Test Configuration:VEHICLE INTO BARRIER

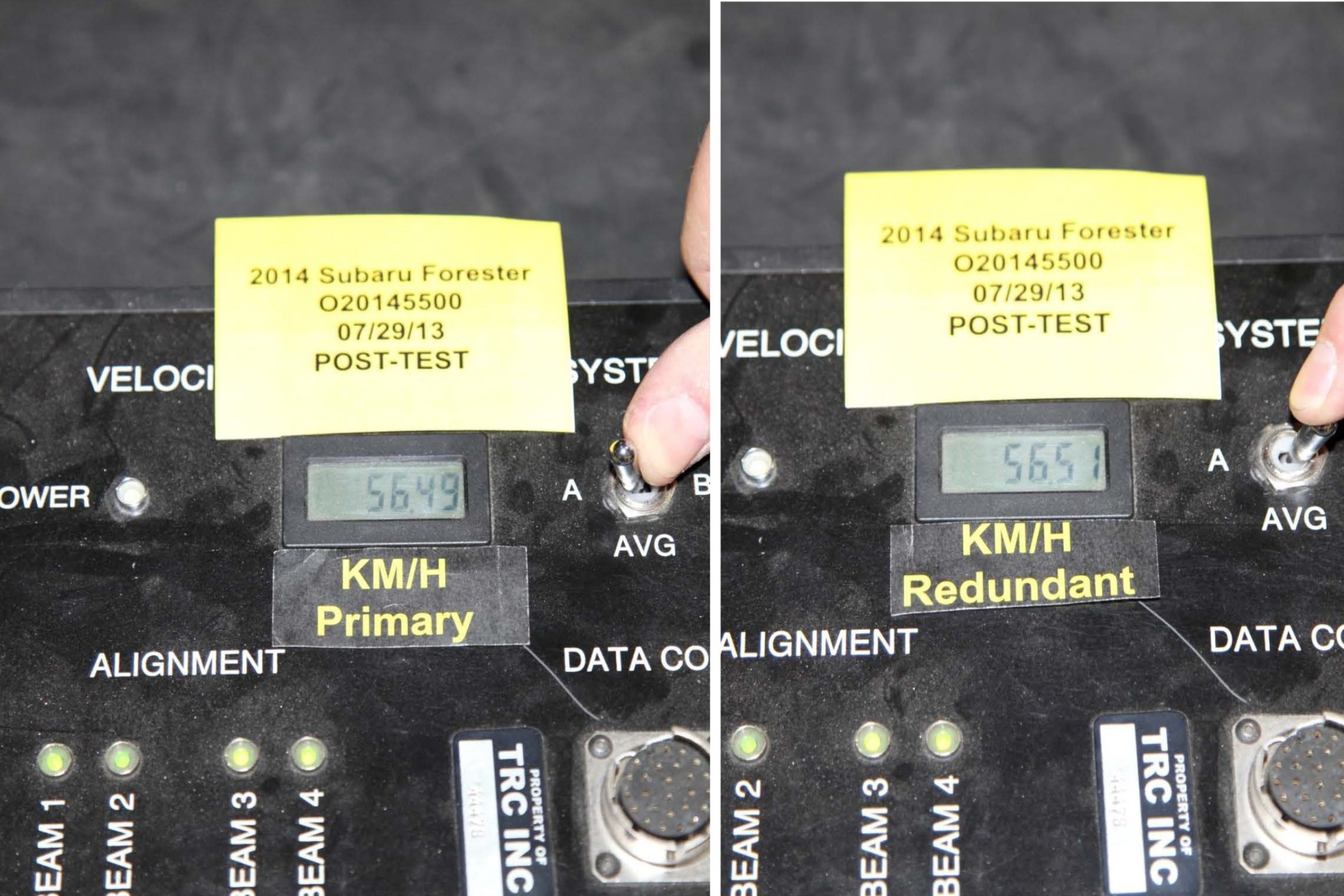

Closing Speed (kph):56.49
Impact Angle (degrees):0
Offset Distance (mm):0
Version No.:V5
Test Objectives:REDUCE THE RISK OF SERIOUS & FATAL INJURY IN FRONTAL IMPACT CRASHES
Test Date:7/29/2013
Contract No.:DTNH22-12-R-00540
Test Track Surface:CONCRETE
Test Track Condition:DRY
Ambient Temperature (degrees Celsius):21
Type of Recorder:DIGITAL DATA ACQUISITION
Total No. of Curves:136
Test Commentary:COTR=BRIAN PARK


Vehicle 1: 2014 Subaru Forester 2.5i Premium

Vehicle No.:1
Vehicle Make:SUBARU
Vehicle Model:FORESTER
Model Year:2014
Engine Type:4 CYLINDER TRANSVERSE FRONT
Engine Displacement (liters):2.50
Vehicle Test Weight (Kgrams):1745
Vehicle Length (mm):4580
Vehicle Width (mm):1790
NHTSA Number:O20145500
Body Type:UTILITY VEHICLE
Vehicle Identification No.:JF2SJAEC3EH436916
Transmission Type:AUTOMATIC - FOUR WHEEL DRIVE
Vehicle Center of Gravity Distance Behind Front Axle (mm):1183
Steering Column Shear Capsule Separation:NOT APPLICABLE
Steering Column Collapse Mechanism:NOT APPLICABLE
Vehicle Modification Indicator:PRODUCTION VEHICLE
Description of Vehicle Modification:UNMODIFIED
Vehicle Speed (kph):56.49
Crabbed Angle (degrees):0
Principal Direction of Force (degrees):0
Bumper Engagement:NOT APPLICABLE
Sill Engagement:NOT APPLICABLE
A-Pillar Engagement:NOT APPLICABLE
Vehicle Damage Index (Collision Deformation Classification):12FDEW3
Angle of Moving Test Cart (degrees):0
Vehicle Orientation of Moving Cart (degrees):0
Total Length of Indentation:1524
Distance between Center of Damaged area and C.G. Axis (mm):0
Maximum Crush Distance:585
Vehicle Commentary:
Damage Profile Distances One:444
Damage Profile Distances Two:582
Damage Profile Distances Three:585
Damage Profile Distances Four:570
Damage Profile Distances Five:581
Damage Profile Distances Six:448
Pre-test - Total Length of Vehicle at Centerline:4580
Pre-test - Rear Surface of Vehicle to Front of Engine:3933
Pre-test - Rear Surface of Vehicle to Firewall:3502
Pre-test - Rear Surface of Vehicle to Upper Leading Edge of Right Door:3144
Pre-test - Rear Surface of Vehicle to Upper Leading Edge of Left Door:3149
Pre-test - Rear Surface of Vehicle to Lower Leading Edge of Right Door:3096
Pre-test - Rear Surface of Vehicle to Lower Leading Edge of Left Door:3100
Pre-test - Rear Surface of Vehicle to Upper Trailing Edge of Right Door:2065
Pre-test - Rear Surface of Vehicle to Upper Trailing Edge of Left Door:2068
Pre-test - Rear Surface of Vehicle to Lower Trailing Edge of Right Door:2095
Pre-test - Rear Surface of Vehicle to Lower Trailing Edge of Left Door:2099
Pre-test - Rear Surface of Vehicle to Bottom of A Post of Right Side:3135
Pre-test - Rear Surface of Vehicle to Bottom of A Post of Left Side:3137
Pre-test - Rear Surface of Vehicle to Firewall Right Side:3491
Pre-test - Rear Surface of Vehicle to Firewall Left Side:3492
Pre-test - Rear Surface of Vehicle to Steering Column:2667
Pre-test - Center of Steering Column to A Post:324
Pre-test - Center of Steering Column to Headliner:475
Pre-test - Rear Surface of Vehicle to Right Side of Front Bumper:4433
Pre-test - Rear Surface of Vehicle to Left Side of Front Bumper:4434
Pre-test - Length of Engine Block:560
Post-test - Total Length of Vehicle at Centerline:3990
Post-test - Rear Surface of Vehicle to Front of Engine:3665
Post-test - Rear Surface of Vehicle to Firewall:
Post-test - Rear Surface of Vehicle to Upper Leading Edge of Right Door:3140
Post-test - Rear Surface of Vehicle to Upper Leading Edge of Left Door:3146
Post-test - Rear Surface of Vehicle to Lower Leading Edge of Right Door:3105
Post-test - Rear Surface of Vehicle to Lower Leading Edge of Left Door:3118
Post-test - Rear Surface of Vehicle to Upper Trailing Edge of Right Door:2062
Post-test - Rear Surface of Vehicle to Upper Trailing Edge of Left Door:2071
Post-test - Rear Surface of Vehicle to Lower Trailing Edge of Right Door:2104
Post-test - Rear Surface of Vehicle to Lower Trailing Edge of Left Door:2117
Post-test - Rear Surface of Vehicle to Bottom of A Post of Right Side:3143
Post-test - Rear Surface of Vehicle to Bottom of A Post of Left Side:3150
Post-test - Rear Surface of Vehicle to Firewall Right Side:3467
Post-test - Rear Surface of Vehicle to Firewall Left Side:3470
Post-test - Rear Surface of Vehicle to Steering Column:2765
Post-test - Center of Steering Column to A Post:345
Post-test - Center of Steering Column to Headliner:475
Post-test - Rear Surface of Vehicle to Right Side of Front Bumper:3985
Post-test - Rear Surface of Vehicle to Left Side of Front Bumper:3990
Post-test - Length of Engine Block:560


Instrumentation Data

Download NCAP Test #08313 Instrumentation Data in Altair Binary Format - 2.1MB
Download NCAP Test #08313 Instrumentation Data in NHTSA EV5 ASCII X-Y format - 2.4MB
Download NCAP Test #08313 Instrumentation Data in NHTSA ISO_MME format - 1.2MB
Download NCAP Test #08313 Instrumentation Data in NHTSA UDS-1992 format - 949KB


Video

01 Real-Time Left Overall
Duration: 0:05
Download video of NHTSA NCAP #08313: 01 Real-Time Left Overall - 4.4MB
02 Driver Close-Up
Duration: 0:11
Download video of NHTSA NCAP #08313: 02 Driver Close-Up - 7.2MB
03 Left Front Half
Duration: 0:11
Download video of NHTSA NCAP #08313: 03 Left Front Half - 7.4MB
04 Left Angle
Duration: 0:11
Download video of NHTSA NCAP #08313: 04 Left Angle - 8.1MB
05 Steering column - Top
Duration: 0:11
Download video of NHTSA NCAP #08313: 05 Steering column - Top - 8.4MB
06 Steering Column - Bottom
Duration: 0:11
Download video of NHTSA NCAP #08313: 06 Steering Column - Bottom - 8.1MB
07 Right Overall
Duration: 0:11
Download video of NHTSA NCAP #08313: 07 Right Overall - 6.8MB
08 Passenger Close-Up
Duration: 0:11
Download video of NHTSA NCAP #08313: 08 Passenger Close-Up - 7.2MB
09 Right Angle
Duration: 0:11
Download video of NHTSA NCAP #08313: 09 Right Angle - 6.5MB
10 Right Front Half
Duration: 0:11
Download video of NHTSA NCAP #08313: 10 Right Front Half - 7.6MB
11 Windshield
Duration: 0:11
Download video of NHTSA NCAP #08313: 11 Windshield - 8.1MB
12 Driver Windshield
Duration: 0:11
Download video of NHTSA NCAP #08313: 12 Driver Windshield - 8.5MB
13 Passenger Windshield
Duration: 0:11
Download video of NHTSA NCAP #08313: 13 Passenger Windshield - 8.4MB
14 Pit Front
Duration: 0:11
Download video of NHTSA NCAP #08313: 14 Pit Front - 9.0MB
15 Pit Rear
Duration: 0:11
Download video of NHTSA NCAP #08313: 15 Pit Rear - 7.8MB
16 Onboard Driver Airbag
Duration: 0:11
Download video of NHTSA NCAP #08313: 16 Onboard Driver Airbag - 8.4MB
17 Onboard Passenger Airbag
Duration: 0:11
Download video of NHTSA NCAP #08313: 17 Onboard Passenger Airbag - 8.4MB

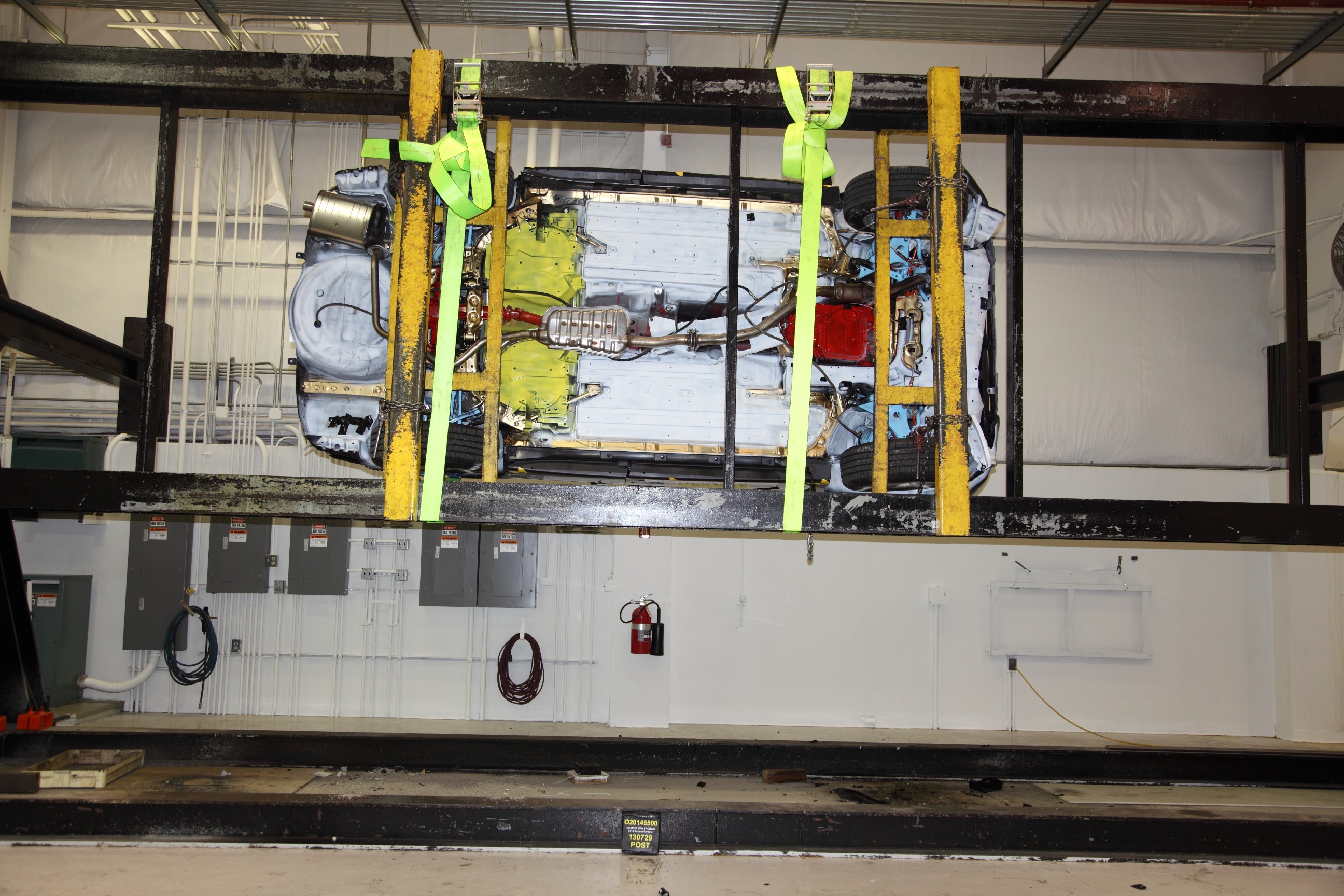

18 Real-Time Panning and documentation pre-test, post-test and rollover
Duration: 1:44
Download video of NHTSA NCAP #08313: 18 Real-Time Panning and documentation pre-test, post-test and rollover - 60.9MB
2014 Subaru Forester 2.5i Premium NCAP Frontal Impact for Web
Duration: 0:02
Download video of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium NCAP Frontal Impact for Web - 364KB


Photos

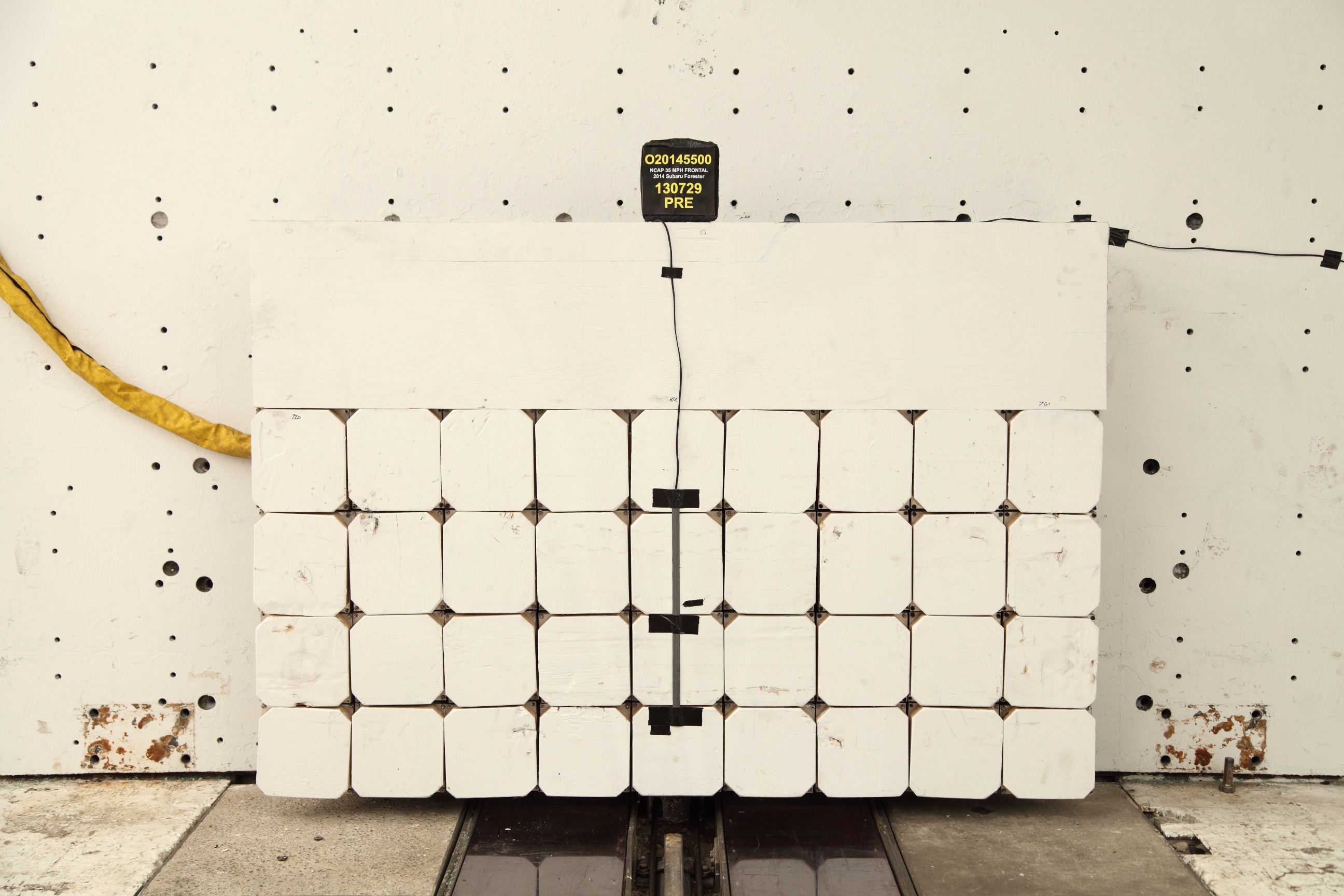

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 001 Load Cell Location
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 001 Load Cell Location - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 002 Load Cell Wall
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 002 Load Cell Wall - 0.6MB

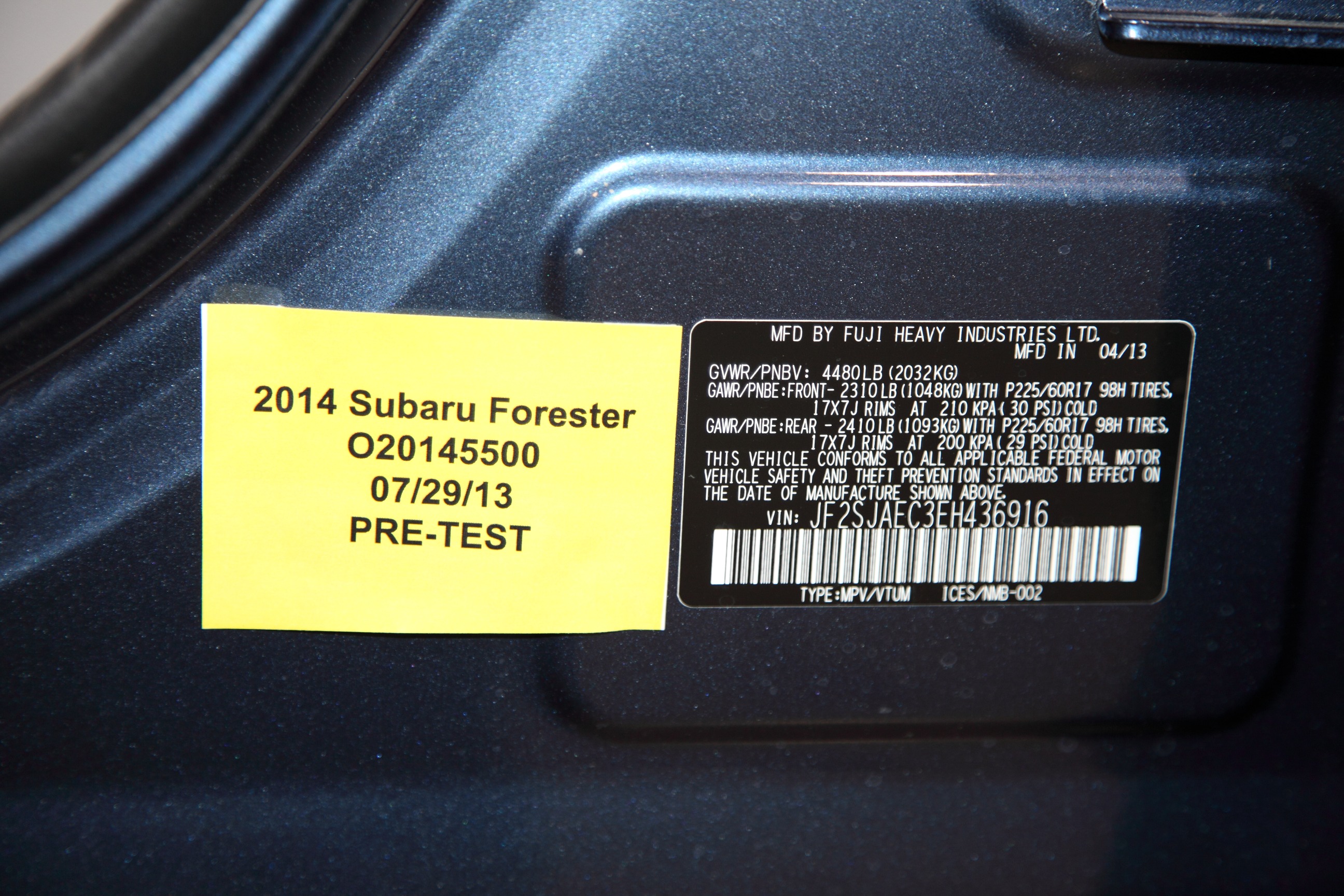

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 003 Manufacturers Label
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 003 Manufacturers Label - 1.0MB

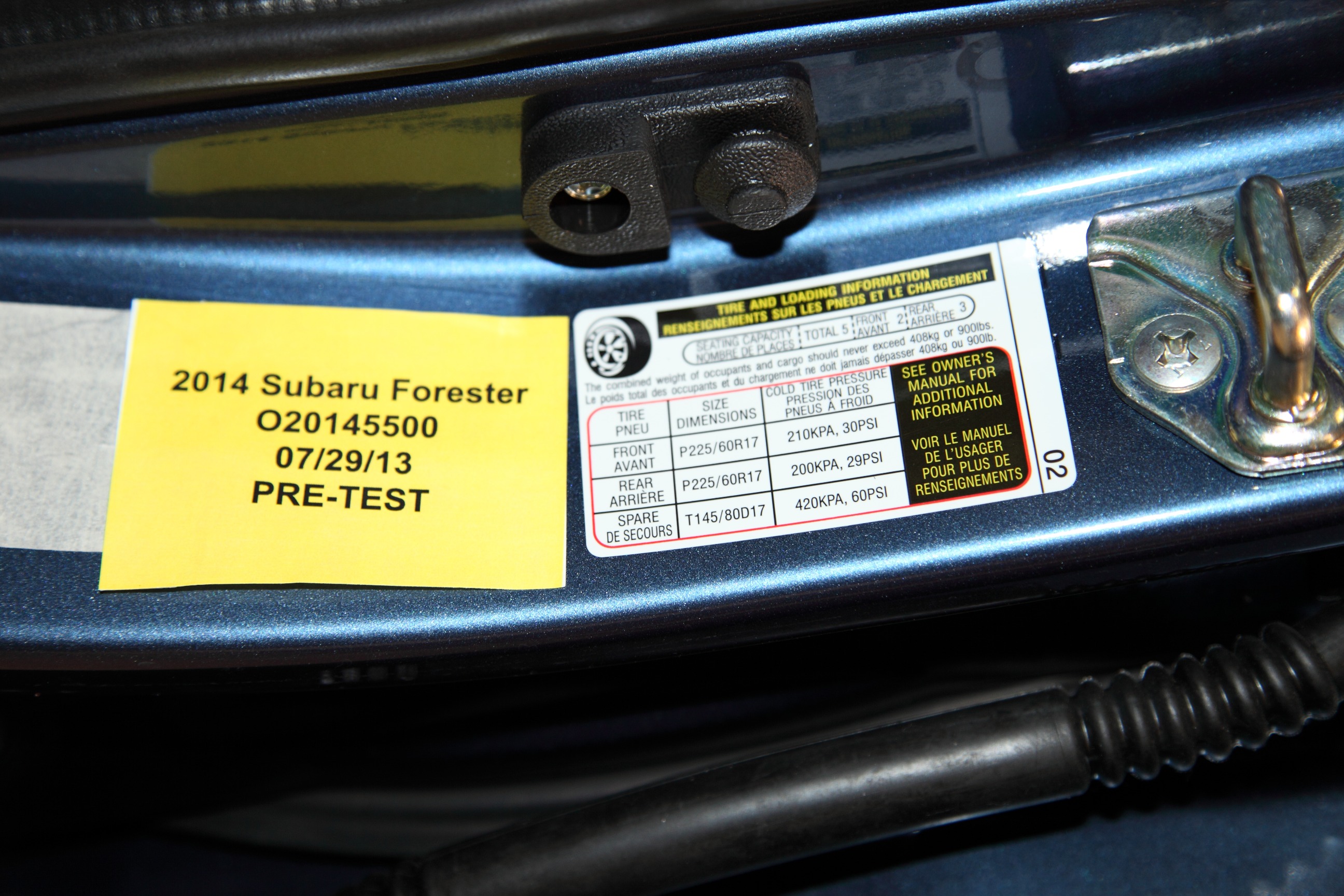

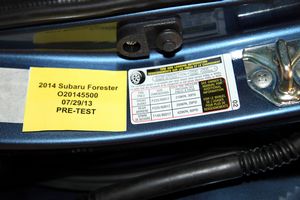

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 004 Tire Placard
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 004 Tire Placard - 0.8MB

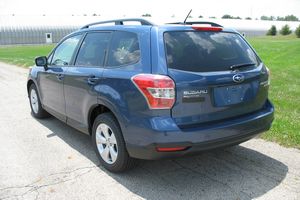

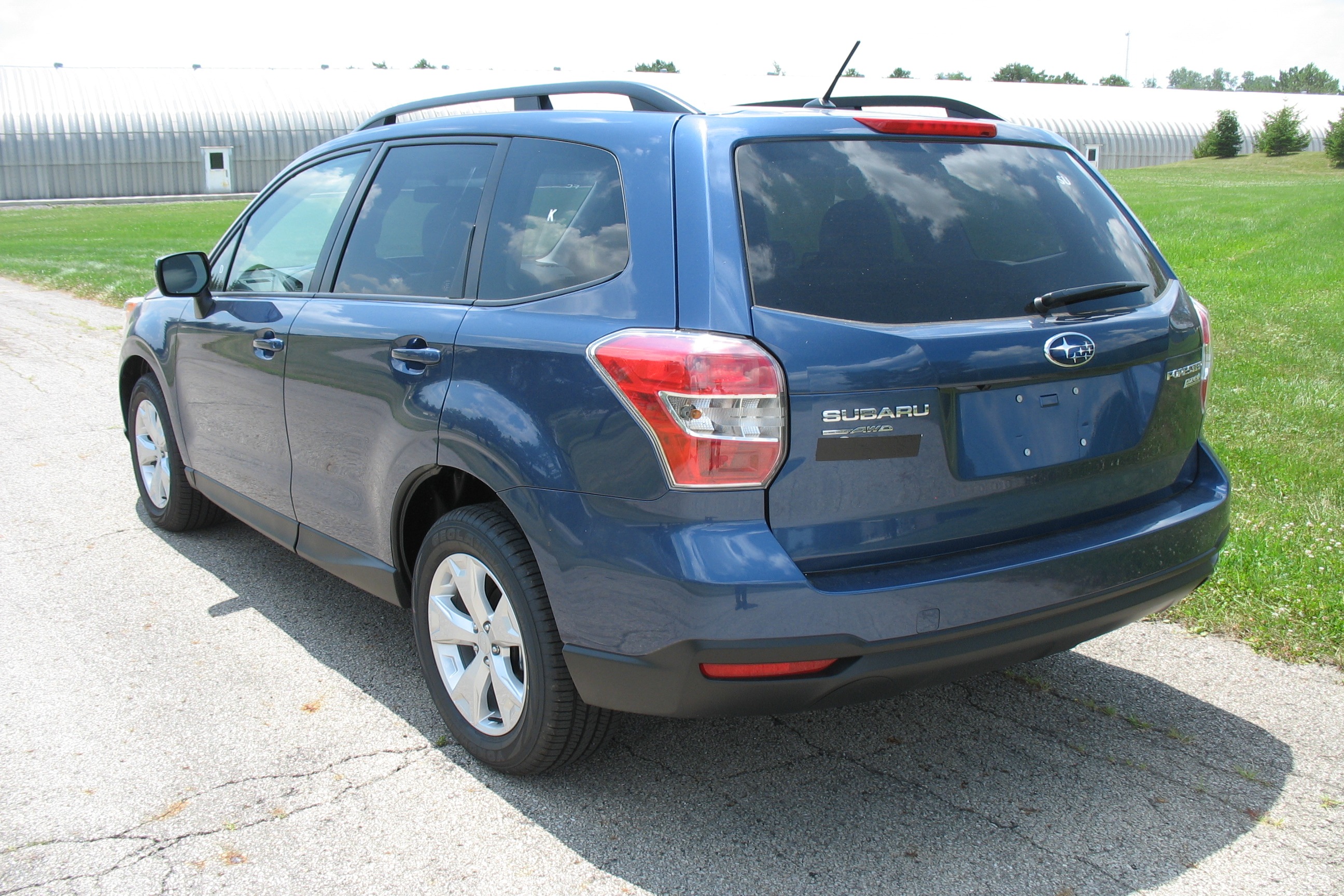

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 006 Left Rear 3-4 View, as Received
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 006 Left Rear 3-4 View, as Received - 1.1MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 007 Pre Test Front View of Test Vehicle
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 007 Pre Test Front View of Test Vehicle - 0.9MB

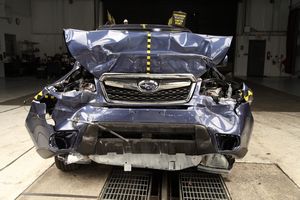

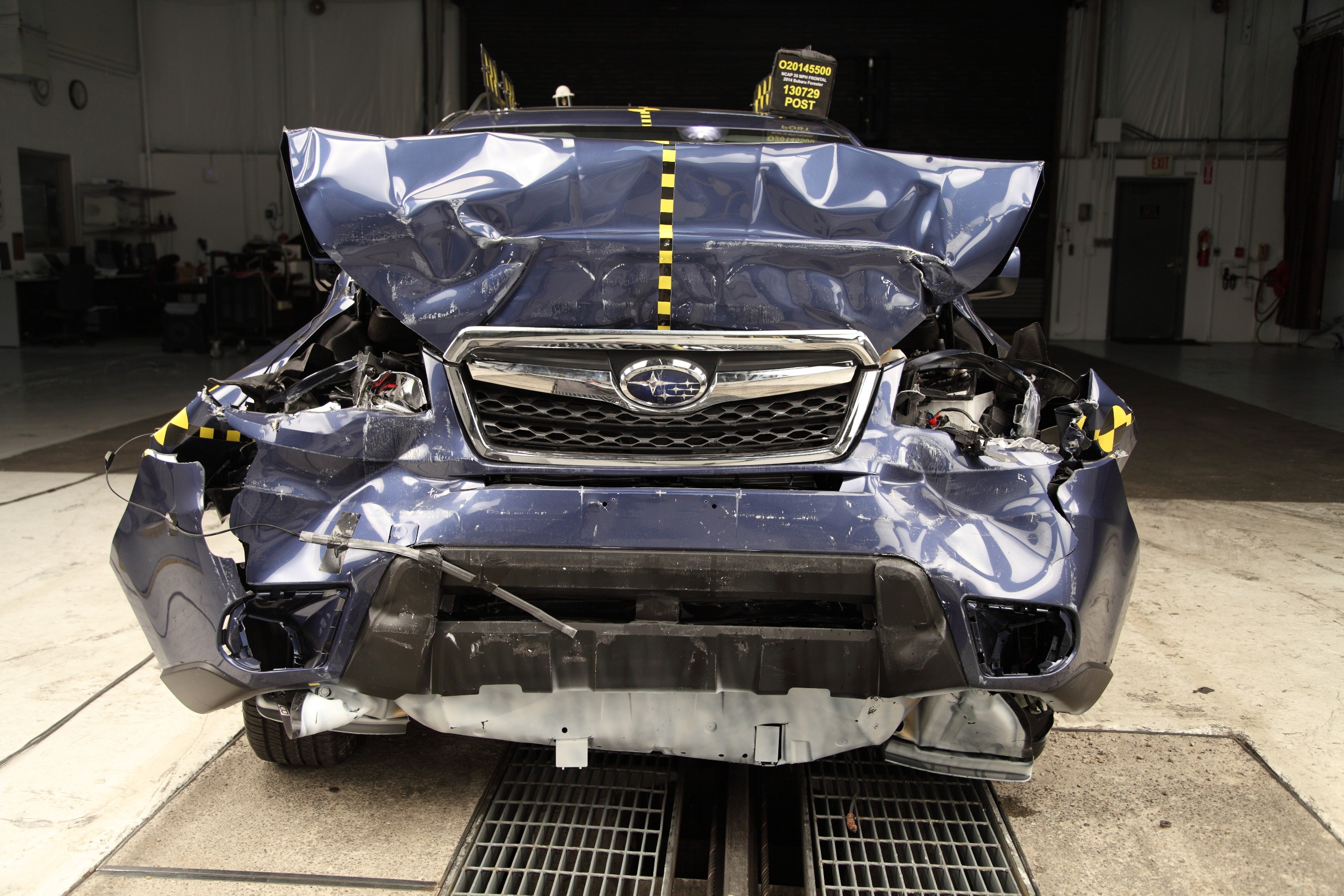

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 008 Post Test Front View of Test Vehicle
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 008 Post Test Front View of Test Vehicle - 1.0MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 009 Pre Test Left View of Test Vehicle
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 009 Pre Test Left View of Test Vehicle - 0.9MB

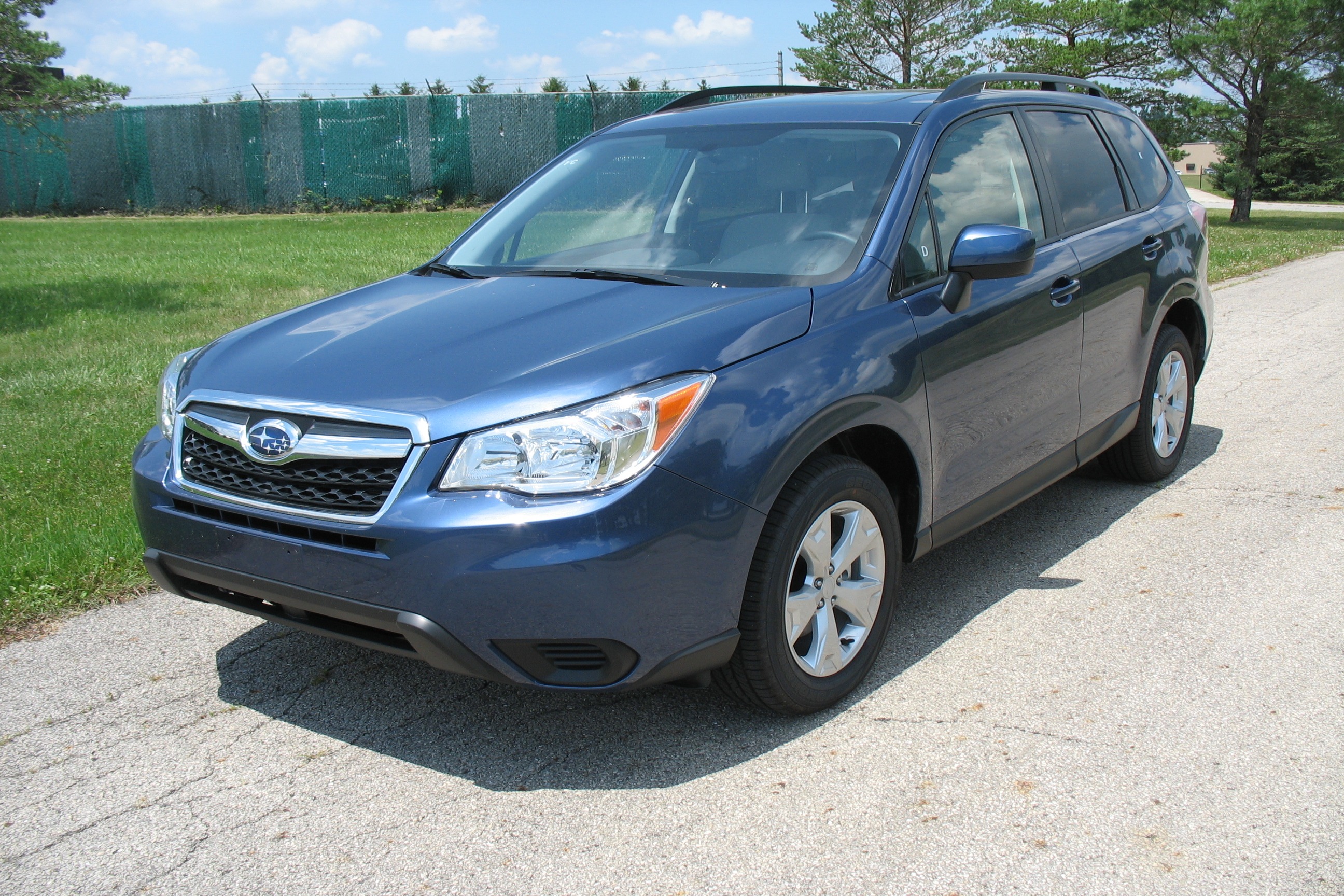

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 005 2014 Subaru Forester 2.5i Frontal As Delivered
View photo of NHTSA NCAP #08313: No. 005 2014 Subaru Forester 2.5i Frontal As Delivered - 1.3MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 010 Post Test Left View of Test Vehicle
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 010 Post Test Left View of Test Vehicle - 1.0MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 011 Pre Test Right View of Test Vehicle
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 011 Pre Test Right View of Test Vehicle - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 012 Post Test Right View of Test Vehicle
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 012 Post Test Right View of Test Vehicle - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 013 Pre Test Right Front ¾ View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 013 Pre Test Right Front ¾ View - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 014 Post Test Right Front ¾ View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 014 Post Test Right Front ¾ View - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 015 Pre Test Left Rear ¾ View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 015 Pre Test Left Rear ¾ View - 1.0MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 016 Post Test Left Rear ¾ View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 016 Post Test Left Rear ¾ View - 1.0MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 017 Pre Test Windshield View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 017 Pre Test Windshield View - 0.8MB

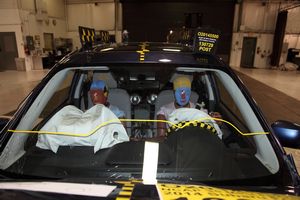

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 018 Post Test Windshield View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 018 Post Test Windshield View - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 019 Pre Test Engine Compartment View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 019 Pre Test Engine Compartment View - 1.1MB

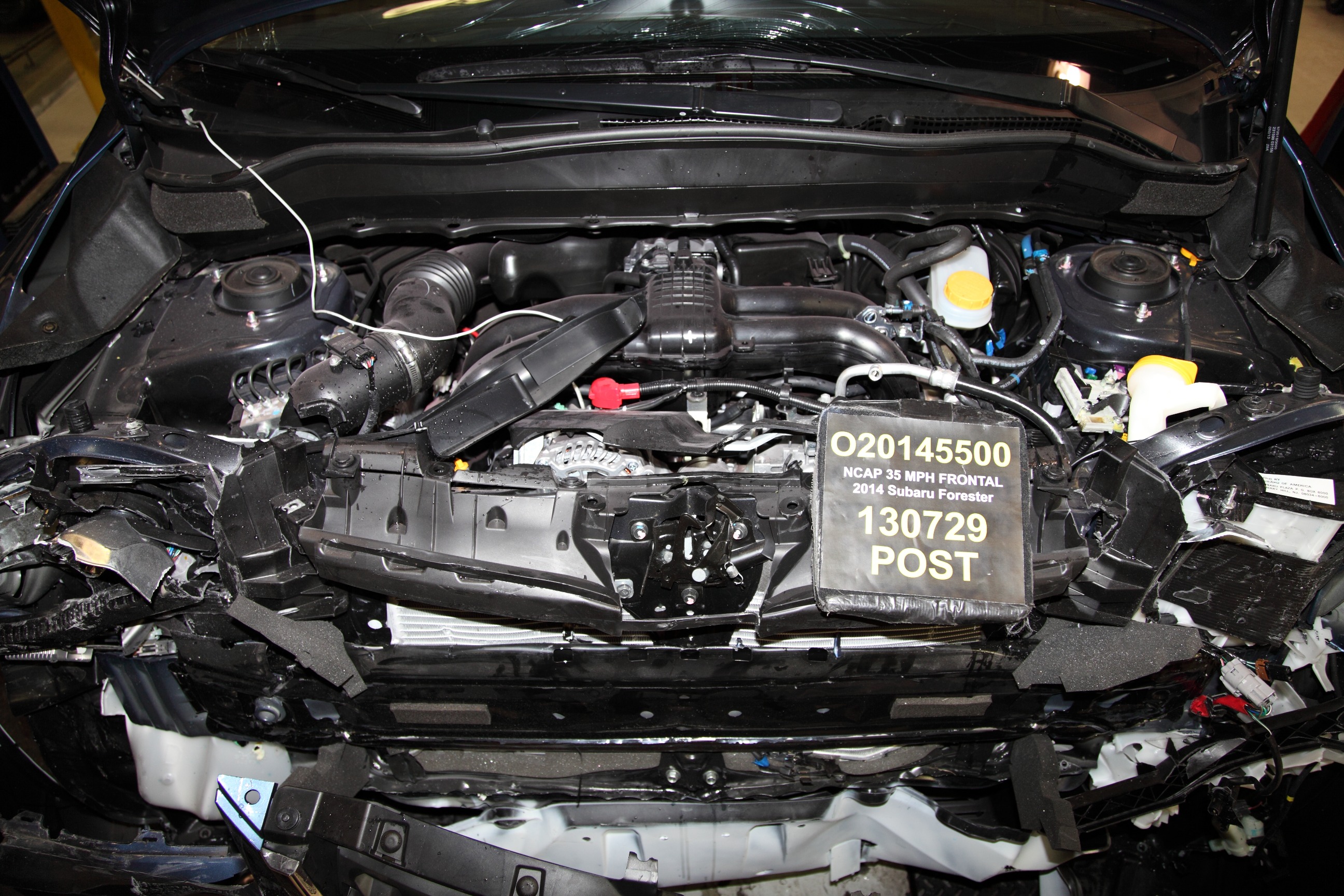

NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 020 Post Test Engine Compartment View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 020 Post Test Engine Compartment View - 1.1MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 021 Pre Test Fuel Filler Cap View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 021 Pre Test Fuel Filler Cap View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 022 Post Test Fuel Filler Cap View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 022 Post Test Fuel Filler Cap View - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 024d Post Test Mid Rear Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 024d Post Test Mid Rear Underbody View - 1.1MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 023 Pre Test Front Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 023 Pre Test Front Underbody View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 024a Pre Test Mid Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 024a Pre Test Mid Underbody View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 024b Post Test Mid Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 024b Post Test Mid Underbody View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 024c Pre Test Mid Rear Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 024c Pre Test Mid Rear Underbody View - 1.1MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 024 Post Test Front Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 024 Post Test Front Underbody View - 1.0MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 025 Pre Test Rear Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 025 Pre Test Rear Underbody View - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 026 Post Test Rear Underbody View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 026 Post Test Rear Underbody View - 1.0MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 027 Pre Test Dummy Cable Routing
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 027 Pre Test Dummy Cable Routing - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 028 Post Test Dummy Cable Routing
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 028 Post Test Dummy Cable Routing - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 029 Pre Test Driver Dummy Front View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 029 Pre Test Driver Dummy Front View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 030 Post Test Driver Dummy Front View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 030 Post Test Driver Dummy Front View - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 031 Pre Test Driver Dummy Window View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 031 Pre Test Driver Dummy Window View - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 032 Post Test Driver Dummy Window View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 032 Post Test Driver Dummy Window View - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 035 Pre Test Drivers Seat Fore Aft Markings
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 035 Pre Test Drivers Seat Fore Aft Markings - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 033 Pre Test Driver Dummy and Vehicle Interior View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 033 Pre Test Driver Dummy and Vehicle Interior View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 034 Post Test Driver Dummy and Vehicle Interior View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 034 Post Test Driver Dummy and Vehicle Interior View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 036 Post Test Drivers Seat Fore Aft Markings
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 036 Post Test Drivers Seat Fore Aft Markings - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 039 Pre Test Driver Dummy Feet
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 039 Pre Test Driver Dummy Feet - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 040 Post Test Driver Dummy Feet
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 040 Post Test Driver Dummy Feet - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 041 Pre Test Drivers Side Knee Bolster
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 041 Pre Test Drivers Side Knee Bolster - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 043 Pre Test Drivers Side Floorpan
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 043 Pre Test Drivers Side Floorpan - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 037 Pre Test View of Belt Anchorage for Driver Dummy
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 037 Pre Test View of Belt Anchorage for Driver Dummy - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 038 Post Test View of Belt Anchorage for Driver Dummy
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 038 Post Test View of Belt Anchorage for Driver Dummy - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 042 Post Test Drivers Side Knee Bolster
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 042 Post Test Drivers Side Knee Bolster - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 044 Post Test Drivers Side Floorpan
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 044 Post Test Drivers Side Floorpan - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 049 Post Test View of the Steering Wheel
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 049 Post Test View of the Steering Wheel - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 046 Post Test Driver Dummy Contact With Airbag
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 046 Post Test Driver Dummy Contact With Airbag - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 047 Post Test Driver Dummy Contact With Headrest
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 047 Post Test Driver Dummy Contact With Headrest - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 048 Pre Test View of the Steering Wheel
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 048 Pre Test View of the Steering Wheel - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 049 Post Test View of the Steering Wheel
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 049 Post Test View of the Steering Wheel - 0.4MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 050 Pre Test Passenger Dummy Front View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 050 Pre Test Passenger Dummy Front View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 051 Post Test Passenger Dummy Front View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 051 Post Test Passenger Dummy Front View - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 052 Pre Test Passenger Dummy Window View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 052 Pre Test Passenger Dummy Window View - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 060 Pre Test Passenger Dummy Feet
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 060 Pre Test Passenger Dummy Feet - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 053 Post Test Passenger Dummy Window View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 053 Post Test Passenger Dummy Window View - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 054 Pre Test Passenger Dummy and Vehicle Interior View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 054 Pre Test Passenger Dummy and Vehicle Interior View - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 056 Pre Test Passengers Seat Fore Aft Markings
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 056 Pre Test Passengers Seat Fore Aft Markings - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 057 Post Test Passengers Seat Fore Aft Markings
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 057 Post Test Passengers Seat Fore Aft Markings - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 061 Post Test Passenger Dummy Feet
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 061 Post Test Passenger Dummy Feet - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 062 Pre Test Passengers Side Knee Bolster
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 062 Pre Test Passengers Side Knee Bolster - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 055 Post Test Passenger Dummy and Vehicle Interior View
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 055 Post Test Passenger Dummy and Vehicle Interior View - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 058 Pre Test View of Belt Anchorage for Passenger Dummy
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 058 Pre Test View of Belt Anchorage for Passenger Dummy - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 063 Post Test Passengers Side Knee Bolster
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 063 Post Test Passengers Side Knee Bolster - 0.5MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 064 Pre Test Passengers Side Floorpan
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 064 Pre Test Passengers Side Floorpan - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 065 Post Test Passengers Side Floorpan
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 065 Post Test Passengers Side Floorpan - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 066a Post Test Passenger Dummy Contact With Airbag
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 066a Post Test Passenger Dummy Contact With Airbag - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 059 Post Test View of Belt Anchorage for Passenger Dummy
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 059 Post Test View of Belt Anchorage for Passenger Dummy - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 066 Post Test Passenger Dummy Contact With Headrest
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 066 Post Test Passenger Dummy Contact With Headrest - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 067 Photograph of ballast installed in vehicle
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 067 Photograph of ballast installed in vehicle - 1.2MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 069 Post Test Speed Trap Read out
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 069 Post Test Speed Trap Read out - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 070 Vehicle at 0º on Static Rollover Device
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 070 Vehicle at 0º on Static Rollover Device - 0.7MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 071 Vehicle at 90º on Static Rollover Device
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 071 Vehicle at 90º on Static Rollover Device - 0.9MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 068 Post Test Stoddard solvent spillage location view
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 068 Post Test Stoddard solvent spillage location view - 0.5MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 072 Vehicle at 180º on Static Rollover Device
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 072 Vehicle at 180º on Static Rollover Device - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 073 Vehicle at 270º on Static Rollover Device
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 073 Vehicle at 270º on Static Rollover Device - 1.0MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 074 Vehicle at 360º on Static Rollover Device
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 074 Vehicle at 360º on Static Rollover Device - 0.8MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 076 Monroney Label Photograph
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 076 Monroney Label Photograph - 1.1MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium No. 075 2014 Subaru Forester 2.5i Frontal Impact Event
View photo of NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium: No. 075 2014 Subaru Forester 2.5i Frontal Impact Event - 0.6MB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium 2014 Subaru Forester 2.5i Premium NCAP Frontal Impact As Delivered for Web - 26KB
NHTSA NCAP #08313: 2014 Subaru Forester 2.5i Premium 2014 Subaru Forester 2.5i Premium NCAP Frontal Impact for Web - 35KB




Connect with The Crittenden Automotive Library

The Crittenden Automotive Library at Google+ The Crittenden Automotive Library on Facebook The Crittenden Automotive Library on Instagram The Crittenden Automotive Library at The Internet Archive The Crittenden Automotive Library on Pinterest The Crittenden Automotive Library on Twitter The Crittenden Automotive Library on Tumblr




The Crittenden Automotive Library

Home Page    About Us    Contribute




By accessing the The Crittenden Automotive Library/CarsAndRacingStuff.com, you signify your agreement with the terms and conditions on our Legal Information:  Disclaimers & Privacy Policy page.

To notify The Crittenden Automotive Library of errors, suggest topics, contribute information, make a comment on a page or to ask a question e-mail us.
