Suzuki RV-125K

American Government Special Collections Reference Desk

Motorcycles

RV-125K
Motorcycle Model

A motorcycle produced by Suzuki.

Page Sections
Photographs
1973 Specifications


Photographs

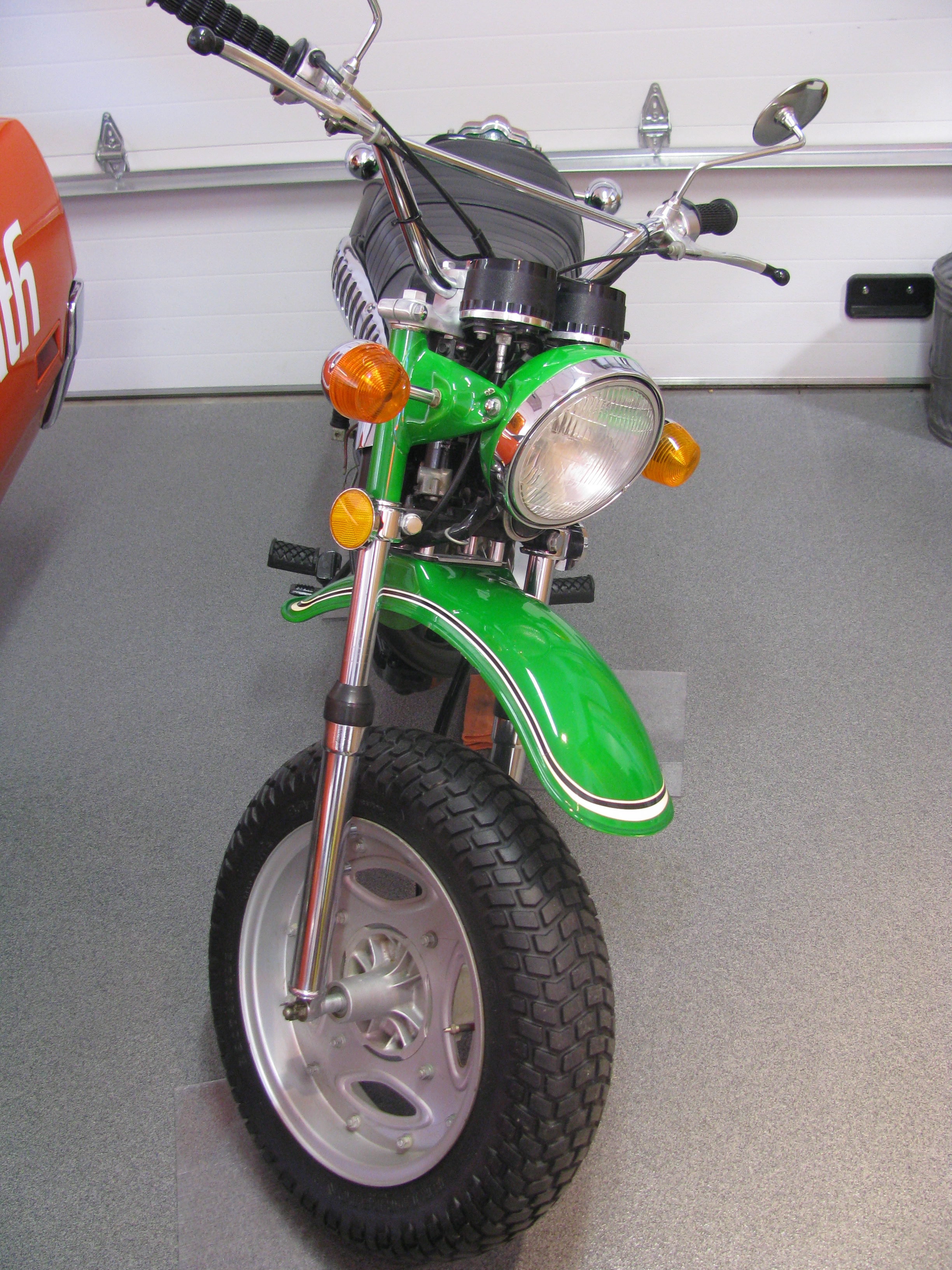

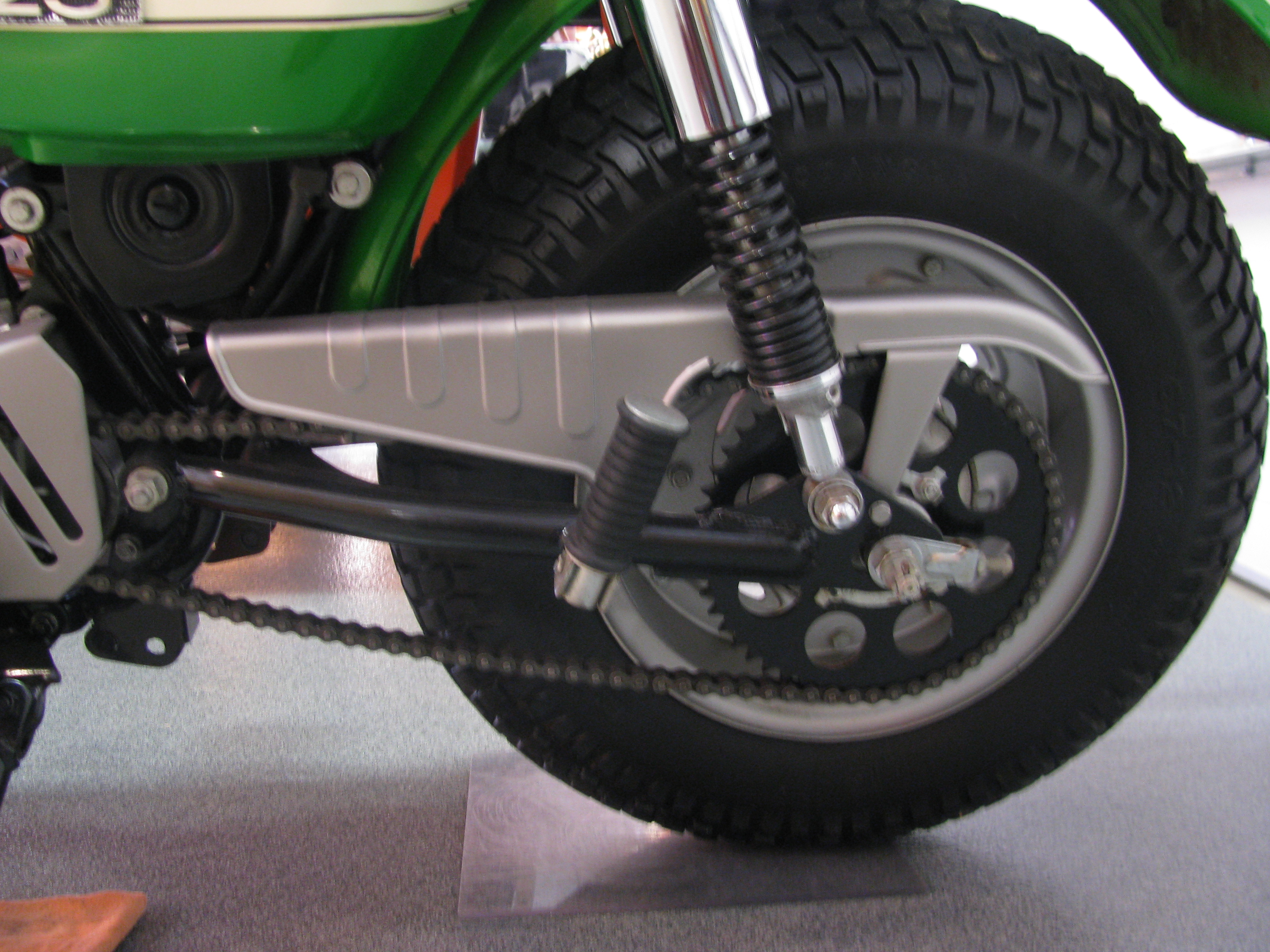

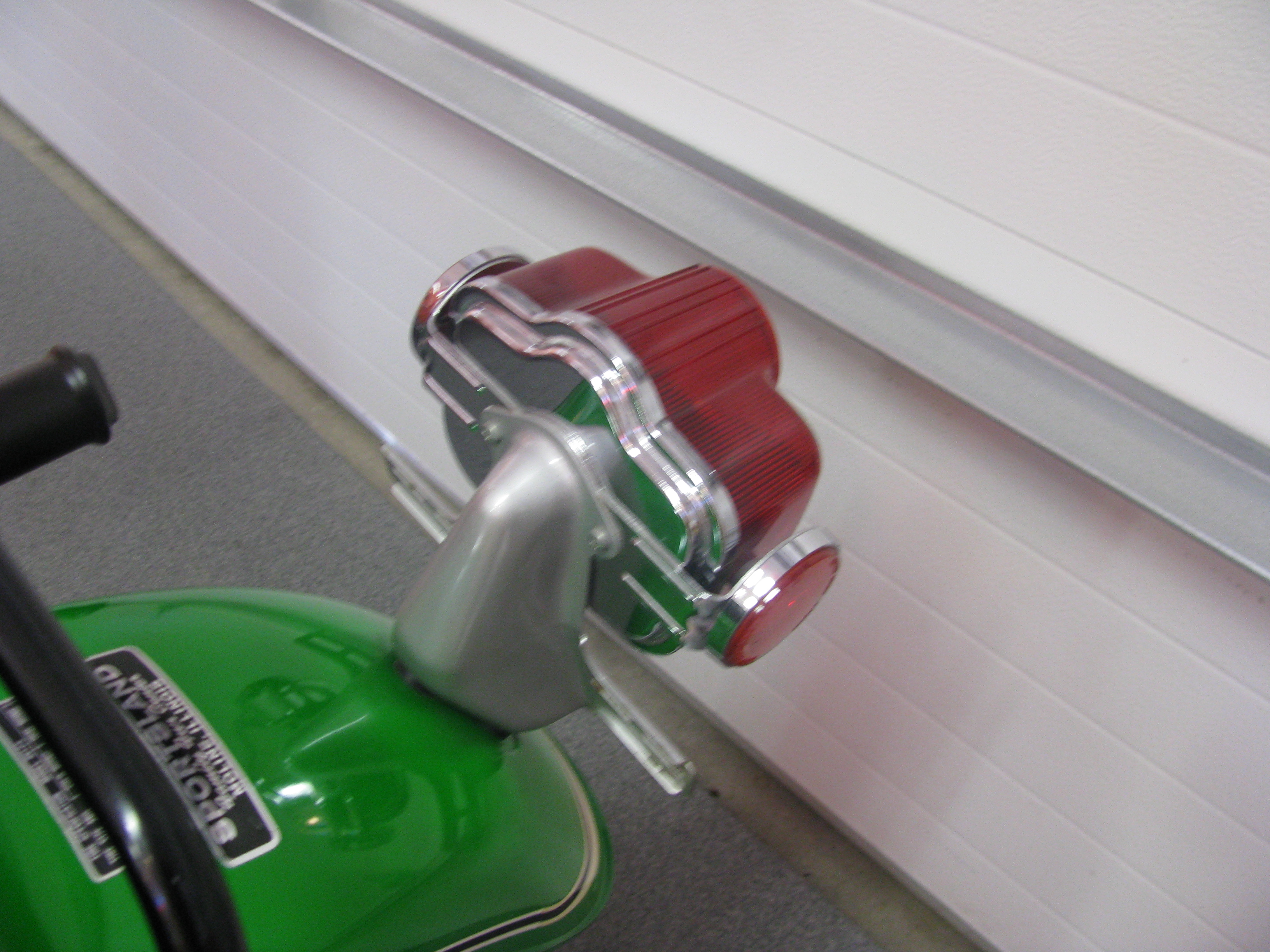

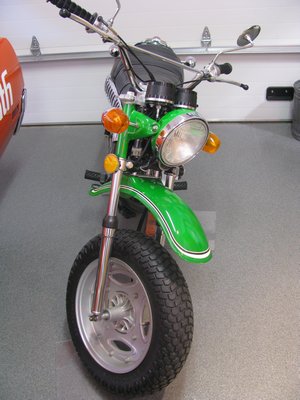

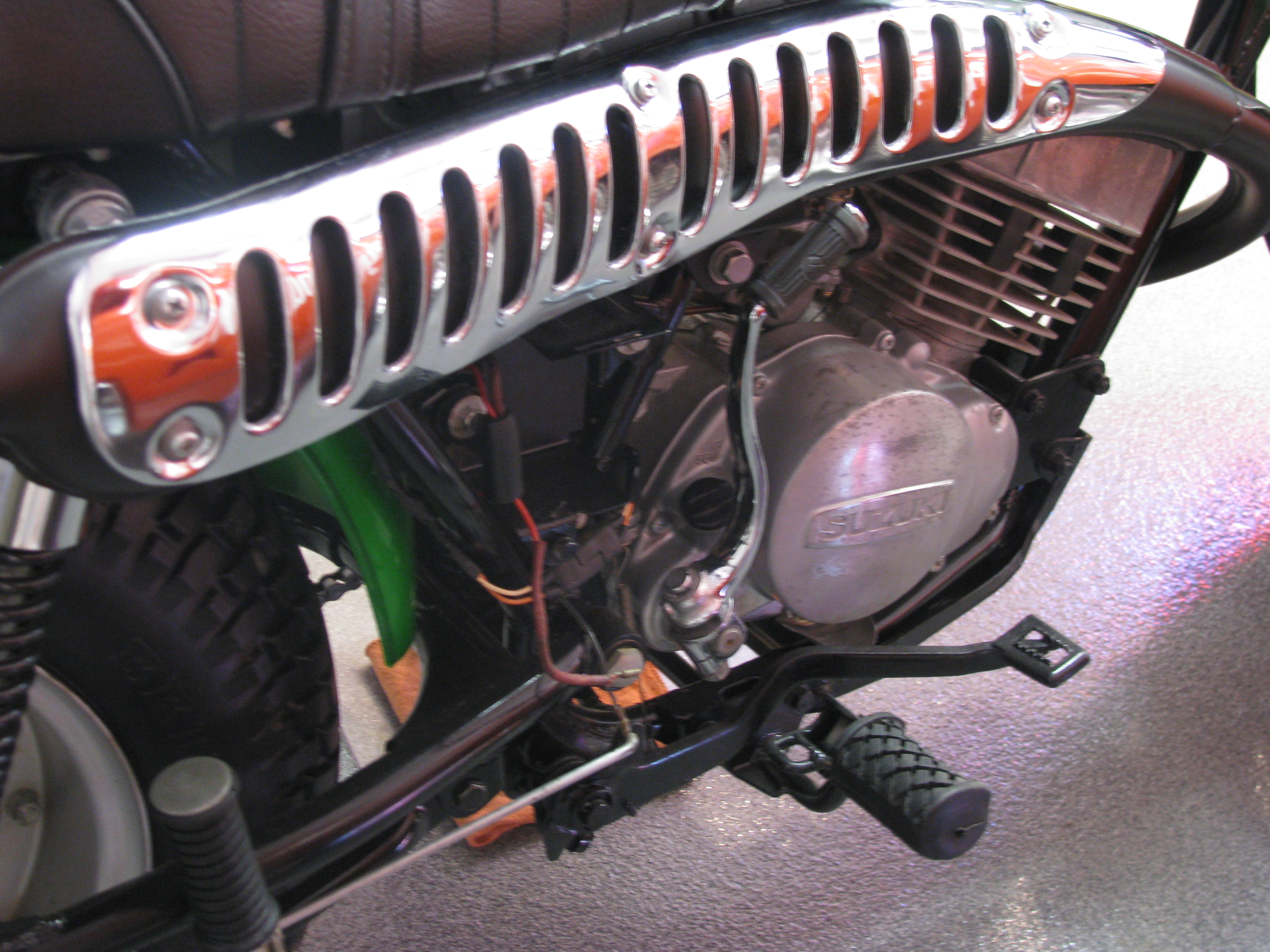

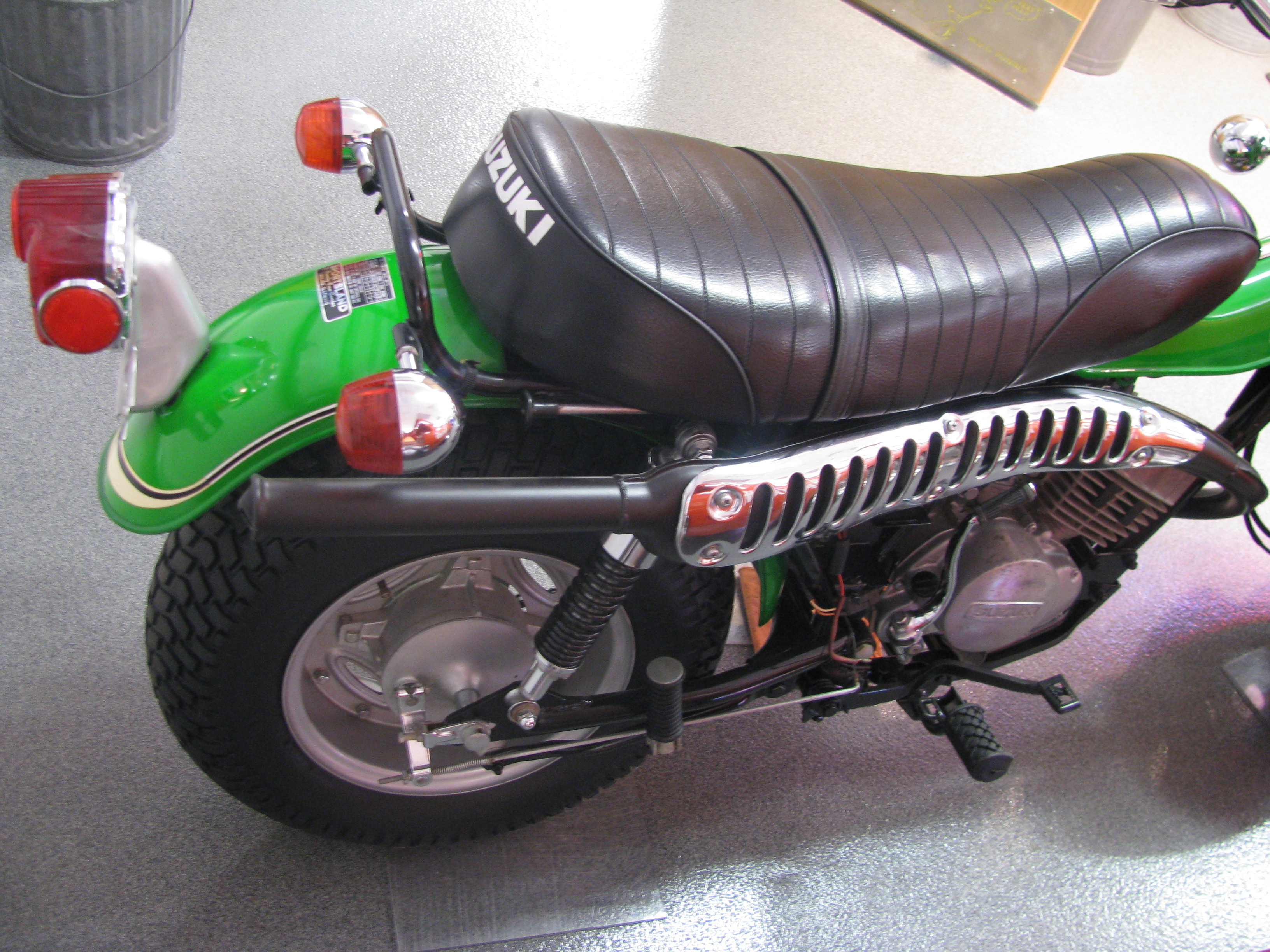

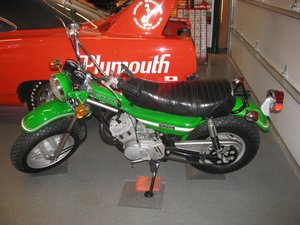

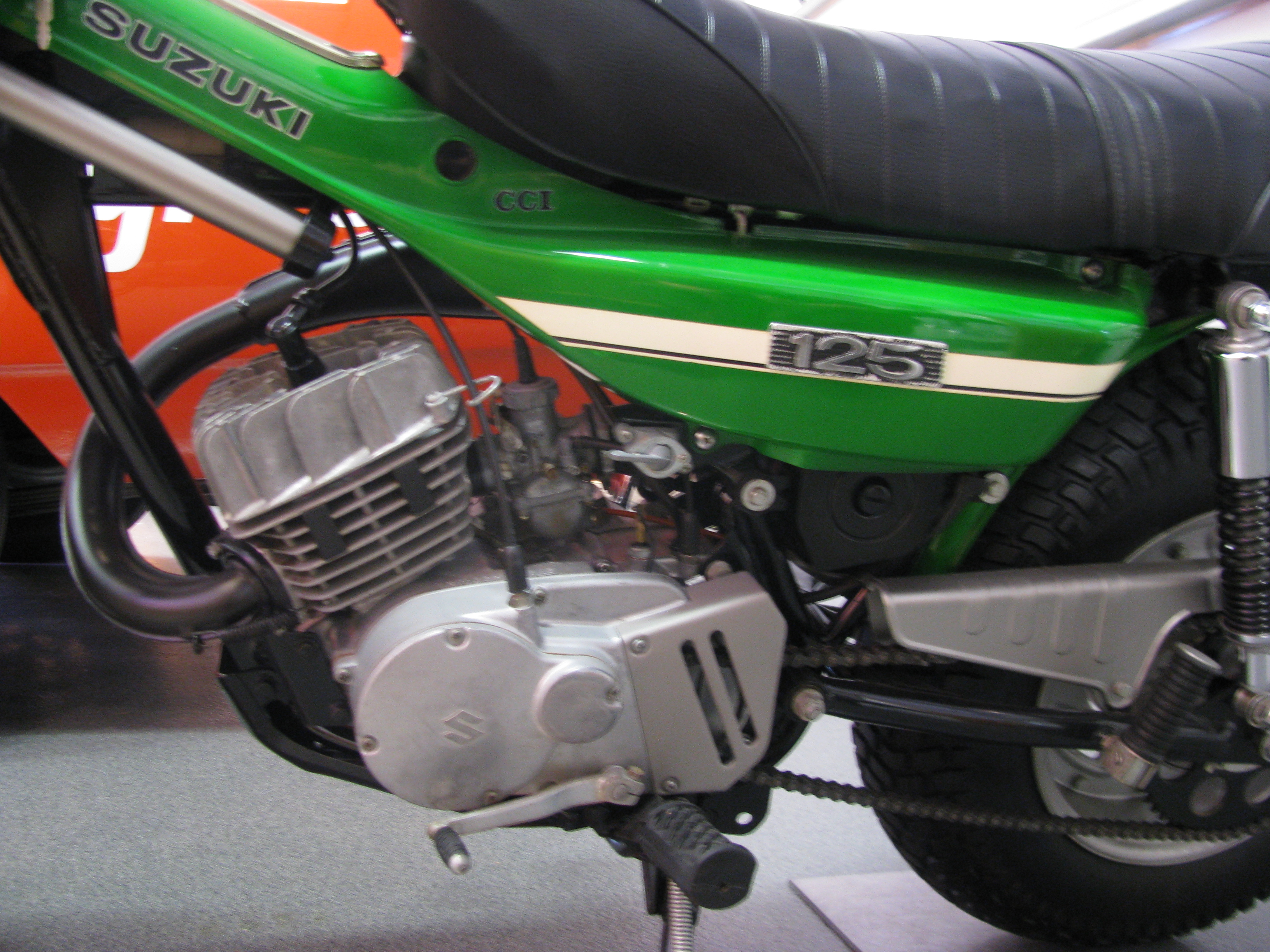

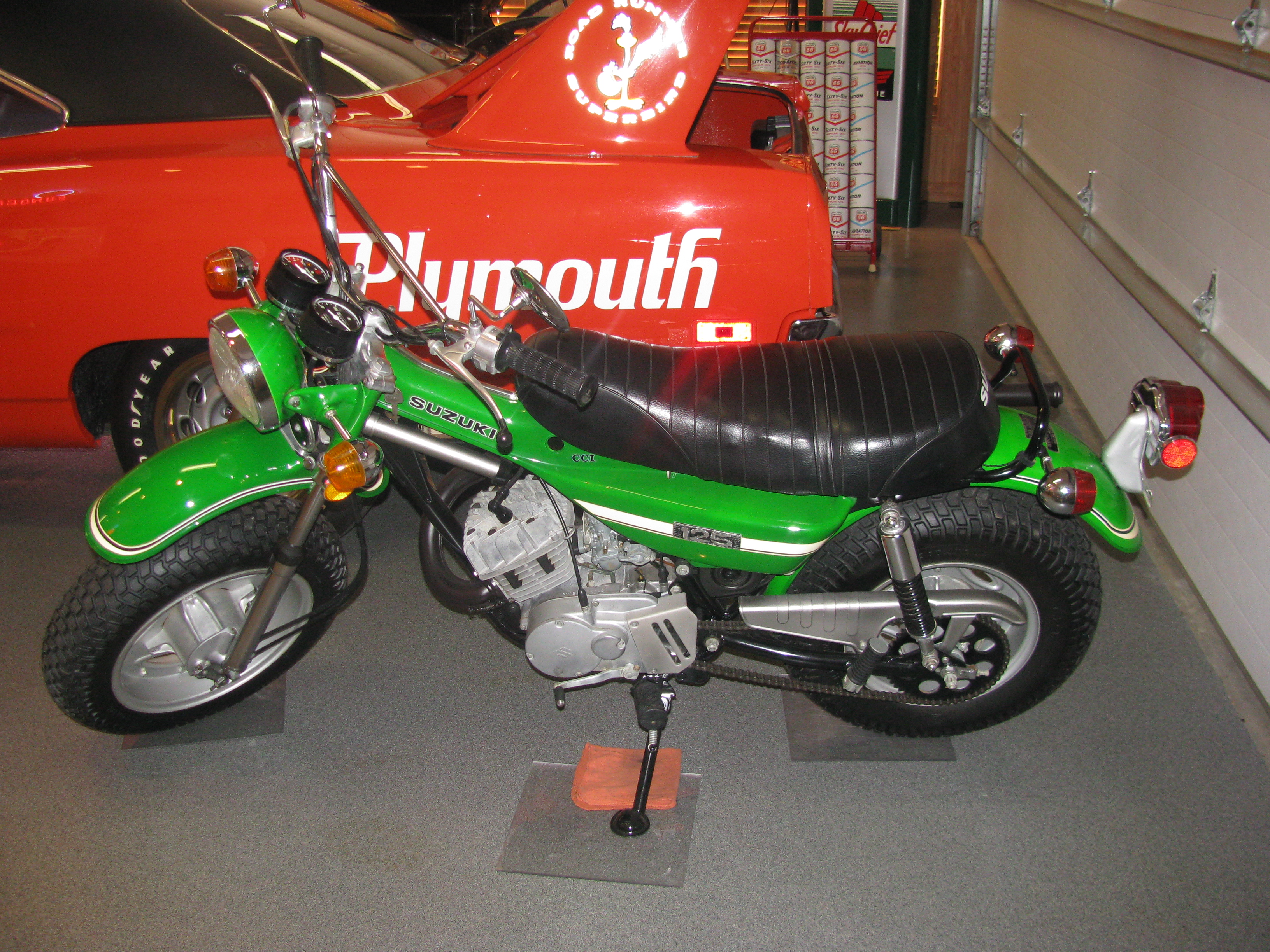

Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 4,325KB

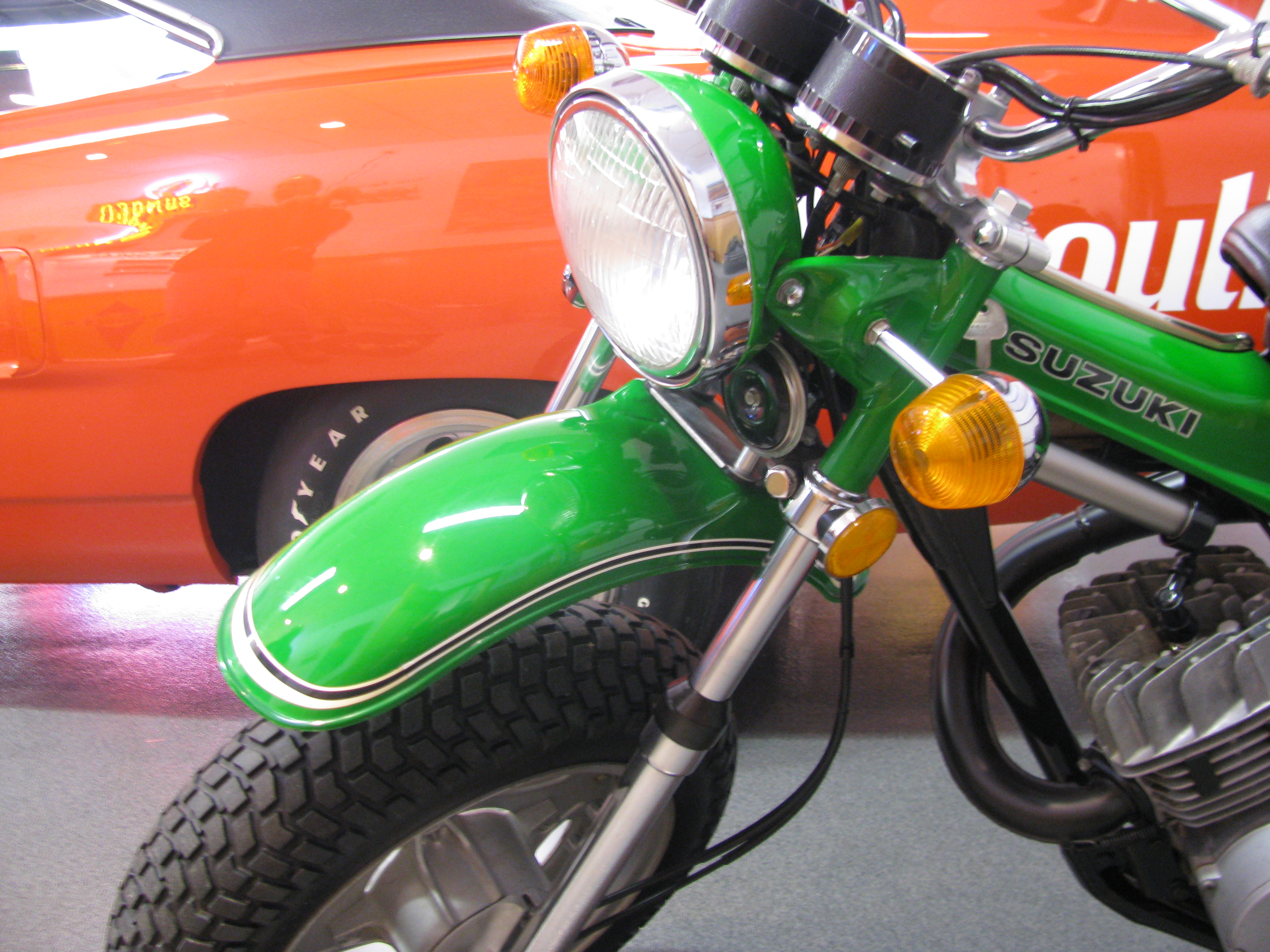

Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 4,448KB

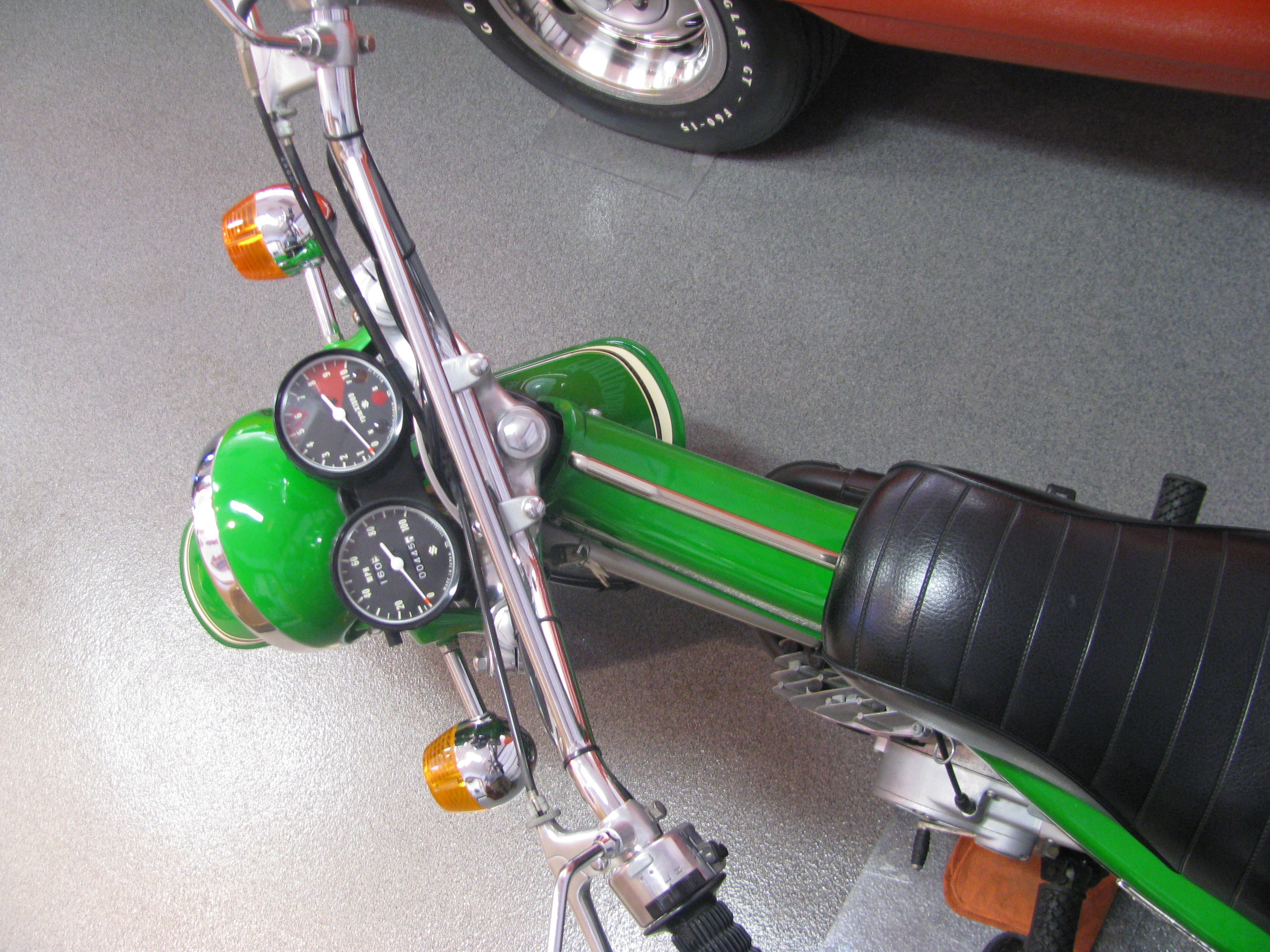

Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 4,519KB
Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 3,659KB
Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 3,578KB
Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 3,526KB
Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 3,281KB
Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 3,992KB
Suzuki RV-125K From the private museum of Greg & Kathy Mosley
Photo ©2008 Bill Crittenden
View photo of Suzuki RV-125K - 3,557KB


1973 Specifications

Tracker
Engine Type2-stroke 1-cylinder
Engine MaterialAluminum
Engine CoolingAir
Engine Displacement123cc
Engine Bore & Stroke2.20" x 1.97"
Engine Compression Ratio6.3:1
Oil tank capacity1.7 pints
StarterPrimary kick
CarburetorVM22SH
Horsepower10 @ 6000 rpm
Torque8.8 lb. ft. @ 5500 rpm
Transmission5-speed constant mesh
ClutchMulti-place wet disc
Front SuspensionTelescopic, oil-dampened
Rear SuspensionSwinging arm, oil-dampened
Front BrakeRight hand, internal expanding
Rear BrakeRight foot, internal expanding
Length77.2"
Width30.3"
Height39.6"
Wheelbase51.4"
Ground Clearance7.7"
Front Tire5.40-14 4PR
Rear Tire6.70-12 4PR
Fuel capacity1.2 gallons
InstrumentsSpeedometer, tripmeter, tachometer
ColorsPine Green
Weight (dry)244 lbs.
