History
Photographs Article Index |
History
The following section is an excerpt from Wikipedia's Holden EH page on 31 March 2021, text available via the Creative Commons Attribution-ShareAlike 3.0 Unported License.
The Holden EH is an automobile produced by General Motors-Holden in Australia from 1963 to 1965. The EH was released in August 1963 replacing the Holden EJ series and was the first Holden to incorporate the new "Red" engine, with a 7 main bearing crankshaft instead of the 4 main bearing crankshaft used in the "Grey" engine. A larger capacity 149 ci (2400cc) engine was first only sold attached to a three-speed manual gear box or the "Hydramatic" 4 stage automatic transmission with a (column shift).The Controlled Coupling Hydramatic used in the EH was actually a four stage although it effectively worked as a three speed unit except at full throttle. The 179 ci (2900cc) engine was initially only sold with the "Hydramatic". The first EH with a 179 ci engine and a manual gear box was called the "EH-S4", fitted with an up-graded manual gear box, with stronger gears than the 149ci gear box and an up-graded clutch. The three-speed manual (column shift) gear boxes had no synchromesh on first gear and only synchromesh on the second and third 'top gear'
A total of 256,959 EH Holdens were produced and sold from 1963 to 1965, when the EH was replaced by the Holden HD series.
The Station Sedan name was used on all station wagon models.
"Standard" models were basic with no side badging and were mostly fitted with 149ci engines, rubber floor mats and single-tone acrylic paint finish. "Special" models came equipped with stainless moulding strips all round, special badges and optional two-tone paint jobs still in acrylic paint. "Premier" was the top of the range model with 179ci engine and hydramatic transmission, leather interior, bucket seats, fold down centre armrest in the back seat, carpets, metallic paint, centre console incorporating a heater/demister, diamond dot radio, handbrake warning light and chrome plated wheel trims. The Standard EH was the same price as its predecessor (EJ) at A$2102.
The "S4 Special" was introduced in September 1963 for racing homologation purposes (a minimum of 100 were required to be built & sold). These featured a 179 engine, manual transmission with hardened gears, 12 gallon fuel tank (9 gallon was standard), a more comprehensive tool kit, metal lined brake shoes and a larger tailshaft. Six were produced at Holden's Melbourne's (Dandenong) plant and 120 in Sydney's (Pagewood) plant.
 |

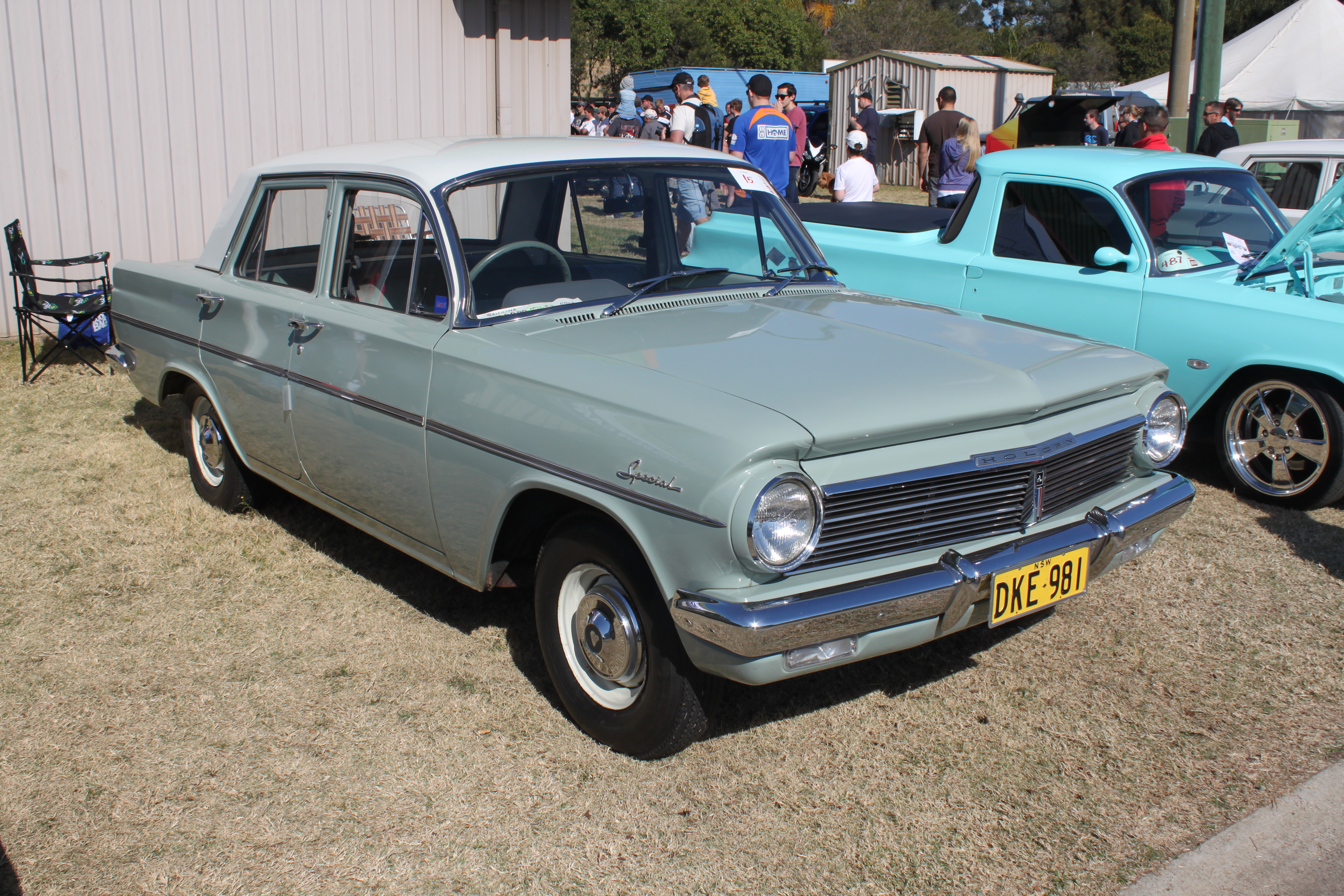

Subject: Holden EH Special
Photographer: jeremyg3030 (Flickr) Date: 3 August 2014 License: Creative Commons Attribution 2.0 Generic View photo of Holden EH Special - 7.6MB |
