History
The following section is an excerpt from Wikipedia's Automotive Industries page on 2 August 2016, text available via the Creative Commons Attribution-ShareAlike 3.0 Unported License.
The Buick Electra is a full-size premium automobile that was built by Buick from 1959 to 1990. Harlow H. Curtice, former president of the Buick division and later president of General Motors, named the car after his sister-in-law, Electra Waggoner Biggs.
During its more than 30 year run, Electra was offered in varying body styles including coupe, convertible, sedan, and station wagon. The Electra was replaced by the Buick Park Avenue in 1991.

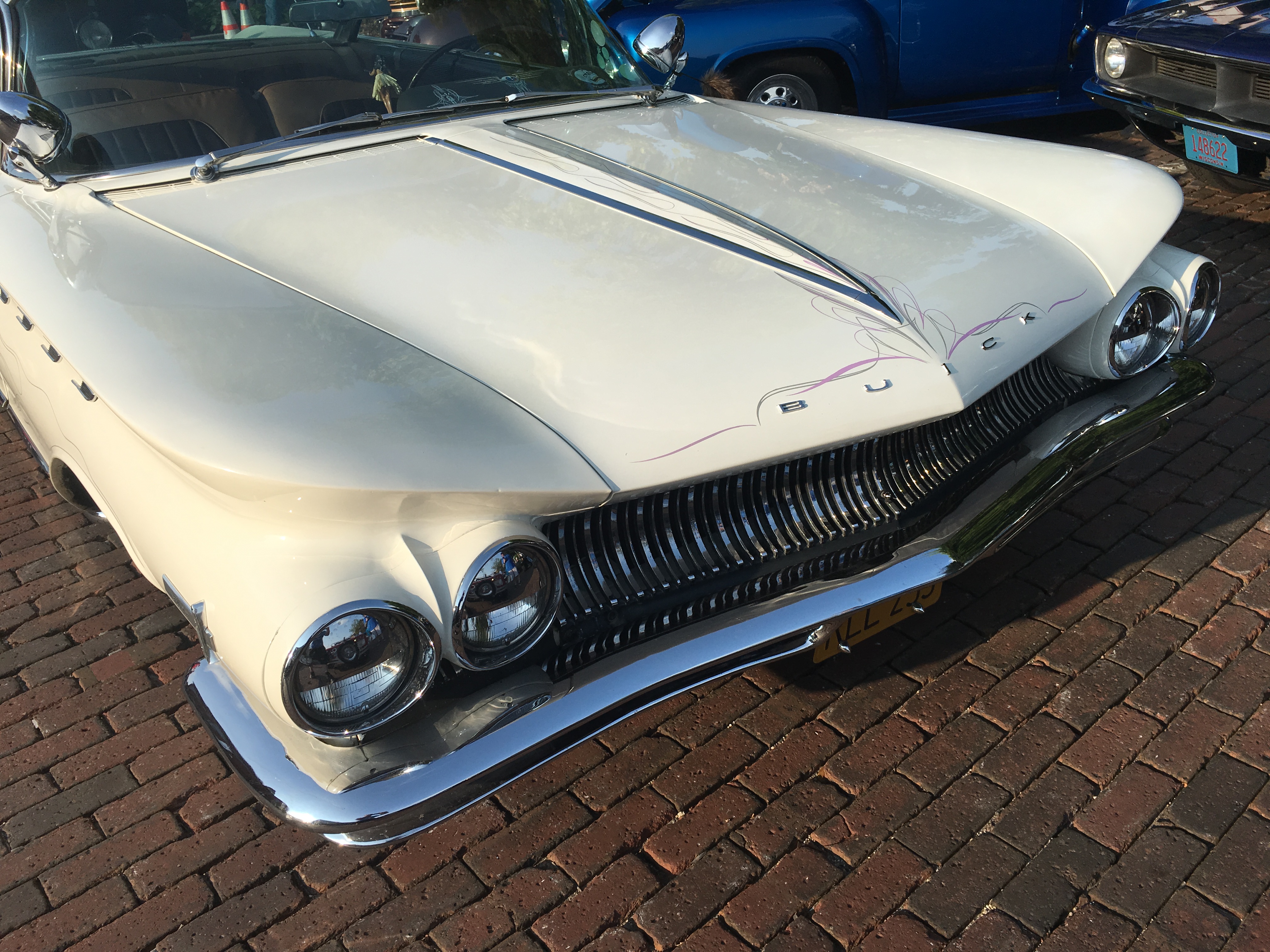

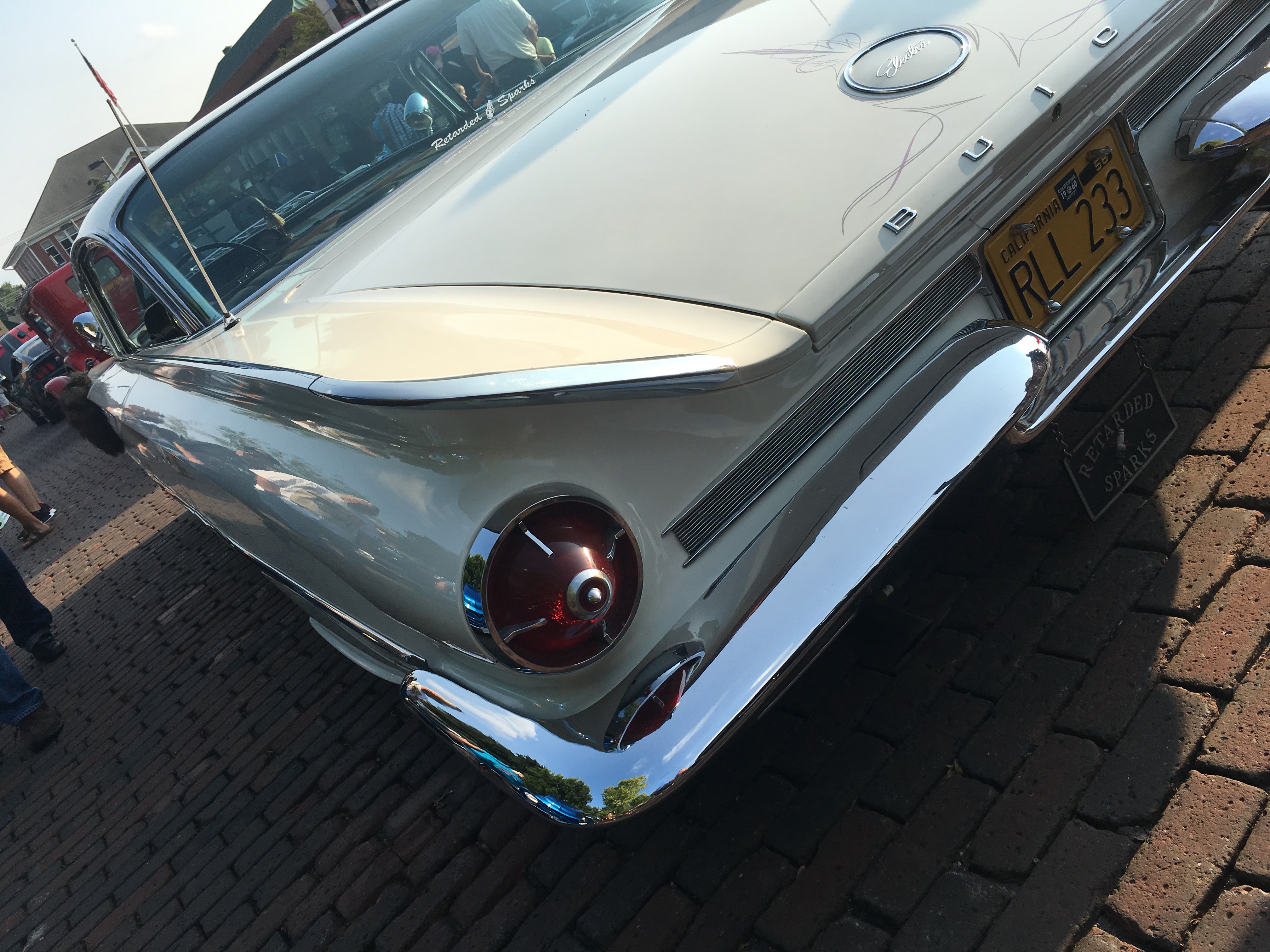

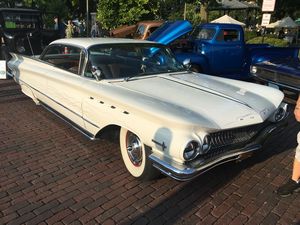

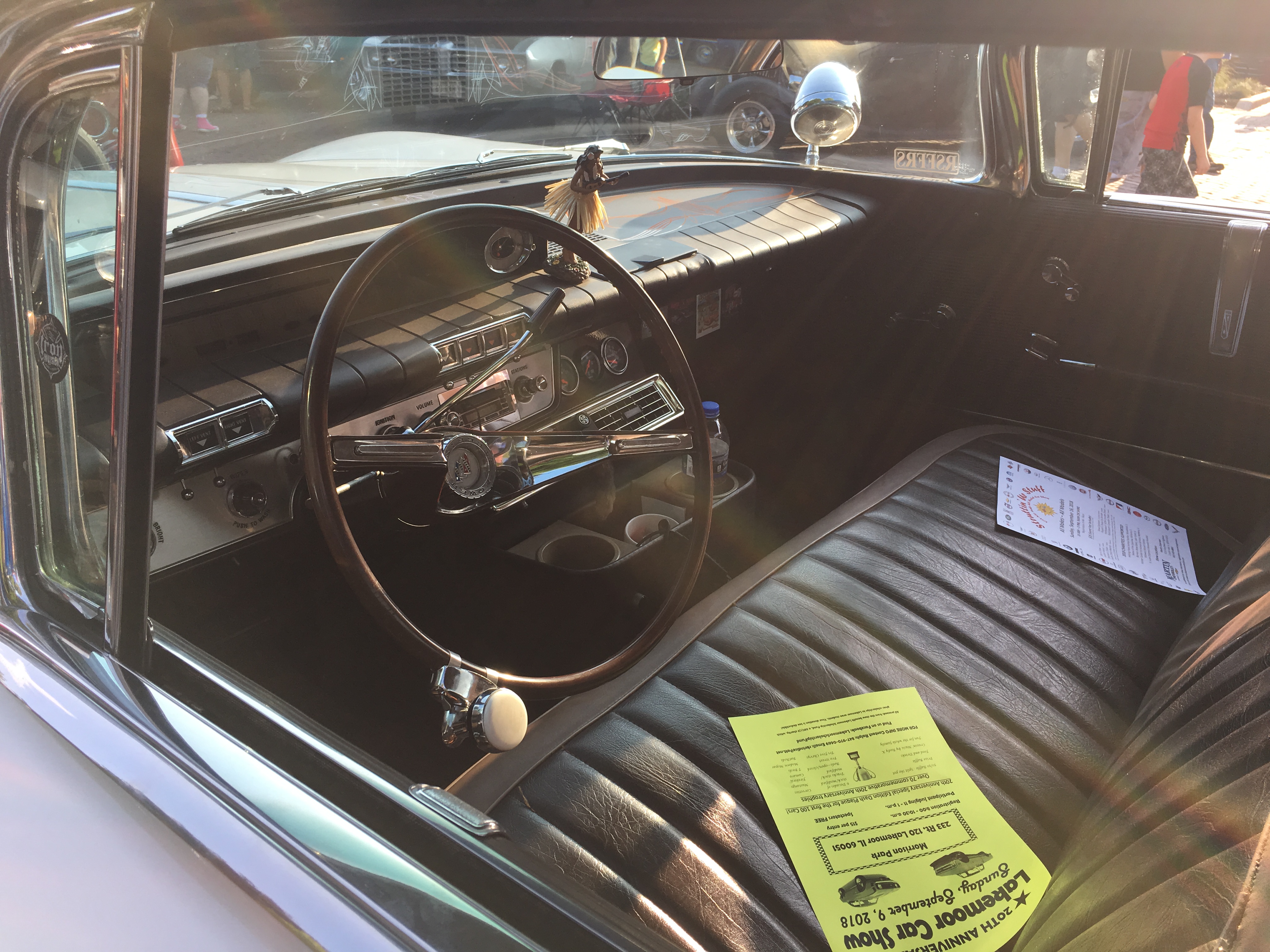

1959–1960
For 1958, the Roadmaster and the Limited constituted the upper echelon of Buick's lineup. For 1959, they were renamed the Electra and the Electra 225 respectively. The appearance was shared with two other Buick models, the mid-level Invicta and the entry level LeSabre.
The Electra 225 nameplate was a nod to the latter car's overall length of over 225 in (5,715 mm), earning it the street name "deuce and a quarter."
The Electra 225 Riviera was the top-line model and it shared its six window hardtop roofline exclusively with Cadillac (which offered it on all of its models). Buick first applied the "Riviera" name to a premium trimmed 2-door Roadmaster hardtop in the middle of the 1949 model year, and thereafter denoted all Buick hardtops Rivieras. Also, from 1950 through 1953, Buick made a premium trimmed, stretched wheelbase sedan, exclusively in the Roadmaster and Super lines, that was called Riviera. But 1959 was the first year that not all Buick hardtops were called Rivieras. A standard 4-window four-door hardtop was also available, as was a 4-door 6-window pillared sedan, along with a stripped chassis of which 144 were built in 1959 and 1960. The two-door convertible was only available as an Electra 225, and the 2-door hardtop as an Electra.
1961–1964
1961
The Electra, along with the Invicta and LeSabre, was redesigned for 1961 with drastically shrunken fins, and was joined with the all-new compact sized Skylark/Special. Electras featured bright rocker panel and wheelhouse moldings. Four VentiPorts per front fender were a hallmark, with identification spelled out on the front fender plaques. Electra 225s had four "hash marks" interrupting behind the wheelhouse of the rear fender. Electra 225 nameplates were found on the front fenders. Electra interiors were trimmed in fabric. Electra 225s were trimmed in Calais cloth or leather trim, except for convertibles which were trimmed in vinyl. An optional Custom interior featured leather trim, while another featured vinyl with contrasting vertical stripes and front bucket seats with a storage consolex and power two-way seat adjustment.
Standard equipment on the Electra included Turbine-Drive automatic transmission, "Mirromatic" instrument panel, directional signals, full-flow oil filter, electric windshield wipers, Deluxe steering wheel, trip mileage indicator, cigar lighter, Step-On brake, dual armrests, cloth and vinyl trim, combinations, carpeting, power steering, power brakes, two-speed windshield wiper/washer system, glovebox light, Custom-padded seat cushions and Deluxe wheelcovers. Two-tone Electras had the color accent on the rear cove. In addition Electra 225s had back-up lights, Glare-proof rearview mirror, parking lights, signal light, safety buzzer, courtesy lights, two-way power seat, Super Deluxe wheelcovers with gold accents and power windows. The Electra and Electra 225 were the same length in 1961. Buick discontinued the Electra nameplate at the end of the 1961 model year, leaving only the Electra 225 starting in 1962.
1962
The big Buick of 1962 carried four VentiPorts per front fender and featured a rakish sculptured restyle of its 1961 guise. The hardtop coupe and standard hardtop sedan featured a convertible inspired semi-formal roofline, while the Riviera hardtop sedan continued to use six-window pillarless configuration. Electra 225 rear fenders had a group of vertical hashmarks, with Electra 225 spelled out in block letters just above. A full length bright strip crowned the upper body ridge, while the tower rocker molding and wheelhouses were accented with bright trim. Wheelcovers had a gold accent ring. Interiors were of the finest cloth and, on the convertible, leather was used. Standard features included directional signals, full-flow oil filter, dual speed electric windshield washer/wipers, Deluxe steering wheel, cigar lighter, Step-on parking brake, dual armrests, Turbine-Drive transmission, padded dashboard, heater, defroster, glovebox light, back-up lights, power steering, Glare-proof rearview mirror, power brakes, power brake signal light, safety buzer, courtesy lights, two-way power seats, power windows, Super Deluxe wheelcovers, Safety option group, custom padded cushions, Accessory Group options and custom moldings.
1963
Buick's largest, plushest and most expensive models were restyled for 1963, with distinctive rear fenders culminating in a sharp vertical edge housing narrow back-up lights. The taillights were horizontally placed in the vertical deck cove. A unique cast grille was used at the front. Bright wheelhouse and lower body moldings, with ribbed rear fender panels were used. Red-filled Electra 225 badges were found on the rear fenders, while four VentiPorts lent status to the front fenders. Interiors were cloth and vinyl combinations, while a Custom interior in vinyl and leather, with front bucket seats and a storage console, was available for the convertible and sport coupe. Standard equipment included directional signals, full-flow oil filter, dual speed electric windshield wiper/washers, Deluxe steering wheel, cigar lighter, Step-On parking brake, dual armrests, Turbine-Drive automatic transmission, padded dashboard, heater, defroster, glovebox light, back-up lights, power steering, Glare-proof rearview mirror, power brakes, parking brake signal light, safety buzzer, courtesy lights, two-way power seats, power windows, Super Deluxe wheelcovers, Safety option group, custom padded cushions, Accessory Group options and custom moldings. Buick dropped the Riviera name as a body style designation after the 1963 model year, shifting the Riviera name exclusively to Buick's new personal luxury coupe that had been introduced in 1963. Buick added a 7-way tilt steering wheel in 1963 as an option.
1964
The large General Motors C-body was used to create the 1964 Electra 225, Buick's richest full-size car. Vertical, narrow taillamps were found in the nearly straight-cut rear fender ends, and the so-called "Deuce-and-a Quarter" came with fender skirts. Four traditional VentiPorts were found on the front fenders, with heavy die-cast grille accenting the frontal aspect. Wide front lower body moldings were used along with a bright deck cove insert. Electra 225 lettering was found on the rear fenders and specific full wheelcovers were featured. Vinyl and brocade cloth interior trims were found in closed models, while leather upholstery was offered for seats in the convertible. Among the Electra's exclusive standard equipment were power steering; power brakes; two-speed electric wipers with windshield washer; foam padded seats; electric clock; license frame; trunk light; two-way power seat and power windows for the convertible; safety buzzer; and additional courtesy lights. The 2-speed Dynaflow automatic was replaced by the 3-speed TH-400 as standard equipment.
1965–1970
1965
All GM passenger vehicles received a major redesign in 1965 dominated by flowing "Coke bottle" lines and fastback roof profiles on its coupe models, and the 6 window-body style was eliminated. For 1965, Buick also changed its marketing strategy and offering the Electra 225 in two trim levels, base and Custom. Along with the new body came a new chassis with a full perimeter frame including side rails that replaced the previous "X" frame used since 1961. Engine offerings were unchanged from 1964 including the standard 325-horsepower 401 V8, and two versions of the larger 425 V8 that were rated at 340 horsepower (250 kW) with a four-barrel carburetor or 360 horsepower (270 kW) with two four barrels. The three-speed Super Turbine 400 automatic transmission was standard equipment. A new body style introduced for 1965 was the thin-pillar 4-door sedan, which featured frameless window glass with a thin, chrome fixed "B" pillar.
1966
The 1966 Electra 225 saw only minor styling changes including a new grille and a revised full-width taillight and trunk lid that included an "Electra 225" script rather than the "BUICK" nameplate spelled out in 1965. Engine offerings were unchanged from 1965 with the exception that the dual-quad 360-horsepower 425 was downgraded from a factory option to dealer-installed. Inside, a revised instrument panel featured a horizontal sweep speedometer, fuel gauge and warning lights. Front seat headrests became an option.
1967
A moderate facelift highlighted the 1967 Electra 225 including a Pontiac/Oldsmobile-like divided split grille. Both base and Custom models were continued with a new "Limited" option package available Electra 225 Custom 4-door hardtop reviving a nameplate that graced Buick's ultra-luxury flagship in the late 1930s (and again in 1958), which included an ultra-luxurious interior trim. Under the hood a new 430 cubic-inch V8 rated at 360 horsepower (270 kW) with four-barrel carburetor replaced the previous "Nailhead" 401 and 425 V8s. Power front disc brakes were available as a new option along with a stereo 8-track tape player.

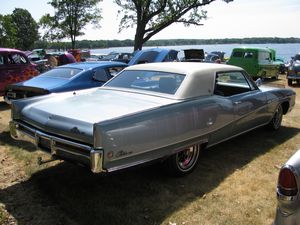

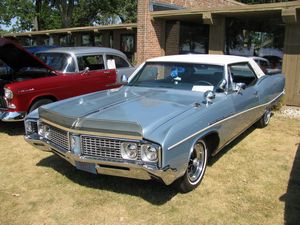

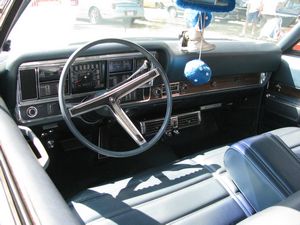

1968

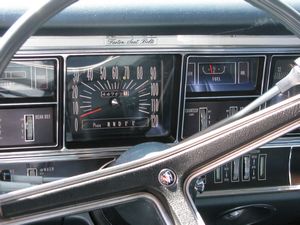

The '68 Electra 225 got a revised grille and taillight trim along with concealed windshield wipers. Inside, there was a revised instrument panel with a square speedometer and other instruments, plus a new steering wheel. Shoulder seat-belts were standard for both the driver and front passenger. Base and Custom models were still offered, with the Limited trim option available on the Electra 225 Custom hardtop sedan.
1969
The year 1969 also brought a major restyling to the Electra 225 and other GM B-body and C-body cars with somewhat crisper bodylines than 1965–68 models, but continued with the same chassis and inner body structure introduced with the 1965 model, however the wheelbase was increased one inch to 127-inch (3,200 mm). The 1969s were also the first to offer headrests as standard equipment due to a federal safety mandate, and the steering column with ignition switch that also locked the steering wheel with the transmission in "Park", a feature found on all 1969 GM cars one year before it became a federal safety mandate in 1970. Also new was a variable-ratio power steering system combined with revised front suspension tuning called "Accu-Drive."
Other changes included ventless front windows. The same assortment of base and Custom models were offered in 1969 with the "Limited" trim package available on Custom sedans and coupes. A new option available with the Limited package was a split 60/40 bench seat with center armrest.
Braking: Standard finned aluminum drum brakes were again offered and were effective. The Bendix 4 piston disk brake units were available. 12" x 1" vented steel rotors were coupled with the cast iron caliper assemblies. Exhaust: Dual exhaust was available as an option. Rear Axle Ratios: 2.56 Economy as well as 2.73, 3.08, 3.23:1 gear ratios were available. The special PX-Code "AC Delete" 3.91 performance gear option was available. Performance: 1/4 mile road course completed in 15.5 seconds at a terminal velocity of 90 mph (140 km/h) was achieved with the dual exhaust and 2.73 gear ratio in a 4,700 lb (2,100 kg) Custom Convertible.

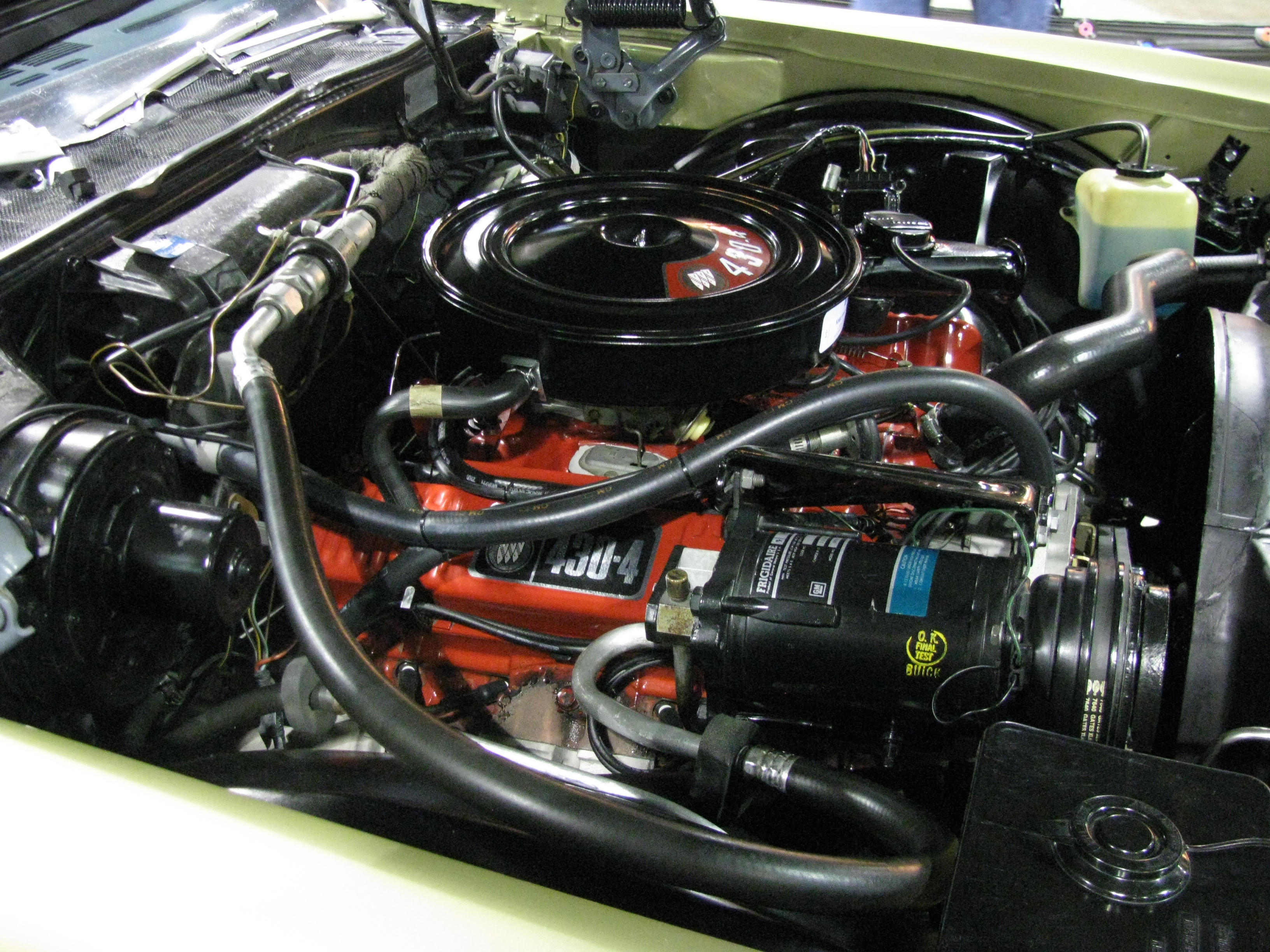

1970 Only a minor facelift with revised grille and taillight trim marked the 1970 Electra 225. The big news was under the hood, where a new 370-horsepower 455 cubic-inch V8 replaced the 430 V8 used from 1967 to 1969. This was the final year for the Electra convertible, finned aluminum brake drums and high compression engines. New this year was a concealed radio antenna, which amounted to two wires embedded in the windshield.
New for 1970 was the Estate Wagon, which shared the Electra's 455 V8 and four VentiPorts, but was a B-body car like the LeSabre and the Wildcat and consequently shared the smaller cars' 124.0-inch (3,150 mm) wheelbase and interior. This was Buick's first full-sized station wagon since 1964. The following year the Buick Estate would move up to Electra's larger body and more voluminous interior.
1971–1976
Like the other GM brands, Buick completely restyled its B-body and C-body cars for 1971. The full-size cars emerged larger and heavier than ever before or after. The new GM full-size bodies, at 64.3" front shoulder room and 63.4" rear shoulder room set a record for interior width that would not be matched by any car until the full-size GM rear-wheel drive models of the early to mid 1990s. The styling featured curved bodysides, long hoods and wide expanses of glass. All Electra 225s were hardtops in the 1971 to 1973 model years, eliminating the previous four-door pillared sedan variant and the convertible. In 1974 Buick adopted GM's pillared coupe body and fitted it with the "Landau" option on the Electra Limited coupe. Optional driver and passenger airbags were also available from 1974 to 1976, but they were unpopular due to their cost.
1971
In the first year for new GM C-body shared with Oldsmobile 98 and Cadillac, the 1971 Electra 225 rode on a new body chassis which retained the 127-inch (3,200 mm) wheelbase with styling evolutionary from previous models. The new design included a double-shell roof for improved roll-over protection and noise reduction. Inside was a new wrap-around cockpit style instrument panel shared with B-body LeSabre and Centurion models that grouped all instruments with easy reach of the driver.
Under the hood, the 455-cubic-inch V8 was retained as standard equipment, but featured a lower compression of 8.5 to 1 compared to 10.25 to 1 in 1970 as part of a GM corporate mandate requiring all engines to run on 91 Research octane regular leaded, low-lead or unleaded gasolines. Horsepower also dropped from 370 to 315 as a result. Standard equipment continued to consist of variable-ratio power steering and Turbo Hydra-matic transmission. Power front disc brakes were now standard equipment on Electras, replacing the 12-inch (300 mm) finned aluminum drum brakes used in full-sized Buicks since the late 1950s.
Also new for the 1971 Electra 225, as well as the B-body LeSabre and Centurion, and E-body Riviera, was a new power ventilation system. The system, shared with other GM B-, C- and E-body cars along with the compact Chevrolet Vega, used the heater fan to draw air into the car from the cowl intake, and force it out through vents in the trunk lid or tailgate. In theory, passengers could enjoy fresh air even when the car was moving slowly or stopped, as in heavy traffic. In practice, however, it didn't work.
Within weeks of the 1971 models' debut, however, Buick—and all other GM dealers—received multiple complaints from drivers who complained the ventilation system pulled cold air into the car before the heater could warm up—and could not be shut off. The ventilation system was extensively revised for 1972.
From 1971 to 1976, Buick's full-sized Estate Wagon shared the 127.0-inch (3,230 mm) wheelbase and 455 cubic-inch V8 with the Electra 225, and shared its interior and exterior styling from 1971 to 1974 (complete with the prerequisite four VentiPorts). And although from 1975 to 1976 the number of VentiPorts were reduced by one, and the front fascia was downgraded to a LeSabre's, the Electra 225 style chrome rocker panel moldings and distinctive Electra 225 style rear quarter panels (albeit without fender skirts) remained. These were the first Buick station wagons to be built on Buick's largest chassis since the Roadmaster Estates of 1947–53. The Estate Wagons, as did other GM full-sized wagons during these years, used a unique rear suspension with multi-leaf springs instead of the coil springs used on other full-sized Buicks, and other full-sized GM cars. The Estate Wagons also featured a new 'clamshell' tailgate design where the rear power-operated glass slid up into the roof as the tailgate (manually or with power assist), slid into a recess under the cargo floor. The power tailgate, the first in station wagon history, ultimately supplanted the manual tailgate, which required marked effort to lift from storage. It was operated by switches on the instrument panel or a key switch on the rear quarter panel. The clamshell system, heavy and complex, made it easier to load and unload the extremely long wagons in tight spaces. But it remained un-adopted by any other manufacturer, and would be eliminated when GM reduced the length of their wagons by about a foot in 1977, and the overriding concern became increased fuel economy.
At 5,182 lb (2,351 kg) shipping weight, or about 5,400 lb (2,400 kg) curb weight, the three-seat 1974 Estate Wagons are easily the heaviest Buicks ever built, even heavier than the Buick Limited limousines of 1936–42.
1972
New egg-crate grille and taillight trim highlighted the 1972 Electra 225s. The trouble-prone ventilation system used in 1971 was replaced by a new system using vents in the doorjambs instead of the trunk-mounted vents of 1971. The 455 V8 was carried over and now rated at 250 net horsepower compared to 315 gross horsepower in 1971. The differences in advertised horsepower in the two years was due to an industry-wide switch from "gross" (dynometer-rated and not installed in vehicle) to "net" (as installed in vehicle with accessories and emission controls installed) horsepower measurements.
1973
A revised egg-crate grille above a new federally mandated 5 mph (8.0 km/h) front bumper and revised taillights were among the most noticeable changes for the 1973 Electra 225. All engines now featured EGR valves to meet increasingly stringent 1973 emission standards (the EGR valve was featured on Buick engines for California cars in 1972).
1974
New grillework and a new rear with revised taillights and a federally mandated 5 mph (8.0 km/h) rear bumper highlighted the 1974 Electra 225, still available in base and uplevel Custom models. The Electra Limited, previously a luxurious trim option on the Custom models, was upgraded to full model status. Electra Limited models also got power windows, power driver's seat and a new digital clock as standard equipment, along with an optional leather upholstery trim, the first Buicks (along with that year's Riviera) to offer real leather seats since the 1963 Riviera. The 455 V8 was revised to meet the 1974 federal and California emission standards with horsepower dropping from 250 in 1972–73 to 230 for 1974. A one-year only option for the '74 Electra was the high-performance Stage 1 455 with dual exhausts and a 245 horsepower (183 kW) rating. 1974 was the last year for the pillarless hardtop coupe, although the 4 door hardtop would continue to be produced until 1976.
Inside, the wrap-around instrument panel was substantially revised and optionally available for the first time (and seldom ordered) was a driver's side airbag system with an exclusive steering wheel design. 1974 was the final year for the Max Trac traction control option. New options for 1974 included radial tires and a "low fuel" warning light came on when the gas tank was down to only four gallons. A new distinctive "Landau" option was available on the Limited coupe that included the now-popular rear side opera windows and rear-quarter vinyl roof.
1975
1975 brought about changes in all of General Motors C-body cars. In 1975, all Electra 225 coupes had fixed rear side windows and center posts. 1975 also brought along a newer front end and interior design. Rectangular headlights became standard on all GM C-body cars, along with many others. This supposedly would allow engineers to lower the front end to reduce wind resistance, but this wasn't very apparent with the new design. The Electra received a new metal "eggcrate" style grille, which covered most of the front end, and wrapping under the headlights. The grille included running lights on either side. There was a choice of a base model Electra 225 whose trim and appointments were upgraded to the same level as the previous year's Electra 225 Custom and an upscale Limited. The 1975 Electra was also the longest Buick ever built at 233.4 inches (5,928 mm), which is over 19 feet. These cars dwarfed the newer front-wheel drive Electras and Park Avenues in sheer size and weight.
Power windows and a power driver's seat became standard on all Electra models in 1975. Also new to the standard equipment list were radial-ply tires. The 1975 Electra was one of the first GM vehicles to offer an Air Cushion Restraint System or "airbag".
Inside, a new flat instrument panel (shared with LeSabre, Estate Wagon and Riviera) with horizontal sweep speedometer (silver facing with black lettering) replaced the wrap-around cockpit dash of previous years and door panel trim was revised. The speedometer was scaled back from 120 to 100 mph (160 km/h) and kilometer readings were added.
Technical changes for 1975 included the addition of a catalytic converter and electronic ignition to not only meet the stringent 1975 and later emission requirements, but also extended routine maintenance intervals, and improved fuel economy and driveability which was a must in the era immediately following the 1973–74 energy crisis, but also spelled the end of dual exhaust systems and mandated the use of unleaded gasoline as the converter could be rendered useless if contaminated with lead. Axle ratios were also numerically lowered to aid in improving gas mileage. The 455 four-barrel V8, now rated at 205 horsepower (153 kW), was retained as the standard and only available engine.
Electra Limited Park Avenue
The Park Avenue, originally an interior comfort and appearance package, gave buyers ultra-luxurious pillow-topped seating, a center console, velour headliner, thicker carpet, and an upscale door panel design. The Park Avenue's seats were designed by Flexsteel. This seating design was similar to the Cadillac Sixty Special with the Talisman (1974–1976) option and stayed with Park Avenue through the 1980 model year. Some Park Avenues were built with the full size center console (unlike the Sixty Special's Talisman's half console), which eliminated the 6th passenger, in the front middle, between the driver and front passenger. The center console was eliminated in 1977 as buyers complained about the lack of seating for a sixth passenger, as was common in many large sedans of the era. 1975 also offered a more luxurious Park Avenue Deluxe, which was sold only in 1975, and included every option available on the Electra (posi-traction, 15" rallye sport wheels, rear automatic leveling, etc.). The Park Avenue Deluxe was an expensive option not popular with buyers; only 37 were built. The Park Avenue would remain as the top level trim package through 1990. In 1991, the Electra name would be dropped and Park Avenue would replace it as the flagship Buick sedan.
1976
1976 brought about a few changes on the Electra. The front-end was reworked, including the grille and bumper. The new plastic grille featured 17 vertical bars and covered much of the radiator. The grille did not extend under the headlights in 1976, but instead Buick moved the running lights and turn signal lights underneath the headlights, where the 1975 grille had once been. The bumper no longer housed running lights. There were also some minor interior differences. The brake release handle was black instead of chrome, the seat material was slightly different, on the limited, notch-back diamond pattern seating. The 1975 material appeared in a "corduroy" form, but the actual material was not corduroy. The 1976 diamond pattern seating material did not have this appearance. The engine air cleaner did not have a "cold-air" ram air intake hose like the 1975 model did, and there were some carburetor changes and camshaft changes to meet EPA standards. The rear end ratio also was higher than the 1975 standard, at 2.56:1 instead of 2.73:1. The Park Avenue and leather seating in 1975 and 1976 were the same. Once again, there was the base 225, the Limited, and the luxurious Park Avenue. The Park Avenue Deluxe vanished for 1976 due to poor sales. The 1976 Electra is about the same size as the 1975 at 233.3 inches (5,926 mm), making them among the biggest Buicks ever.
The 1975 Buick Electra 225 Limited was the longest four-door hardtop car GM ever built, as the Cadillac Sixty Special (which was a bit longer) was unavailable as a hardtop sedan since the mid-sixties. The model also ushered in a return of the six window configuration that Buick offered between 1959 and 1964.
All Electras were powered by Buick's 455 cu. in. (7.5 L) engine between 1971 and 1976. The 1971 model had a respectable 315 hp (235 kW), but that was reduced to a mere 205 hp (153 kW) by the 1976 model year; increasingly stringent exhaust emission limits reduced engine output, and an industry-wide 1972 change in rating systems reduced the horsepower numbers produced by any given engine. Even at its weakest state, the Buick-built 455 engine still produced 345 lb·ft (468 N·m) of torque at 2000 rpm. The 455 was the standard engine on the Electra, but there were some built with Buick 350s during the GM strike, when 455 production halted. The 350 engine also came with a price rebate. The 455 engine disappeared after the 1976 model year, in favor of smaller, more efficient engines.
Total production for this generation was 794,833.

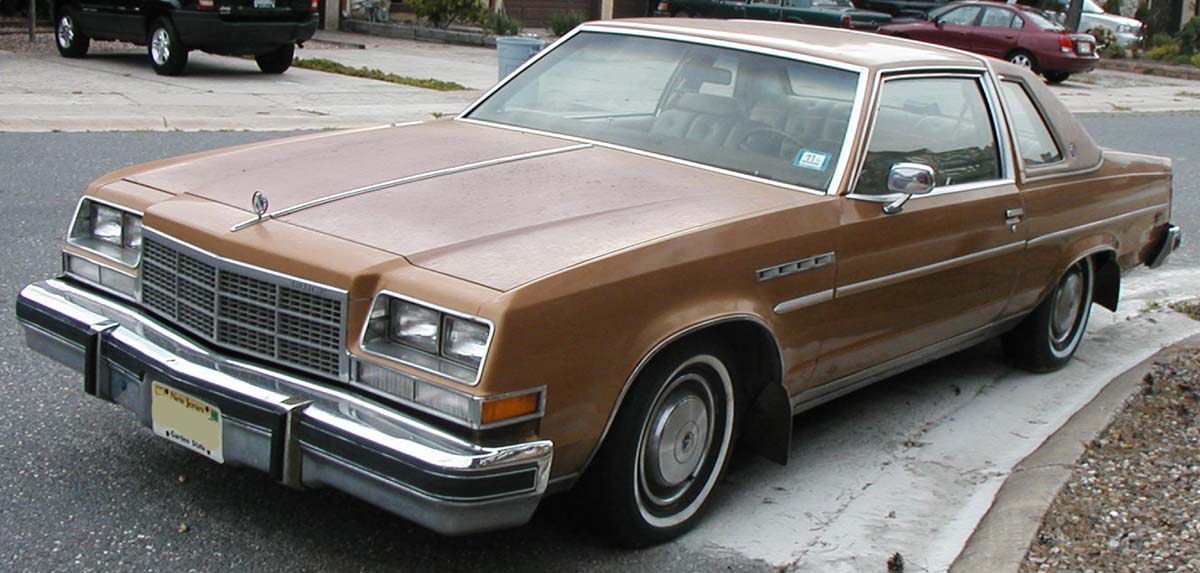

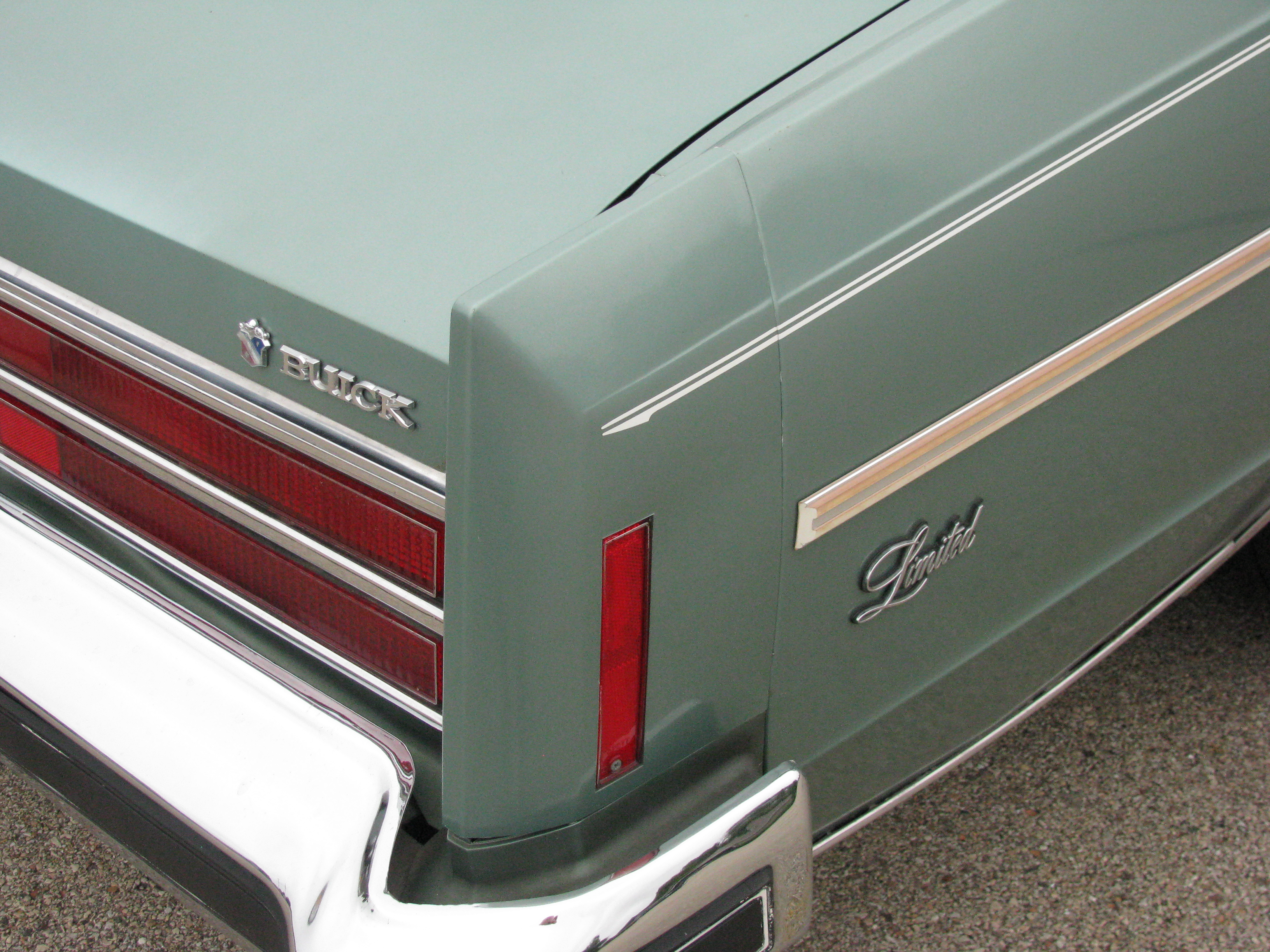

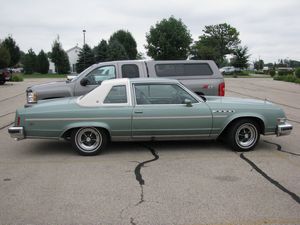

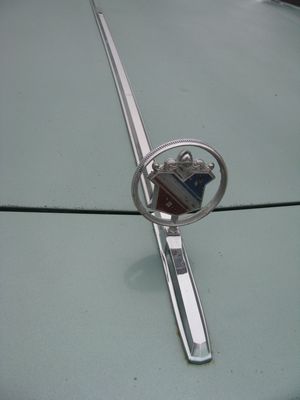

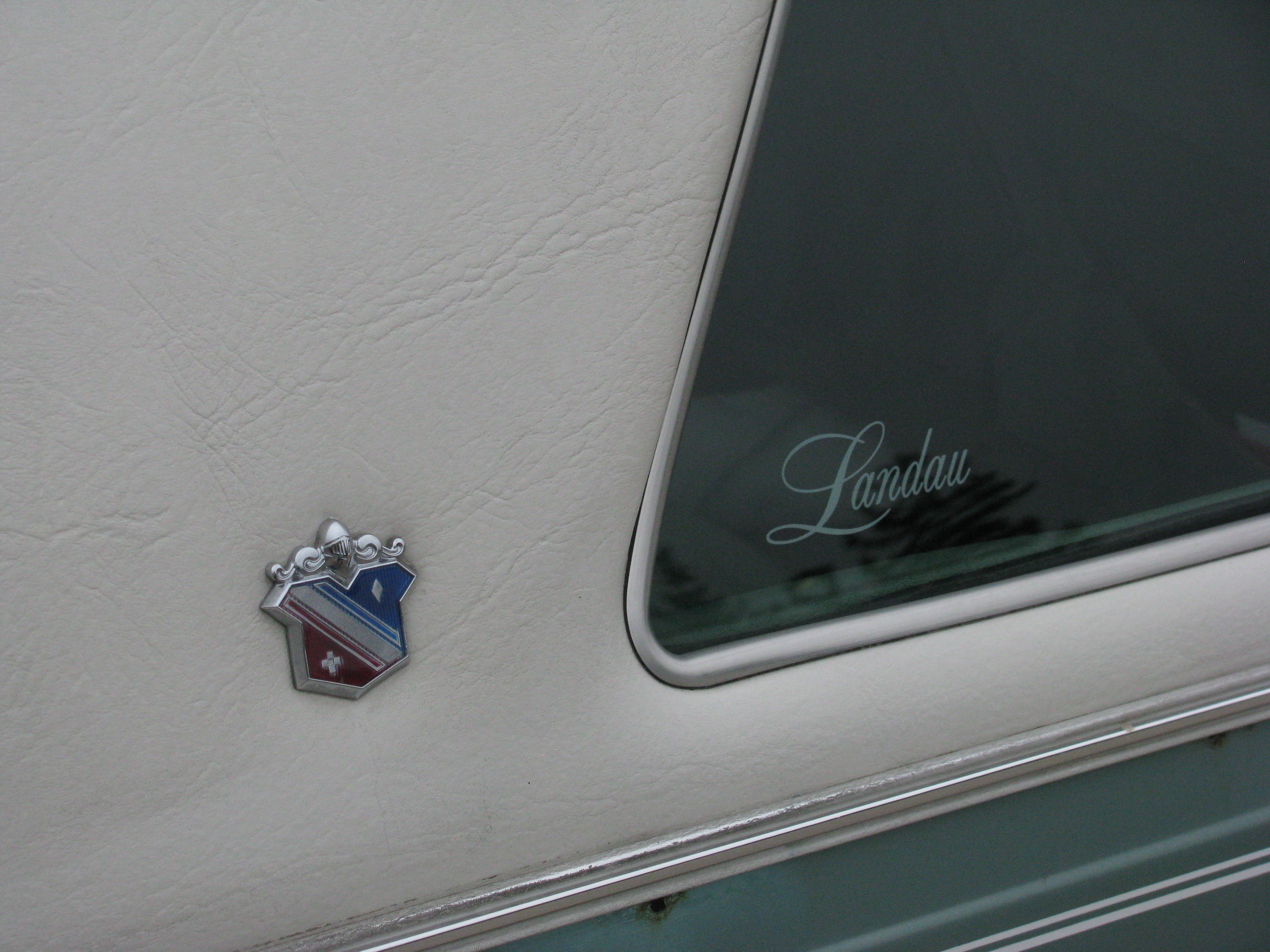

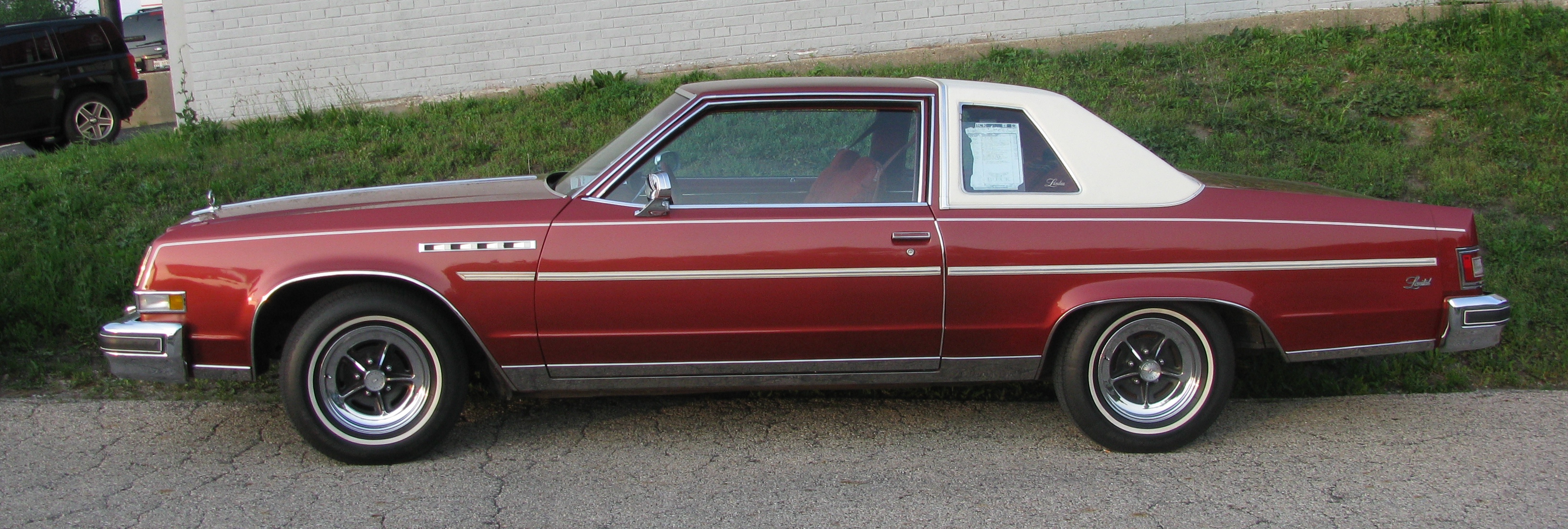

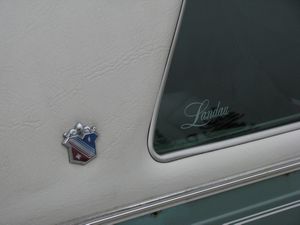

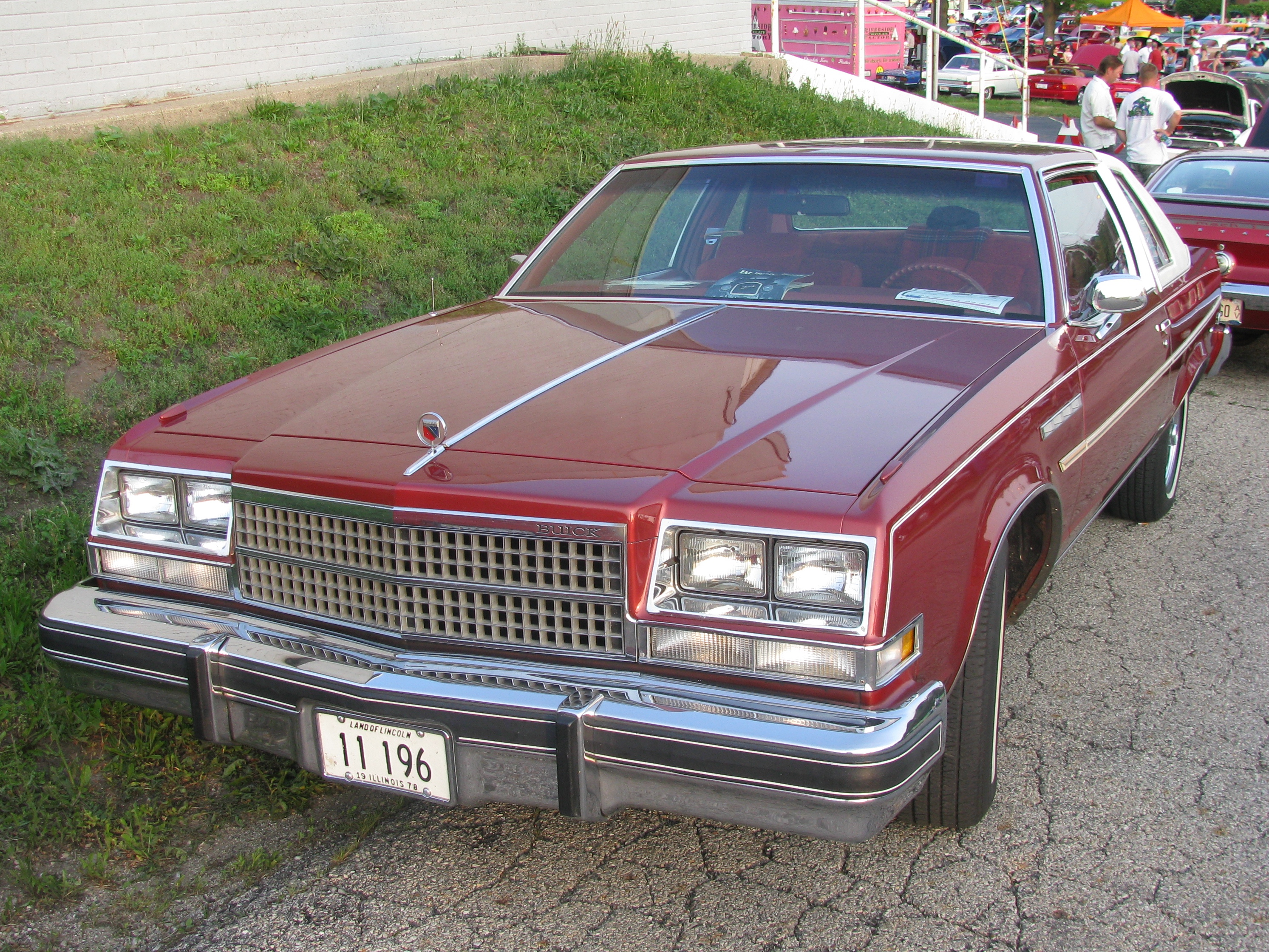

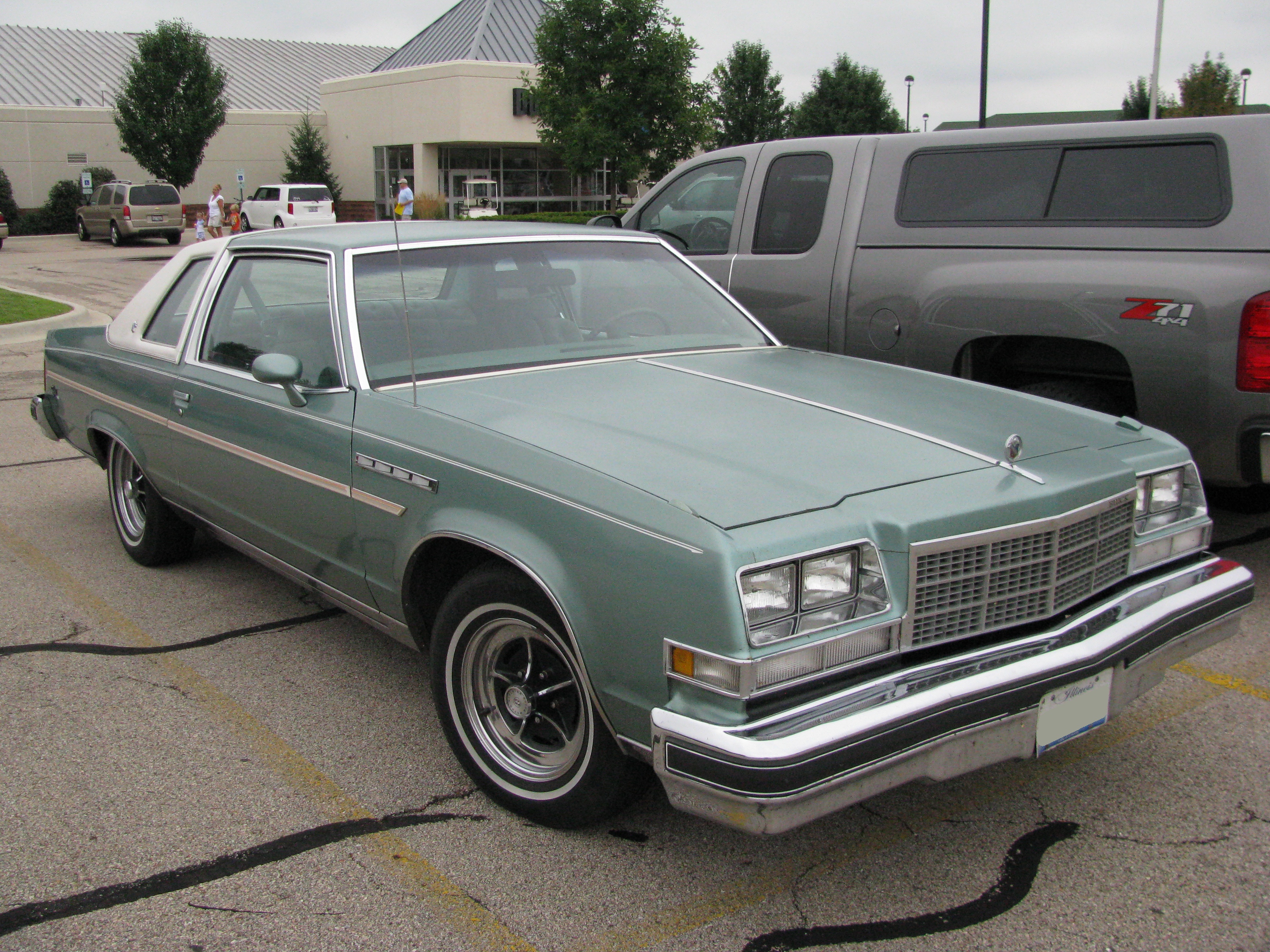

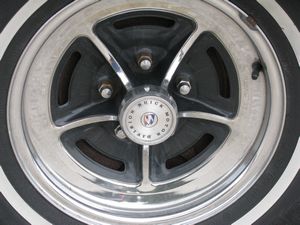

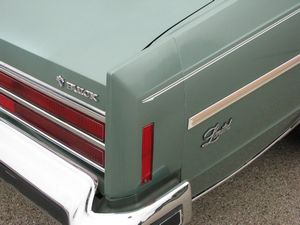

1977–1984
GM downsized all C-body cars in 1977, including the Electra. It lost over 11 inches (279 mm) in length and quite a bit of weight too. The car was totally redesigned, but still offered base 225 and Limited trims, plus a top-line Park Avenue option package, which became available on the coupe. The console option in the Park Avenue was gone, never to return to the rear wheel drive Electra. The downsized model brought increased sales, with 161,627 Electras produced in 1977. Hardtops were no longer produced; all models now had thick "B" pillars.
The big-block 455 was gone forever. The base engine was now the Buick 350 with a 4-barrel carburetor until 1979. The Oldsmobile 403 was optional from 1977 to 1979. Oldsmobile's 350 diesel was added to the option list beginning in 1980, along with an Oldsmobile-sourced 307. The Buick 350 was now optional, with the base engine being the Buick 4.1 L V6 for improved fuel economy. In 1981, the then-optional Buick 350 was dropped. That same year, the Electra gained the new THM200-4R automatic transmission, which featured a lock-up torque converter and a 0.67:1 overdrive ratio. With the new transmission, the Electra could be equipped with a numerically higher rear axle ratio for better performance, while offering improved fuel economy with the overdrive range.
Park Avenue, previously an appearance option package, became an official trim level on the Electra in 1978. Cosmetically, a different grille and redesigned tail lights were the only notable cosmetic changes that year but 1979 brought a redesigned, flat front end and a subtly different taillight treatment featuring a Buick crest and bisecting horizontal silver line. It didn't last as the 1980 Electra went back to its earlier 1977 roots but with a new grille featuring vertical slats. Also in 1980, Buick completely dropped the "225" moniker leaving just Limited and Park Avenue trims.
For the first time since 1959, Electras didn't have four VentiPorts in 1981. The 1981 model saw very few changes from the 1980 restyle but it got a modified grille and new powertrains. The top-line Electra Park Avenue model continued to show 4 small depressions with stickers in the chrome moulding on its front fenders until they were completely gone in 1985. Production of the rear-wheel drive Electra ceased in April 1984. Technically this was the last year of the rear wheel drive C-body, as it was renamed the D-body and would continue on under the Cadillac Fleetwood Brougham, and later the 1987–92 Cadillac Brougham and finally the 1993–96 Cadillac Fleetwood. The next large rear wheel drive Buick sedan would be the 1992–96 Roadmaster, sharing the same B-body as the Chevrolet Caprice and GM's last full-size rear wheel drive station wagons.
The Buick Estate Wagon was also downsized for 1977. It had been a separate model in its own right since 1970, alternatively sharing chassis and styling with both the Electra and LeSabre. In stark contrast to 1975–76 when it shared Electra's 127.0-inch (3,230 mm) wheelbase and used LeSabre's front end styling, the new Estate Wagon shared LeSabre's B-body and used Electra's front-end styling. After the rear wheel drive Electra was discontinued, the Estate Wagon continued to be produced with the rear wheel drive Electra's front end fascia until 1990 when it was replaced by the Buick Roadmaster Estate.
1985–1990
In 1985, a redesigned front-wheel drive Electra debuted with the new C body which was further downsized compared to the previous generation. Despite its notably smaller exterior, interior dimensions remained largely the same as the prior generation. As part of the model redesign, Buick also discarded all V8 engines. Sales began in April 1984, alongside the previous rear-wheel-drive model, which had ceased production that month. It was initially powered by a carbureted 3.0 liter Buick V6 engine, a fuel injected 3.8 liter Buick V6 engine, or a 4.3 liter Oldsmobile diesel V6 engine. Each was mated to a 4-speed automatic transmission with a 0.70:1 overdrive gear. The 3.0 liter V6 and 4.3 liter diesel V6 were no longer offered after 1985.
The trim levels for the Electra originally included 300/380/430 (based on engine displacement), Park Avenue, and performance-oriented T-Type. Limited replaced the number designation starting in 1987 and a new top level Park Avenue Ultra was added in 1989.
One of the distinctly unusual features of this car was that unlike most other passenger cars, its hood was hinged in the front thus opening at the passenger compartment, opposite of the conventional setup.
Although the overall design remained largely unchanged from 1985 to 1990, the Electra did undergo some noticeable updates. The first significant change came in 1987 when the Electra lineup lost the four-lamp "quad" headlights used in 1985–86 models in favor of composite one-piece headlights. In 1988 the Electra Park Avenue received what would later go on to become GM's flagship engine, the 3800 V-6. The original 3.8 L V-6 was still offered in some Electra models through the 1988 model year and was designated by the VIN code 3, while Electras with the 3800 V-6 were designated by the VIN code C. For 1989, the front seat belts became door-mounted, and back seat shoulder belts became standard.
The sixth generation Electras were initially offered in both 2-door coupe and 4-door sedan body styles but the 2-door coupe versions were eventually discontinued in 1986 (Electra 380) and 1987 (Electra Park Avenue).
Park Avenue Ultra
In 1989 and 1990, a new trim level to the Electra was offered: the Park Avenue Ultra. The Ultra was essentially an upgrade to the Electra Park Avenue line and featured standard leather trim interior, with 20-way dual electric front seats, a padded vinyl top, burled elm trim on the doors and instrument panel, unique aluminum wheels, and a variety of otherwise minor changes. The Park Avenue Ultra did not gain much popular recognition, however, until the following generation of Park Avenue, where the "Ultra" badge offered significantly more features.
