Bel Air Category: Vehicle Model Wikipedia: Chevrolet Bel Air Description: A car produced by Chevrolet from 1950-1981. It was also the name of a retro-style concept car in 2002. In the 1950's it shared body styles with the downmarket Chevrolet 150 and Chevrolet 210. Subtopics: 1954 · 1956 · 1957 Page Sections: History · Images · Documents · Merchandise · Article Index |
The following section is an excerpt from Wikipedia's Chevrolet Bel Air page on 3 August 2016, text available via the Creative Commons Attribution-ShareAlike 3.0 Unported License.
The Chevrolet Bel Air is a full-size automobile produced by Chevrolet for the 1950–1981 model years. Initially only the two door hardtops in the Chevrolet model range were designated with the Bel Air name from 1950 to 1952, as distinct from the Styleline and Fleetline models for the remainder of the range. With the 1953 model year the Bel Air name was changed from a designation for a unique body shape to a premium level of trim applied across a number of body styles. The Bel Air continued with various other trim level designations until US production ceased in 1975, production continued in Canada for its home market only through the 1981 model year.
First generation (1950–1954)

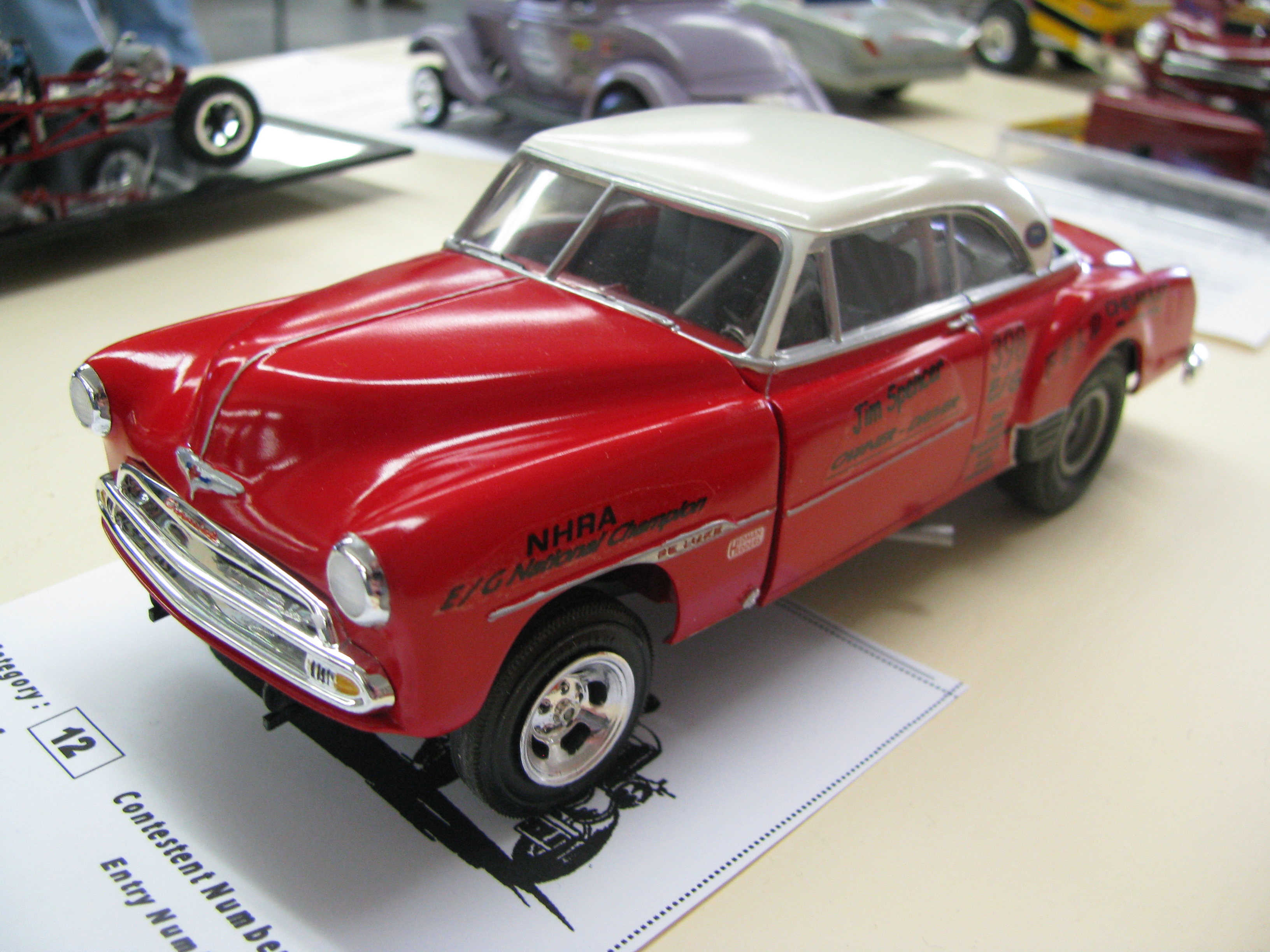

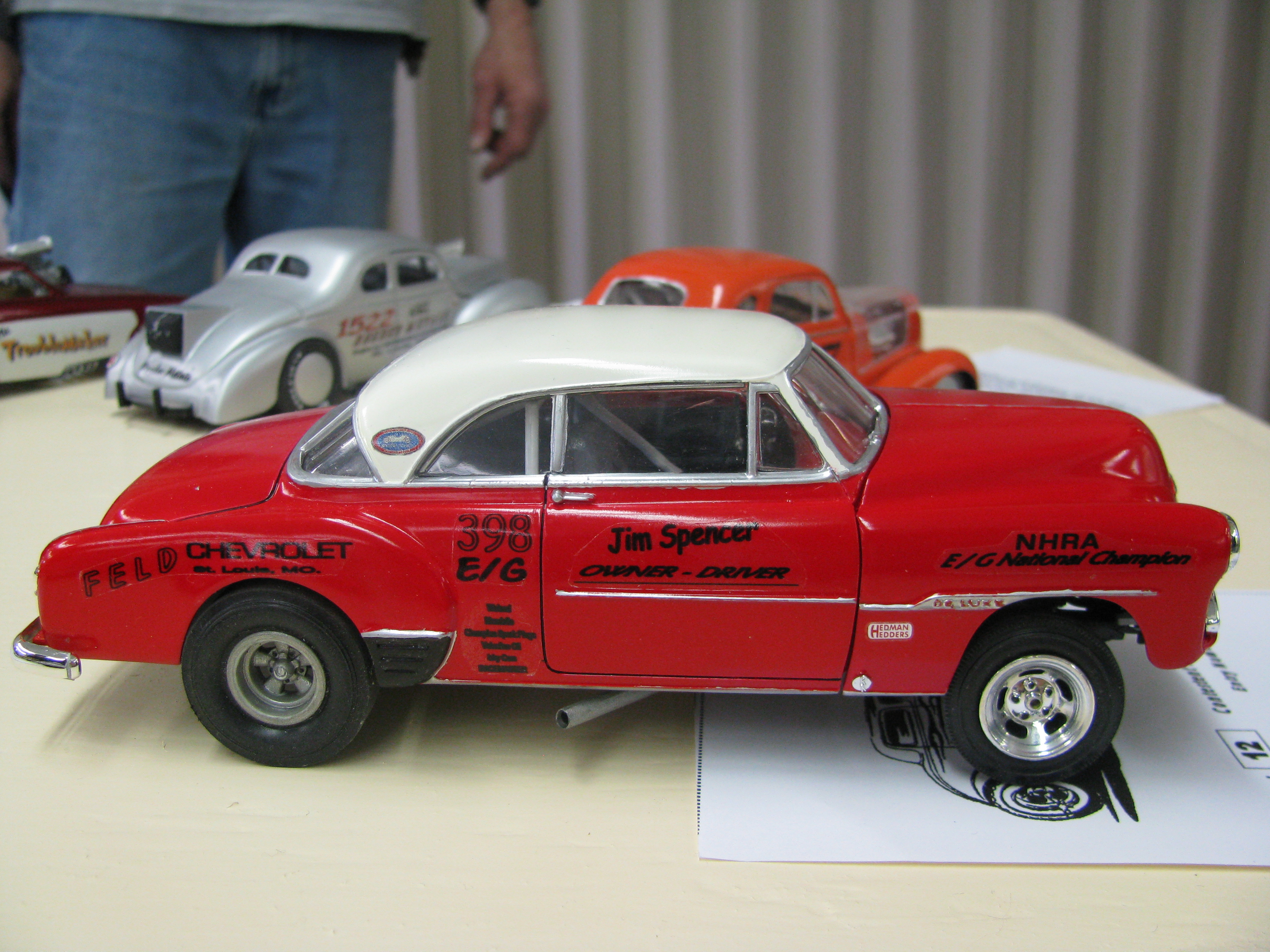

For 1950, Chevrolet came up with a revolutionary style that would set a pattern for decades. The Bel Air Hardtop was styled as a convertible with a non-detachable solid roof. Models like this had been around since the 1920s, including early Chevrolets, with no degree of success. But the newly revised idea, sweeping the GM line from Chevrolet to Cadillac, had finally found its era. First year production reached only 76,662 as buyers cautiously tested the revised concept. The car cost $1,741 and weighed 3,225 lb (1,463 kg). Front suspension was independent, named "knee-action".
The first Bel Airs of this era shared only their front sheet metal ahead of the A pillar with the rest of the range. The windshield, doors, glass, and trunk were common with the Styline DeLuxe Convertible Coupe, however the roof, rear quarters and rear windows (3) were unique. The chassis and mechanicals are common with the rest of the passenger car range, and the overall appearance is the same as the rest of the range except that the roof line is lower and the unique three piece rear window give it a longer and more balanced look. The first Bel Airs were only available with the "DeLuxe" premium trim level and specification.
Apart from the usual annual grille and trim changes, the 1951–1952 Bel Air differs from the earlier 1950 model with introduction of the higher and squarer rear guards that were across the whole range.

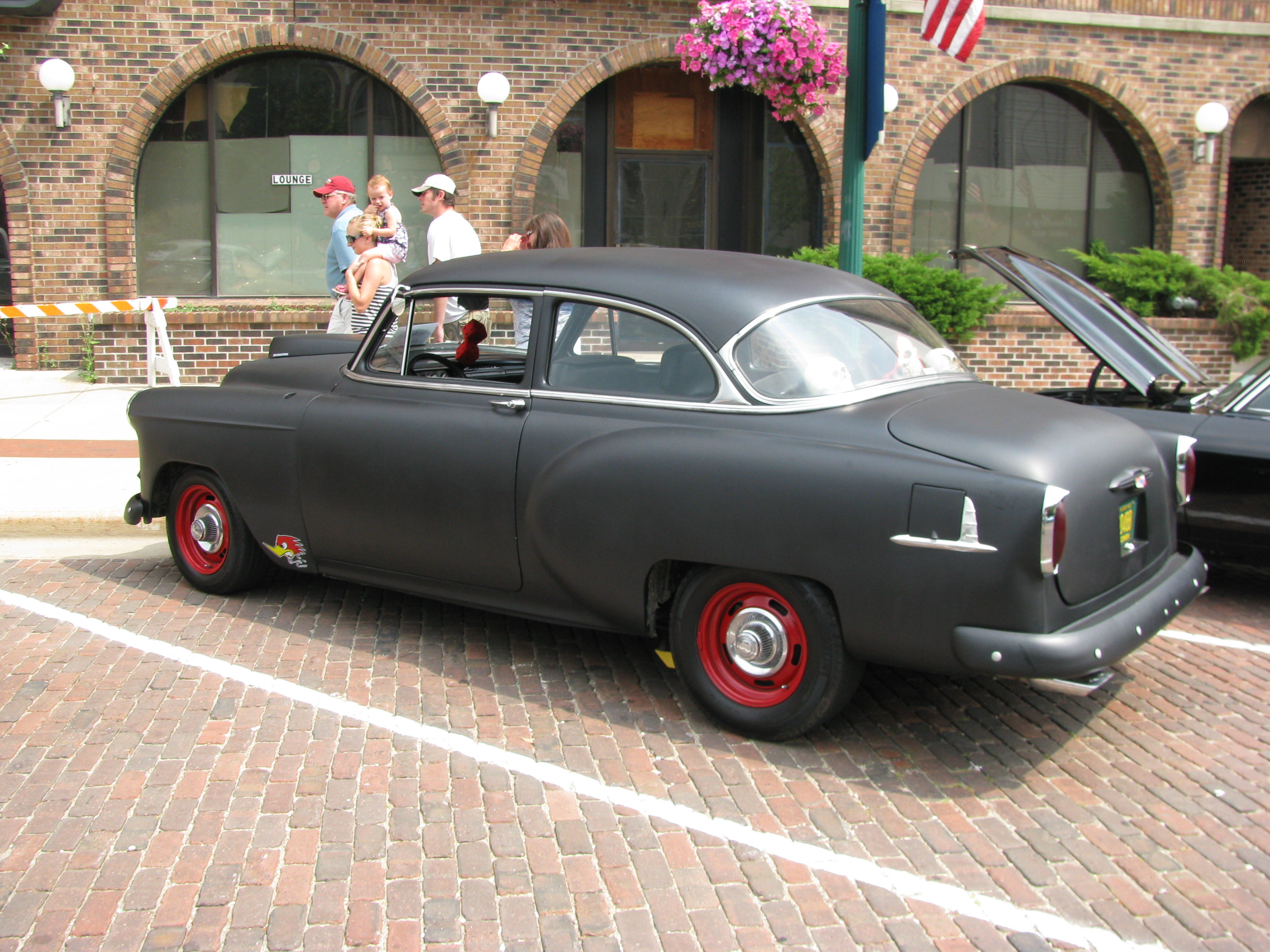

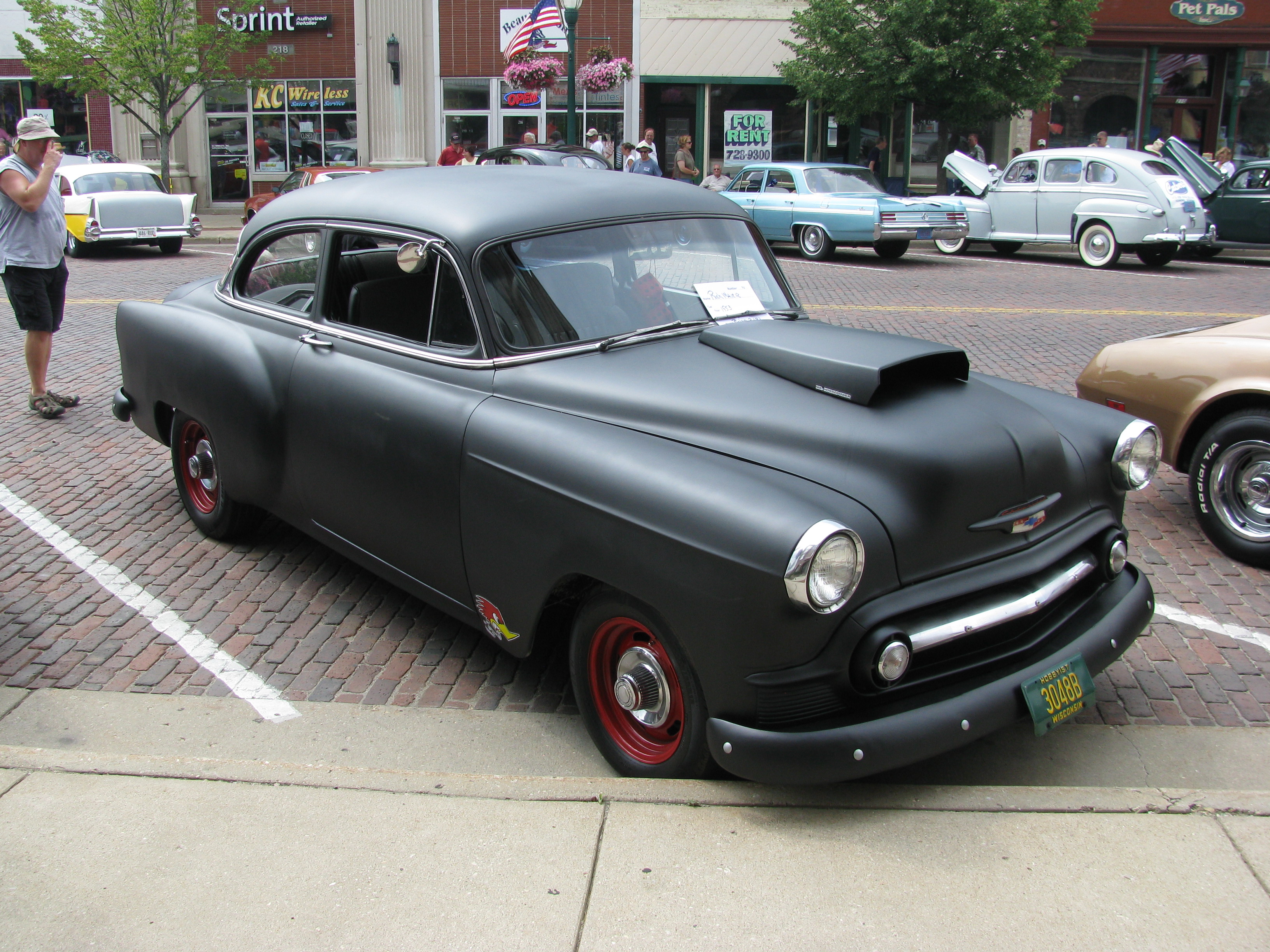

In 1953 Chevrolet renamed its series and the Bel Air name was applied to the premium model range. Two lower series, the 150 and 210, also emerged (as successors to the Special and Deluxe series, respectively). The 1953 Chevrolet was advertised as "Entirely new through and through," due to the restyled body panels, front and rear ends. However, essentially these Chevrolets had similar frame and mechanicals to the 1949–1952 cars.

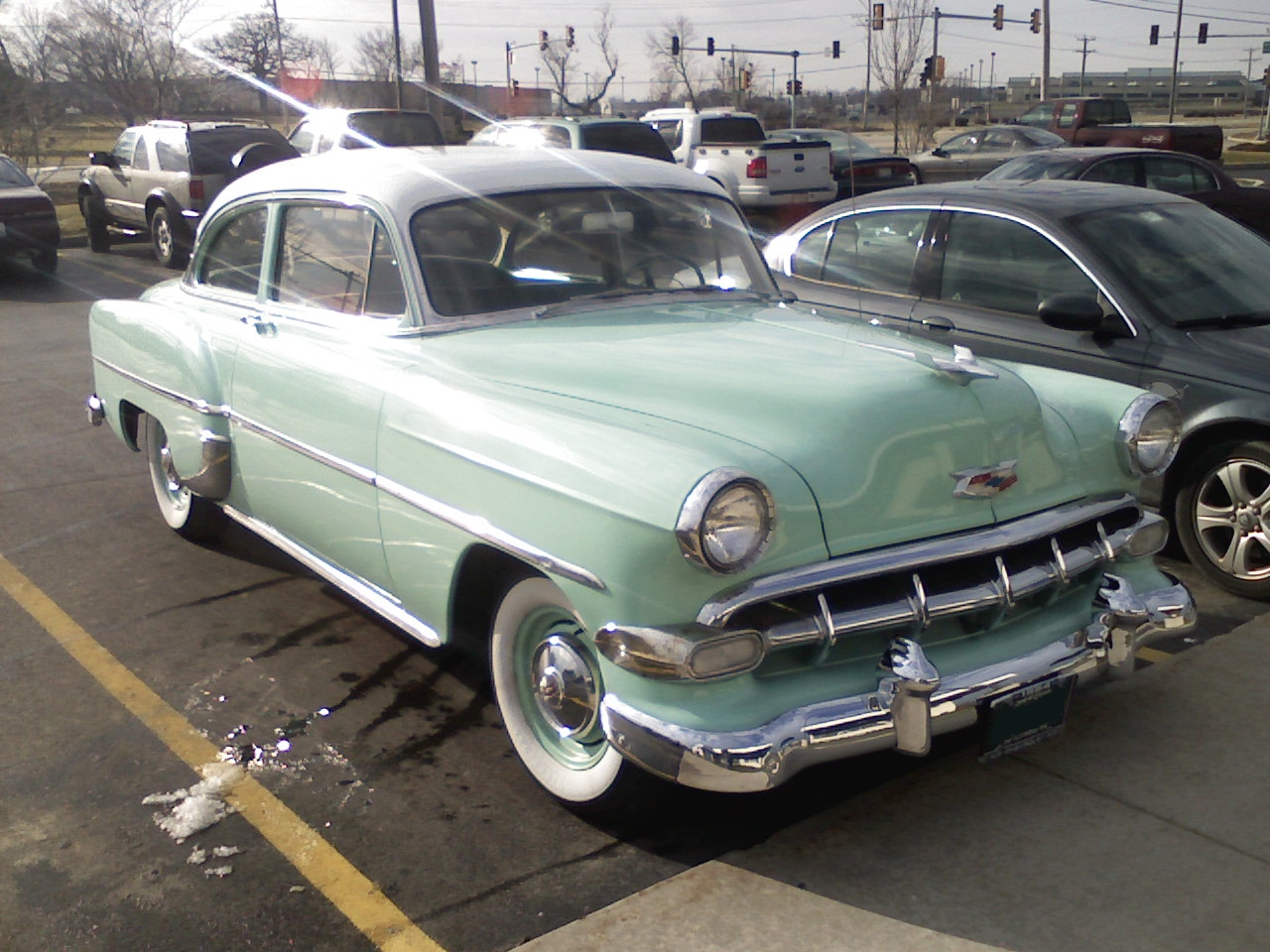

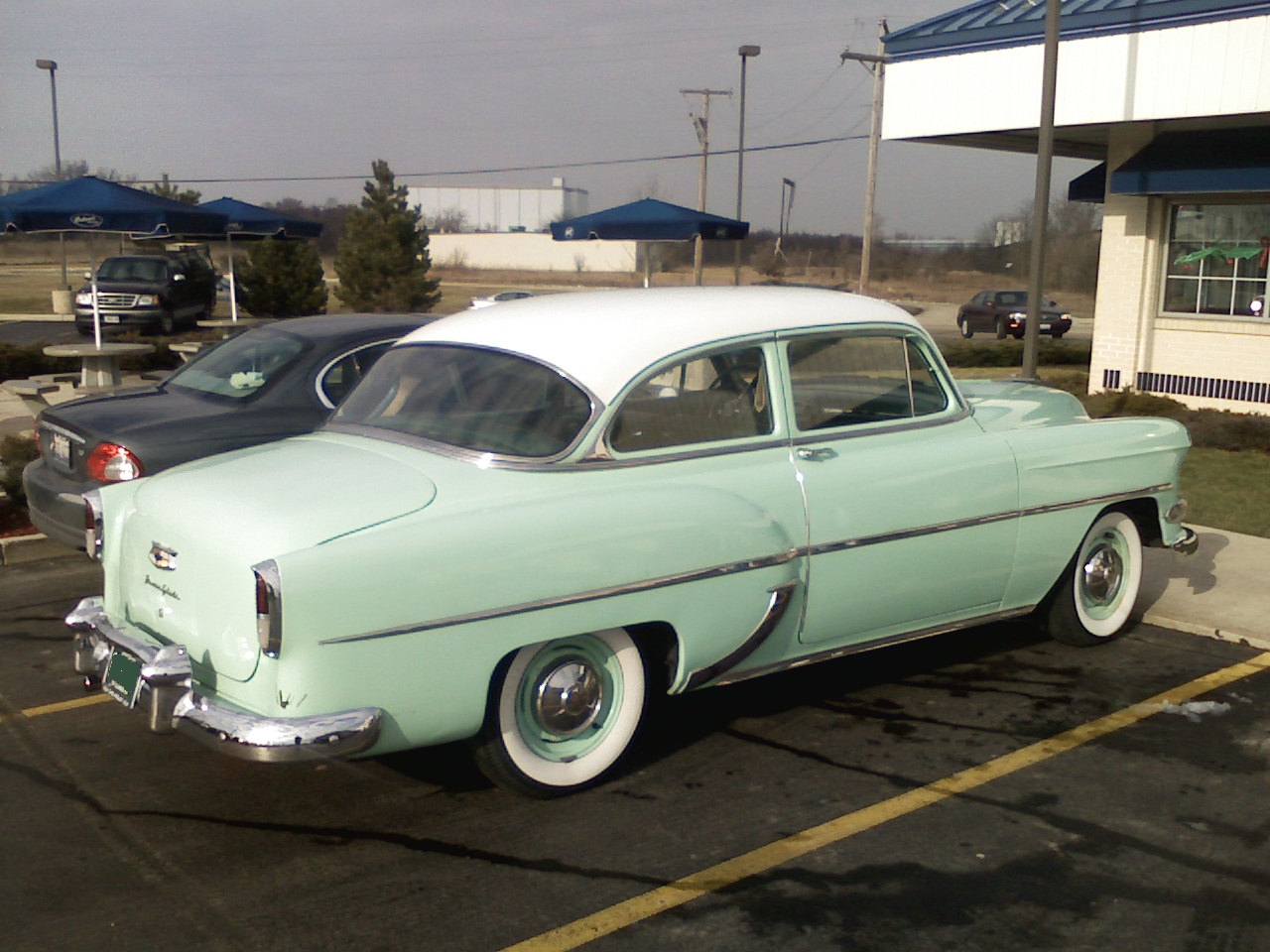

The 1953–1954 Chevrolet range had a unique and somewhat awkward look about it and much of this stemmed from its role as a transitional model to introduce a raft of changes that were necessary to pave the way for the introduction of the 1955–1957 range that really established the Bel Air as a cultural icon. The pre-war technology, such as torque tube drive, six-cylinder splash feed engines, knee action suspension, split windshields, etc., of the early models was phased out and the foundations for the first post war modern Chevrolet passenger car were finalized in this 1953–1954 model. Of all the Bel Air variants available across the 1953–1954 range, the two door hardtop and convertible remain the stand outs in terms of style. The Bel Air series featured a wide chrome strip of molding from the rear fender bulge, to the rear bumper. The inside of this stripe was painted a coordinating color with the outside body color, and "Bel Air" scripts were added inside the strip. Lesser models had no model designation anywhere on the car, only having a Chevy crest on the hood and trunk. 1953 was the first year for a curved, one-piece windshield.

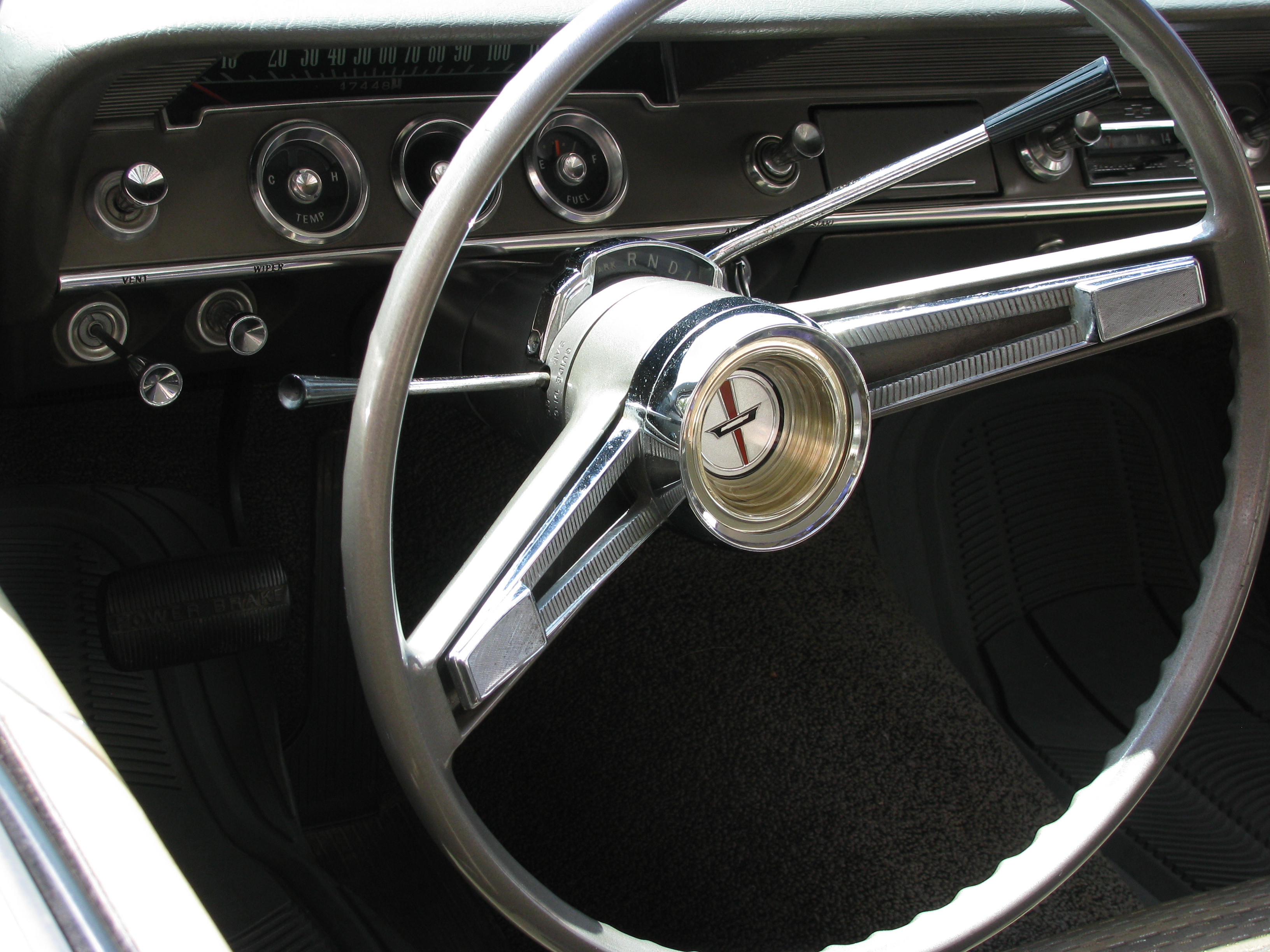

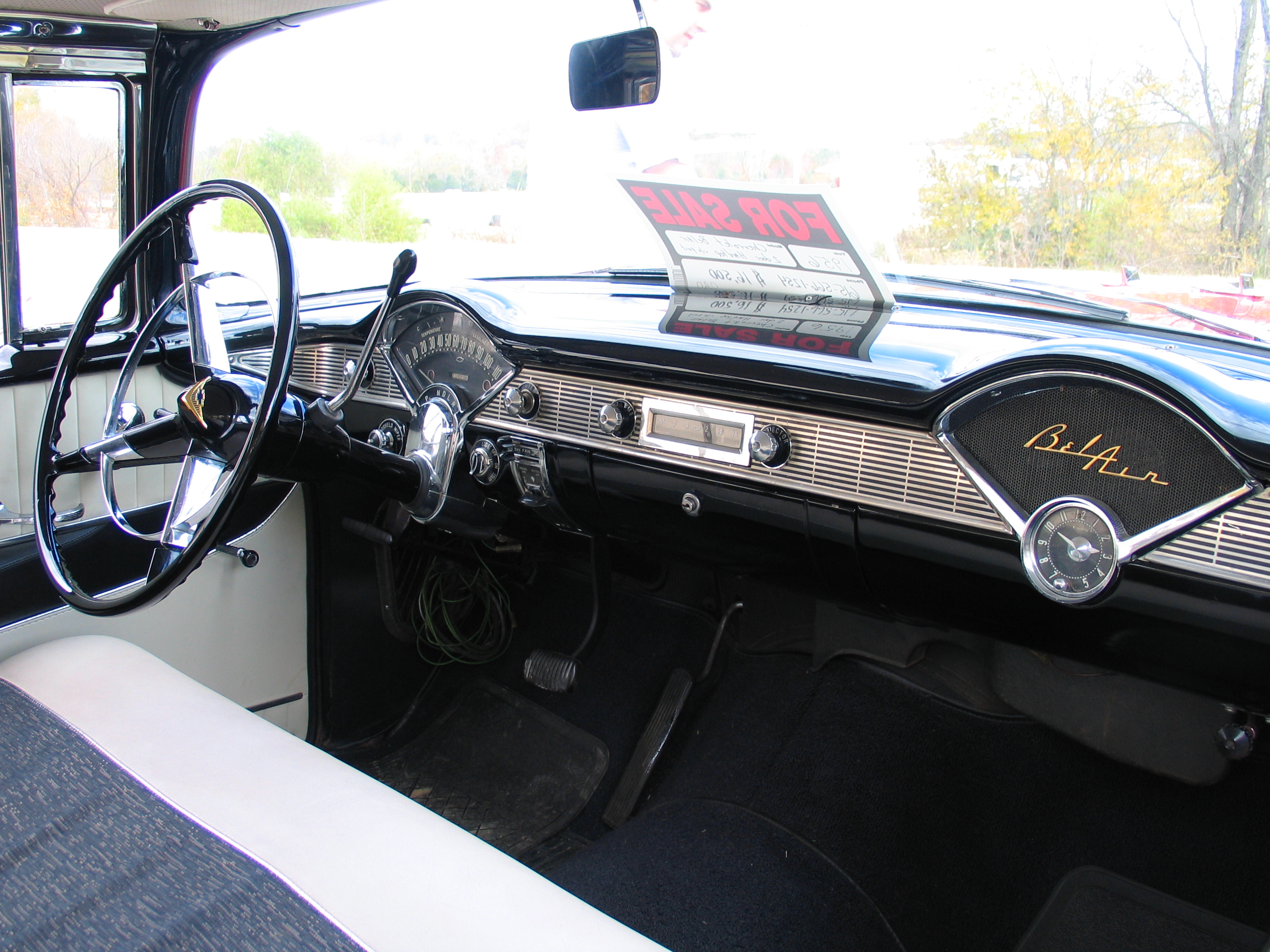

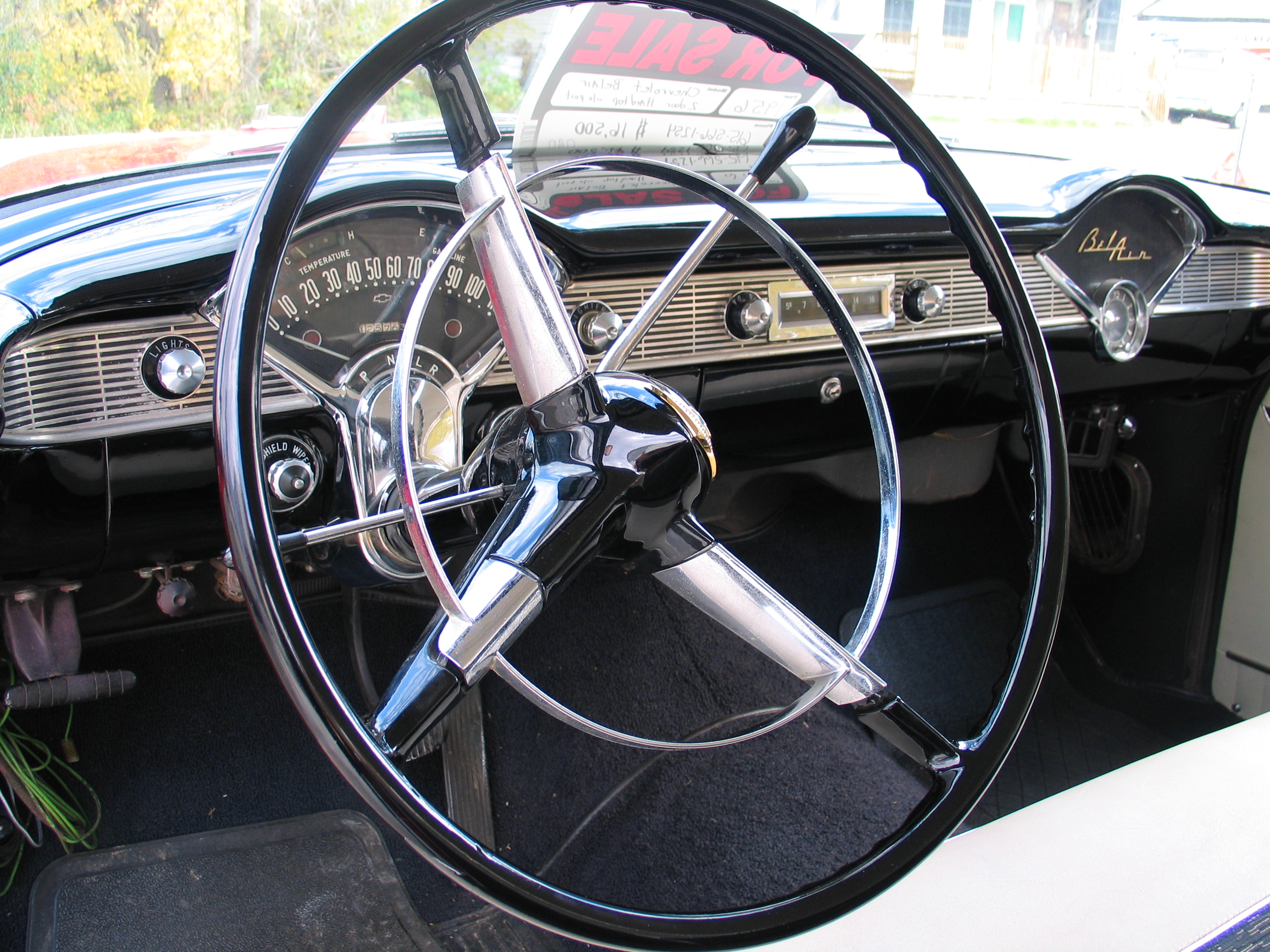

Bel Air interiors had an optional massive expanse of chrome across the lower part of the dashboard (most were painted), along with a deluxe Bel Air steering wheel with full chrome horn ring. Carpeting and full wheel covers rounded out Bel Air standard equipment. For 1954, the Bel Air stayed essentially the same, except for a revised grille and taillights, and a revised engine that had insert bearings and higher oil pressure, needed for the full-flow oil filtration system that was not available prior to 1954. Prior to 1954, the 235 and 216 cubic inch six cylinder engines had babbit bearings and scoops to create oil pressure at the bottom of each rod and the oil pressure was standard at 15-30 PSI. During these years, there were three engine choices, depending on the transmission ordered. Both 235 cubic inch engines were "Blue Flame" inline six cylinder OHV engines, featuring hydraulic valve lifters (in 1953 with automatic transmissions) and aluminum pistons. The 106 hp (79 kW) 235 cubic inch displacement engine was standard on stickshift models, with solid lifters and splash plus pressure lubrication including babbit bearings. Powerglide cars got a 115 hp (86 kW) version which had hydraulic lifters and full pressure lubrication.
In 1953 and 1954, Bel Airs could be ordered in convertible, hardtop coupe, two- and four-door sedans, and, for 1954, the Beauville station wagon which featured woodgrain trim around the side windows. Many new options, once available only to more expensive luxury cars, became offered starting in 1953, including power steering and the Guidematic headlight dimmer in 1953; and power brakes, power 2-way front seat and power front windows in 1954. All 1954 models equipped with the standard transmission used the 1953 Powerglide engine.
Second generation (1955–1957)

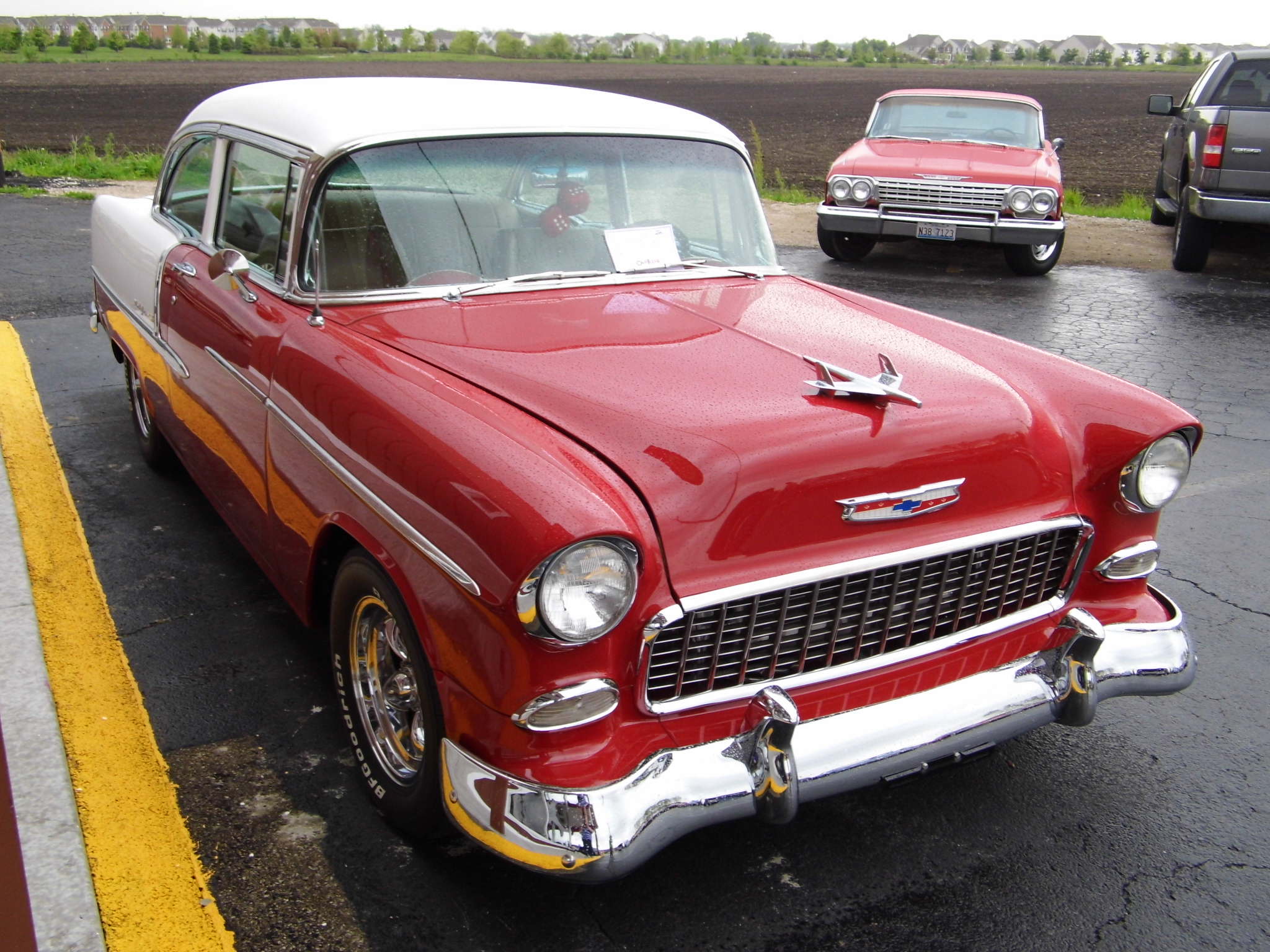

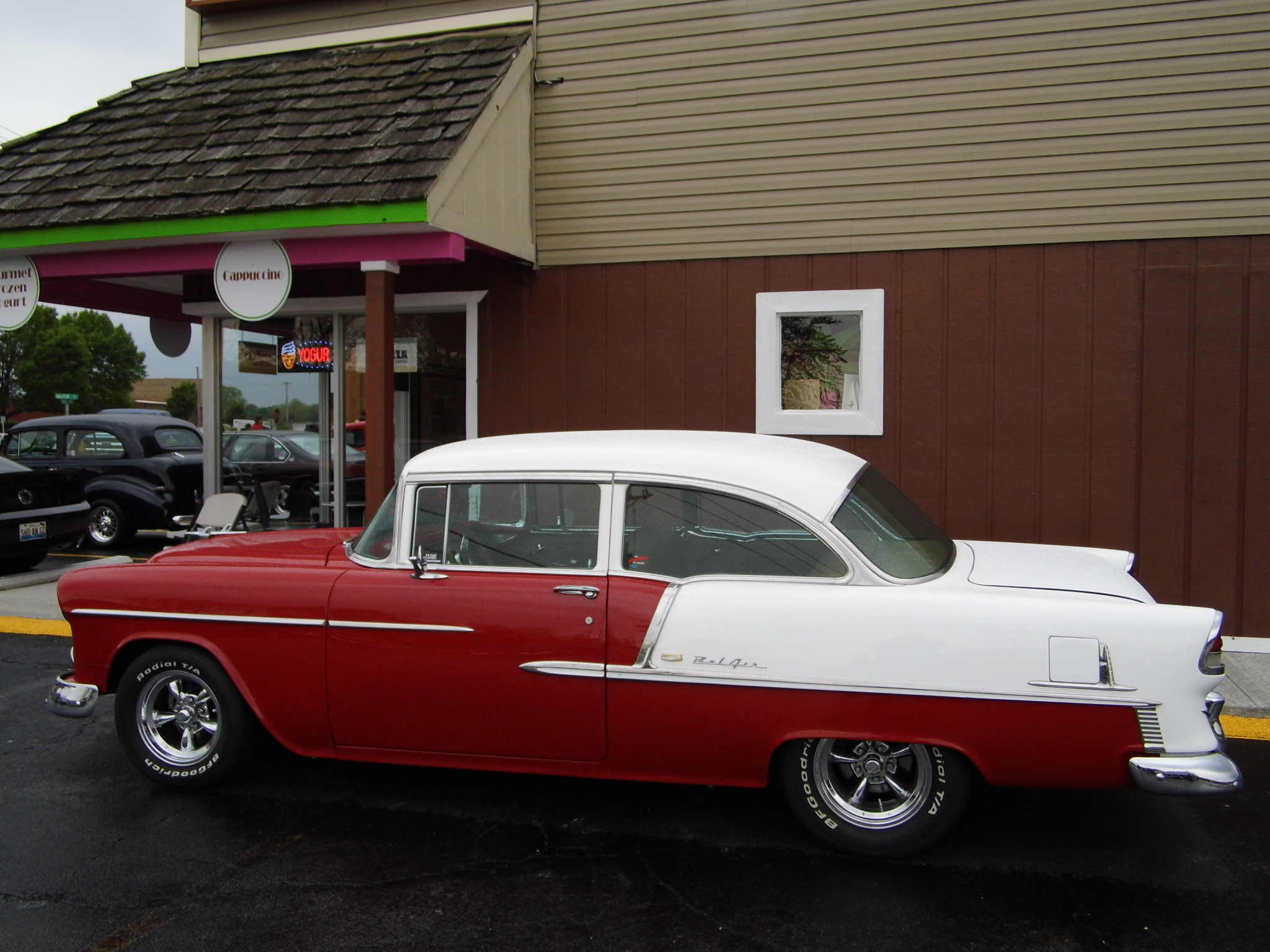

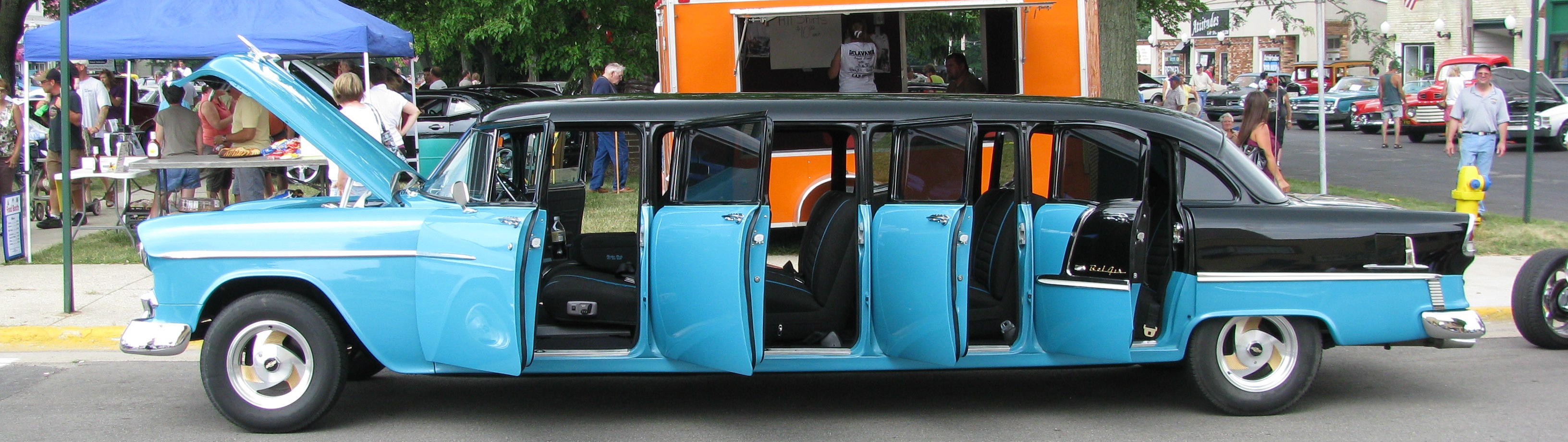

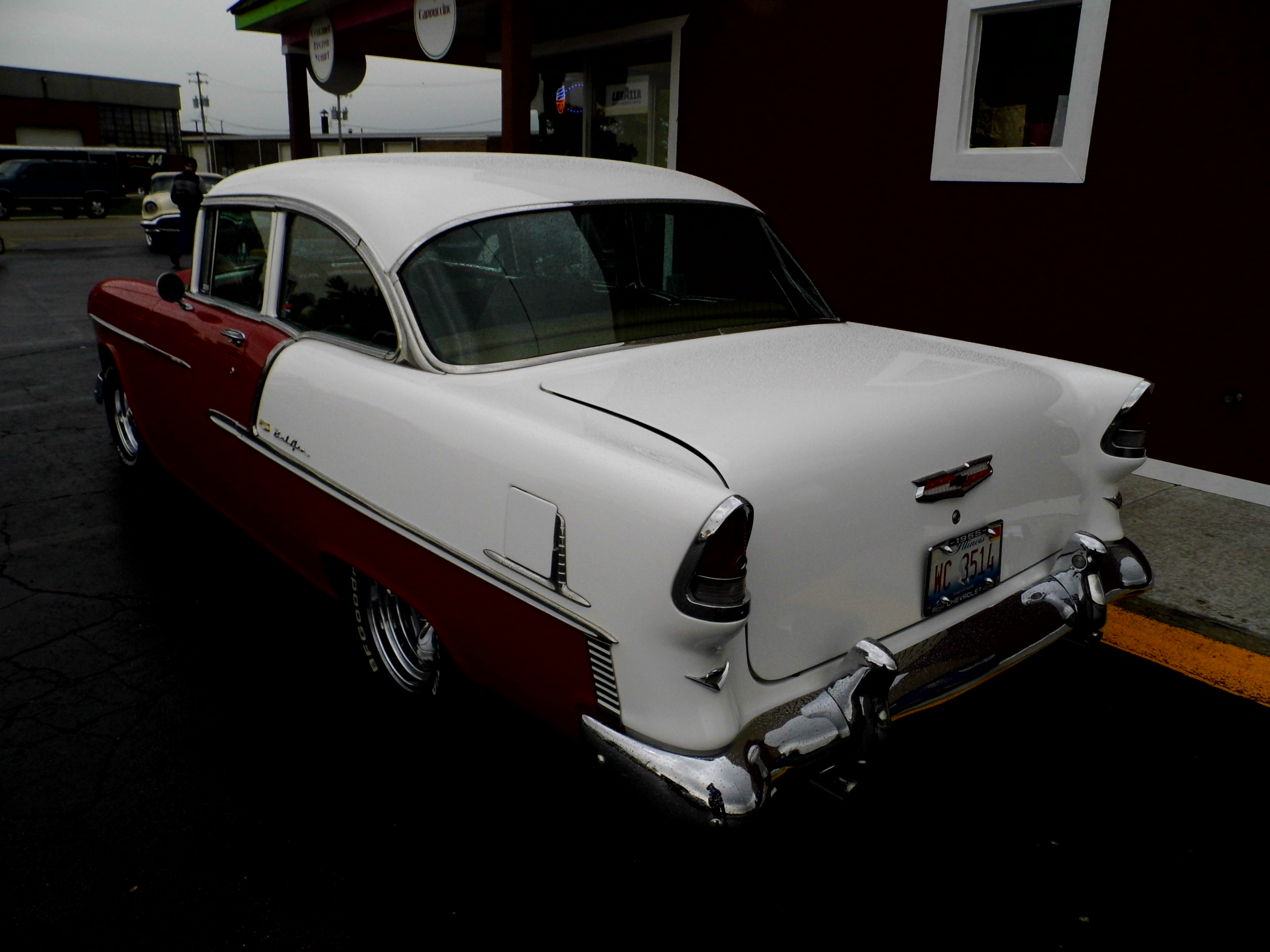

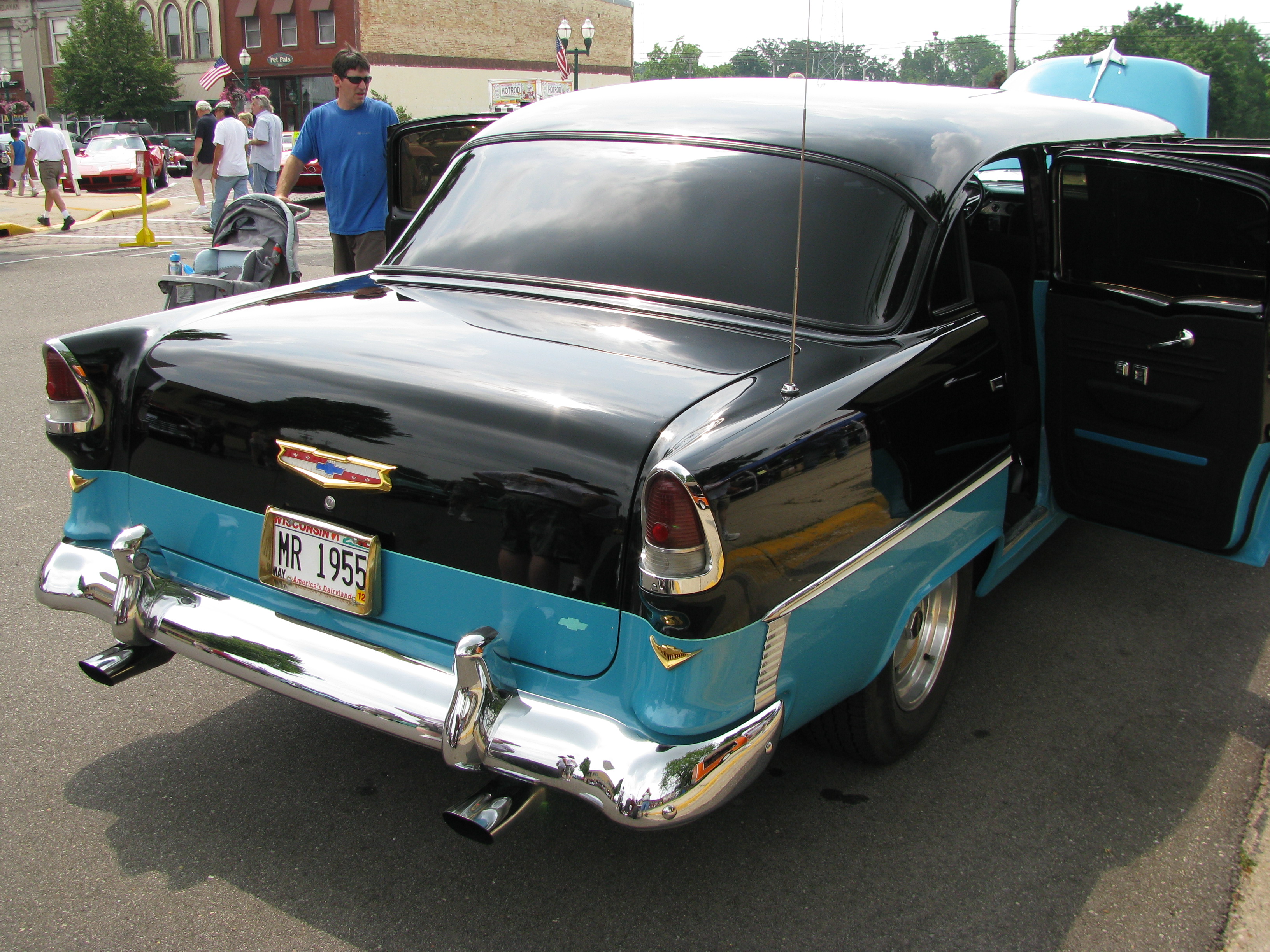

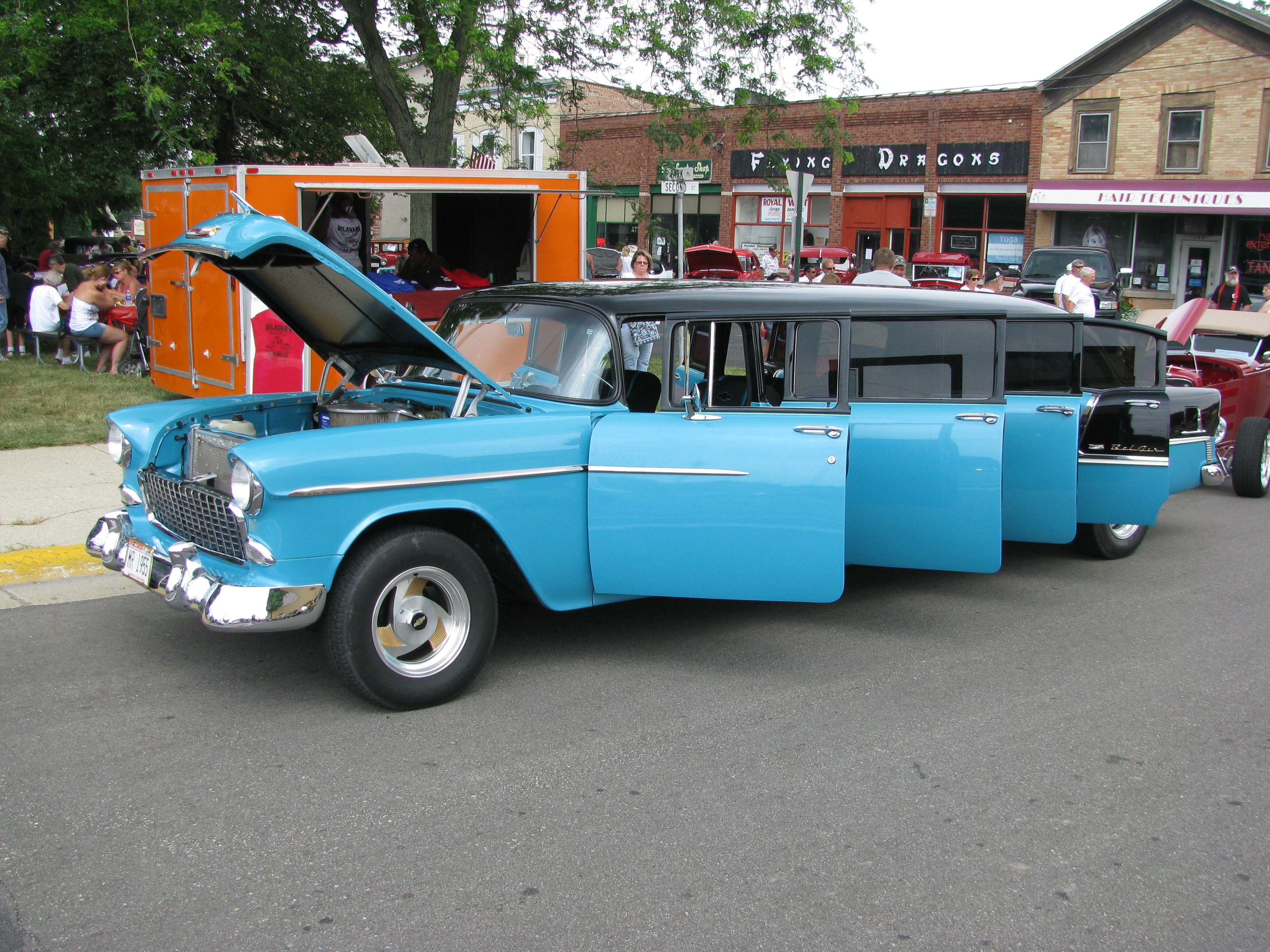

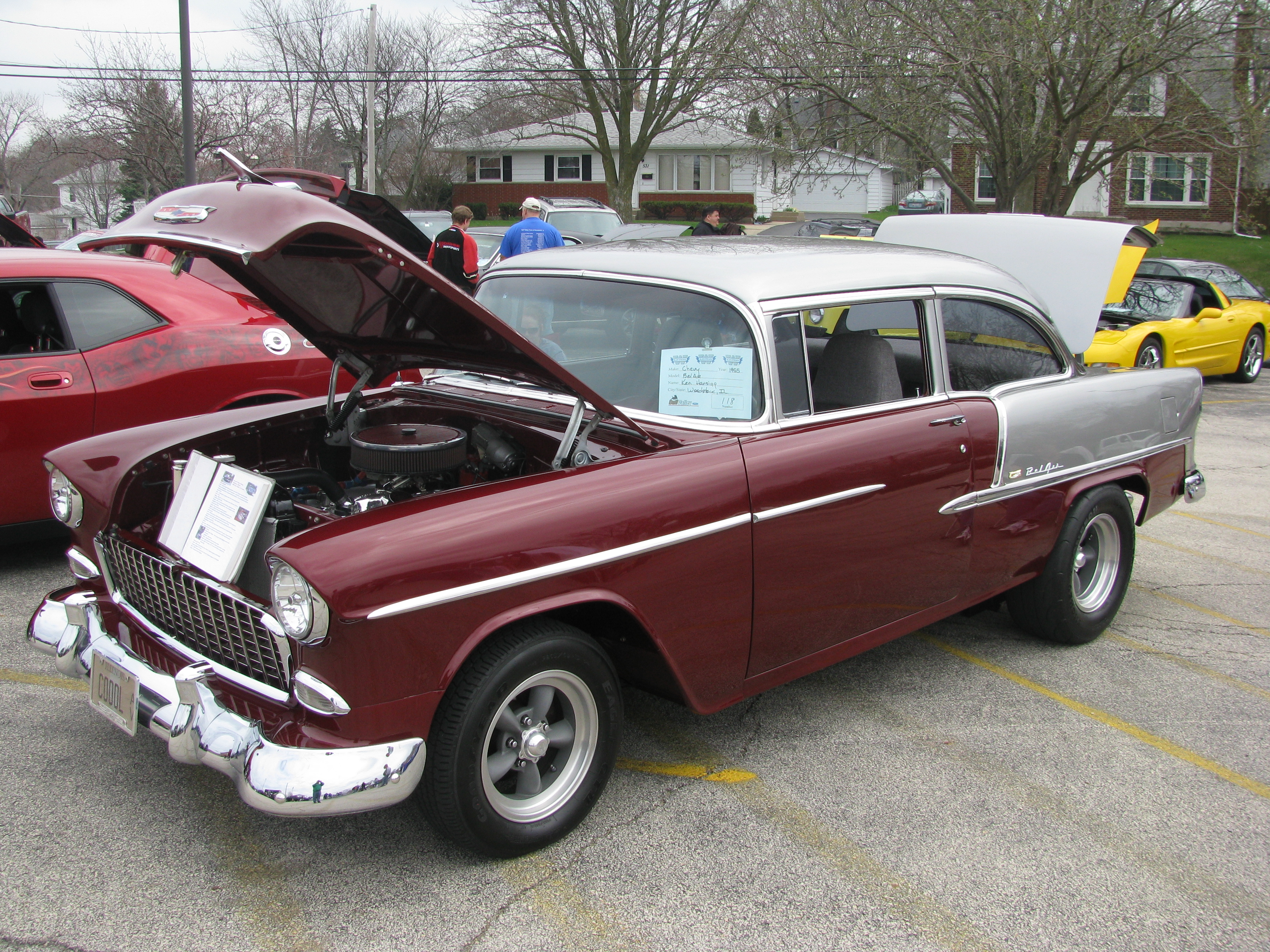

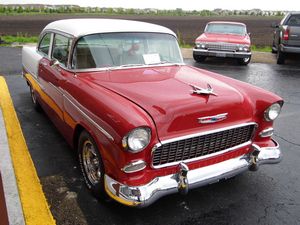

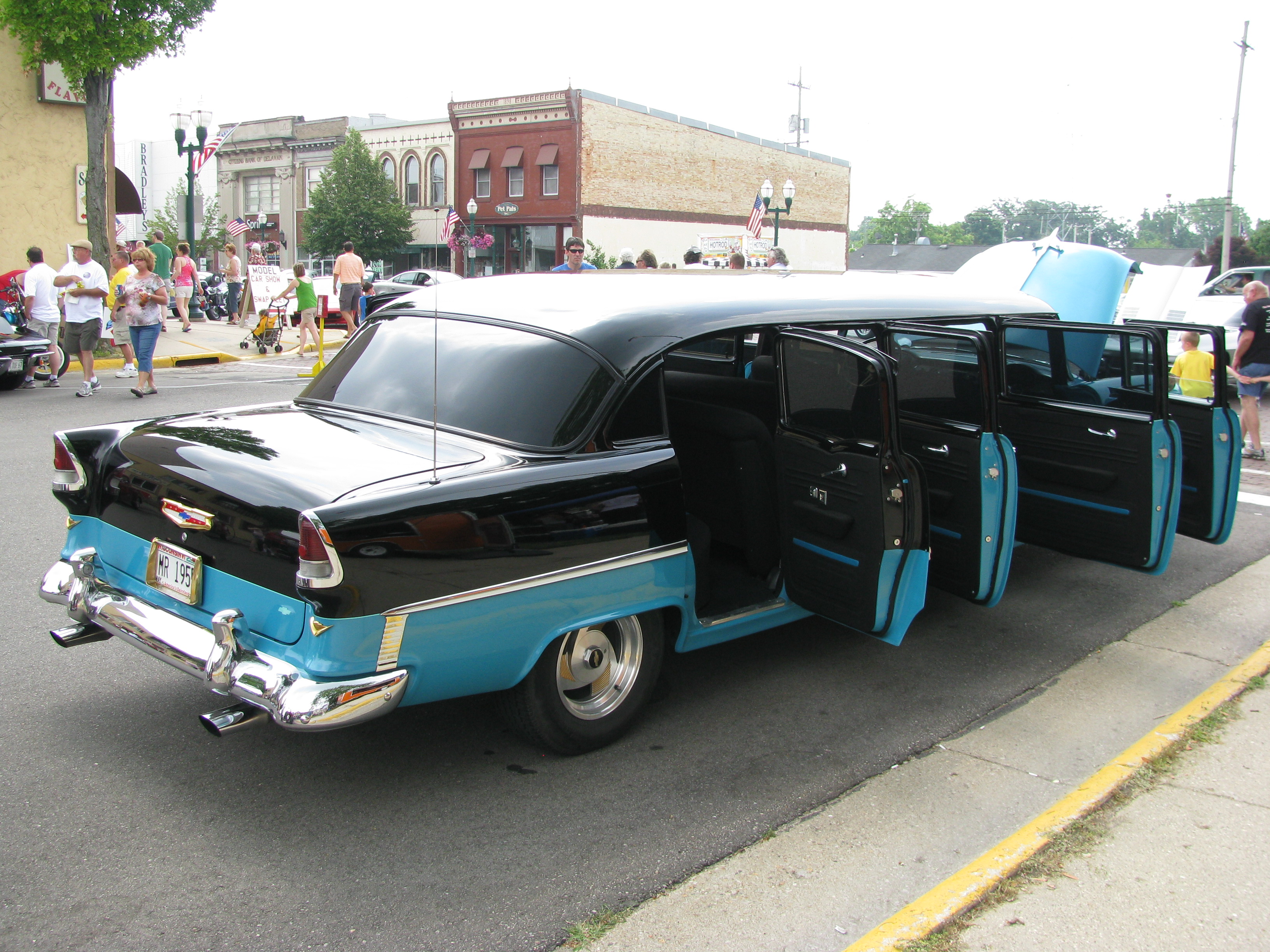

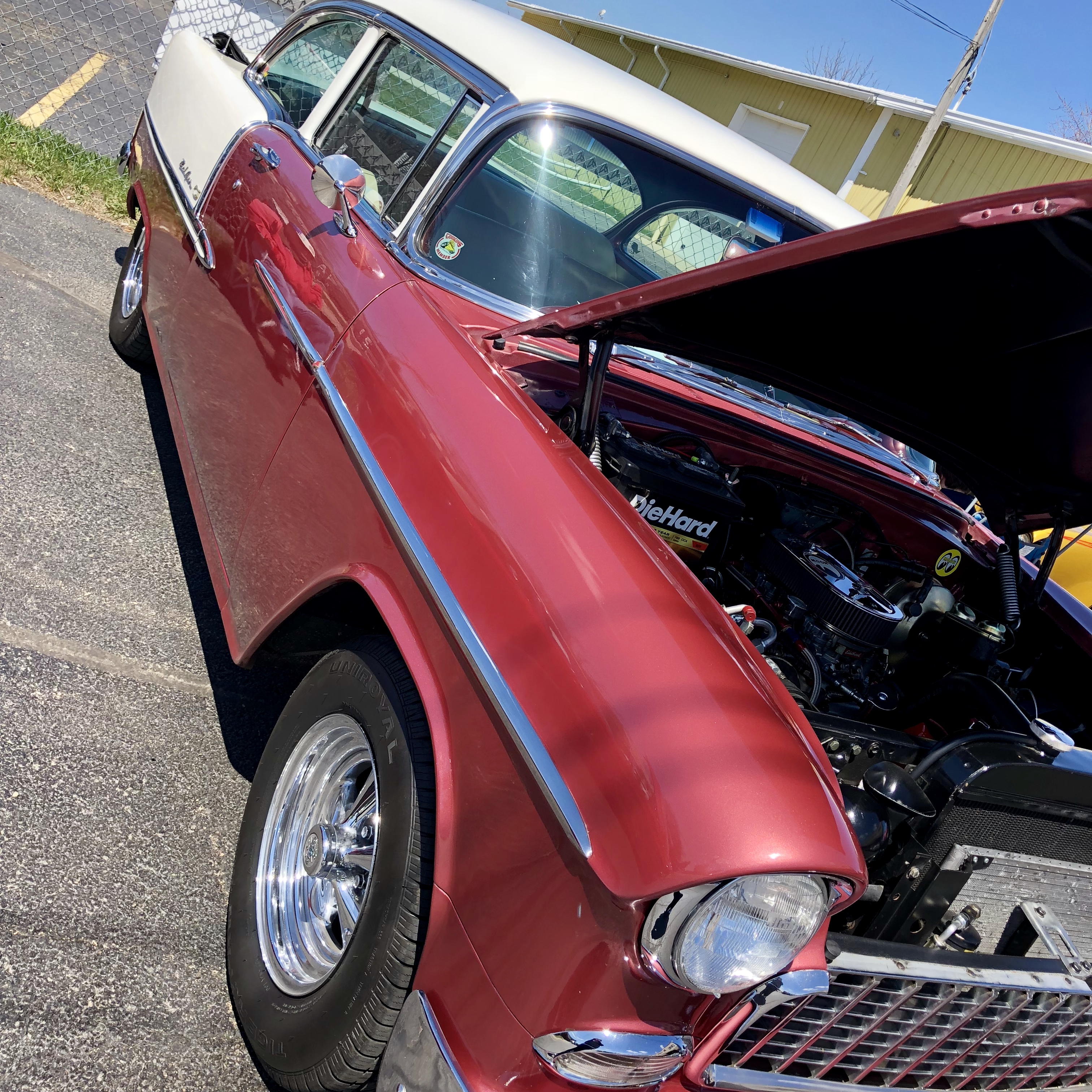

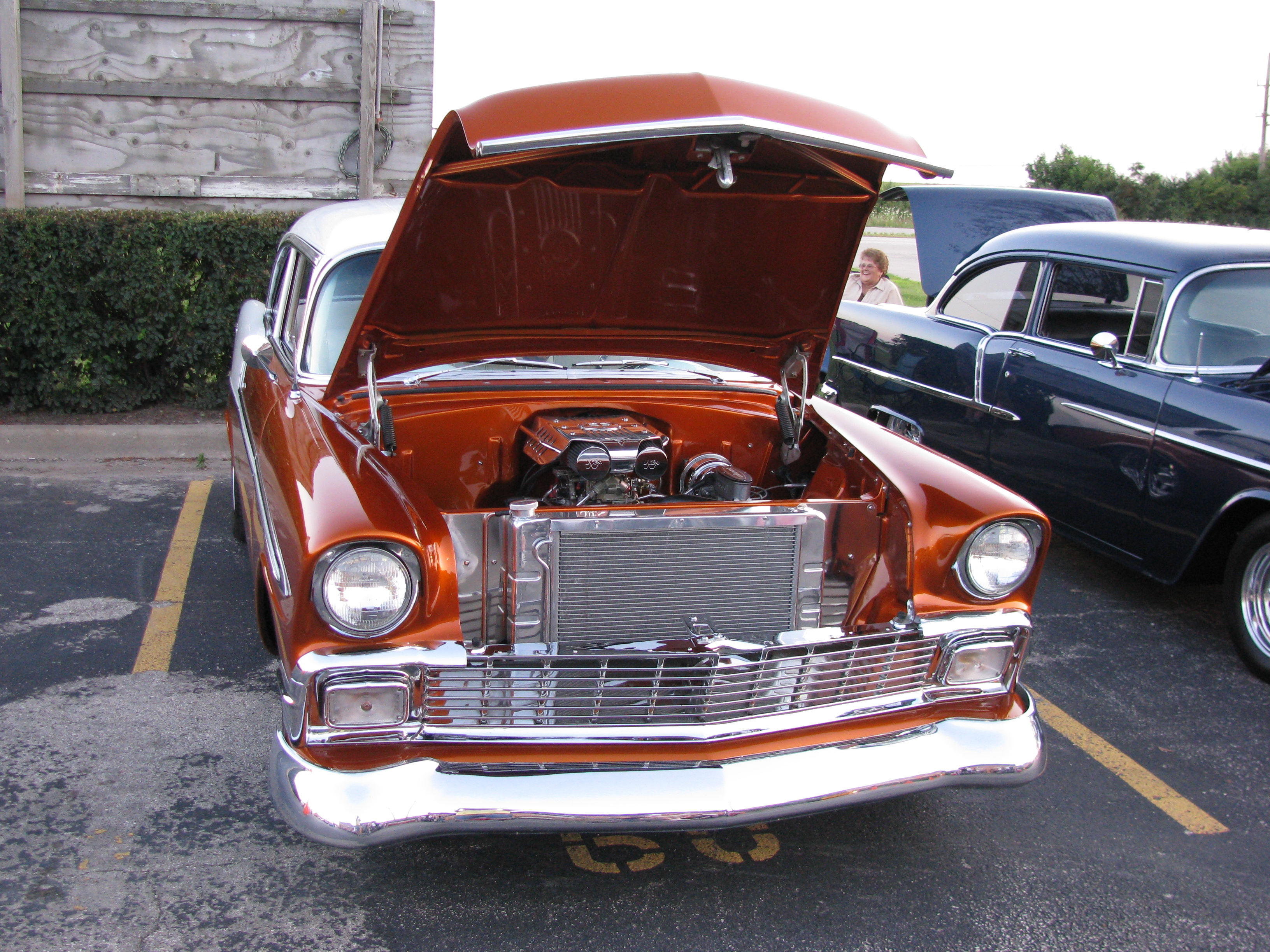

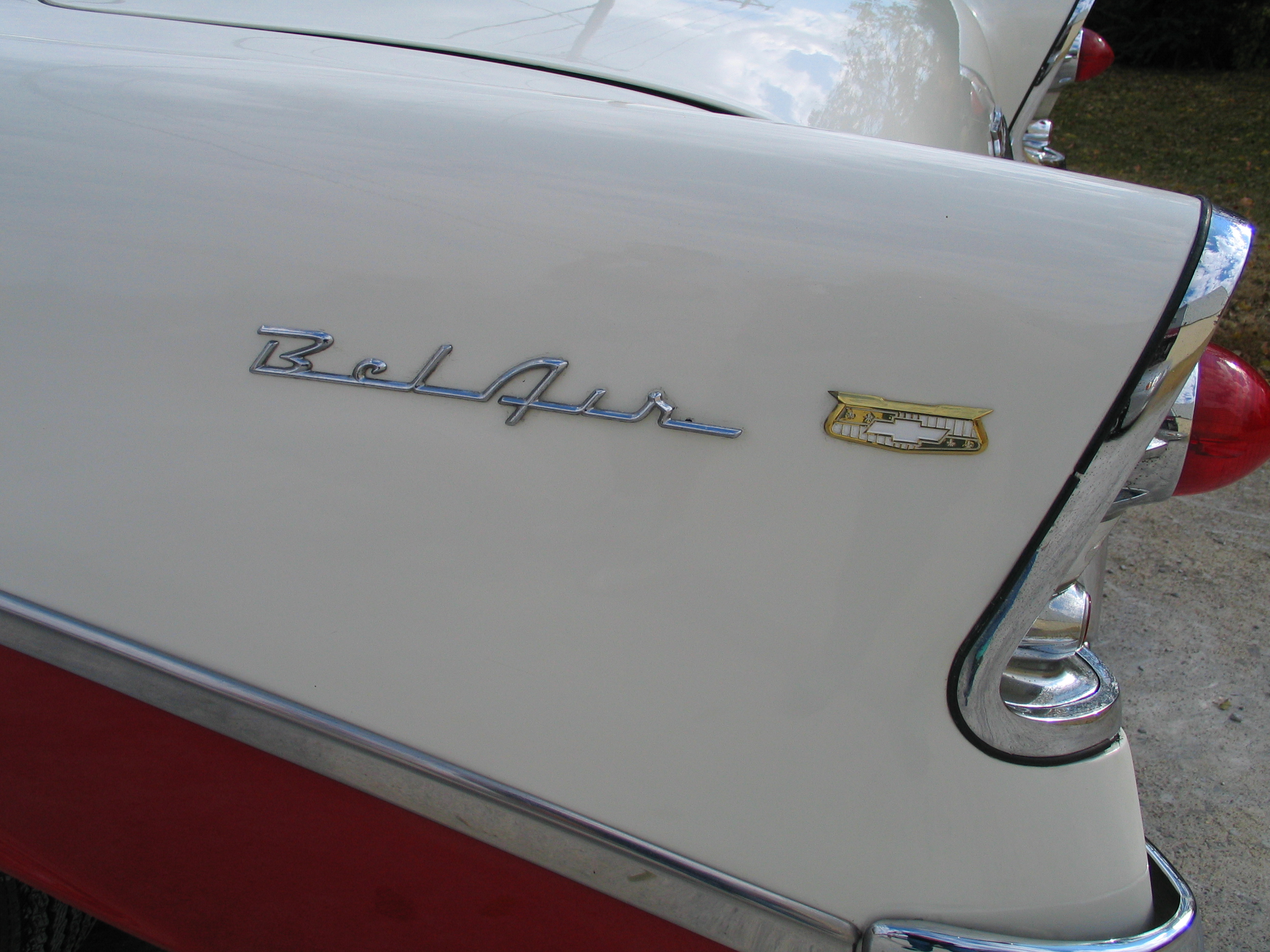

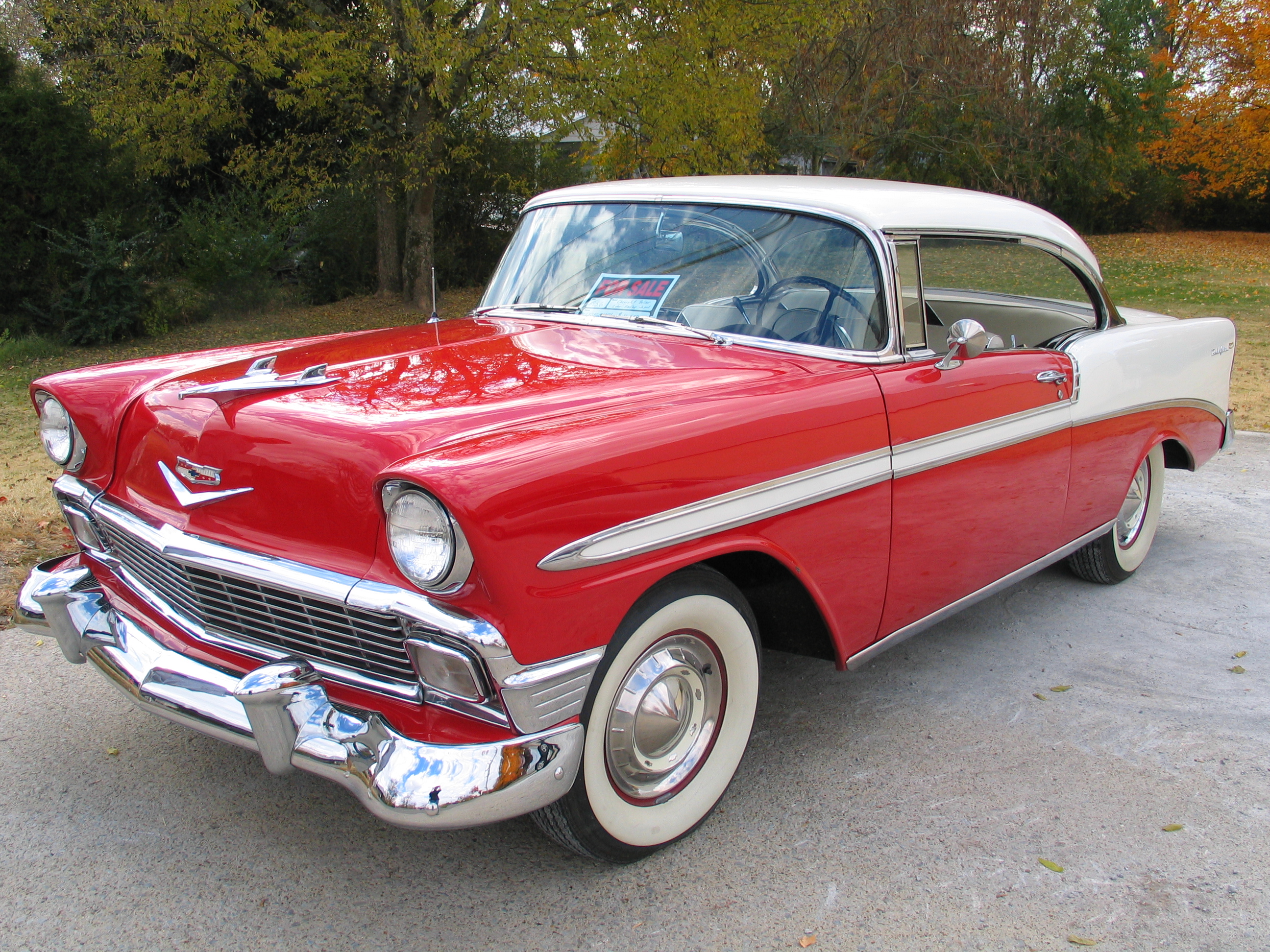

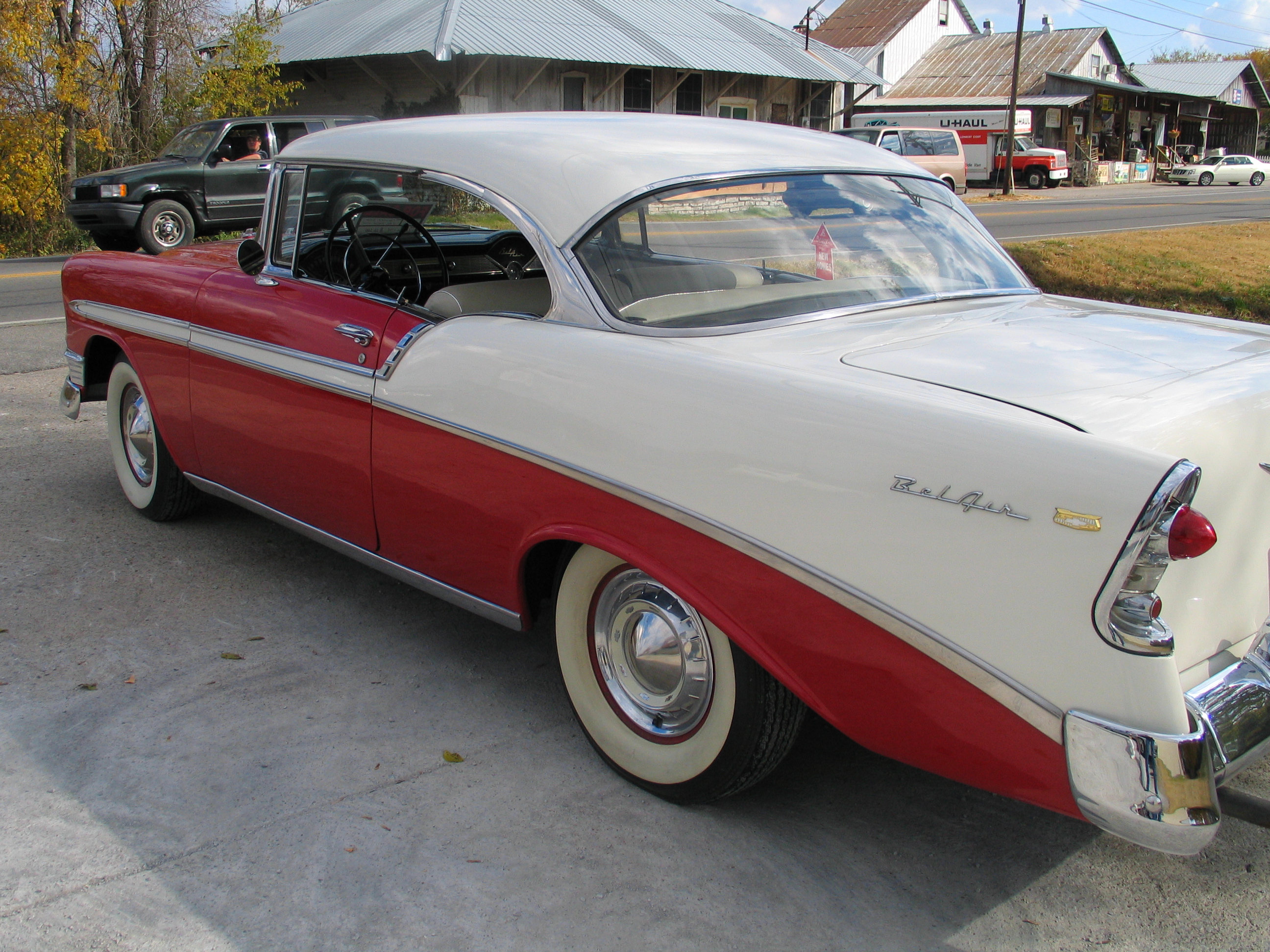

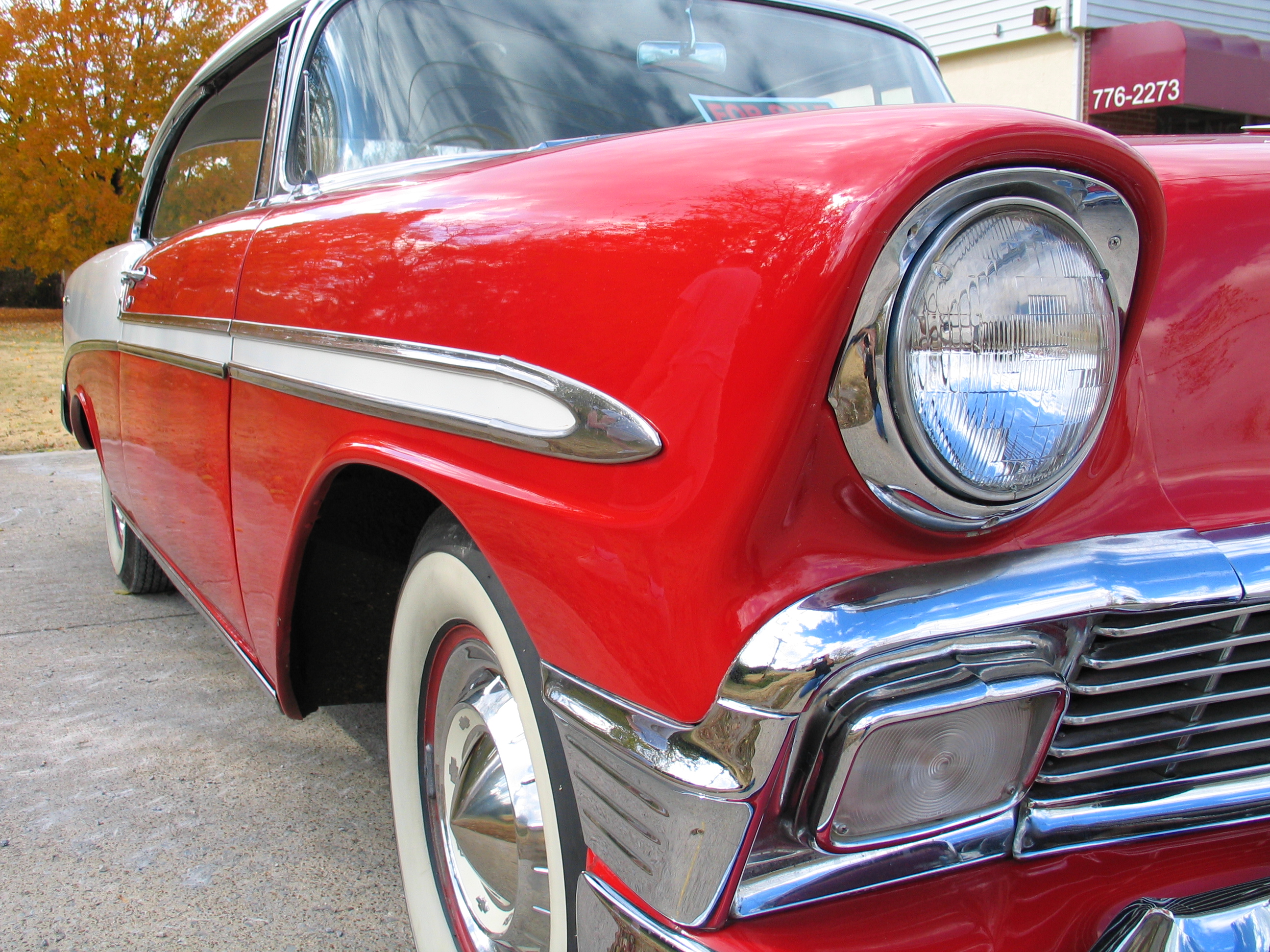

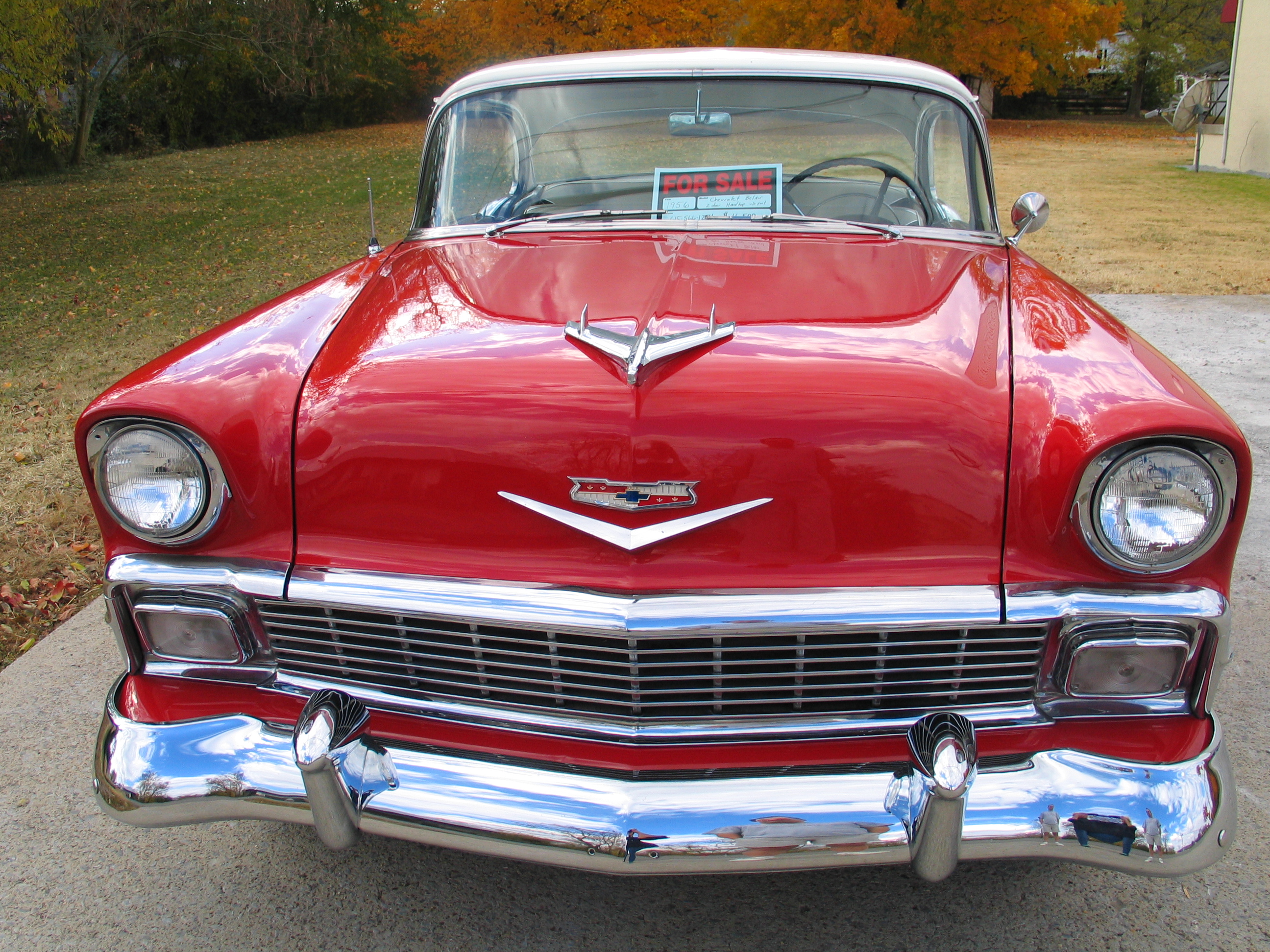

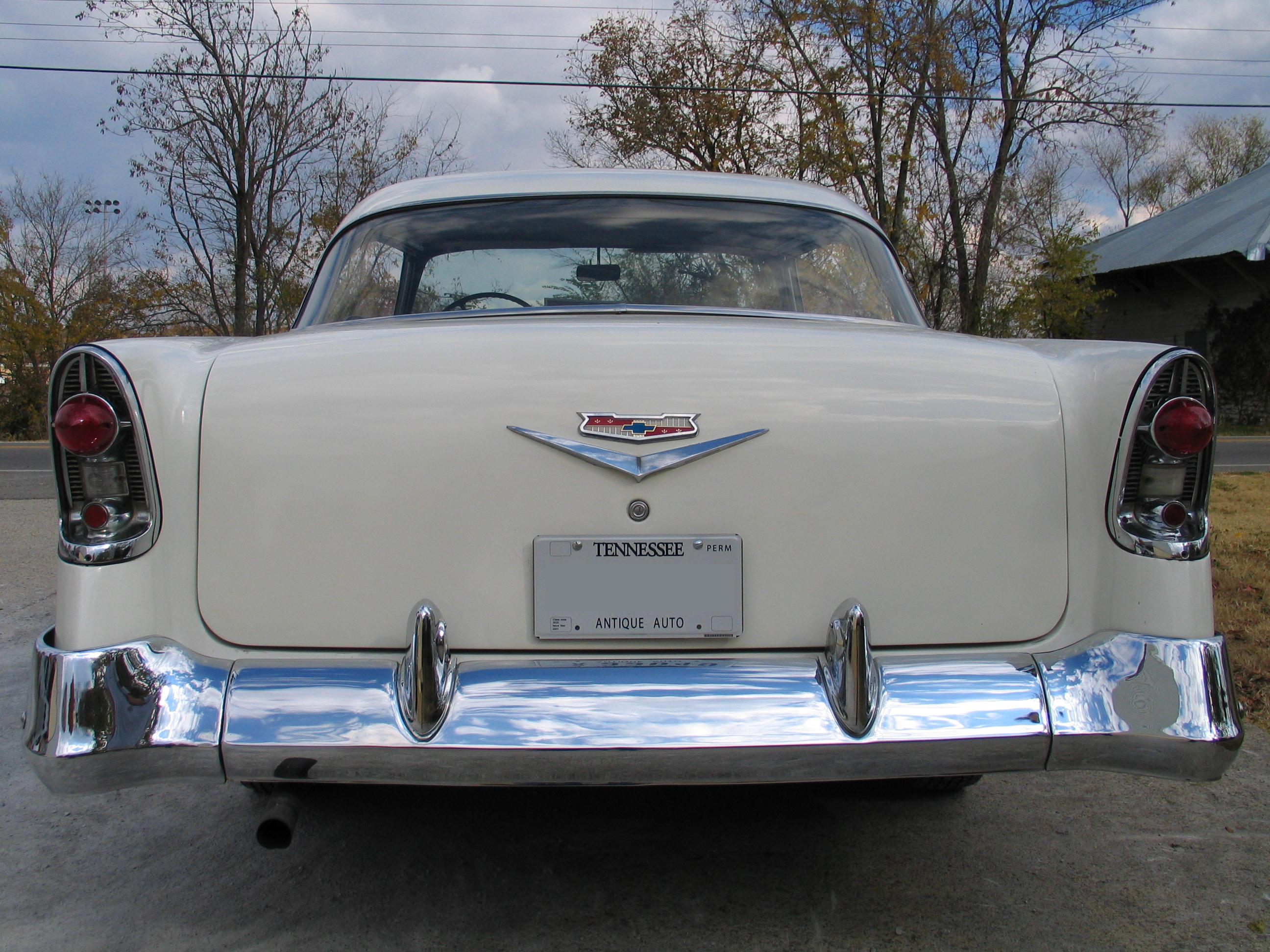

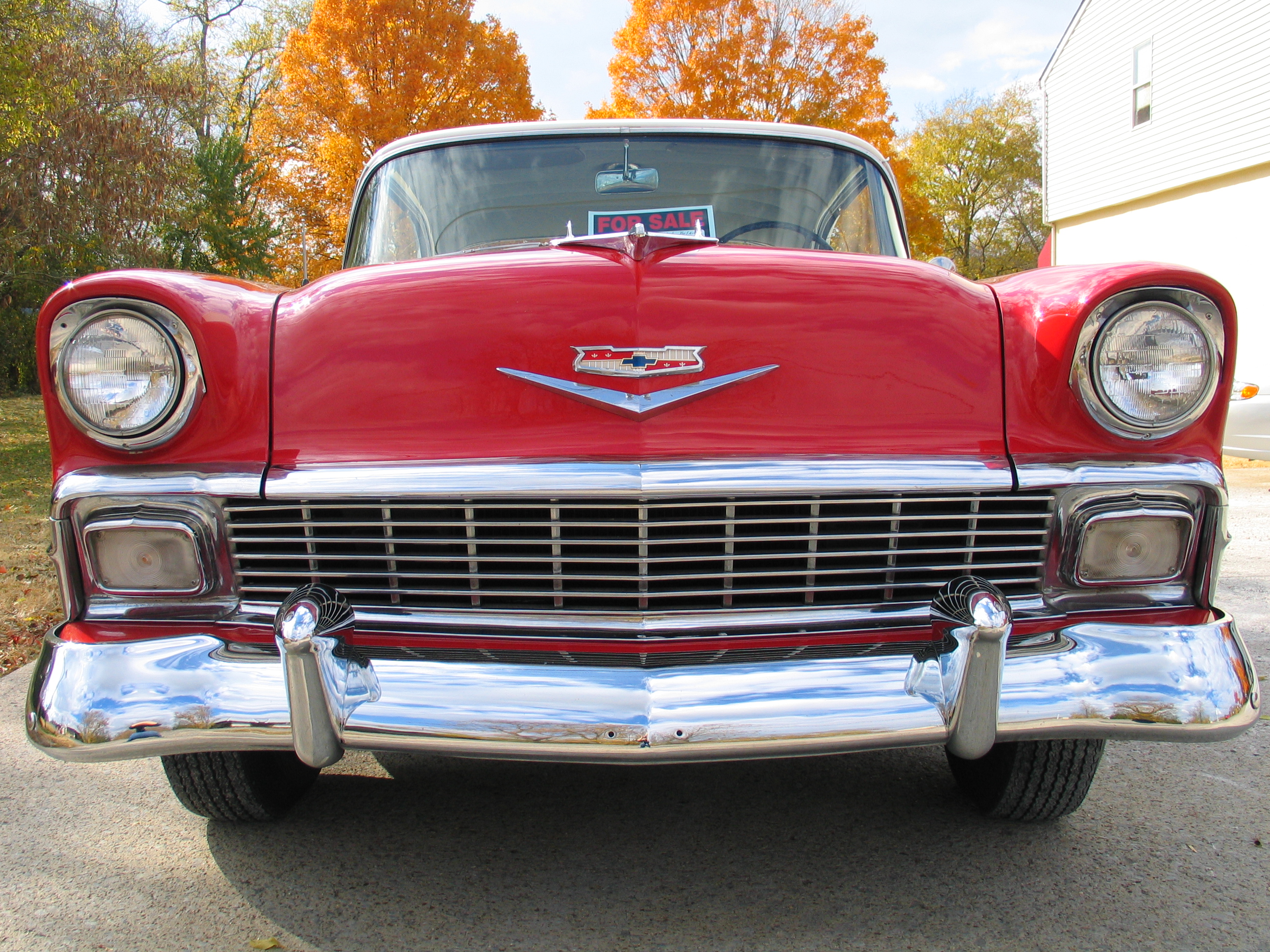

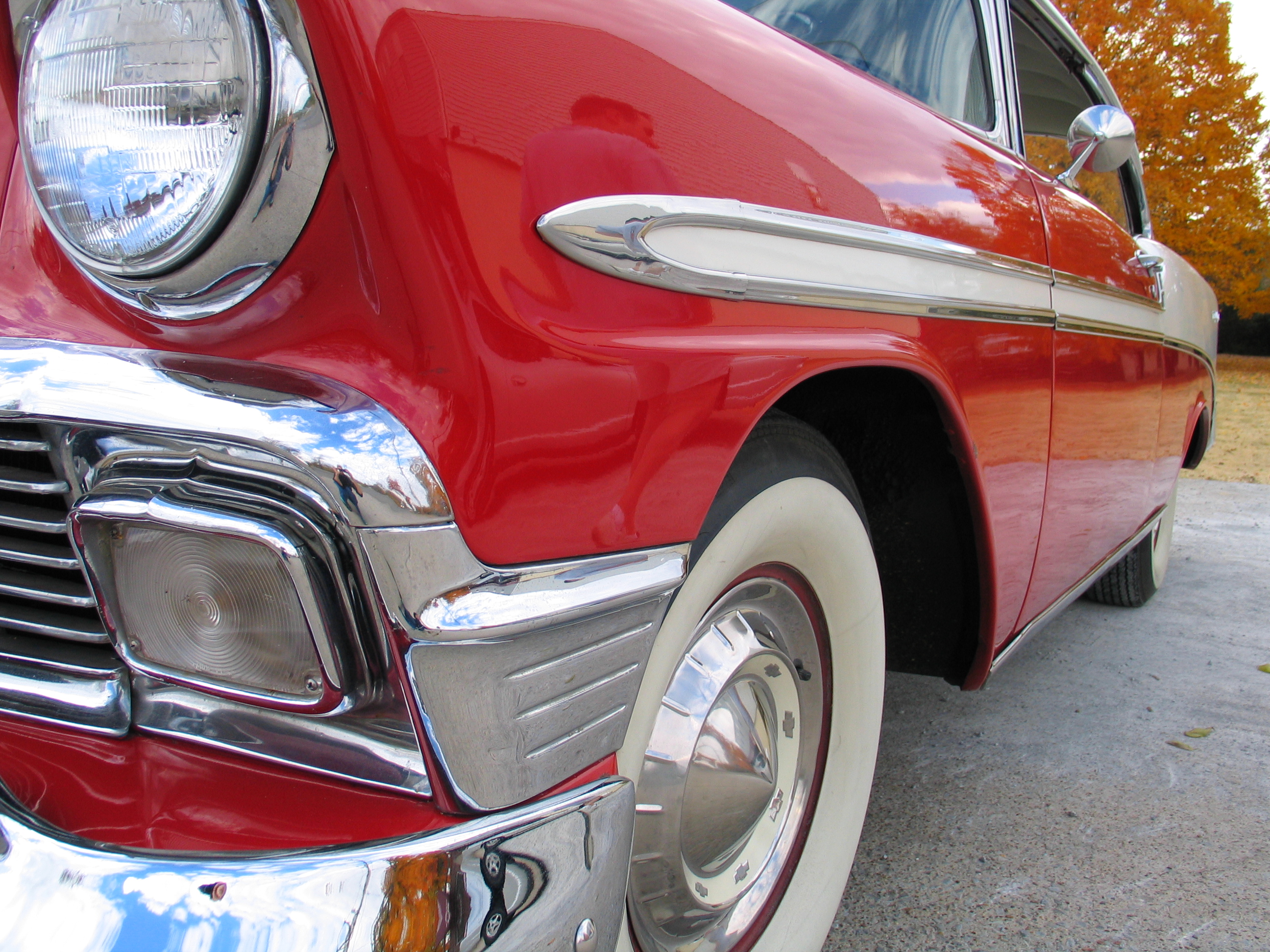

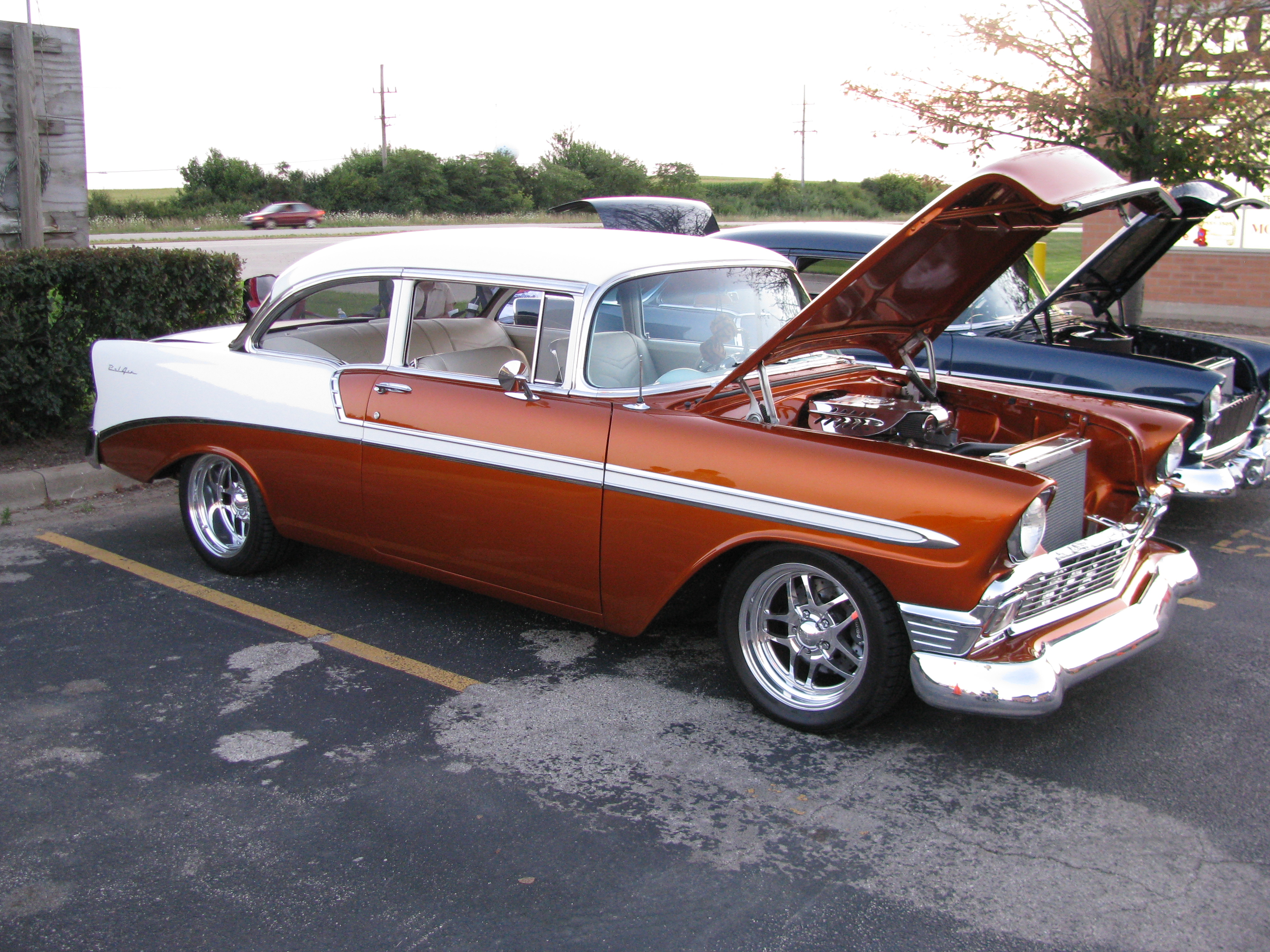

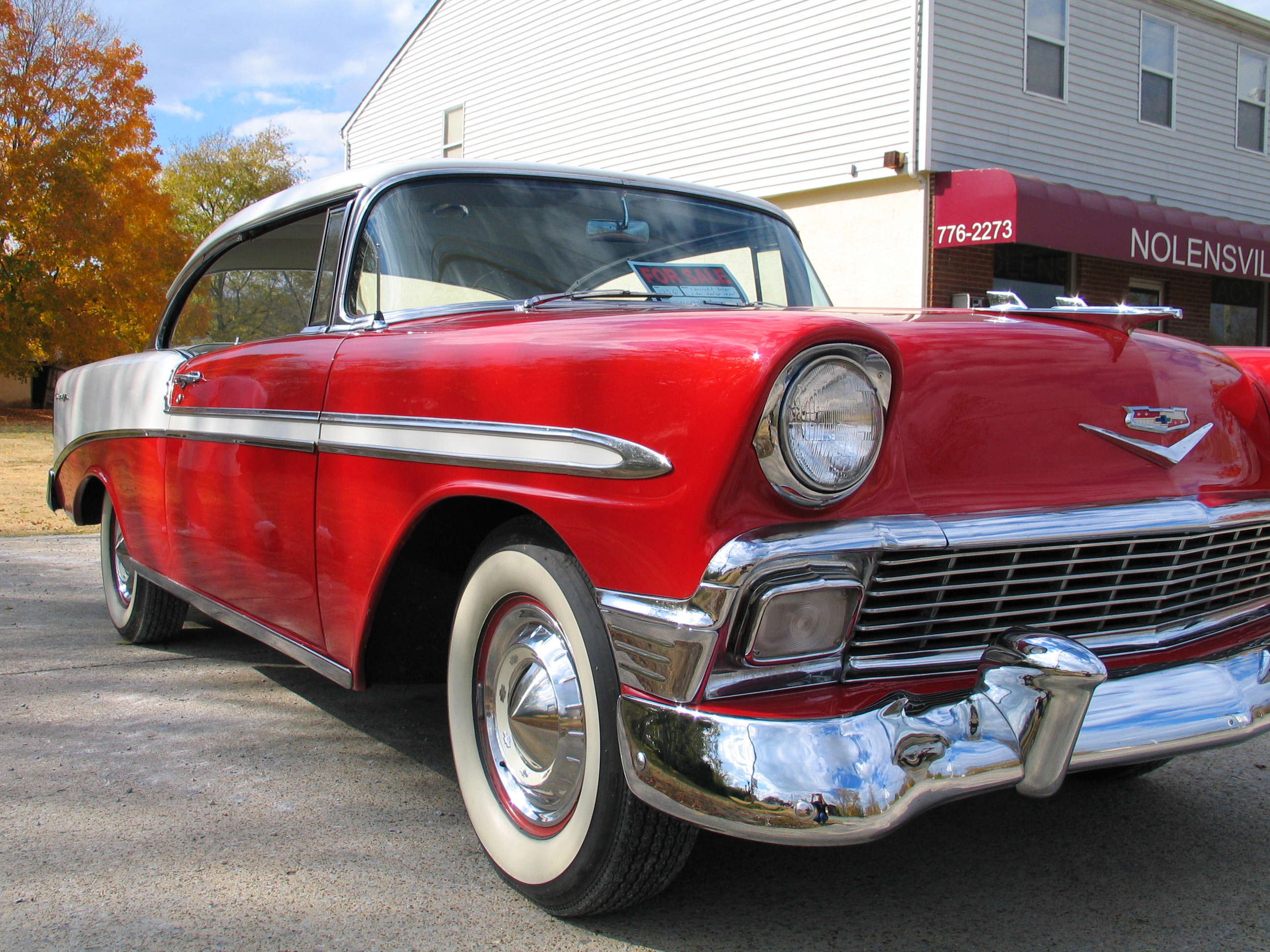

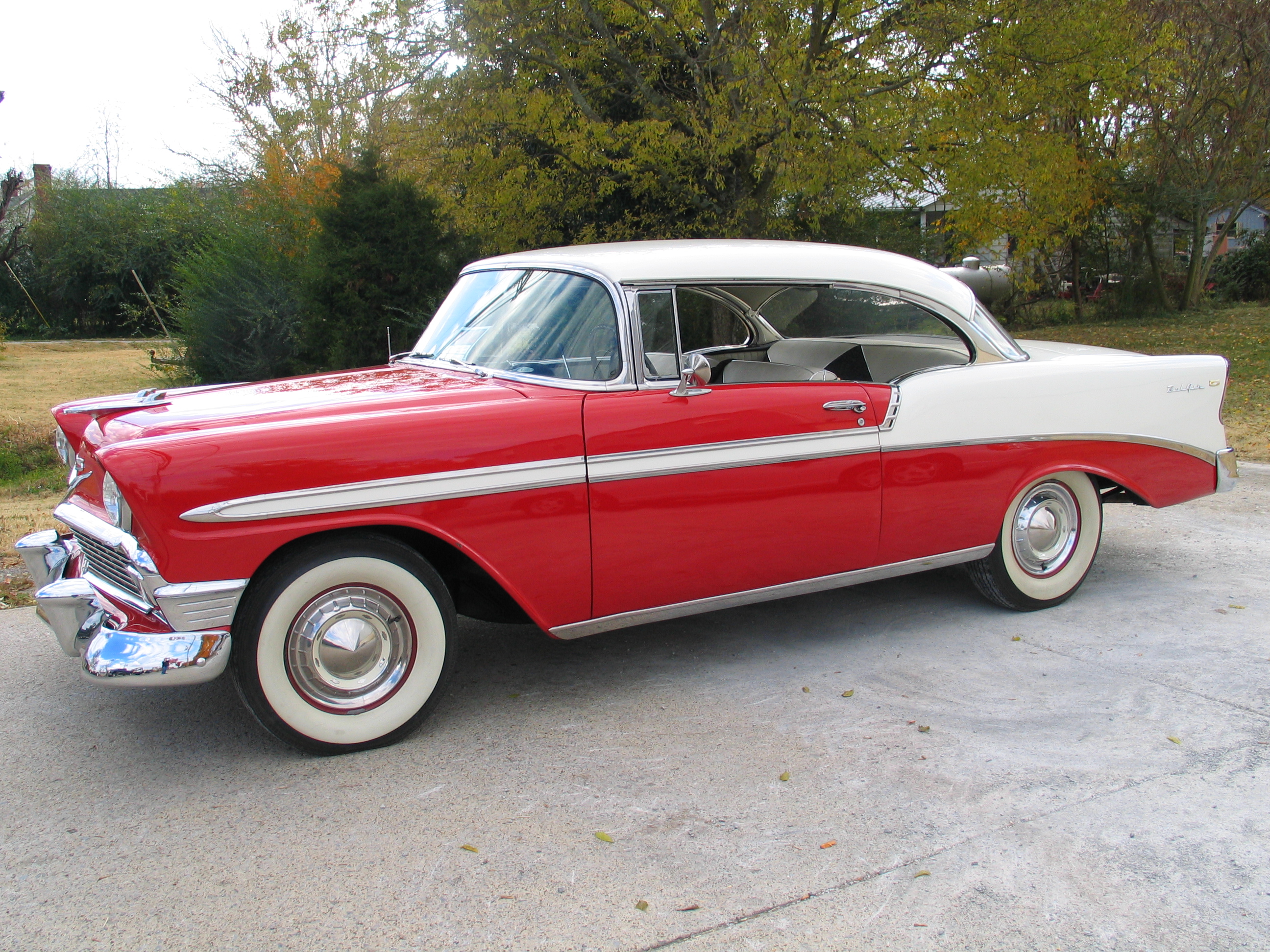

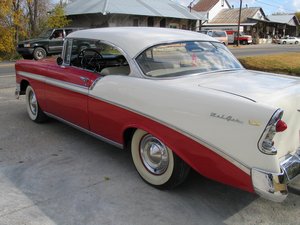

For 1955, Chevrolet's full-size model received all new styling and power. The 1955 Bel Air was 3,456 lb (1,568 kg) and 15 ft (4.6 m) long. It was called the "Hot One" in GM's advertising campaign. Chevrolet's styling was crisp, clean and incorporated a Ferrari-inspired grille. Bel Airs came with features found on cars in the lower models ranges plus interior carpet, chrome headliner bands on hardtops, chrome spears on front fenders, stainless steel window moldings, and full wheel covers. Models were further distinguished by the Bel Air name script in gold lettering later in the year. For 1955 Chevrolets gained a V8 engine option and the option of the 2 speed Powerglide automatic, or a standard three speed Synchro-Mesh manual transmission with optional overdrive. The new 265 cu in (4,340 cc) V8 featured a modern, overhead valve high compression, short stroke design that was so good that it remained in production in various displacements for many decades. The base V8 had a two-barrel carburetor and was rated at 162 hp (121 kW), and the "Power Pack" option featured a four-barrel carburetor and other upgrades yielding 180 bhp (130 kW). Later in the year, a "Super Power Pack" option added high-compression and a further 15 bhp (11 kW). "Idiot" lights replaced gauges for the generator and oil pressure.

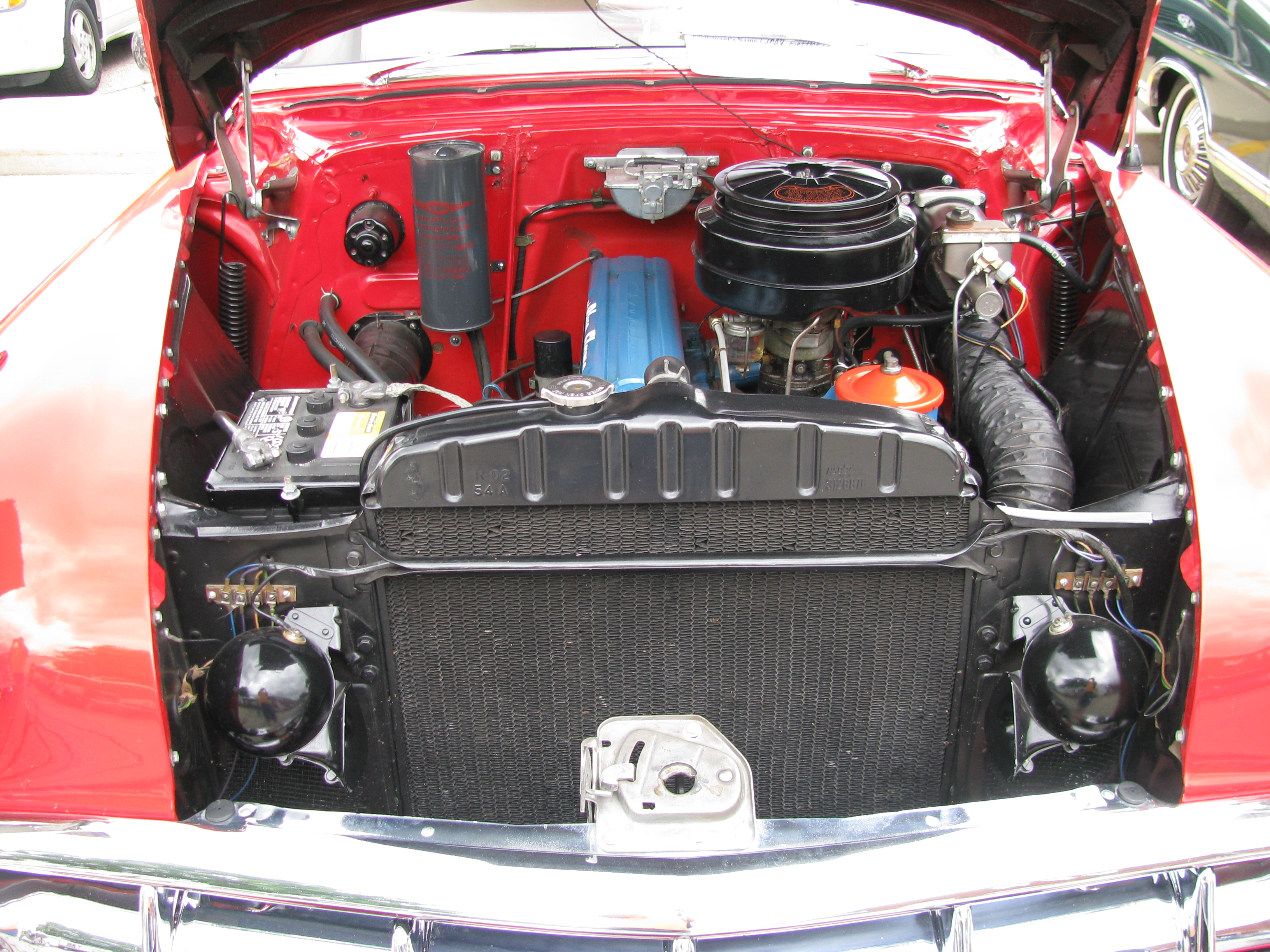

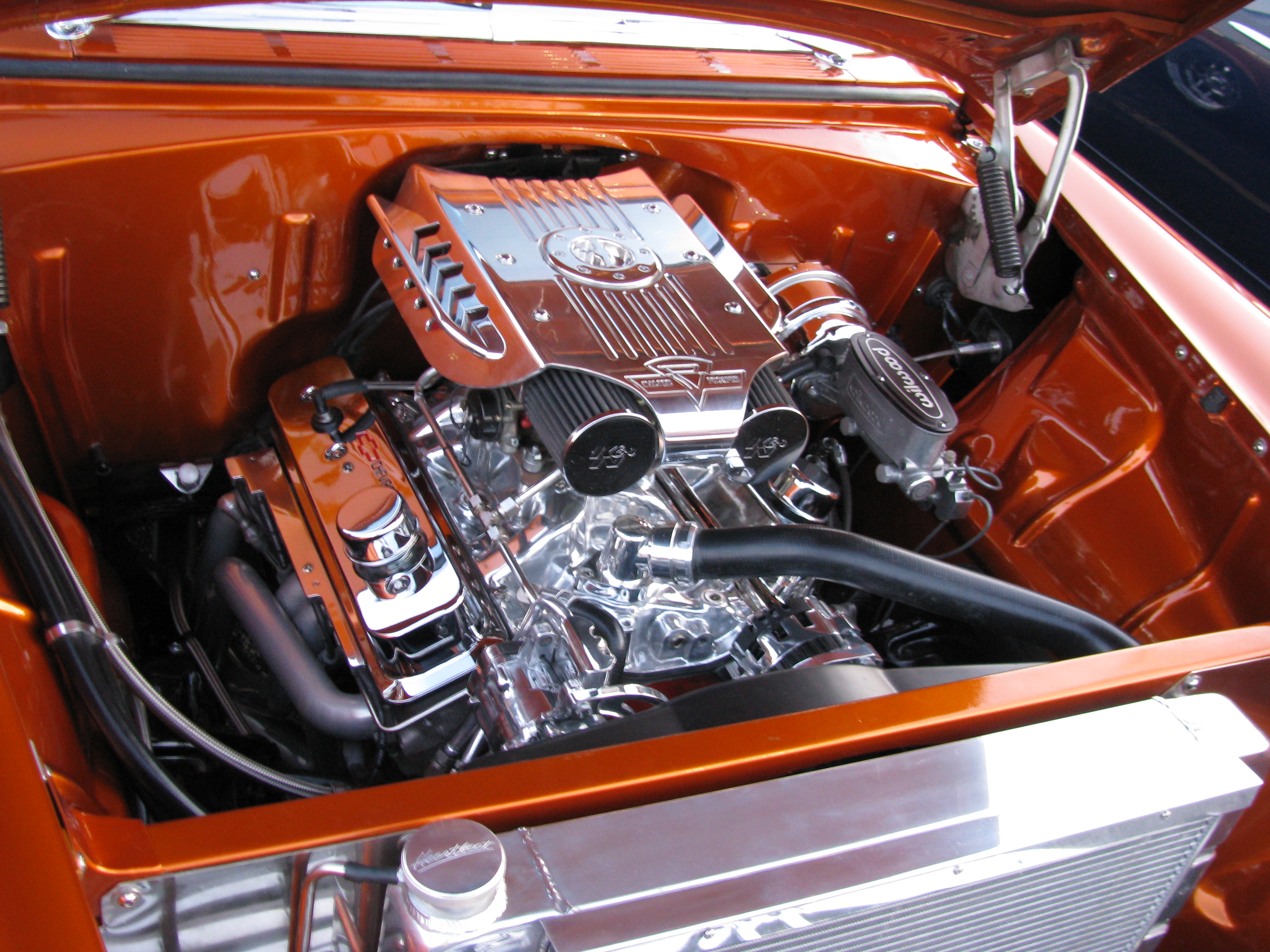

This was not the first Chevrolet to be installed with a V8 engine. The first Chevrolet with a V8 engine was introduced in 1917 called the Series D which was built for two years, and was manufactured before Chevrolet joined General Motors.
From 1955 to 1957, production of the two-door Nomad station wagon was assigned to the Bel Air series, although its body and trim were unique to that model. Prior to becoming a regular production model, the Nomad first appeared as a Corvette-based concept vehicle in 1954. Chevrolet has since unveiled two concept cars bearing the Nomad name, most recently in 1999. The 1955–1957 Chevrolets are commonly referred to as Tri Fives.

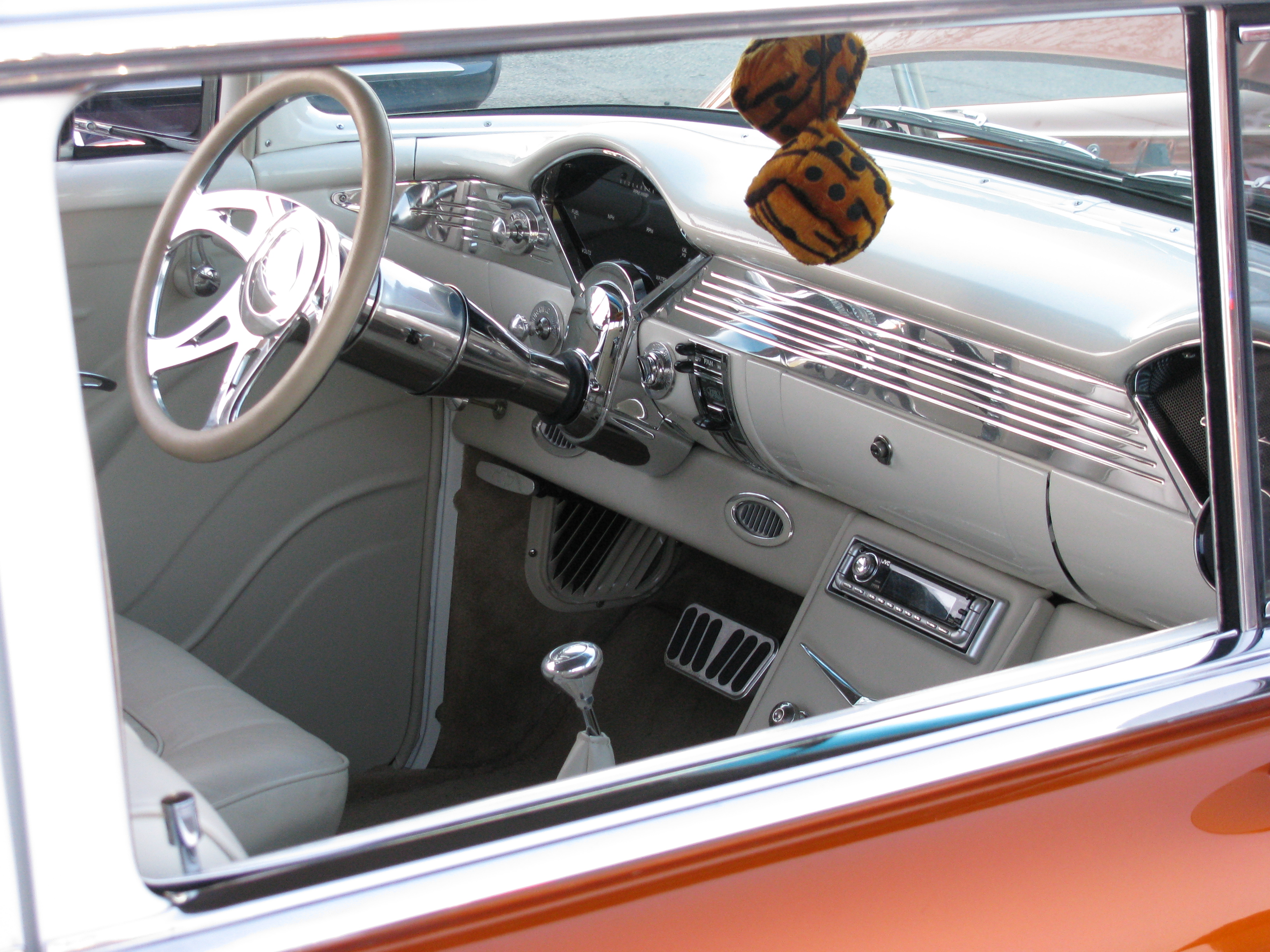

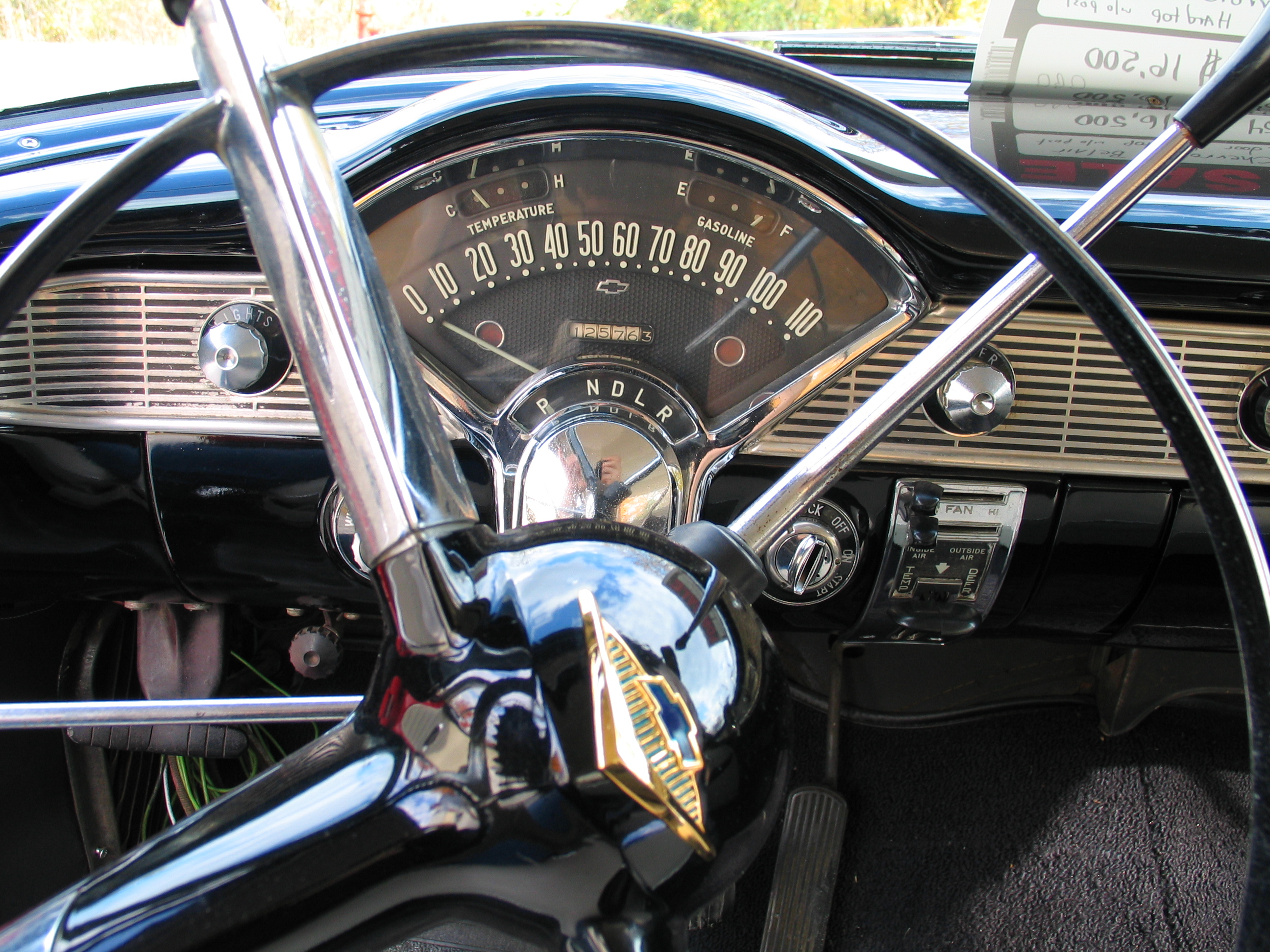

The 1955-1957s were made in right-hand drive and shipped from Oshawa, Canada, for local assembly in Australia (CKD), New Zealand (SKD), and South Africa. All three model years had a reversed version of the '55 LHD dashboard and did not get the LHD models' 1957 redesign.
Third generation (1958)

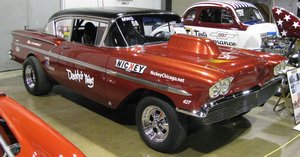

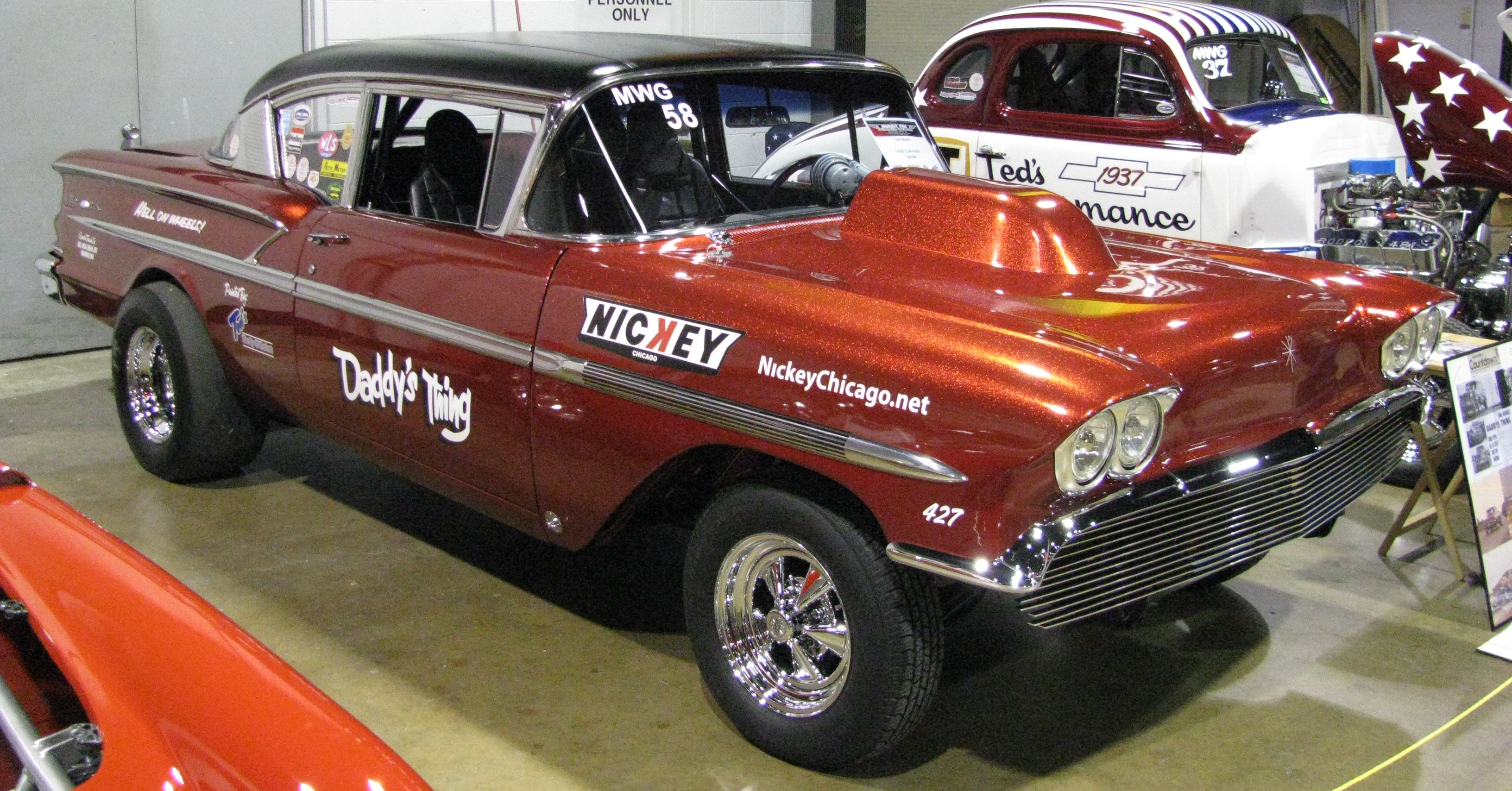

For 1958, Chevrolet models were redesigned longer, lower, and heavier than their 1957 predecessors, and the first ever production Chevrolet big block V8, the 348 cu in (5,700 cc), was now an option. The Bel Air gained a halo vehicle in 1958, the Impala, available only as a hardtop coupe and convertible in its introductory year. Impala styling followed the basic lines of the other Chevrolet models but received special styling cues including a different roof line, a vent above the rear window, unique side trim, and triple tail lights housed in slightly broader alcoves. For the budget conscious, the Biscayne, (formerly the 210) and the Delray (formerly the 150) completed this model year's family-oriented and utility offerings.
Chevrolet's design for the year fared better than its other GM offerings, and lacked the overabundance of chrome found on Pontiacs, Oldsmobiles, Buicks and Cadillacs. Complementing Chevrolet's front design was a broad grille and quad headlights that helped simulate a 'Baby Cadillac'; the tail received a fan-shaped alcove on both side panels, which housed dual tail lights. Despite being a recession year, consumers made Chevrolet the No. 1 make of automobile (beating Ford, which held the title in 1957) and the Bel Air was at the core of Chevrolet's popularity. With its wide variety of body styles and models, Bel Airs could be optioned with almost every conceivable luxury within the Chevrolet line. The Nomad station wagon name also reappeared in 1958 when the vehicle bowed as the premium four-door Chevrolet station wagon, lacking the unique styling of the 1955-57 Nomads. Most Chevrolet station wagon models had two tail lights housed in abbreviated alcoves, which were made smaller to accommodate the rear gate. A new dash was used.
Fourth generation (1959–1960)

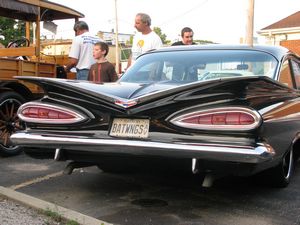

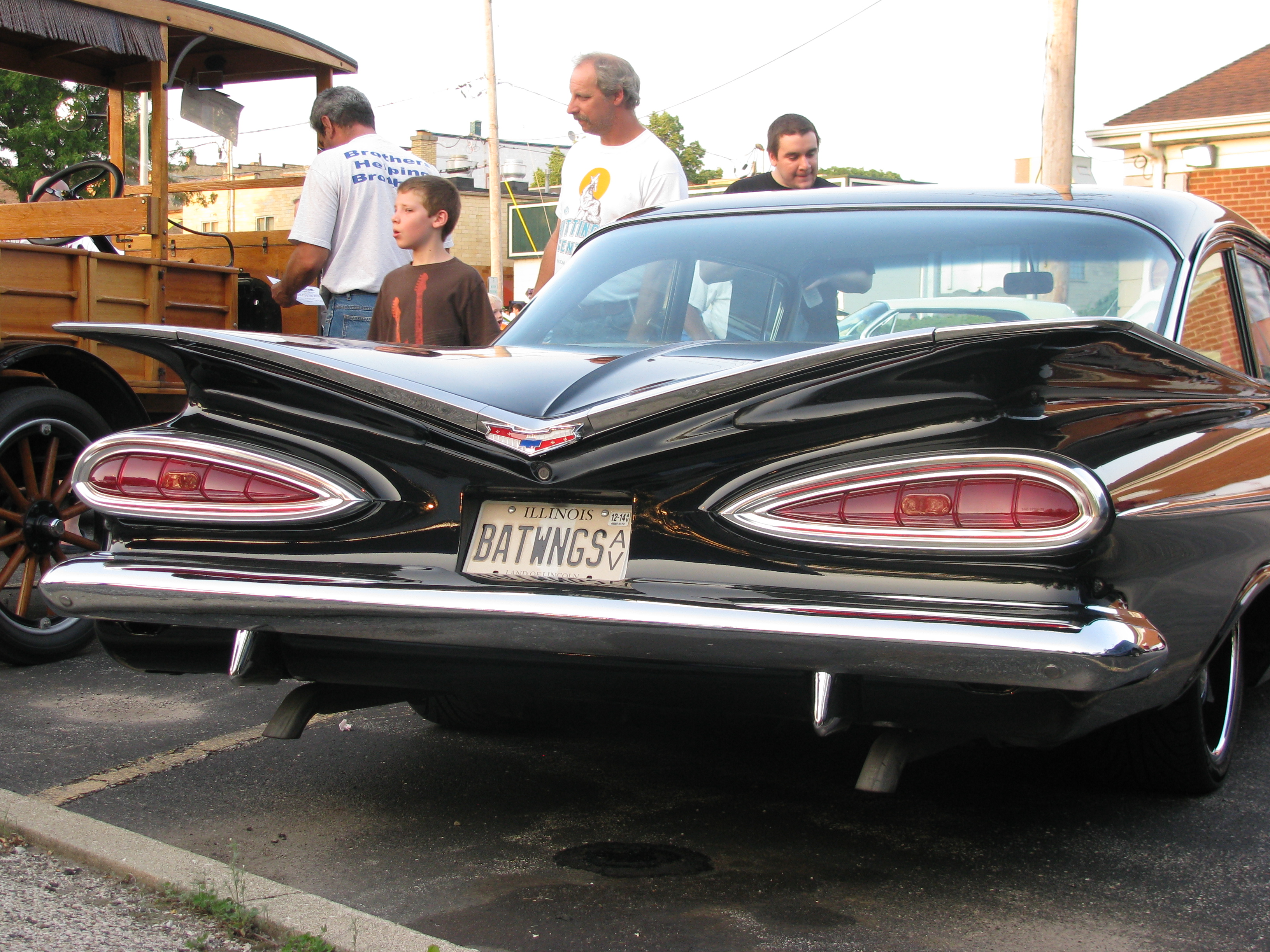

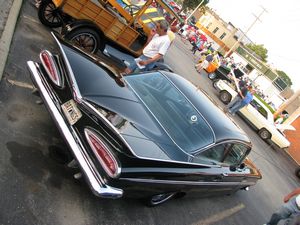

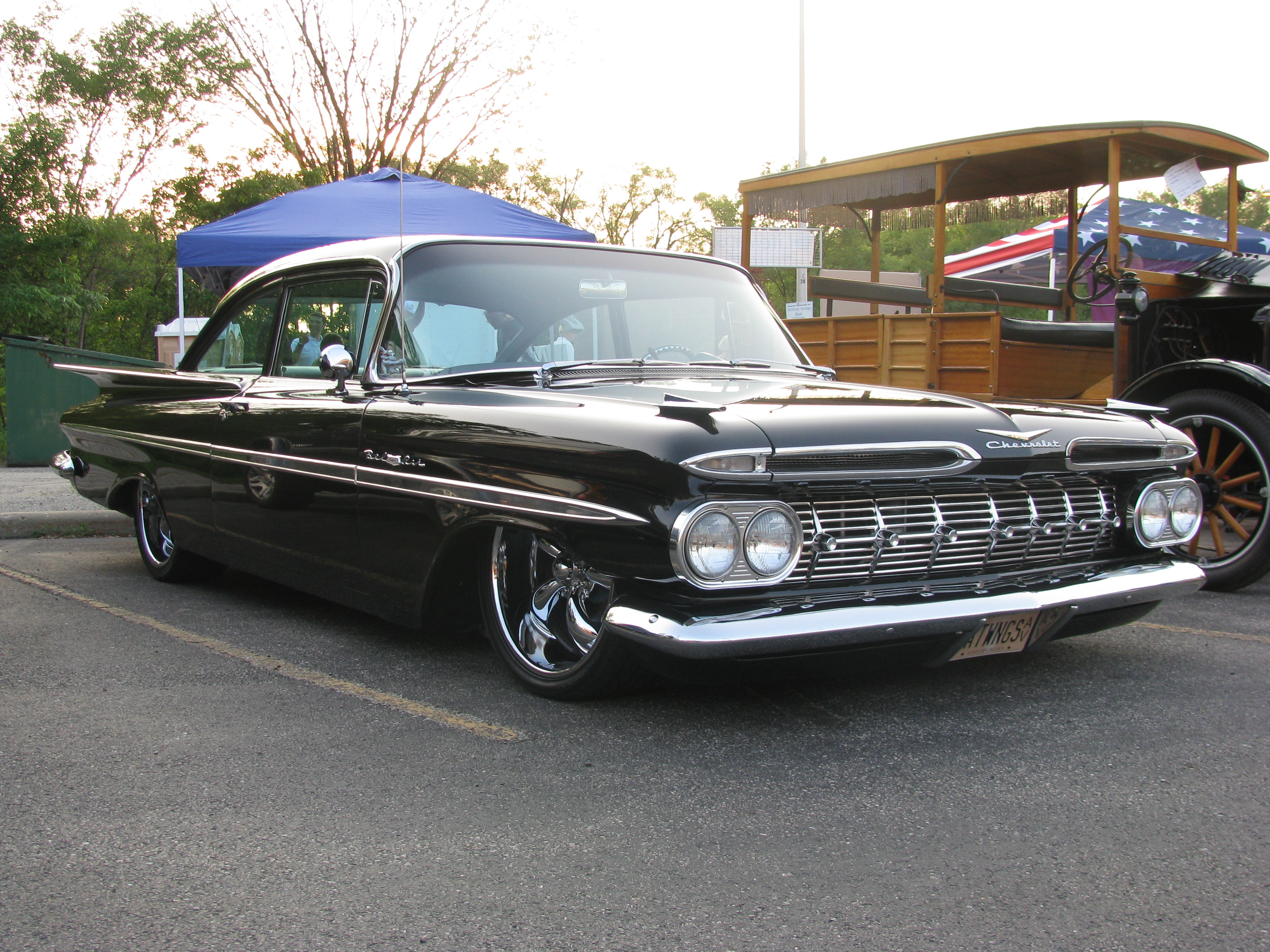

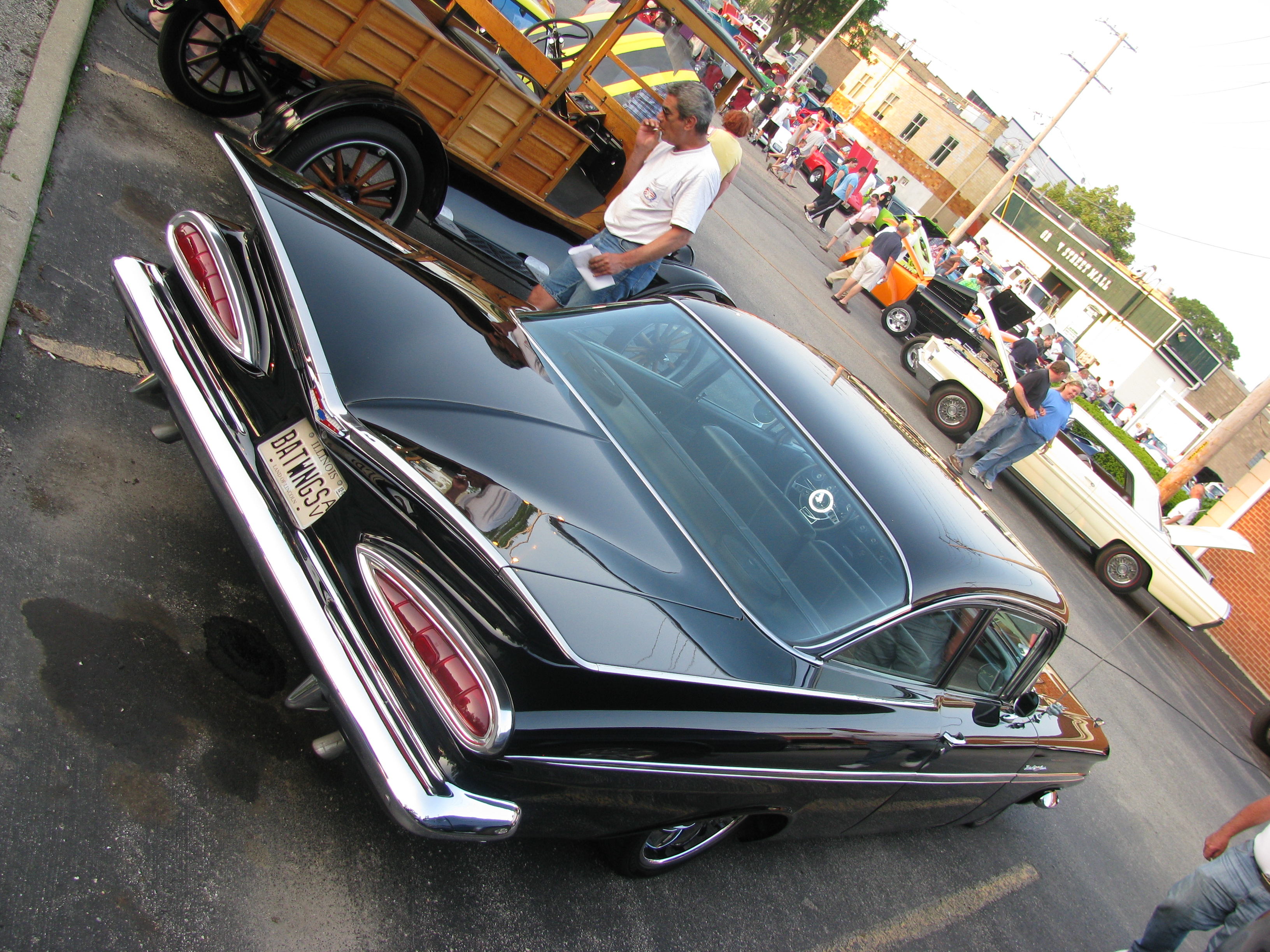

For the second time in as many years, Chevrolet again came up with a totally new car. From the front or rear the 1959 Chevrolets resembled nothing else on the road. From the headlights, placed as low as the law would allow, to the cat's-eye tail lights, the 1959 Chevrolet was a brand new car with all new sheet metal, a new frame, and even new series names. The most visual new change was the flat, wing shaped tailfins. The car was built on a 119 in (3,000 mm) wheelbase and was 211 inches (5,400 mm) long-which was 11 in (280 mm) longer than the 1957 model. This made Chevrolet the longest car in the low-priced range, whereas two years before it had been the shortest. In addition, the car was 3 in (76 mm) wider outside and had 5 in (130 mm) more width inside than it did in 1958, through the reduction of door thickness. The frame was new, called GM X frame, and it had no side rails.
The Bel Air, which had been the top line series since 1953, was now the middle range. Wagons were still classed by themselves, but had model numbers matching the car series. Parkwood 6-passenger and Kingswood 9-passenger wagons had Bel Air's model number, and as such were the middle range wagons. Under the hood, little change took place. A variety of speed options, such as fuel injection, special cams and lowered compression, gave horsepower ratings up to 315. Bel Air production was 447,100. The new Impala line surpassed Bel Air production by 20,000 units. A parking brake warning light was optional.

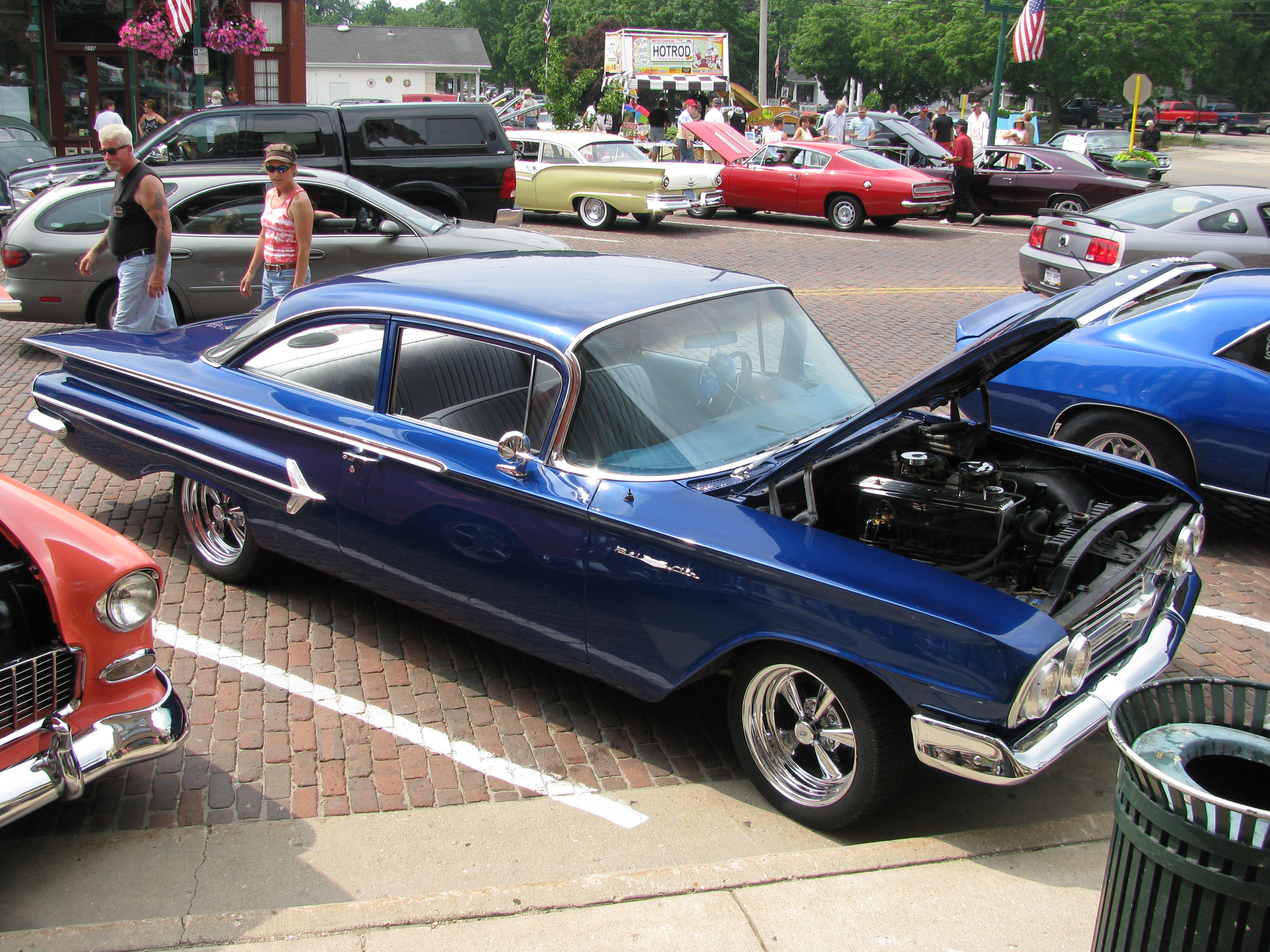

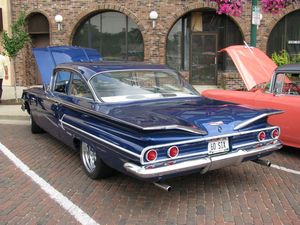

Little change was made for 1960. The new models were refinements of the 1959 style with a much more restrained front end, the return of the double cone tail lights of 1958 rather than the startling "cat's eyes" of 1959. Under the hood, things remained constant. Fuel injection was no longer available, but with the 348 cubic inch engine, a horsepower rating of 335 at 5800 rpm was now achieved. This involved the use of three double-barrel carburettors, a special cam and an 11.25:1 compression ratio, all sold as a package. New to the Bel Air series was the Sport Coupe, which used the Impala's two-door hardtop body, but lacked the Impala's luxury trim. The Bel Air Sport Sedan continued to use a rear window overhang and a huge wraparound rear window. Bel Airs (and Biscaynes) had two tail lights per side; the Impalas had three tail lights per side—a situation that would persist for most years through 1975. Many of the same options and accessories that were available on the Impala were also available on the Bel Air. The Bel Airs had more interior and exterior brightwork than the Biscayne.
Fifth generation (1961–1964)
For 1961, Chevrolet again had a totally new body, not just new sheetmetal. Its wheelbase remained 119 in (3,000 mm), but its length was now reduced slightly to 209.3 in (5,320 mm). All engines options of the previous year remained in effect with the standard engines being the 235.5 CID Six of 135 hp (101 kW) or the 283 CID V8 of 170 hp (130 kW). The V8 cost $110 more than the Six and weighed 5 lb (2.3 kg) less.
The Bel Air 2-door sedan used squared-off roof styling and large wrap-around rear window as opposed to the hardtop's swept-back design. The Bel Air 4-door Sport Hardtop still used a different roof line than did the 4-door sedan.

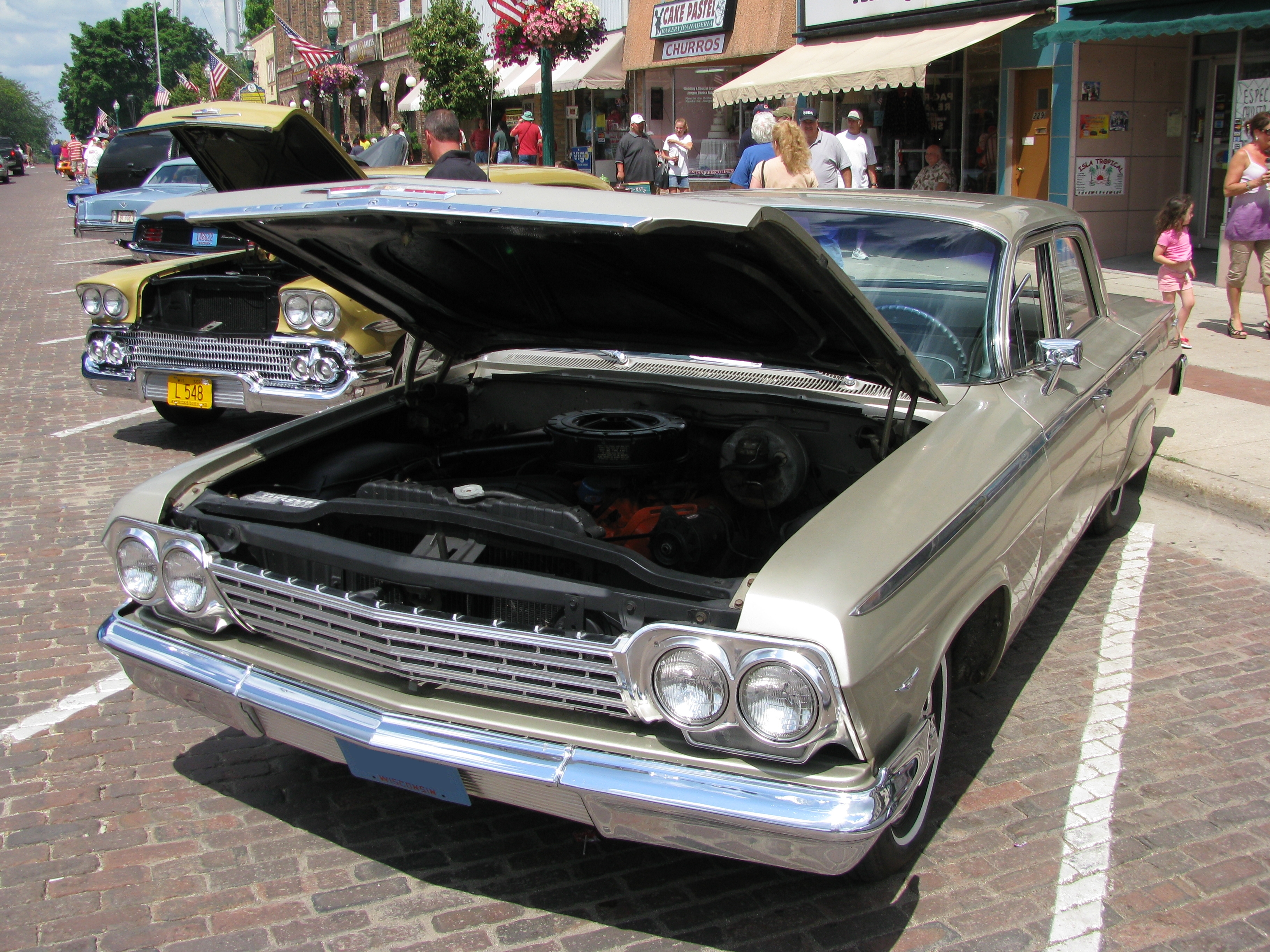

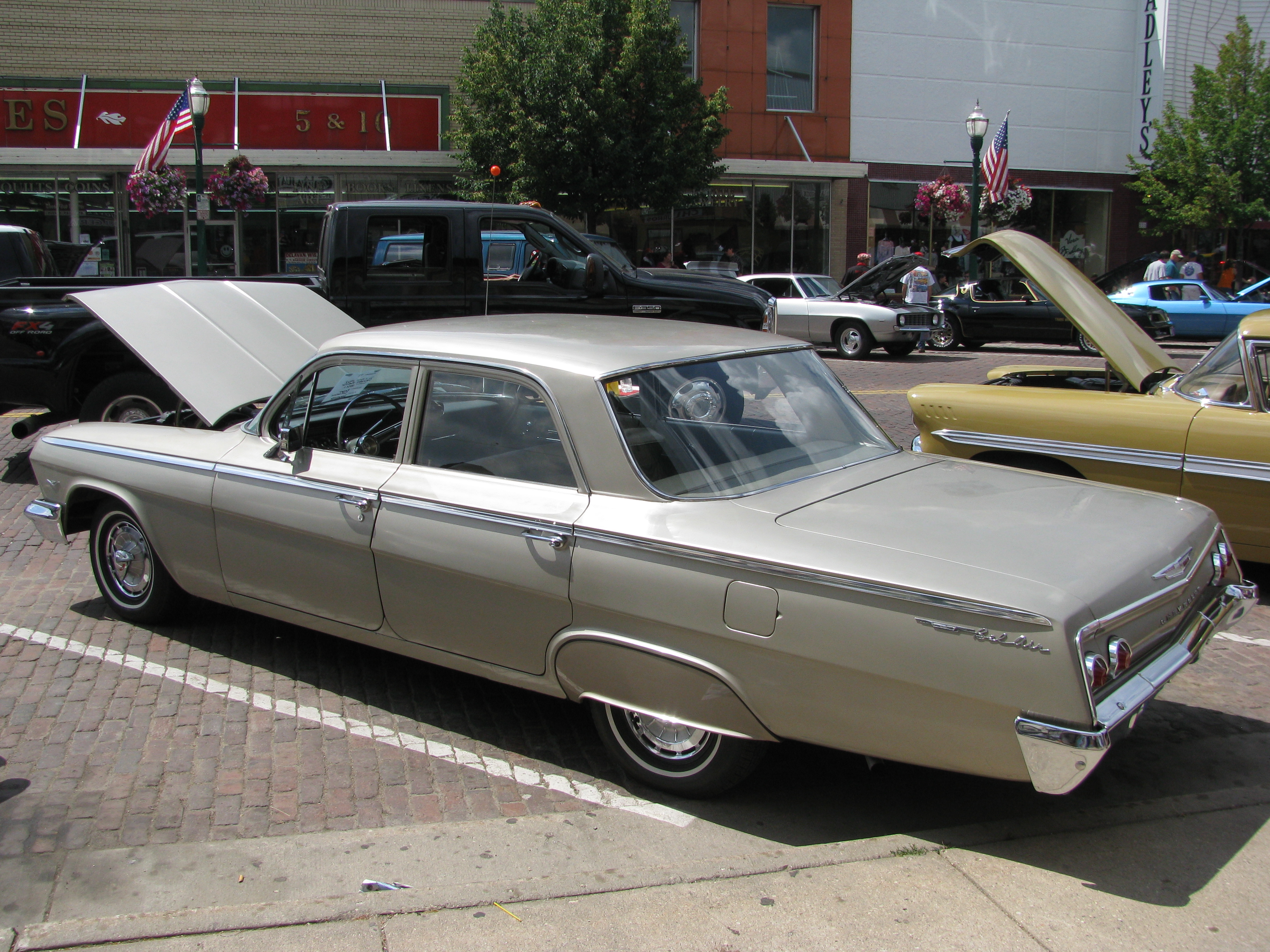

For 1962, all sheetmetal except the door panels was changed. Overall length was stretched slightly to 209.6 in (5,320 mm). The 4-door Sport Hardtop was no longer offered in the Bel Air series. Standard engines remained the same as the previous year. A new 327 cu in (5,360 cc) V8 of 250 or 300 hp (220 kW) was offered in addition to the giant (for the time) 409 cu in (6,700 cc) V8 of 380 hp (280 kW) or 409 hp (305 kW) with the dual four-barrel carburetor setup. All wagons this year were 4-door models and separate distinctions for wagons were dropped. Now all models were either Biscayne, Bel Air or Impala series. Full carpeting returned as standard equipment on all 1962 Bel Air models for the first time in several years. The Bel Air Sport Coupe was in its last year of U.S. production, and its roofline was a carryover from the 1961 hardtop coupe.
For 1963, the full size Chevrolet received little more than a facelift. Overall length increased to 210.4 in (5,340 mm). Replacing the older 235 cubic-inch six-cylinder engine as standard equipment was a new 230 cubic-inch six-cylinder of more modern design with a 140-horsepower rating that was based on the 194 cubic-inch six introduced on the compact Chevy II Nova the previous year. The base V8 remained the 283 CID, which was upgraded to produce 195 hp (145 kW). The 409 CID V8 was now offered in 340, 400 and 425 hp (317 kW) versions, while the small block 327 V8 continued with options of 250 and 300 horsepower. The Bel Air continued to be Chevrolet's middle range, but it now consisted of only two car models- the 2-door sedan and the 4-door sedan. 6 and 9-passenger Bel Air station wagons were again offered.
For 1964, very few changes were made except the expected sheet metal and trim renovations. Cars were 209.9 in (5,330 mm) in length while the wagons were 210.8 in (5,350 mm) long. In addition to the un-changed standard engines, there were two different 327 CID engines were offered, developing from 250 hp (190 kW) to 300 hp (220 kW) and three 409 CID engines ranging from 340 hp (250 kW) to 425 hp (317 kW). Except for a chrome belt line and $100 difference in price there was little exterior difference between the Bel Air and Biscayne version.
RHD Bel Airs continued to be imported into Australia. Some of these cars featured a reversed 1961 Pontiac instrument panel, but others had a mirror image of the more attractive current North American panel. Even more curious was the fact that some of these Bel Airs featured Impala-style triple taillights; the center lens was amber in keeping with Australian legal standards.
Sixth generation (1965–1970)
For 1965, the full size Chevrolet was totally restyled, and the cars were stretched to 213.3 in (5,420 mm) overall, even though the wheelbase remained the same. The new stamped grille had a lower extension below the bumper which was slightly veed. Curved window glass and round taillights mounted high characterized the new styling. The interiors were also redesigned and a very attractive dash resulted. The standard V8 remained the 283 CID model of 195 hp (145 kW), but options included two new 396 cu in (6,490 cc) CID engines of 325 and 340 hp (250 kW) and two 409 CID blocks of 400 and 425 hp (317 kW).
The Bel Air utilizes a stainless-steel belt and rocker molding, identifying signature on the rear fenders, a glove compartment light and power tailgate on 9-passenger wagons to distinguish itself from the lower-priced Biscayne series.
For 1966, Chevrolet was in its second season of a totally new body change, so mild facelifting sufficed including forward thrusting, blunted front fenders and a revised grille. At the rear, a break with the traditional round taillamps took place. Bel Air and Biscayne featured dual rectangular lamps with back-up lamps built in. Overall length was 213.2 in (5,420 mm). The standard six-cylinder engine this year was the larger 250 CID version of 155 hp (116 kW). New for the speed set was a 427 cu in (7,000 cc) V8 of 390 or 425 hp (317 kW). Bel Air was readily distinguishable from Biscayne by its full length body side molding and rear fender Bel Air signatures. All-vinyl interiors were now standard on station wagons while cloth and vinyl trims continued on sedans.
For 1967, Full-sized Chevrolets featured a new body with bulging rear fenders, one of this year's styling trends, not necessarily appreciated by everyone. Bel Air 2 and 4-door Sedans continued in addition to 6 and 9-passenger wagons. This year Bel Air featured triple taillights unlike Biscayne's dual units. Standard engines remained the same as the previous year. Optional engines were a 327 CID V8 of 275 hp (205 kW), the 396 CID V8 of 350 hp (260 kW); or the 427 CID V8 of 385 hp (287 kW), plus various speed packages.
For 1968, the Full-sized Chevrolets received some changes but were quite similar to the 1967 models, though they had grown one inch to 214.7 in (5,450 mm). Chevrolet's new grille design bears a strong resemblance to Cadillac's, but Bel Air's dual round taillight design is strictly Chevrolet. In an unusual move, the taillights were mounted in the bumper. In 1968 the U.S. made seat belts required in all motor vehicles, bringing about a new standard in car safety.
Seventh generation (1971–1975)
By the late 1960s (with the introduction of the Caprice), the Bel Air and its Biscayne stablemate were primarily marketed to automotive fleet customers. However, the Bel Air remained available to retail customers who sought a basic, no-frills, full-sized car that was better trimmed than the low-line Biscayne. When the Biscayne was discontinued after 1972, the Bel Air was demoted to the low-level model. Bel Airs again used two-segmented taillights as opposed to the triple-segmented lights of higher-level Impala and Caprice models, except in 1972 when all models shared the same triple-segmented lights mounted in the bumper.
All Bel Air sedans built in 1974–1975 listed a 350 two-barrel V8 engine and Turbo-Hydramatic transmission as standard, with station wagons getting the 400 cu in (6,600 cc) four-barrel V8, again with Turbo-Hydramatic standard. The 400 V8 was optional on sedans and the 454 was available on both models.
With the discontinuation of the Bel Air two-door sedan after the 1969 model year, all U.S.-market Bel Airs sold between 1970 and 1975 were four-door sedans or station wagons—the latter carrying the Townsman nameplate from 1969 to 1972 and Bel Air from 1973 to 1975. However, a Bel Air hardtop coupe—based on the Impala Sport Coupe body—was sold in Canada from 1970 to 1975. This body even had a roofline similar to the original '66-67 Caprice coupe style for 1974–1975.
Most other changes to the Bel Air during its final years were identical to the more expensive Caprice and Impala lines, some of which were mandated by government safety regulations in the U.S. that included 5 mph (8.0 km/h) front bumpers in 1973 and similar-designed rear bumpers in 1974. The 1975 models had a new roofline and (along with the Impala) grille that was a direct copy of the 1974 Caprice front end. Inside, there were new instrument cluster markings, radio and climate control graphics (the speedometer read up to 100 mph (160 km/h), and had smaller numbers for kilometers per hour). Customers could buy their 1975 Bel Air with two new options: an Econominder gauge package (which included a gauge that monitored fuel economy, due in part to growing demands for fuel economy as well as a temperature gauge) and intermittent wipers.
Canada-only models: Early generations (1970–1976)
While the last Bel Air 2-door sedan was available in North American in 1969, Chevrolet introduced a Canadian market-only two door hardtop, the Bel Air Sport Coupe, from 1970-75. Based on the Impala Sport Coupe, this new model featured Bel Air trim at a lower price than the Impala. Each year through 1975, this model's body followed the design of the contemporary Impala Sport Coupe. The 4-door sedan and station wagon continued in production, identical to the U.S. models. For 1976, the Canadian Bel Air Coupe featured the same body as the Impala Custom Coupe, with the large fixed rear quarter window and frameless front door glass.
Although the last Bel Air was produced in 1975 in the U.S., the Canadian big Chevy lineup continued to include the Bel Air for 1976 and beyond in two door, four door and station wagon body styles.
Canada-only models: Eighth generation (1977–1981)
In Canada, Chevrolet retained the Bel Air as its lowest-priced full-size car through the 1981 model year. For 1977, Canadian Bel Airs received the same downsizing as their Impala/Caprice counterparts in the U.S. Body styles offered during this period were a four-door sedan, two-door coupe and station wagon. Reflecting the smaller size of these downsized big cars was a lineup of generally smaller engines for improved fuel economy with Chevy's 250 cubic-inch six-cylinder reinstated as standard power in sedans for the first time since 1973, with the 140 hp (100 kW) 305 V8 available as an option in sedans and standard on wagons. The 170 hp (130 kW) 350 V8, available in both models, was now the top option as the larger 400 small block and 454 big block V8s were no longer available. Standard equipment on Bel Airs during this period included small hubcaps, cloth-and-vinyl upholstery in sedans or all-vinyl in wagons, cigarette lighter, ashtray, automatic dome light for front doors, full carpeting, Astro Ventilation, Delco Freedom battery, variable-ratio power steering, power front disc brakes and Turbo Hydramatic automatic transmission.
The 1980 Bel Air along with other full-size Chevrolets, was revised with all-new exterior sheet metal, which helped improve aerodynamics and thus fuel economy; the car was also fitted with a new grille, identical to that of the higher-priced Impala. Also that year, the engine lineup was revised with the inline six replaced by a new 3.8-liter or 229 cubic-inch V6 based on the small-block V8 as the base engine in sedans. The new base V8 (standard on wagons, optional on sedans) was a smaller 267 cubic-inch small-block with two-barrel carburetor, while the 305 small-block (optional on all models) got a 15 hp (11 kW) increase to 155 hp (116 kW) thanks to the change from a two-barrel to four-barrel carburetor. The 350 V8 was now restricted to police-option vehicles. Another new option for 1980-81 was the Oldsmobile-built 350 Diesel.
With a dramatic downturn in full-size car sales, the Bel Air was dropped after the 1981 model year, as were a number of other low-trim full size cars in the Canadian market including the Pontiac Laurentian, Mercury Marquis Meteor, and the Ford LTD Custom 500.
While the last Bel Air 2-door sedan was available in North American in 1969, Chevrolet introduced a Canadian market-only two door hardtop, the Bel Air Sport Coupe, from 1970-75. Based on the Impala Sport Coupe, this new model featured Bel Air trim at a lower price than the Impala. Each year through 1975, this model's body followed the design of the contemporary Impala Sport Coupe. The 4-door sedan and station wagon continued in production, identical to the U.S. models. For 1976, the Canadian Bel Air Coupe featured the same body as the Impala Custom Coupe, with the large fixed rear quarter window and frameless front door glass.
Although the last Bel Air was produced in 1975 in the U.S., the Canadian big Chevy lineup continued to include the Bel Air for 1976 and beyond in two door, four door and station wagon body styles.
2002 concept

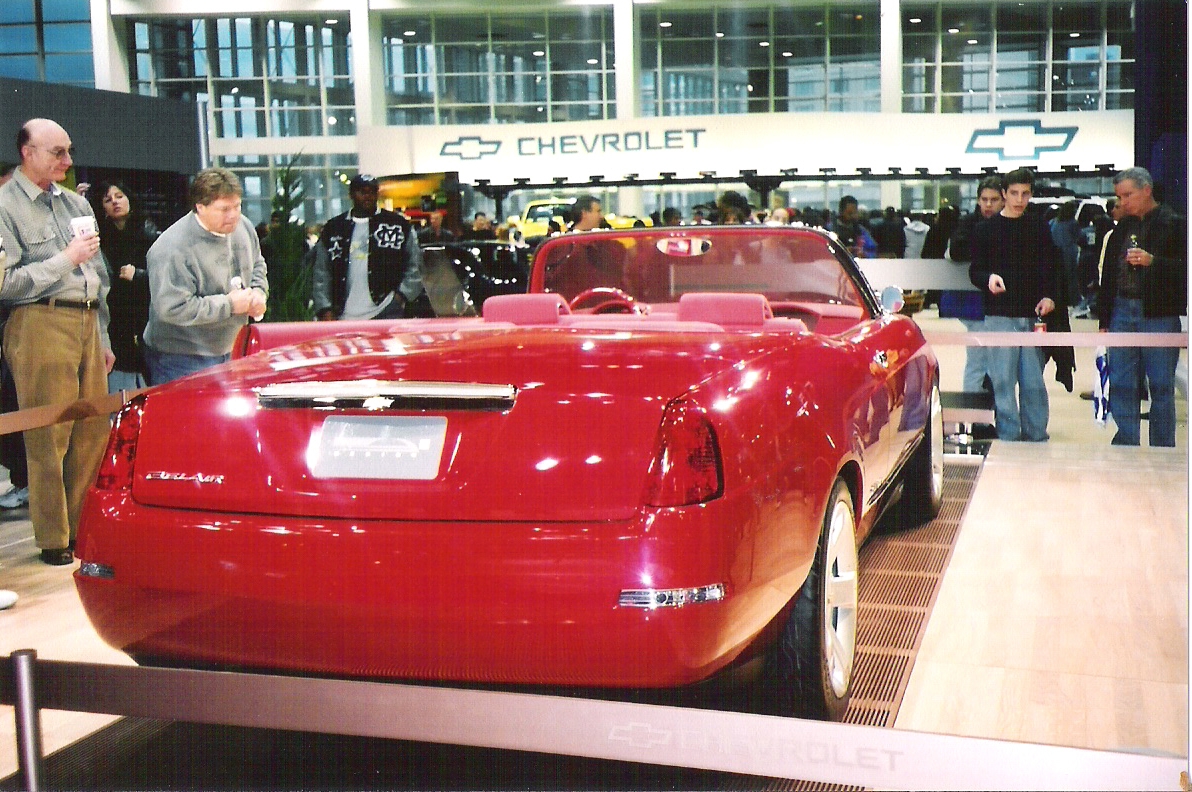

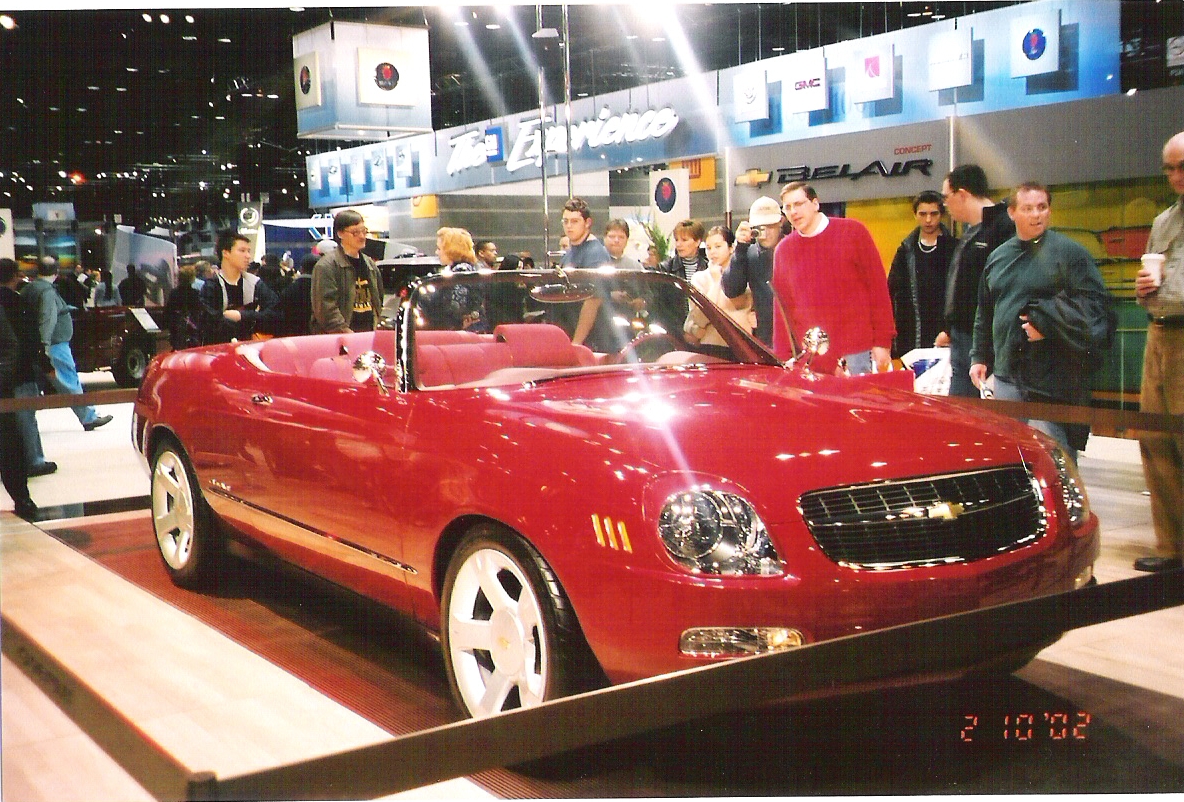

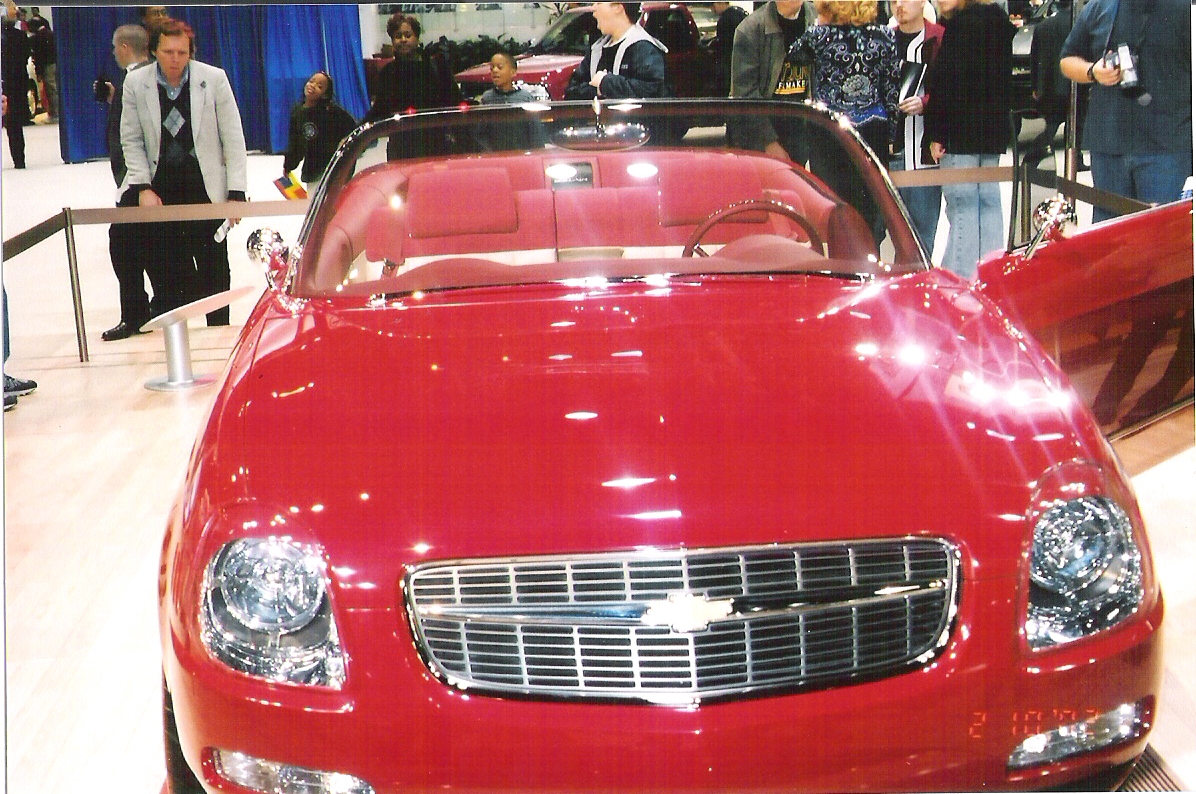

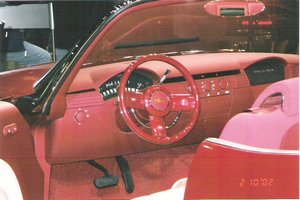

In 2002, a concept Bel Air convertible was shown at the North American International Auto Show. It features a few styling and design cues from the best remembered tri-five (1955–57) models, such as the chrome windshield frame, traffic light viewfinder, and a gas filler cap behind the tail light, similar to 1956–1957 Chevy's gas cap behind the chrome trim on the back of the tail fin, but more reminiscent of the 1948–1958 Cadillac gas cap tail light. It also features the same body on frame hydroforming technology (used in the frame rails of the Corvette and GM’s midsize sport-utility vehicles) and a sheet metal body, on a 111 in (2,800 mm) wheelbase, and a 65 in (1,700 mm) track. Suspension is short long arm up front and Hotchkiss drive in the rear. It rides on five-spoke aluminum wheels with 18 in (46 cm) red line tires and anti lock discs all-round. The elegant, yet simple interior features a twin-element instrument panel, column-mounted gearshift and bench seats covered in soft high-tech fabrics colored red to match the exterior that are cleverly designed to slide forward for easier backseat entry. It also served as a showcase for their new turbocharged inline five-cylinder concept engine based on the L52 (Vortec 3500), straight-5 truck engine. According to a September 2002 GM press release, the all-aluminum 3.5 L (211 cu in) 20-valve DOHC engine, with a bore of 93.0 mm (3.7 in), and a stroke of 102.0 mm (4 in), that delivers up to 315 horsepower and 315 lb·ft (427 N·m) of torque, mated to a Hydra-Matic 4L60-E electronically controlled four-speed automatic. A virtual "turbo boost" button on the steering wheel activates the powertrain control module to trigger a more aggressive spark and fueling calibration for maximum horsepower. It also led the 13th Annual Stater Brothers Route 66 Rendezvous as the official vehicle in September 2002. General Motors has shown no interest in producing the car.
