A small SUV produced by Jeep. Launched in 1986 as a model year 1987 vehicle, it replaced the Jeep CJ-7 and while not intended to be a military vehicle it is the modern descendant of the World War II Willys MB Jeep.

A Jeep Wrangler appears in the background of the cover of the 2016 book Lake Destiny by C.F. Walko.

History

The following section is an excerpt from Wikipedia's Jeep Wrangler page on 1 January 2017, text available via the Creative Commons Attribution-ShareAlike 3.0 Unported License.

The Jeep Wrangler is a compact and mid-size (Wrangler Unlimited models) four-wheel drive off-road vehicle manufactured by Jeep, currently in its third generation.

The Wrangler is arguably an indirect progression from the World War II Willys MB through the Willys civilian Jeeps (Jeep CJ) of the mid-1940s through 1980s that were produced by Kaiser-Jeep and by American Motors Corporation (AMC). Neither AMC nor Chrysler (after it purchased AMC in 1987) have claimed that the Wrangler was a direct descendant of the original military model.

Outwardly resembling the Jeep CJ-7, the Wrangler, which was formally announced in February 1986 at the 1986 Chicago Auto Show, was based on a new set of design parameters. "The product philosophy behind the two vehicles" François Castaing (AMC VP of Product Engineering) explained, "is completely different". Just like the Willys MB and the Jeep CJ, Wranglers continue to use a separate body and frame, rigid solid axles both front and rear, a fold-flat windshield, and can be driven without doors. But its suspension, drivetrain, and interior were borrowed from the new Cherokee (XJ) model.

The Wrangler debuted in 1986 as a new model after discontinuance of the famous Jeep model (CJ). It was revised in 1996, and completely redesigned in 2006. In addition to the model name Wrangler, each model received a designation corresponding to its generation: YJ (1986–1995), TJ (1997–2006), TJU's (commonly known as LJs- 2004–2006 Unlimited models, or YJL, in the Egyptian owners manual.), JKU (2007–present Unlimited models) and JK (2007–present). Foreign military versions of the Wrangler have carried the J8 designation which was initially dubbed TJL when first produced at Arab American Vehicle's Egyptian plant.

Jeep YJ models were manufactured between 1986 and 1995 at Brampton Assembly, and subsequently at the Toledo South Assembly plant. A major difference in the 1987–1995 models were the rectangular headlights, which reverted to rounded ones in the TJ and then JK versions. In 2006, Wrangler production was moved to Toledo Complex. Post-2006 Wranglers were set apart from their predecessors by the angle of the grille. In all previous models, the grille was flat and even with the front fenders. The newer Wrangler was constructed with a grille which angled out from the top, and then continued in a straight line from the midway point, toward the bottom. This decreased the hood length, while increasing the length of the fenders. In more recent models, this angle has been lowered more toward the bottom of the grille.

In Egypt, the YJ was produced as well as a long wheel-base version, dubbed LJ (or labeled as YJL in Egypt's Owners Manual), and which has retained the 2-door design. The YJL is considered as the first predecessor of the JK's long wheel-base by continuing as TJL (aka J8) which has directly inspired the JK's 4-door.

There is a Jeep Wrangler Pickup coming into production in 2017.

YJ (1987–1995)

Development of a potential CJ7 replacement was green-lighted in 1982, with engineering and design work (under Chuck Mashigan) commencing. After approval earlier in 1983, a final design freeze occurred by the fall of 1983, with CJ7-based mules being built in late 1983 and the first production body test prototypes in the spring of 1984. By late 1985, development concluded, as the transition from pilot to series production began. In February 1986, the 1987 Jeep Wrangler was unveiled, entering production that March, and going on sale on May 13, 1986.

The Jeep YJ, sold as the Wrangler in the United States, replaced the much-loved but slower-selling Jeep CJ in 1986 and was built in Brampton, Ontario, Canada, until the plant closed on April 23, 1992. Production was then moved to Toledo, Ohio, using the same plant that produced the Willys Jeeps during World War II. American Motors Corporation (AMC) had designed the new Jeep to be more comfortable on-road in an attempt to attract more daily drivers. It was an entirely new design with a wider track, slightly less ground clearance, and more comfort. The YJ still had leaf spring suspension similar to that of the CJ – however the springs were wider, and the YJs sported trackbars and swaybars for improved handling. Despite the new grille, the body is very similar to that of the CJ7, and it is interchangeable with some major modifications. The YJ also was given a larger windshield over the CJ. The YJs are easily identifiable due to the rectangular headlights and the fact that the wiper blades rest on the windshield giving this version a distinctive look. The blades rested on the windshield due to the now wider arc of the blades to clean the larger windshield. These two changes were later removed when the TJ was launched 1996. 632,231 YJs were built through model year 1995, although YJs were still sold into mid-1996, bringing the total production number to 685,071 units. Despite its similar look to the Jeep (CJ) its design was new from the ground up and had more in common with the newer downsized Cherokee (XJ) model.

TJ (1997–2006)

In 1990, development of a successor to the YJ began in Chrysler's "Jeep-Truck Engineering Pre-Program" department under Bob Sheaves and TJ program director, Craig Winn. Mules based on the YJ were built from 1990 to 1993, when formal approval was given for the TJ development program at a $260 million budget. From 1991 to 1992 designers worked at the new Chrysler Technical Center building on various design proposals. In late 1992, Michael Santoro's TJ proposal was chosen by Tom Gale, Lee Iacocca, and executive management. In May 1993, now with engineering and supplier input, Santoro's final Wrangler production design was frozen at 32 months ahead of initial assembly. Verification prototypes using production bodies were built from early 1994 and tested through late 1995. As YJ production ceased in December 1995, the last pre-production TJ examples were assembled, with start of series of production in January 1996.

Unveiled on January 2, 1996, at the 1996 Detroit Auto Show as an early 1997 model year introduction (1996 model year skipped), the TJ was an evolutionary update. It later arrived in Jeep showrooms in April 1996, after 6 years of overall investment and 36 month production development phase.

This updated Wrangler featured a coil-spring suspension (based on that of the Jeep Grand Cherokee) for better ride and handling, and a return to the classic CJ's round headlamps. The engine is the same 4.0 L AMC 242 Straight-6 used in the Cherokee and Grand Cherokee. A 2.5 L AMC 150 Inline-4 engine was available on entry-level models until 2002 when the 2.4 L DOHC 4-cylinder engine previously used on the Chrysler PT Cruiser replaced it.

A right hand drive version of the TJ was available for export markets, and was also offered for sale to U.S. rural route postal carriers. The version offered to U.S. postal carriers was only available with an automatic transmission.

JK (2007–present)

In 2001, DaimlerChrysler commissioned development of a TJ successor under the "JK" program code for the third generation Jeep Wrangler. Design work began almost instantly in 2001, with Mark Moushegian winning an internal design competition against Dan Zimmerman (later responsible for 2005 Jeep Hurricane Concept) by the second quarter of 2003. In January 2004, the JK design was frozen at 31 months ahead of production and work began on a conceptual preview.

On November 16, 2004, Jeep released 2 CAD renders of a Jeep pickup. On December 5, 2004, the 2005 Jeep Gladiator Concept was unveiled ahead of its January 2005 Detroit Auto Show debut, previewing many of the design elements on the incoming JK. The Wrangler JK was introduced at the 2006 North American International Auto Show with past Chrysler group CEO Tom LaSorda driving one up some steps and through a plate glass window, just as Robert Lutz had done at the show in January 1992 with the Grand Cherokee.

The 2007 model year brought a complete redesign of the Jeep Wrangler, and also a four-door model. The TJ chassis was replaced by an all new JK platform. This next-generation Wrangler was noticeably wider than the previous model, with a 3.4-inch (86 mm) wider track; and though the two-door model has a 2-inch (51 mm) longer wheelbase, it is actually 2.5 inches (64 mm) shorter in overall length than the TJ, allowing for a 44.3° approach angle and a 40.4° departure angle. With a larger factory available tire size of 32 inches, the breakover angle on the Rubicon is increased from 22.6° to 25.4°.

The four-door Unlimited model has an over 20-inch (510 mm) longer wheelbase at 116 in (2,950 mm) to offer much improved rear seating room, but is nevertheless only 2.4-inch (61 mm) longer than the 2006 TJ Unlimited.


Photographs

1991 Jeep Wrangler Renegade 1991 Renegade
for $17,500
2013 Mecum Chicago Auction
Photo ©2013 Bill Crittenden
View photo of 1991 Jeep Wrangler Renegade - 4.3MB
1991 Jeep Wrangler Renegade 1991 Renegade
for $17,500
2013 Mecum Chicago Auction
Photo ©2013 Bill Crittenden
View photo of 1991 Jeep Wrangler Renegade - 3.7MB

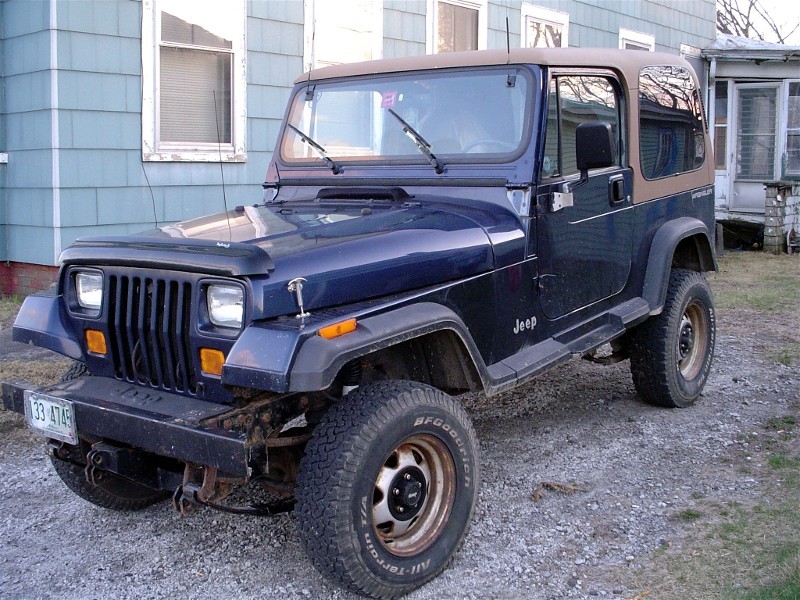

Jeep Wrangler Photo by Paul Anderson
View photo of Jeep Wrangler - 184KB
Jeep Wrangler Photo ©2010 Bill Crittenden
The Cars Time Forgot Car Show
View photo of Jeep Wrangler - 3,700KB
Jeep Wrangler Photo ©2010 Bill Crittenden
The Cars Time Forgot Car Show
View photo of Jeep Wrangler - 3,404KB
Jeep Wrangler Photo ©2010 Bill Crittenden
The Cars Time Forgot Car Show
View photo of Jeep Wrangler - 3,454KB

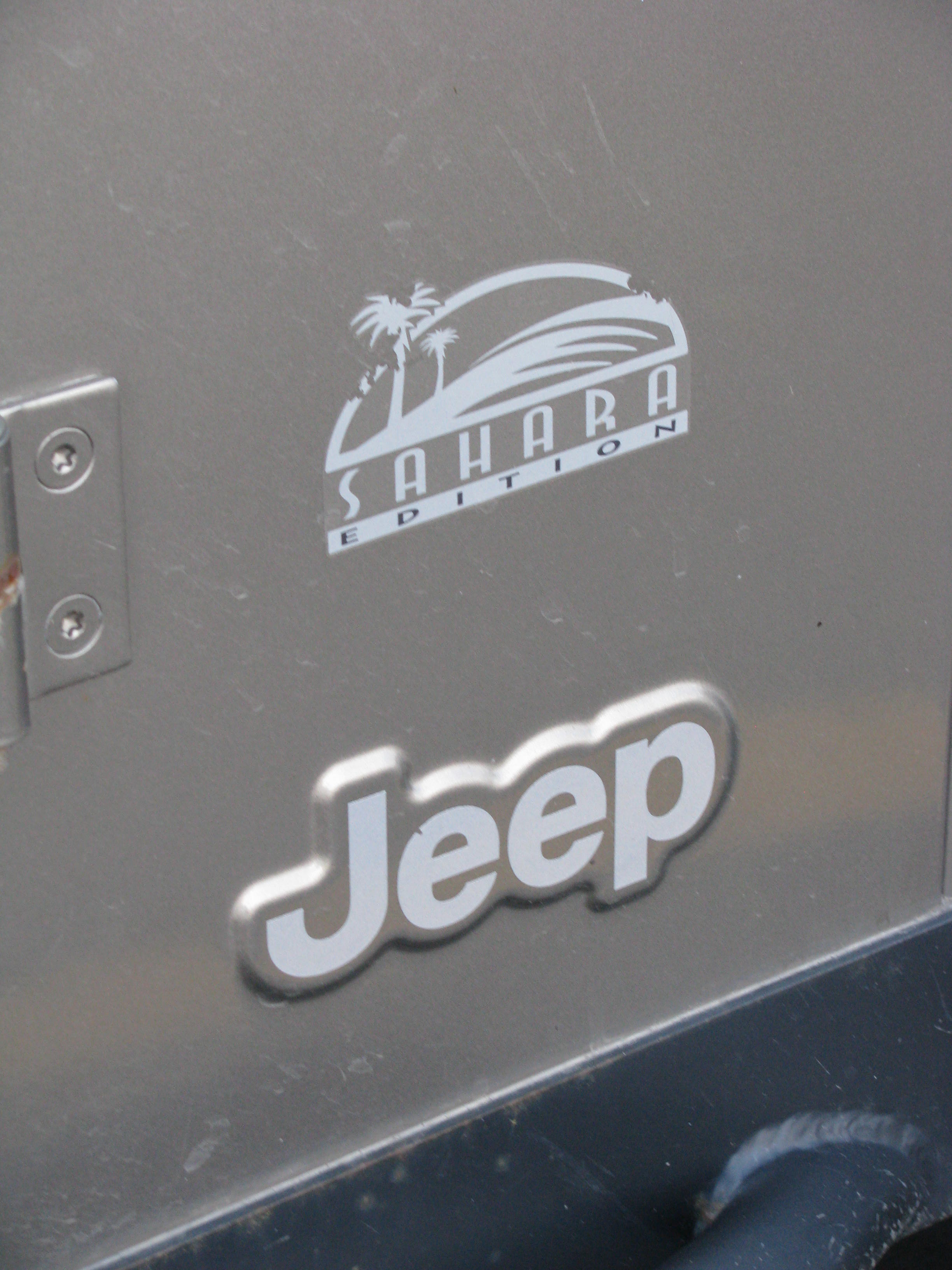

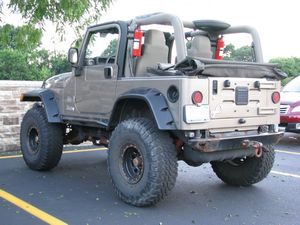

Modified Jeep Wrangler Sahara Modified Sahara
Photo ©2011 Bill Crittenden
July 2011 Meeting of C.A.R.S. in Miniature
View photo of Modified Jeep Wrangler Sahara - 3,264KB
Modified Jeep Wrangler Sahara Modified Sahara
Photo ©2011 Bill Crittenden
July 2011 Meeting of C.A.R.S. in Miniature
View photo of Modified Jeep Wrangler Sahara - 674KB

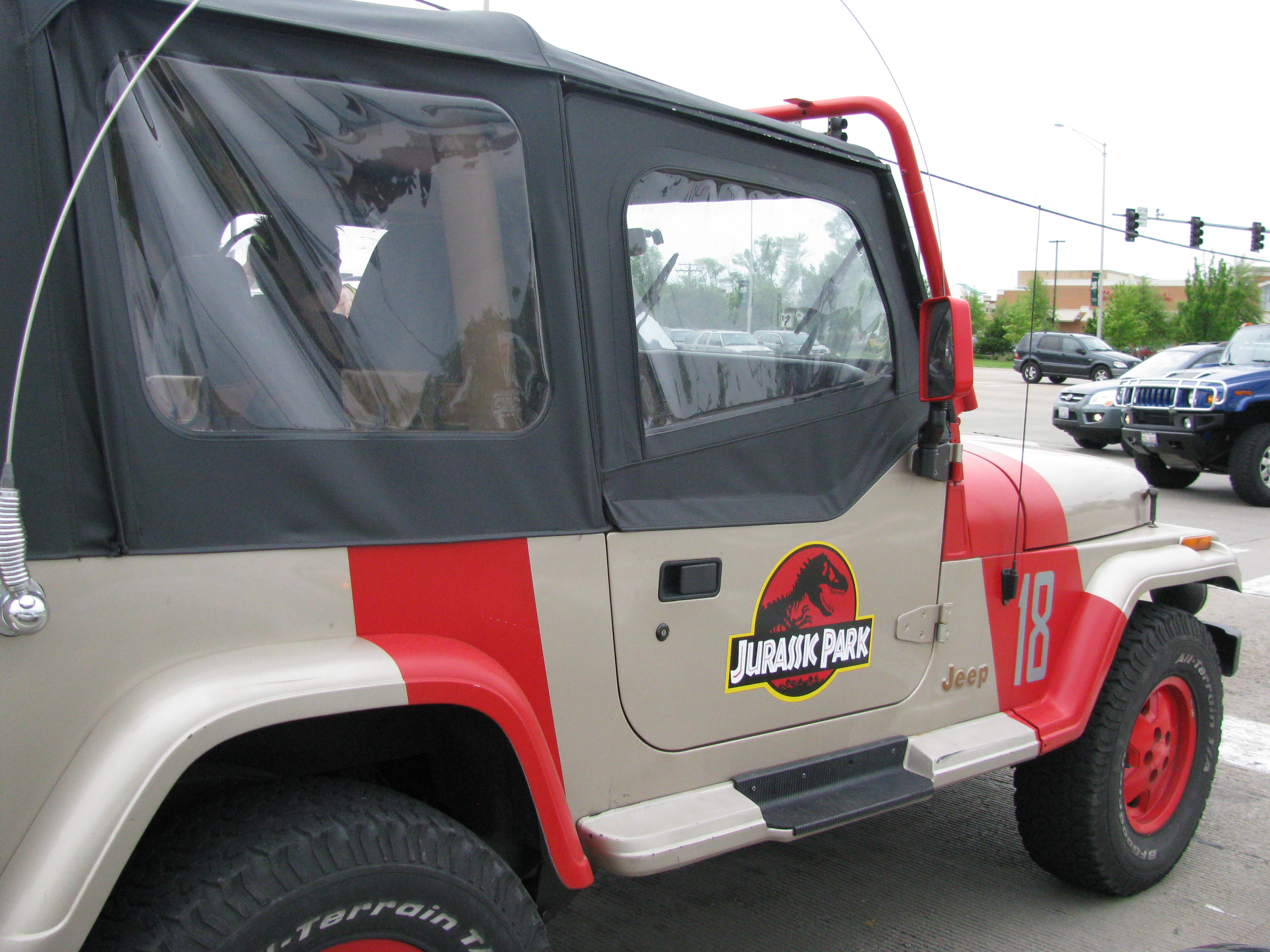

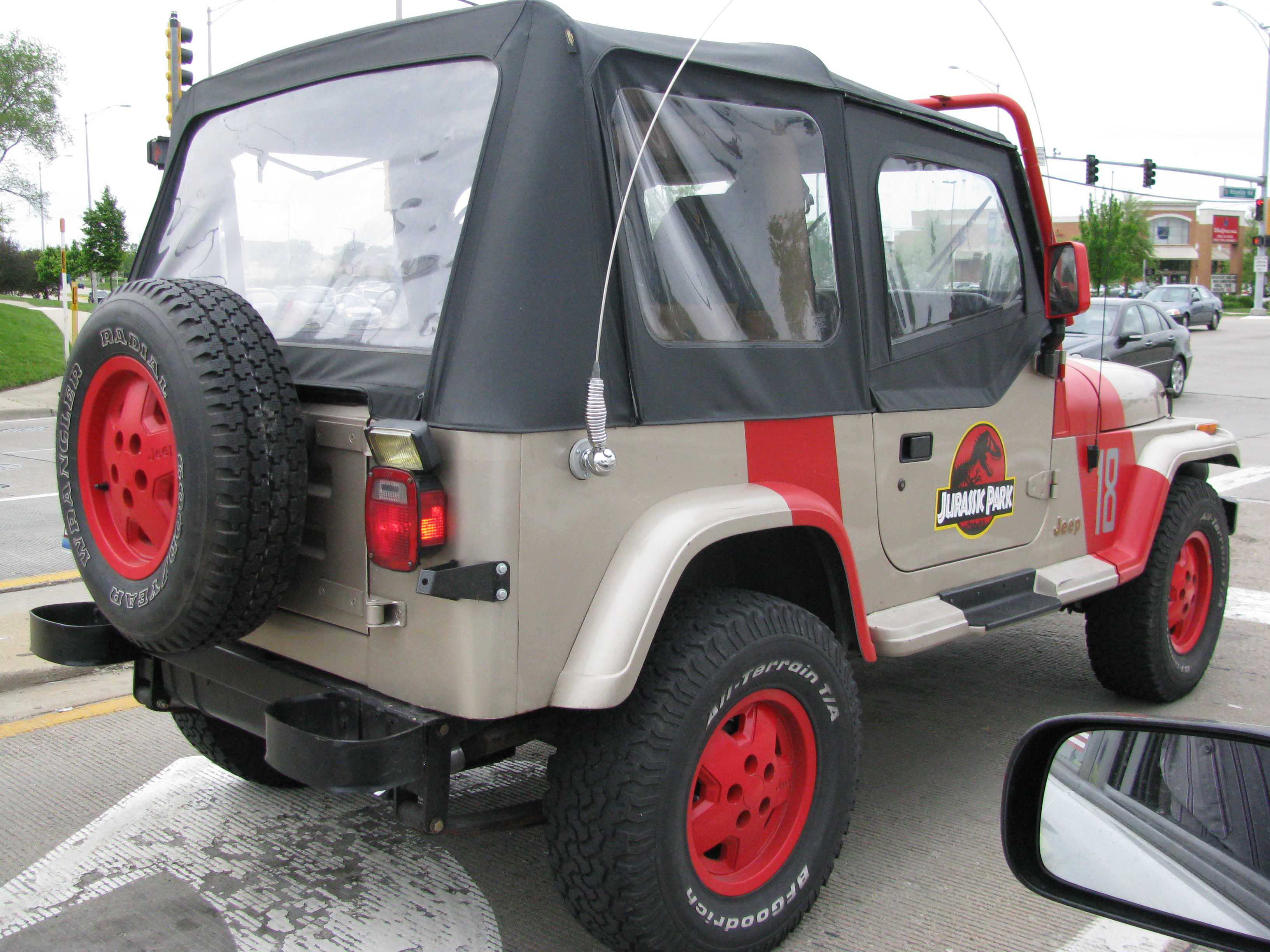

Jurassic Park Jeep Wrangler Jurassic Park
Photo ©2012 Bill Crittenden
View photo of Jurassic Park Jeep Wrangler - 3.7MB
Jurassic Park Jeep Wrangler Jurassic Park
Photo ©2012 Bill Crittenden
View photo of Jurassic Park Jeep Wrangler - 3.5MB

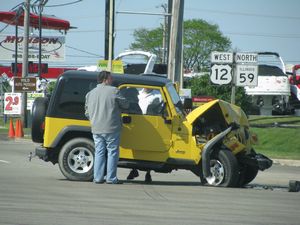

Jeep Wrangler Accident Accident at the intersection of Routes 12 & 120 in Volo, Illinois
Photo ©2012 Bill Crittenden
View photo of Jeep Wrangler Accident - 2.4MB


Documents

DateDocument Name & DetailsDocuments
November 1997Remote Redesigned Air Bag Report
Vehicle - 1998 Jeep Wrangler Sport
National Highway Traffic Safety Administration

PDF
- 149KB - 8 pages
10 July 2006Safety Compliance Testing for FMVSS No. 124: Accelerator Control Systems
2006 Jeep Wrangler SE 2-Door MPV
National Highway Traffic Safety Administration

PDF
- 2.2MB - 71 pages
22 September 2006Safety Compliance Testing for FMVSS 207: Seating Systems
2006 Jeep Wrangler 2-Door MPV
National Highway Traffic Safety Administration

PDF
- 6.9MB - 92 pages
12 September 2007Vehicle Safety Compliance Testing for FMVSS 208, Occupant Crash Protection; FMVSS 212, Windshield Mounting; FMVSS 219, Windshield Intrustion (Partial); FMVSS 301, Fuel System Integrity
2007 Jeep Wrangler MPV
National Highway Traffic Safety Administration

PDF
- 19.0MB - 371 pages
4 October 2007Safety Compliance Testing for FMVSS 118: Power-Operated Window, Partition, And Roof Panel Systems
2007 Jeep Wrangler Unlimited Sahara 4-DOor MPV
National Highway Traffic Safety Administration

PDF
- 2.7MB - 38 pages
7 June 2011NHTSA Recall 11V315000
2011 Chrysler 200, 2011 Chrysler Town & Country, 2011 Dodge Avenger, 2011 Dodge Caliber, 2011 Dodge Grand Caravan, 2011 Dodge Journey, 2011 Dodge Nitro, 2011 Jeep Compass, 2011 Jeep Liberty, 2011 Jeep Patriot, 2011 Jeep Wrangler
National Highway Traffic Safety Administration
Recall Page - 1 page
7 June 2011Updated Defect Information Report for Chrysler Group LLC
From: David D. Dillon, Chrysler Group, LLC
To: Claude Harris, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 340KB - 4 pages
14 June 2011Steering Column
From: Jennifer Timian, National Highway Traffic Safety Administration
To: David Dillon, Chrysler Group, LLC
NHTSA Recall 11V315000

PDF
- 26KB - 3 pages
28 June 2011NHTSA Identification Number 11V-315
From: David D. Dillon, Chrysler Group, LLC
To: Claude Harris, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 26KB - 1 page
28 June 2011Safety Recall L23: Steering Column Pivot Rivets
From: David D. Dillon, Chrysler Group, LLC
To: Claude Harris, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 234KB - 2 pages
July 2011Safety Recall L23: Steering Column Pivot Rivets
Chrysler Group, LLC
NHTSA Recall 11V315000

PDF
- 3.7MB - 11 pages
7 October 2011RECALL QUARTERLY REPORT -- QUARTER ENDING 9/30/11
From: David R. Bernier, Chrysler Group, LLC
To: Claude Harris, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 56KB - 3 pages
6 January 2012RECALL QUARTERLY REPORT -- QUARTER ENDING 12/31/11
From: David R. Bernier, Chrysler Group, LLC
To: Nancy Lummen Lewis, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 85KB - 2 pages
2 April 2012RECALL QUARTERLY REPORT -- QUARTER ENDING 3/31/12
From: David D. Dillon, Chrysler Group, LLC
To: Nancy Lummen Lewis, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 38KB - 2 pages
6 July 2012RECALL QUARTERLY REPORT -- QUARTER ENDING 6/30/12
From: David D. Dillon, Chrysler Group, LLC
To: Nancy Lummen Lewis, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 104KB - 2 pages
5 October 2012RECALL QUARTERLY REPORT -- QUARTER ENDING 9/30/12
From: David R. Bernier, Chrysler Group, LLC
To: Nancy Lummen Lewis, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 39KB - 2 pages
7 January 2013RECALL QUARTERLY REPORT -- QUARTER ENDING 12/31/12
From: David R. Bernier, Chrysler Group, LLC
To: Nancy Lummen Lewis, National Highway Traffic Safety Administration
NHTSA Recall 11V315000

PDF
- 1.1MB - 2 pages


2007 Specifications

Unlimited Rubicon
Vehicle Type4-door removable hardtop SUV
Body TypeFull-length frame
Body MaterialWelded steel stampings
DrivetrainF 4x4
Engine TypeIron block/aluminum head V6
Engine Displacement231 cu. in./3778cc
Engine Bore & Stroke96.0mm x 87.0mm
Engine Compression Ratio9.6:1
Valvetrain12-valve pushrod, hydraulic lifters
Fuel SystemPort Fuel Injection
Horsepower (SAE Net)205 bhp @ 5200 rpm
Torque (SAE Net)240 lb.-ft. @ 4000 rpm
Engine RPM Limit5500 rpm
Transmission6-speed manual
4-Wheel Drive SystemPart-time with manually locking front and rear differentials and high/low range
First Gear Ratio4.46
First Gear MPH per 1000 RPM (low range/high range)1.3/5.0
First Gear Maximum Speed (low range)7 mph @ 5500 rpm
First Gear Maximum Speed (high range)28 mph @ 5500 rpm
Second Gear Ratio2.61
Second Gear MPH per 1000 RPM (low range/high range)2.2/8.6
Second Gear Maximum Speed (low range)12 mph @ 5500 rpm
Second Gear Maximum Speed (high range)47 mph @ 5500 rpm
Third Gear Ratio1.72
Third Gear MPH per 1000 RPM (low range/high range)3.3/13.1
Third Gear Maximum Speed (low range)18 mph @ 5500 rpm
Third Gear Maximum Speed (high range)72 mph @ 5500 rpm
Fourth Gear Ratio1.25
Fourth Gear MPH per 1000 RPM (low range/high range)4.5/18.0
Fourth Gear Maximum Speed (low range)25 mph @ 5500 rpm
Fourth Gear Maximum Speed (high range)98 mph @ 5450 rpm
Fifth Gear Ratio1.00
Fifth Gear MPH per 1000 RPM (low range/high range)5.6/22.5
Fifth Gear Maximum Speed (low range)31 mph @ 5500 rpm
Fifth Gear Maximum Speed (high range)98 mph @ 4350 rpm
Sixth Gear Ratio0.84
Sixth Gear MPH per 1000 RPM (low range/high range)6.7/26.8
Sixth Gear Maximum Speed (low range)37 mph @ 5500 rpm
Sixth Gear Maximum Speed (high range)98 mph @ 3650 rpm
Transfer Case Ratio (low range/high range4.00:1/1.00:1
Final Drive Ratio4.10:1
Front SuspensionRigid axle with 4 leading links, Panhard rod, coil springs, manually engaging anti-roll bar
Rear SuspensionRigid axle with 4 trailing links, Panhard rod, coil springs, anti-roll bar
Steering Ratio14.7:1
Steering Wheel Turns Lock-to-Lock (C/D test)3.0
Turning Circle (curb-to-curb)41.2'
BrakesHydraulic w/vacuum assist, ABS, panic assist
Front Brakes11.9" x 1.1" vented disc
Rear Brakes12.4" x .5" disc
Wheelbase116.0"
Length173.4"
Front Track61.9"
Rear Track61.9"
Width73.9"
Height74.3"
Ground Clearance10.1"
Front Headroom41.3"
Front Legroom41.0"
Front Shoulder Room55.8"
Front Seat Volume (SAE)55 cu. ft.
Rear Headroom40.4"
Rear Legroom37.2"
Rear Shoulder Room56.8"
Rear Seat Volume (SAE)49 cu. ft.
Rear Storage Volume (rear seats up/rear seats folded)46/87 cu. ft.
Towing Capacity3500 lb.
Tire SizeLT255/75R-17
Spare TireFull size on matching wheel
Fuel Capacity25.5 gallons
Fuel Economy15 city/19 highway (EPA)
Maximum Speed98 mph (governor limited)
1/4 Mile (C/D test)18.1 seconds @ 76 mph
Skidpad (200' diameter) (C/D test).61g
Braking (70-0 mph) (C/D test)217'
Curb Weight (C/D test)4400 lb.
Weight Distribution (C/D test)51.4% front/48.6% rear
C/D test at 91F, 17% humidity, 27.30" Hg, tire inflation 33psi

Merchandise

Type & Item #NameDetails
Die Cast - Maisto 15001Jeep Wrangler SaharaFresh Metal, small scale, dark red w/grey top


Article Index

DateArticleAuthor/Source
22 August 2002The Ultimate SUV - an Amphibious Four Wheel Drive!earthwheels.com
12 July 2007DaimlerChrysler Recalls '07 Wranglers, NitrosAnthony Fontanelle
4 April 2008Jeep Wrangler, One Of The WorstAnthony Fontanelle
8 January 2009Jeep Wrangler JK 'Weekender' Inspired by Jeep OwnersRealWheels Corporation
28 February 2013Notice of Receipt of Petition for Decision That Nonconforming 2003 Jeep Wrangler Multi-Purpose Passenger Vehicles Manufactured for Sale in the Mexican Market Are Eligible for ImportationFederal Register: NHTSA (Claude H. Harris)
1 November 2013Notice of Receipt of Petition for Decision That Nonconforming 1992 Jeep Wrangler Multi-Purpose Vehicles Are Eligible for ImportationFederal Register: NHTSA (Claude H. Harris)
20 November 2013Get Off Your Horse - Here's A Real Jeep Geoff Maxted, DriveWrite Automotive
31 December 2013Synergy Steering and Suspension Parts for Jeep Wranglers Now Offered by 4WD4Wheel Drive Hardware
20 March 2015NHTSA Safety Complaint 10695560: 2012 Jeep Wrangleranonymous
4 December 2015Pro-M Racing Announces Their Jeep TJ V8 Conversion EFI SystemPro-M Racing Inc.
17 December 20154WD Awards Winner in Ultimate Rugged Wrangler Giveaway Sweepstakes4Wheel Drive Hardware
25 February 2016New at Summit Racing Equipment: Off-Road Gear for Jeep Wrangler JKSummit Racing Equipment
8 March 2016New at Summit Racing Equipment: SPC Performance xAxis Control Arms for Jeep Wrangler JKSummit Racing Equipment
17 March 2016New at Summit Racing Equipment: Edelbrock E-Force Supercharger Kits for Jeep WranglerSummit Racing Equipment
6 April 2016Commando Tactical Edition™ Jeep to be Auctioned at Barrett-Jackson Palm Beach Will Benefit Patriot Foundation4 Wheel Parts
12 May 2016Notice of Receipt of Petition for Decision That Nonconforming Model Year 2012 Jeep Wrangler Multipurpose Passenger Vehicles Manufactured for the Mexican Market Are Eligible for ImportationFederal Register: NHTSA (Jeffrey M. Giuseppe)
27 July 2016New at Summit Racing Equipment: Rock Krawler Suspension Kits for JeepSummit Racing Equipment
4 August 2016Military AutoSource Introduces Two Special-Edition Jeep Warrior Models for U.S. Military Serving OverseasMilitary AutoSource
4 August 2016New at Summit Racing Equipment: Flowmaster American Thunder Exhaust System for Jeep Wrangler JKSummit Racing Equipment
9 August 2016New at Summit Racing Equipment: UnderCover Nighthawk Light Brows for Jeep Wrangler JKSummit Racing Equipment
19 August 2016New at Summit Racing Equipment: PowerNation TV Xtreme Off-Road WD40 Specialist Jeep Parts CombosSummit Racing Equipment
11 April 2017Notice of Receipt of Petition for Decision That Nonconforming Model Year 2010 Jeep Wrangler Multipurpose Passenger Vehicles (MPV) Are Eligible for ImportationFederal Register: NHTSA (Jeffrey M. Giuseppe)
18 October 2017Organized Storage Unit Invented for Jeep Wrangler Soft Top (LGI-2480)InventHelp
19 October 2017Petition for Exemption From the Federal Motor Vehicle Theft Prevention Standard; Fiat Chrysler Automobiles US LLCFederal Register: NHTSA (Raymond R. Posten)
2 March 2018Notice of Receipt of Petition for Decision That Nonconforming Model Year 2007 Jeep Wrangler Multipurpose Passenger Vehicles Are Eligible for ImportationFederal Register: NHTSA (Claudia Covell)
25 May 2018Consumer Advisory: Owners of Certain Fiat Chrysler Automobiles Should Stop Using Cruise ControlNHTSA


Connect with The Crittenden Automotive Library

The Crittenden Automotive Library at Google+ The Crittenden Automotive Library on Facebook The Crittenden Automotive Library on Instagram The Crittenden Automotive Library at The Internet Archive The Crittenden Automotive Library on Pinterest The Crittenden Automotive Library on Twitter The Crittenden Automotive Library on Tumblr



The Crittenden Automotive Library

Home Page    About Us    Contribute
