Ford Edge |
|---|
|
A crossover SUV produced by Ford.
The unibody chassis is based on that of the Mazda 6/Ford Fusion.
|
Page Sections
Bibliography Photographs Documents 2007 Specifications Article Index |
| Title & Subtitle | Details |
|---|---|
2009 Edge, MKX Workshop Manual Volume 1 | Year & Type: 2009 Service Manual Publisher: Ford Motor Company Dimensions: 8.5" x 11" softcover Content: 1,500+ pages w/black & white illustrations Topics: Ford Edge, Lincoln MKX Availability: Reference Desk |
2009 Edge, MKX Workshop Manual Volume 2 | Year & Type: 2009 Service Manual Publisher: Ford Motor Company Dimensions: 8.5" x 11" softcover Content: 600+ pages w/black & white illustrations Topics: Ford Edge, Lincoln MKX Availability: Reference Desk |
2009 Edge, MKX Wiring Diagrams | Year & Type: 2009 Service Manual Publisher: Ford Motor Company Dimensions: 11" x 8.5" softcover Content: 1,500+ pages w/black & white illustrations Topics: Ford Edge, Lincoln MKX Availability: Reference Desk |
2010 Edge, MKX Wiring Diagrams | Year & Type: 2010 Service Manual Publisher: Ford Motor Company Dimensions: 11" x 8.5" softcover Content: 1,500+ pages w/black & white illustrations Topics: Ford Edge, Lincoln MKX Availability: Reference Desk |
 |
2013 Limited AWD in Mineral Gray Metallic Photo ©2013 Bill Crittenden 2013 Woodstock High School Car Show View photo of 2013 Ford Edge Limited AWD in Mineral Gray Metallic - 3.9MB |
 |
2013 Limited AWD in Mineral Gray Metallic Photo ©2013 Bill Crittenden 2013 Woodstock High School Car Show View photo of 2013 Ford Edge Limited AWD in Mineral Gray Metallic - 4.1MB |
 |

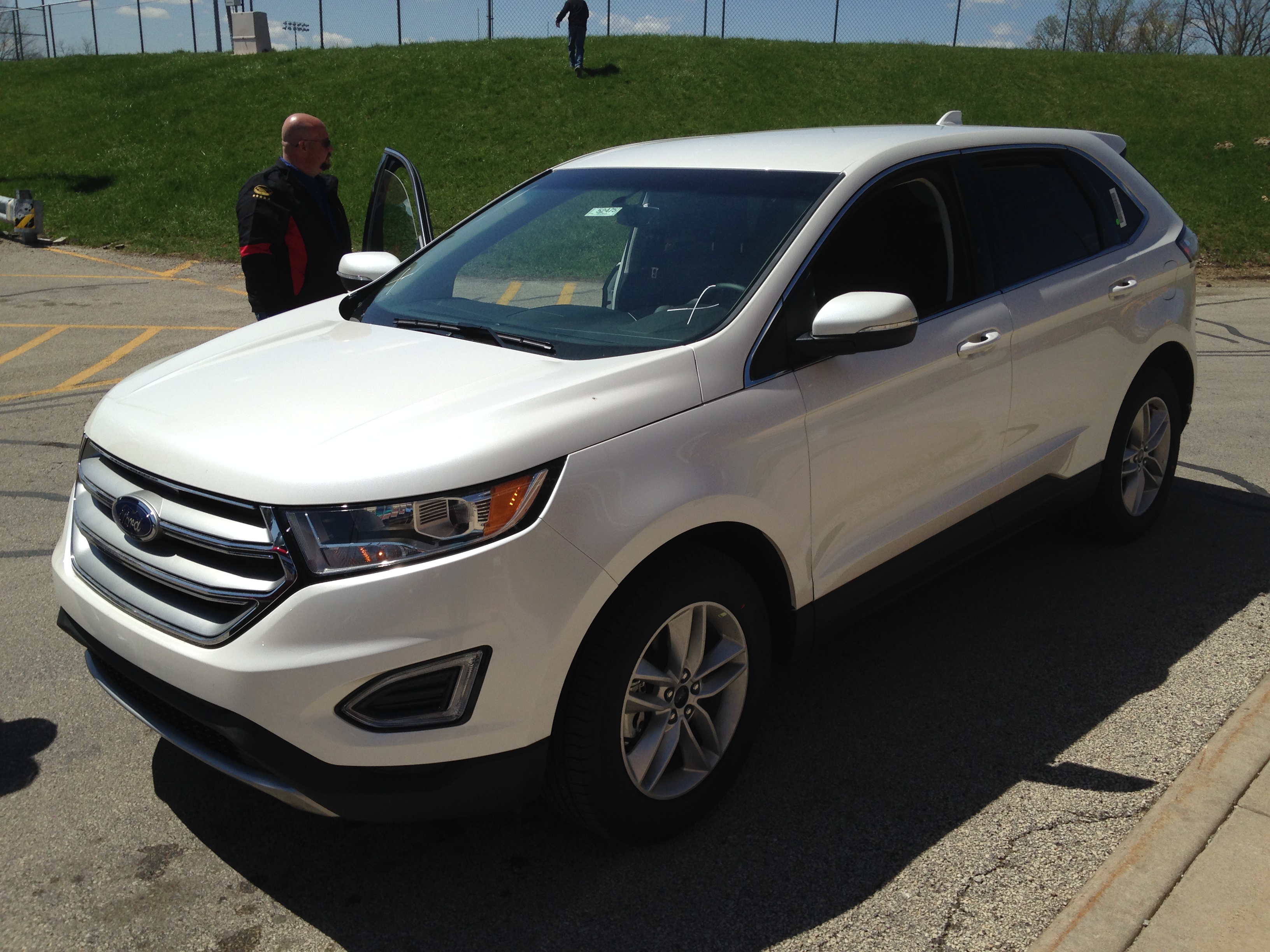

2015 SEL AWD Photo ©2015 Bill Crittenden View photo of 2015 Ford Edge SEL AWD - 2.0MB |
 |

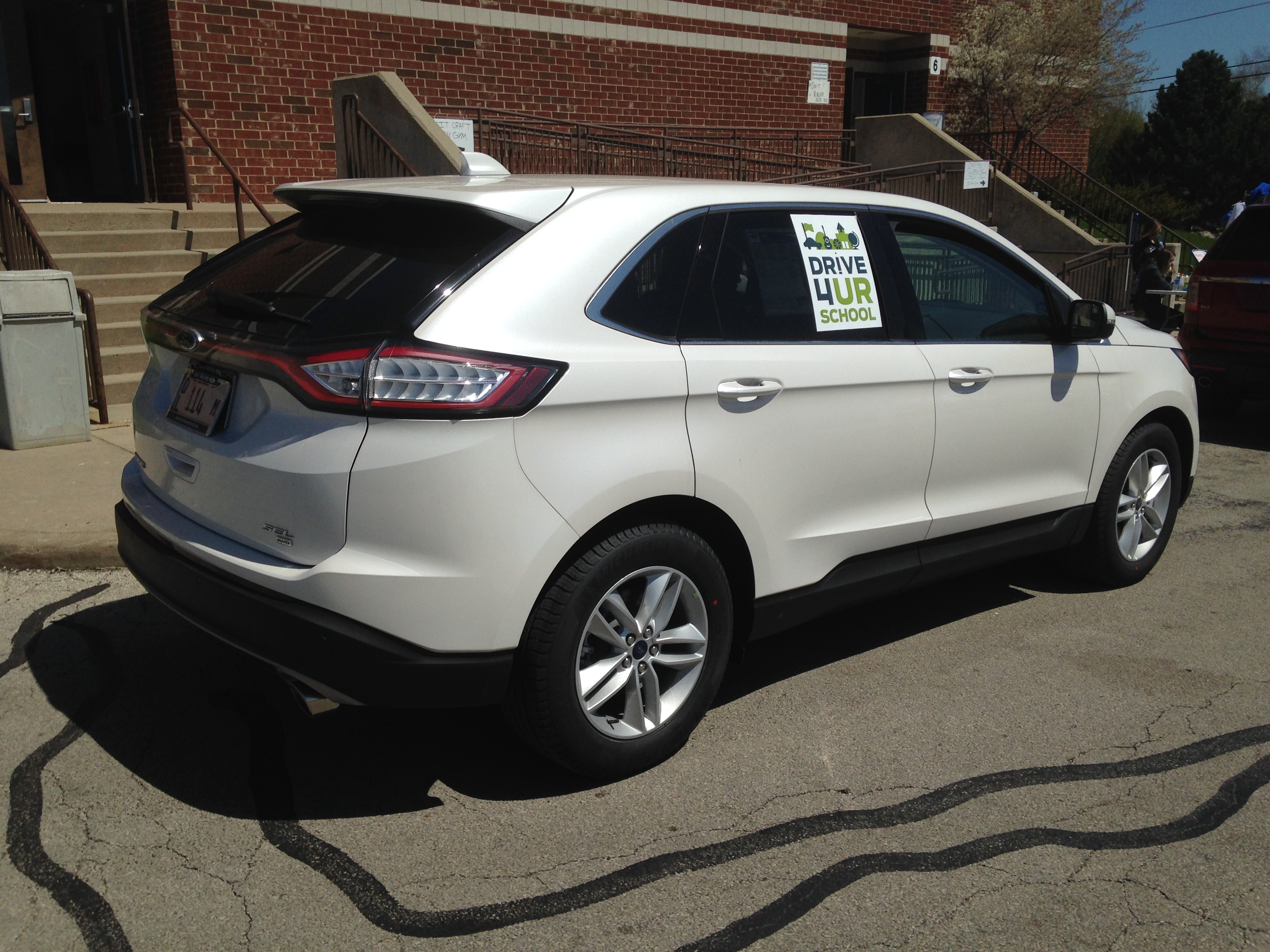

2015 SEL AWD Photo ©2015 Bill Crittenden View photo of 2015 Ford Edge SEL AWD - 2.2MB |
| Date | Document Name & Details | Documents |
|---|---|---|
| 12 January 2007 | Safety Compliance Testing for FMVSS 214: Side Impact Protection (Indicant) 2007 Ford Edge SUV National Highway Traffic Safety Administration |  PDF - 17.2MB - 392 pages |
| 23 August 2007 | Safety Compliance Testing for FMVSS 201: Rigid Pole Side Impact Test 2007 Ford Edge-SE National Highway Traffic Safety Administration | PDF - 6.5MB - 140 pages |
| 1 October 2007 | Safety Compliance Testing for FMVSS 201: Occupant Protection in Interior Impact, Upper Interior Head Impact Protection 2007 Ford Edge National Highway Traffic Safety Administration | PDF - 7.6MB - 175 pages |
| 2 July 2008 | Safety Compliance Testing for FMVSS 118: Power-Operated Window, Partition, And Roof Panel Systems 2008 Ford Edge, MPV National Highway Traffic Safety Administration | PDF - 2.1MB - 30 pages |
| 15 September 2008 | Safety Compliance Testing for FMVSS 225: Child Restraint Anchorage Systems (Lower and Tether Anchorages) 2008 Ford Edge, MPV National Highway Traffic Safety Administration | PDF - 8.1MB - 104 pages |
| 7 November 2008 | Vehicle Safety Compliance Testing for FMVSS 208, Occupant Crash Protection; FMVSS 212, Windshield Mounting; FMVSS 219, Windshield Intrustion (Partial); FMVSS 301, Fuel System Integrity 2008 Ford Edge MPV National Highway Traffic Safety Administration | PDF - 29.6MB - 335 pages |
| 5 March 2009 | Safety Compliance Testing for FMVSS No. 110: Tire Selection and Rims 2009 Ford Edge SE Four-Door MPV National Highway Traffic Safety Administration | PDF - 3.0MB - 43 pages |
| 25 March 2009 | Safety Compliance Testing for FMVSS No. 138: Tire Pressure Monitoring Systems 2009 Ford Edge SE Four-Door MPV National Highway Traffic Safety Administration | PDF - 3.9MB - 79 pages |
| 8 June 2009 | Safety Compliance Testing for FMVSS 118: Power-Operated Window, Partition, And Roof Panel Systems 2009 Ford Edge 5-Door MPV National Highway Traffic Safety Administration | PDF - 8.8MB - 70 pages |
| 17 June 2009 | Safety Compliance Testing for FMVSS No. 111: Rearview Mirrors (Other Than School Buses) 2009 Ford Edge 5-Door MPV National Highway Traffic Safety Administration | PDF - 9.9MB - 86 pages |
| 25 June 2009 | Safety Compliance Testing for FMVSS No. 124: Accelerator Control Systems 2009 Ford Edge 5-Door MPV National Highway Traffic Safety Administration | PDF - 3.1MB - 50 pages |
| July 2009 | Remote Not in Traffic Surveillance Hyperthermia Investigation Vehicle - 2007 Ford Edge SEL National Highway Traffic Safety Administration | PDF - 1,822KB - 19 pages |
| 31 July 2009 | Safety Compliance Testing for FMVSS 207: Seating Systems 2009 Ford Edge 5-Door MPV National Highway Traffic Safety Administration | PDF - 11.7MB - 133 pages |
| 30 November 2011 | Safety Compliance Testing for FMVSS 126: Electronic Stability Control Systems 2011 Ford Edge National Highway Traffic Safety Administration | PDF - 5.4MB - 65 pages |
| SEL Plus AWD | |
|---|---|
| Vehicle Type | 4-door SUV |
| Body Type | Unibody with rubber-isolated subframe |
| Body Material | Welded steel stampings |
| Drivetrain | F 4x4 |
| Engine Type | Aluminum V6 |
| Engine Displacement | 213 cu. in./3496cc |
| Engine Bore & Stroke | 92.5mm x 86.7mm |
| Engine Compression Ratio | 10.3:1 |
| Valvetrain | 24-valve chain-driven DOHC with variable intake valve timing |
| Fuel System | Port fuel injection |
| Horsepower | 265 @ 6250 rpm |
| Torque | 250 @ 4500 rpm |
| Maximum Engine RPM | 6500 |
| Transmission | 6-speed automatic |
| 4-Wheel Drive System | Full time with automatic rear axle engagement |
| First Gear Ratio | 4.84 |
| First Gear MPH per 1000 RPM | 6.0 |
| First Gear Maximum Speed | 37 mph @ 6100 rpm |
| Second Gear Ratio | 2.87 |
| Second Gear MPH per 1000 RPM | 9.4 |
| Second Gear Maximum Speed | 59 mph @ 6250 rpm |
| Third Gear Ratio | 1.84 |
| Third Gear MPH per 1000 RPM | 14.6 |
| Third Gear Maximum Speed | 91 mph @ 6250 rpm |
| Fourth Gear Ratio | 1.41 |
| Fourth Gear MPH per 1000 RPM | 19.1 |
| Fourth Gear Maximum Speed | 111 mph @ 5800 rpm |
| Fifth Gear Ratio | 1.00 |
| Fifth Gear MPH per 1000 RPM | 26.9 |
| Fifth Gear Maximum Speed | 111 mph @ 4100 rpm |
| Sixth Gear Ratio | 0.74 |
| Sixth Gear MPH per 1000 RPM | 36.4 |
| Sixth Gear Maximum Speed | 111 mph @ 3050 rpm |
| Final Drive Ratio | 3.16:1 |
| Front Suspension | Independent, strut located by control arm, coil springs, anti-roll bar |
| Rear Suspension | Indpendent, 1 training link and 3 lateral links per side, coil springs, anti-roll bar |
| Steering Ratio | 17.7:1 |
| Steering Wheel Turns Lock-to-Lock (C/D test) | 3.1 |
| Turning Circle (curb-to-curb) | 38.5' |
| Brakes | Hydraulic with vacuum assist, ABS |
| Front Brakes | 12.6" x 1.1" vented disc |
| Rear Brakes | 11.9" x 1.1" vented disc |
| Traction Control | Brake-based |
| Wheelbase | 111.2" |
| Length | 185.7" |
| Width | 75.8" |
| Height | 67.2" |
| Front Track | 65.1" |
| Rear Track | 64.9" |
| Ground Clearance | 6.0" |
| Front Headroom | 37.8" |
| Front Legroom | 40.7" |
| Front Shoulder Room | 58.9" |
| Front Seat Volume (SAE) | 52 cu. ft. |
| Rear Headroom | 38.7" |
| Rear Legroom | 39.6" |
| Rear Shoulder Room | 58.8" |
| Rear Seat Volume (SAE) | 52 cu. ft. |
| Rear Area Volume (rear seats up/rear seats down) | 32 cu. ft./70 cu. ft. |
| Audio System (optional) | 9-speaker Audiophile AM/FM/CD-changer/Sirius Satellite Radio |
| Towing Capacity | 3500 lb. |
| Tire Size | P245/60R-18 104T |
| Spare Tire | Compact |
| Fuel Capacity | 20.0 gallons |
| Fuel Economy | 16 city/24 highway (EPA) |
| Maximum Speed | 111 mph (governor limited) |
| 0-60 MPH (C/D test) | 7.6 seconds |
| 1/4 Mile (C/D test) | 16.0 seconds @ 87 mph |
| Skidpad (300' diameter) (C/D test) | .75g |
| Braking (70-0 mph) (C/D test) | 191' |
| MSRP (Base) | $31,395 |
Standard equipment includes:
Optional Equipment
| Date | Article | Author/Source |
|---|---|---|
| 22 January 2008 | Ford Edge Oxygen Sensor and the Right Fuel Mix | Anthony Fontanelle |
| 11 February 2008 | Customized Ford Edge Unveiled At Chicago Auto Show | Anthony Fontanelle |
| 11 September 2009 | SUV Review: The 2009 Ford Edge | Andy Zain |
| 18 January 2013 | Petition for Exemption From the Vehicle Theft Prevention Standard; Ford Motor Company | Federal Register: NHTSA (Christopher J. Bonanti) |
